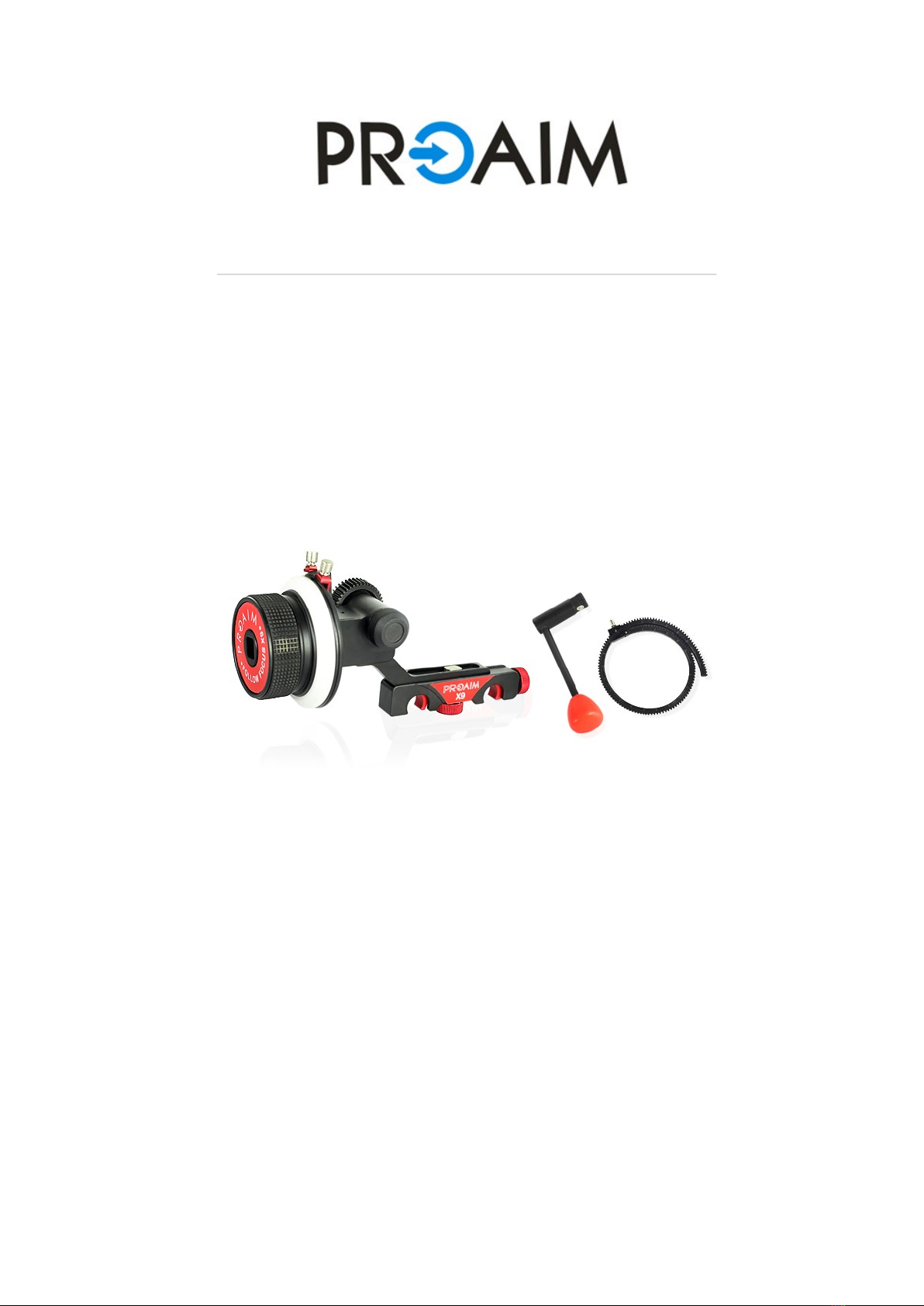

Follow Focus X9 GEAR

I N S T R U C T I O N M A N U A L

FF-X9

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

PROAIM X9 FOLLOW FOCUS 2

I N T R O D U C T I O N

PROAIM FOLLOW FOCUS X9 is an Allows extremely focusing lenses to be geared and used with

follow focus industry standard 0.8 module. This is Adjustable slide mounng mechanism to t

any lens diameter use Horizontal and vercal adjustment , Adjustable locking system and Smooth

controlled operaon. It has Mounts onto 15mm Rod Support (60mm center to center dierence).

Its Gear ring with Unique locking method to prevent loose rack, works on any prime or zoom

lens.

I N T H E B O X

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below. The grey foam shipping /storage container has been especially

designed to protect your purchase while in transit and is a good place to keep your follow focus

when not in use.

Follow focus X9 Flexible Gear Ring

Speed Crank

A S S E M B L I N G O F X 9 F O L L O W F O C U S

 Wrap the Flexible gear ring around lens cut to size , ght on gear locking focusing ring.

Tighten the gear properly with provided screw.

PROAIM X9 FOLLOW FOCUS 3

 Follow Focus X9 has two hard stops,

both are adjustable and the gear box

provides nearly play-free movement.

 Insert the X9 follow focus on 15mm

rods by loosening the side knob, aer

mounng ghten the side knob to

secure properly. Adjust the follow

focus slightly to make contact with the

gear ring aached to the camera.

 Adjust the Follow Focus horizontally according to your lens by marked Knob.

NOTE : You can use speed crank for precision

controlled manual focus racking.

PROAIM X9 FOLLOW FOCUS 4

NOW YO UR CA M E R A WI T H X 9 FOLLOW F OCUS I S REA DY TO USE

WARRANTY

We oer a limited me warranty for our products. For Mechanical products we provide a 6

month warranty & for electronic products we provide a 3 month warranty from the date of

purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, Nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

best to help you out.

For any other assistance you can reach us via email.

Shown with oponal accessories

PROAIM X9 FOLLOW FOCUS 5
