PROAIM CINEMA TP-QUADO Manual de usuario

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Quado 4-Leg Mitchell Camera Tripod Stand (TP-QUADO)

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Bag Packing

Quado 4-Leg Mitchell

Camera Tripod Stand

 Loosen the telescopic ratchet knob of the

Quado Stand to extend the legs.

Note: Quado stand has an angle marking of

0-9 on all the legs. Angle markings make sure all

the stand legs are out at the same angle.

 Loosen the leg rotang knob of the quado

stand, open all four legs equally according to

the requirement and ghten the knob back.

 Tighten the ratchet knob to the desired angle

according to your setup requirements.

Quado 4-Leg Mitchell Base Stand Setup

Note: Quado can go down at on the oor as

4" and funcon just as low as a hi-hat, or as a

1'6" mini stand or go up as high as full 3'9"

height.

Fluid Head Mounng on Quado Stand

 To mount a 100mm or 150mm or any other

uid head (Not-Included) on the Quado

Mitchell Base Stand, you must rst install a

150mm bowl mount (Not-Included), as

shown in the images.

Note: Four locking knobs help to set the Stand

legs accurately and rmly. In addion, a

toothed locking mechanism on the top of the

legs helps securely lock the legs at the desired

posion.

YOUR PROAIM QUADO 4-LEG MITCHELL CAMERA TRIPOD STAND

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

most support and care unl you use our product.

Note: It works eciently with equipment such

as Camera Slider and Geared Heads. When

using with Sliders, open the legs as per the

length of the Slider for beer Stability.

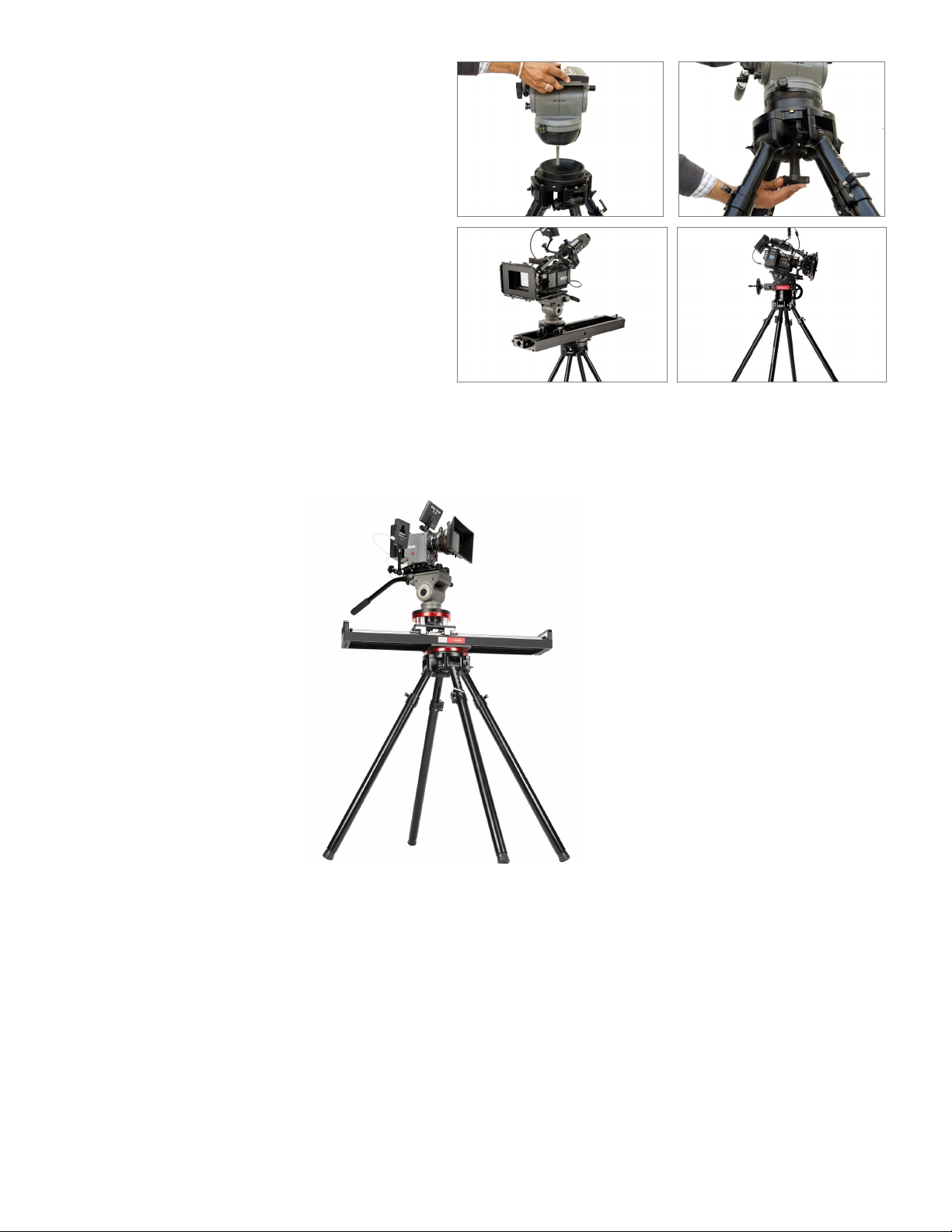

 To mount 150mm uid head (Not-

Included) , insert it into the bowl through the

screw and secure it with the knob at the

boom. Now you can mount the camera set-

up as per your requirement.
