PROAIM CINEMA Series Manual de usuario
1

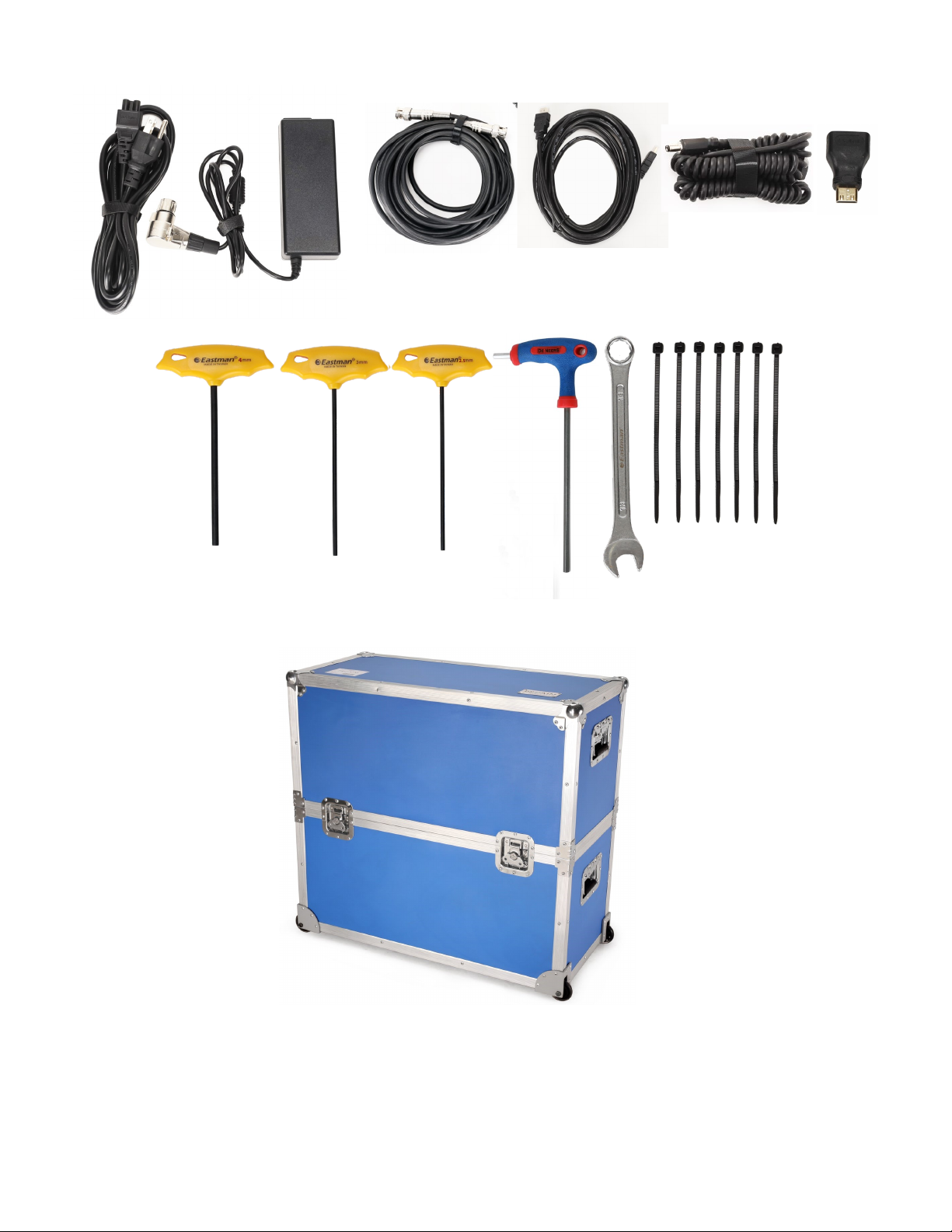

What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Powermac Scissor 17 Telescopic Camera Jib Crane (JB-SCSR-00)
Assembly Manua l
Ronin Controller
Bracket
Monitor Arm
Weight Rod Hub Locking Knob
17 Powermac Scissor Jib with
Gimbal Fluid Head
3 x Guide Rods
2 x Weight
Closers
Jib Controller
BNC Wire
15V AC Adapter
4mm Allen Key 3mm Allen Key 2.5mm Allen 3/16 Wrench
Allen Key
Cable Tie
Flight Case
HDMI Male to
Male Wire
Female to
Female
Connector
Female to Female
Connector
2
Safety Hints
ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO CRANE!
BE HIGHLY VIGILANT WHILE ASSEMBLING
Lack of aenon while aaching Dolly, Tripod & Crane together can cause substanal damage to equip-
ment.
BE WATCHFUL OF THE HANDS
Cauously operate to avoid pinching your hand/ngers between the arms.
INSPECT THE SURROUNDINGS PRIOR TO OPERATION
The operang area of the crane and its accessories must be kept clear.
ALWAYS ESTABLISH THE CORRECT BALANCE
Adjust the weight balance before telescoping the length.
CAREFULLY ATTACH HDMI CABLE
To prevent its interference with gimbal, leave appropriate space while connecng to the camera.
KEEP CHECK ON BATTERY LEVELS
If you work at low baery, it may aect the telescopic funconality.
FOLD THE CRANE WHILE TRANSFERING
When you want to move the crane for longer distance, fold it completely then move.
FIX THE LEGS WITH LOCKING PINS
When you assemble the stand & adjust its height, insert the locking pins for addional safety.
FOLLOWING THESE GUIDELINES WILL PROVIDE BETTER SHOTS AND TROUBLE FREE OPERATION.
SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS AVAILABLE ‘ONLINE’ BY
CONTACTING YOUR SALES REPRESENTATIVE.
3
4
Aer inserng two guide rods ghten with
the help of bolts
Loosen the gimbal bracket bolts then insert
the two guide rods on either side.
Scissor Telescopic Camera Jib Crane Setup
Insert the bolt into the hub mounng hole of
the Scissor Jib crane and properly secure it
with the help of a wrench.
Place Scissor Jib with Hub Mounng on top
of the jib stand. Insert the Hub Locking Knob,
as shown in the image.
NOTE: Check the Scissor Jib level with the help
of a Bubble Leveler. You can adjust the height
of jib stand to keep your jib levelled.
Aer aaching the hub locking knob, secure
it properly.
5
Then insert another guide rod into the boom
lock bracket and lock it in place to secure it
correctly.
NOTE: Pan Lock enables locking the jib’s pan
movement for achieving high/low angle shots.
Tilt Lock allows you to x the jib’s lt angle to get
linear tracking shots.
Both the ends are secure with closers.
Insert the weight into the weight rod.
NOTE: Weight will be added according to the
setup required to balance the camera properly.
Insert Weight Rod and secure properly with
a knob.
NOTE: While using the jib at extremely high
posion, the rear part of Gimbal will touch
Gimbal Bracket. Therefore, adjust the angle of
Gimbal Bracket by loosening the bolt of Guide
Rod Mount.
Weight Rod Setup
Boomlock
Bracket
Guide Rod
6
Aer aaching the v-mount baery, you can
operate the scissor jib in 2 alternate ways. If
you press the buon to the baery side, it
will be operated by the scissor jib baery, and
if you press it from the power side, it will run
on the power.
You can rotate your scissor crane 360° by
loosening the knob, as shown in the image.
Install Jib Controller on Weight Rod, then
secure with a provided knob.
NOTE: Telescope / Retract the length of
Scissor Jib using Jib Controller. Precise
Controller conveniently pushes out / pulls
in the jib length and controls the
Connect the Jib Controller cable to the right
and Motor Driver Cable to the le of the
Baery Plate.
Now mount your V-Mount Baery
(Not Included) onto the Baery Plate.
NOTE: The system is integrated with a
V-Mount Baery Plate, which adapts a 14.8V V
-Mount baery to power the drive system.
7
Connect the Monitor Arm and ghten it with
the help of provided screws.
NOTE: LCD Mounng Arm helps in aaching
an LCD monitor for beer viewing of shots; the
arm can be mounted le/right as per your
requirement.
Fix LCD Monitor (Not Included) on Monitor
Arm directly and lock it with the help of
provided screw.
To power your LCD, insert its wire’s rst port
to power plug in the motor and the second
port to the back side of the LCD.
LCD is assembled properly with wire, as
shown in the image.
Aach Gimbal Fluid Head and lock it with the
help of provided knob.
NOTE: Gimbal Fluid Head comes aached with
jib plate. If in case it gets detached, you can
easily mount it. Steady Fluid Head ensures
perfect alignment of your 3-Axis Gimbal on
Scissor Crane.
Mount any Gimbal of your choice
(Not Included) and adjust the tension of Fluid
Head as per the requirement.
Gimbal Fluid Head Setup
LCD Monitor Arm Setup
8
NOTE: Without camera setup this jib gets
balanced at 24kg weight. If the camera weight is
1kg, the jib is balanced with 24+3.5 = 27.5kg.
For more details we provided balancing ps on
Page-no: 11
Install Ronin controller bracket on the weight
rod. Then aach the Ronin controller with the
bracket and lock it.
Aer compleng Scissor Jib installaon, retract
the jib arm. Then aach cable es to the hole
of each frame.
From the back , put the cables into the holes in
the same direcon, then ghten the cables e
to the marked posion. Make sure that the
cables can not move from each frame.
NOTE: Maximize the length of scissor jib arm to
check the cable so that it should remain spiral like
in the image .
Aaching the Cable Tie
9
Maintenance
Bearing Maintenance
If aer a period of me your bearings don’t smoothly, lubricate with light machine oil. Be
sure to keep oil away from your camera, & clean up any over-spill.
Cleaning
Do not use solvents or harsh cleaners of any kind on your crane. If the unit becomes dirty,
use a damp so cloth or sponge and a mild detergent to gently clean external parts.
Balancing Tips :
Jib self balancing With 24kg Weight
If the camera weight is 1kg, the jib is balanced with 24+3.5 = 27.5kg
If the camera weight is 2kg, the jib is balanced with 24+7= 31kg
If the camera weight is 10kg, the jib is balanced with 24+35= 59kg

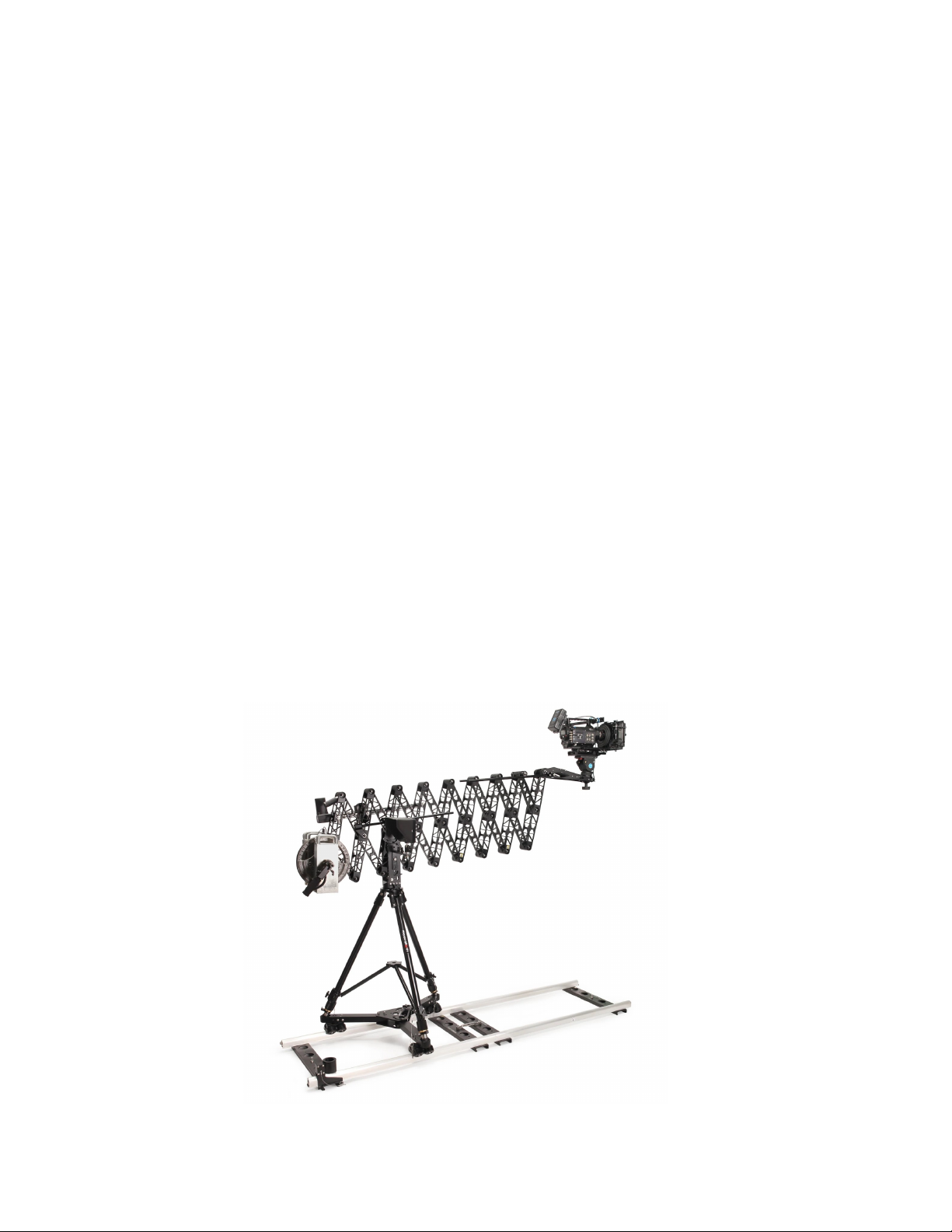

YOUR PROAIM POWERMATIC SCISSOR 17FT CAMERA JIB CRANE
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
10
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our
utmost support and care unl you use our product.
