PROAIM Astra Manual de usuario

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Astra 8 & 12 Camera Jib Crane

Assembly Manua l

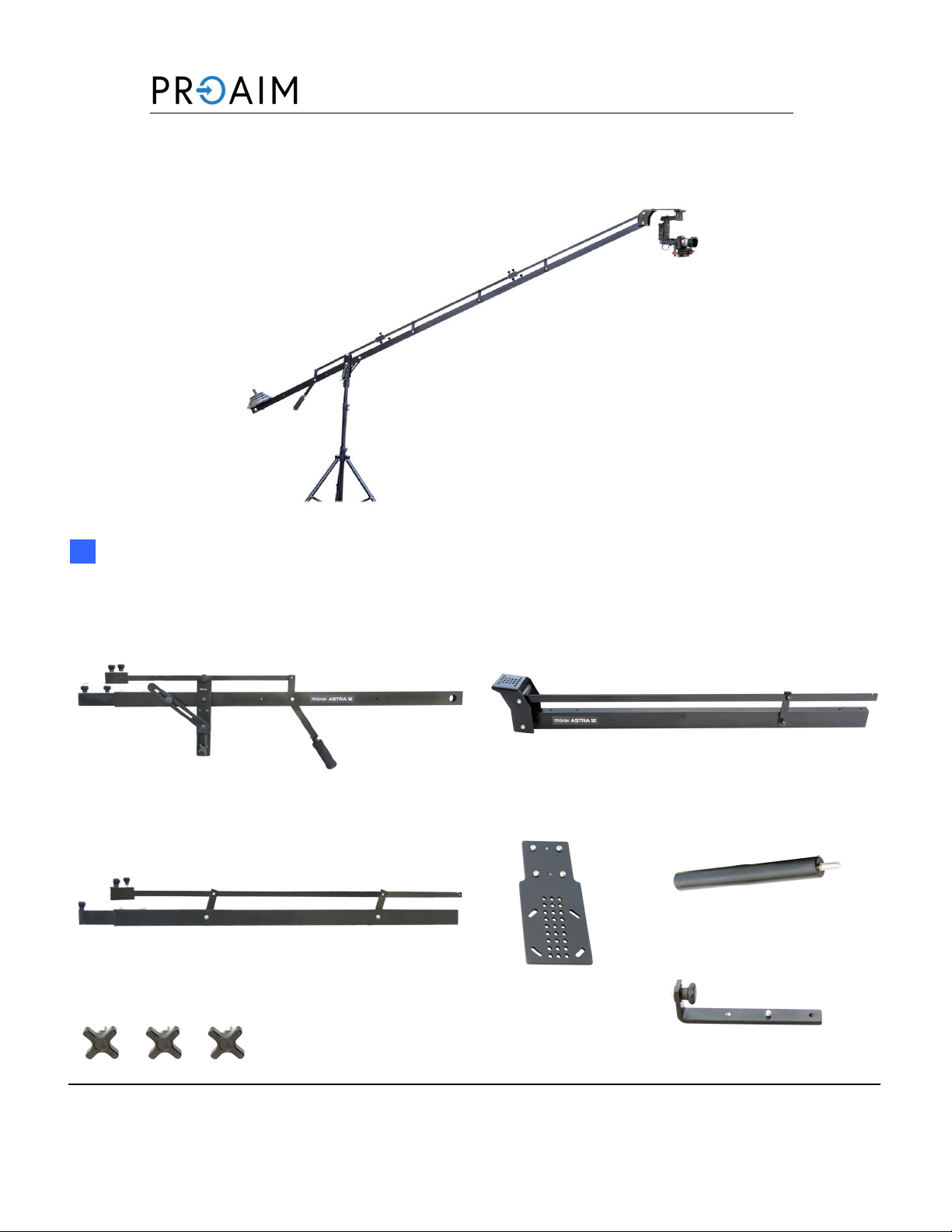

Astra comes with a back secon, a front secon with your

choice of camera mount, and vercal and horizontal

counterweight bars.

Camera Mount With Over Slung Mount.

Extension Secon - 4

Extension Camera Plate

Vercal Counterweight Bar

LCD Mounng Bracket

Tightening knobs

Using Tripod Head

Remove the quick release plate from the tripod

head. Screw into the crane’s mount, located on

the rear secon. 1/4”-20 & 3/8”-16 threads

available. Do not aempt to use the lt funcon

on the uid head with the crane aached.

 With the stand mount aached to the crane,

set it on top of the stand’s main sha. Insert

the knob into the groove, and ghten to

secure.

 The rear secon has an interior connecng bar

extension out. This slides into the front secon

or extension. Tighten the knobs to secure the

secons together.

 Aer inserng the connecng bar, insert the

knob into the coupler and ghten knob into

the groove.

Mounng on Support Stand:

Assembly for 8 Astra Jib

Connecng the Jib secons

Astra Jib Setup

 Add the 4 extension secon to the rear

secon and secure properly. Next, aach the

main head secon to the extension secon.

Tighten the knobs to secure the secons

together.

Assembly for 12 Astra Jib

Extend your 8 crane to a 12 crane by adding the 4 extension.

Firstly you will need to aach the BS-100 screw

with your uid head then aach the uid head

with your camera plate.

 Secure your camera properly as shown.

Mounng Counterweights

Aer the camera is mounted, it is safe to add

counterweights to bring the crane into balance.

First, aach the bar that the counterweights will

be placed on. Connect the vercal

counterweight bar to the bolt.

NOTE: When the proper amount of counterweight has been added, the crane will rest in a horizontal

posion. Moons will be smooth and eortless. Note, the type of camera and mounng posion will aect

the balance. If the mounted camera is front heavy then mount the vercal bar in the rst hole.

Manual lt mode is achieved by loosening the

knob & removing the pin at the top of the stand

mount. Now the handle can be used to lt the

camera independently from the crane’s body.

Manual Tilt Mode

 At this point, the crane will be front heavy.

Allow it to rest on the ground. Aach

extension plate by using the provided screw.

Now, aach the camera to the extension plate

by using ¼”-20 universal sized screw; it will

thread from the boom of the camera.

Properly secure your camera.

Camera Mount with Fluid Head

Camera Setup

For lower angle

For upper angle

Oponal Tilt Brake

For using lt funcon, loosen the knob to lt

the crane to the desired posion. Tighten back

the knob if you want to put a brake to lt

feature.

Monitor Mounng Bracket

To aach the monitor bracket, screw the knob

into the threaded hole on the crane’s tripod

mount.

 LCD/MONITOR are shown securely mounted

on jib.

For straight angle

Below is the manual lt funconality of the camera.

WARNING: when lng manually, always maintain control of the camera. A front heavy camera may

move forward abruptly without noce you need to be very careful at this point.

YOUR PROAIM ASTRA CAMERA JIB CRANE

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.
