Prince Castle 247 Series Manual de usuario

Toaster Grills

Models 247 & 248

Operation

Manual

Product Identification

247 Series

The Prince Castle 247 & 248 Toaster Grill

Series offers two practical options for quick-

and-easy bread product toasting. Both

models have pivoting sides allowing for easy

access to the platens for cleaning. The 248

Model has the added feature of a Club

sandwich level.

248 Series

SANITATION

LIMITED WARRANTY

This product is warranted to be free from defects in material and/

or workmanship for a period of two (2) years from date of original

installation, not to exceed 30 months from date of shipment from

our factory. This warranty covers on location service for 2 years

(i.e. trip charges and/or mileage). Travel mileage is limited to 100

miles (200 kilometers) round trip (one trip per warranty) from an

authorized service agency or its sub-service agency. Any

component which proves to be faulty in material and/or

workmanship will be replaced or repaired (at the option of Prince

Castle, Inc.) without cost to the customer for parts or labor.

This warranty is subject to the following exceptions/conditions:

• Use of any non-genuine Prince Castle parts voids this

warranty.

• All labor shall be performed during regular work hours.

Overtime premium will be charged to the buyer.

• Damage caused by carelessness, neglect, and/or abuse (e.g.,

dropping, tampering or altering parts, equipment damaged in

shipment, by fire, flood or an act of God) is not covered under

this warranty.

•The power cord on this product is rated for a maximum

surface temperature of 194°F (90°C). If the cord comes into

contact with any heated surface, it may be damaged and/or

cause damage to the product and/or injury to the user.

Damage resulting from any such misuse may result in a

voided Warranty at the sole discretion of the manufacturer.

355 East Kehoe Blvd. • Carol Stream, IL 60188 USA

Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE

Fax: 630-462-1460 • www.princecastle.com

Toaster Grills

Models 247 & 248

Table of Contents

Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Setting the Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

View/Change Set Temperature . . . . . . . . . . . . . . . . . . . . 5

View/Change Set Toasting Time . . . . . . . . . . . . . . . . . . . 6

View/Change Duty Time Alarm. . . . . . . . . . . . . . . . . . . . . 8

Standby (Energy Saving) Mode . . . . . . . . . . . . . . . . . . . . 8

View/Calibrate Platen Temperature . . . . . . . . . . . . . . . . . 9

Change Product Name (Product Mode Only) . . . . . . . . . 11

Set Volume Levels (All Models) . . . . . . . . . . . . . . . . . . . . 11

Adjusting Bun Crush Settings . . . . . . . . . . . . . . . . . . . . . 12

Adjusting for Bun Thickness . . . . . . . . . . . . . . . . . . . . . . . 12

Conditioning the Platens . . . . . . . . . . . . . . . . . . . . . . . . . 13

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ordering Parts and Service . . . . . . . . . . . . . . . . . . . . . . . 16

Model 247 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . 17

Model 248 Exploded View . . . . . . . . . . . . . . . . . . . . . . . . 18

Model 247 Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 19

Model 248 Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 20

Safety Information

Indicates information important to the proper operation of

the unit. Failure to observe may result in damage to the

equipment and/or severe bodily injury or death.

Indicates information important to the operation of the unit.

Failure to observe may result in damage to the equipment.

WARNING

CAUTION

Accessories

Use standard full-size spatulas with the 247 or 248 Toaster

Grills. Also, use the full-size plastic or metal trays under the

bottom Platen. You may also use the new nine-bun trays as

they become available.

Important!

Prince Castle reserves the right to change specifications and

product design without notice. Such revisions do not entitle the

buyer to corresponding changes, improvements, additions or

replacements for previously purchased equipment.

Toaster Grills

Models 247 & 248

Installation

Remove the unit from the carton and inspect for signs of

damage. If there is damage to the unit:

• Notify the carrier within 24 hours of delivery.

• Save carton and packaging materials for inspection purposes.

• Contact your local dealer, or if purchased directly, the Prince

Castle Sales Department at 1-800-722-7853 or 630-462-8800

to arrange for a replacement unit.

Before first use, clean and condition the platens (see

Conditioning Platens).

NOTE: When using this unit, the ambient temperature at the

mounting site should not exceed 43°C (110°F).

All electrical connections must be in accordance with local

electrical codes and any other applicable codes.

Plug the unit into an applicable electrical receptacle.

CAUTION

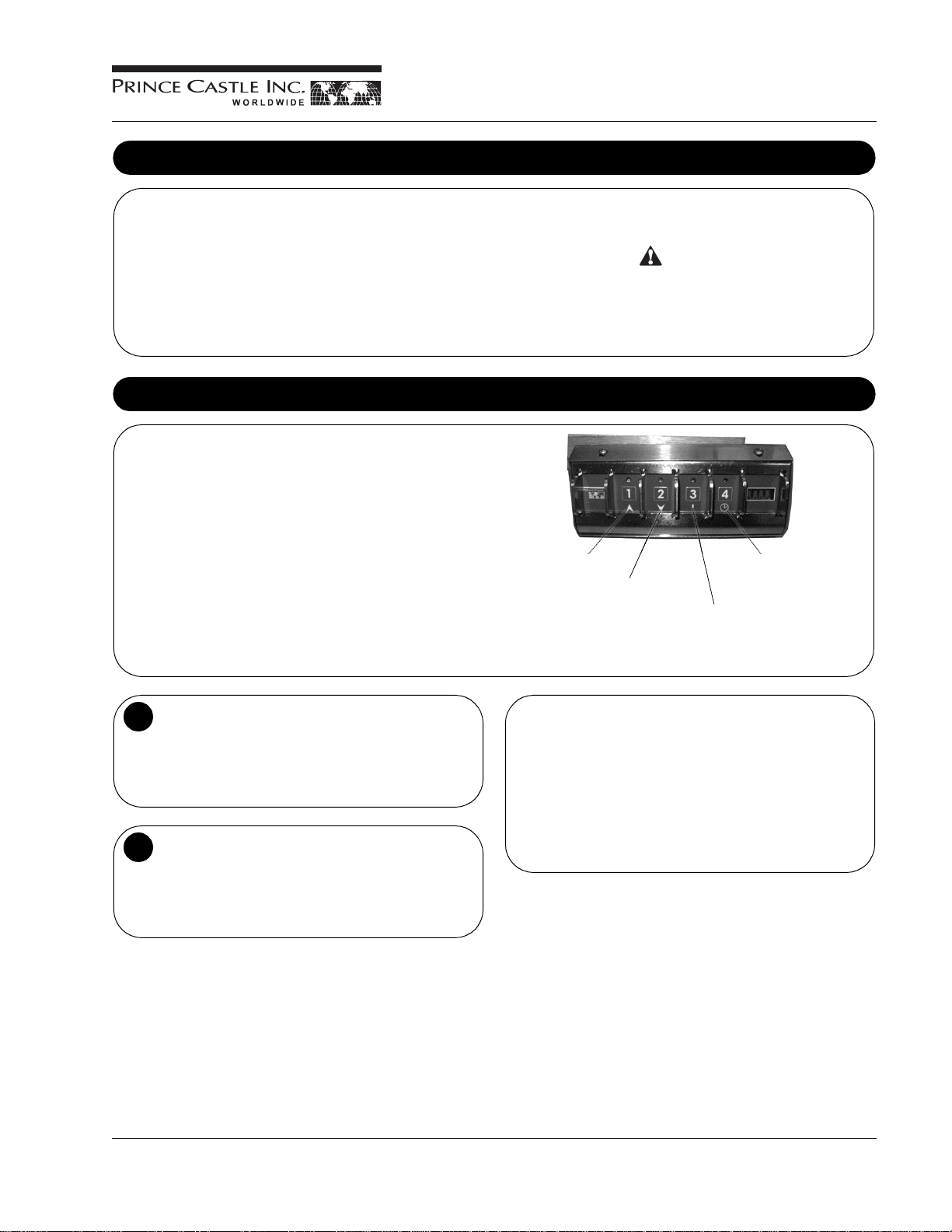

Setting the Controls

The model 247 & 248 Toaster Grills provide two modes of

operation: DEDICATED MODE and PRODUCT MODE.

•DEDICATED MODE is a simple mode of operation for toasting

buns that is similar to the 213, 411 & 416 Series Toaster Grills,

with a set toast time and temperature for one product “BUN1”.

•PRODUCT MODE allows you to set both the toasting time and

temperature individually for four additional products. Note that

it may take several minutes for the platen to heat up or cool

down to a new temperature setting. You can also change the

display to any four character name of your choice for each of

the products to indicate which product is being toasted.

• Furthermore, 247 and 248 Toaster Grills allow you to manually

initiate the power-saving mode. (See Figure 1.) Figure 1

UP Arrow

DOWN Arrow

TEMPERATURE Button

TIME

Button

When the Toaster Grill is in Dedicated Mode:

Press and release both the UP and DOWN arrows

at the same time. This will change the Toaster Grill

to Product Mode. Products 1 through 4 will be

available.

When the Toaster Grill is in Product Mode:

Press and release both the UP and DOWN arrows

at the same time. This will change the Toaster Grill

to Dedicated Mode. BUN1 will be the only product

available.

NOTE: While the unit is adjusting to the new set temperature,

the product name flashes in the display. In the Dedicated

Mode this is “BUN1”. In the Product Mode, the name will be

the currently selected product.

When the unit reaches set temperature, the product’s name

is displayed steadily in Product Mode, or the display shows

“RDY” in Dedicated Mode.

The adjustment time necessary will depend on the set

temperature.

Toaster Grills

Models 247 & 248

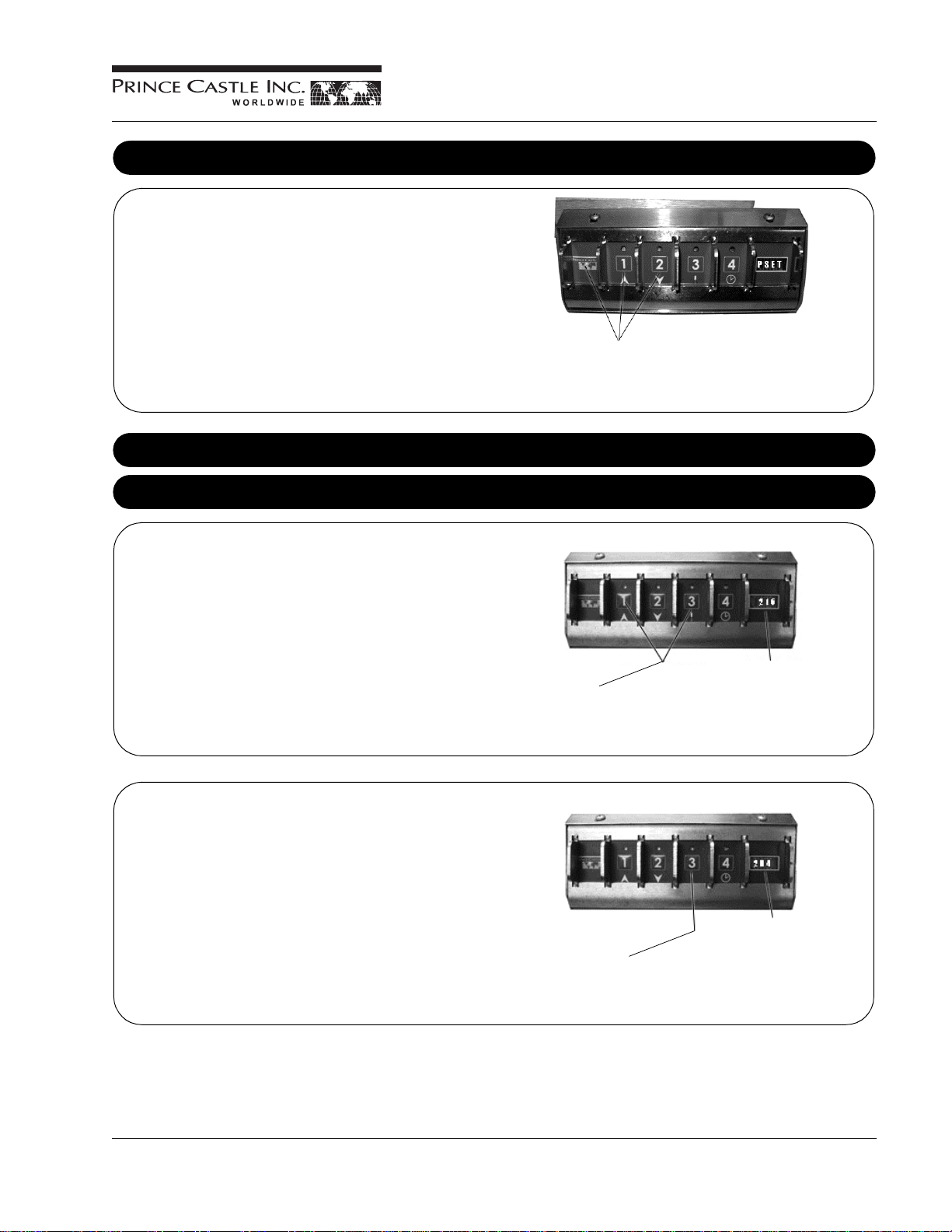

Product Selection (Product Mode Only)

Press and release any of the four numbered buttons (i.e., 1, 2,

3or 4) to select the product associated with that button. (See

Figure 2.)

The LED above the selected Product button glows steady green

to indicate the current selection and the display will show the

selected product’s name.

Figure 2

LEDs

Ready-to-Toast Indication

While the unit is warming up, a product name flashes in the

display. In the Dedicated Mode this is “BUN1”. In the Product

Mode, the name will be the currently selected product. (See

Figure 3.)

When the unit reaches set temperature, the product’s name is

displayed steadily in Product Mode, or the display shows ‘RDY’ in

Dedicated Mode.

Figure 3

Temperature Mode (F/C) Display Selection

TEMPERATURE MODE: To toggle between Fahrenheit (F) and

Celsius (C), at power-on immediately press and release button 3

within 3 seconds. (See Figure 4.)

If the unit was set to display temperatures in ‘C’, it changes to

display in ‘F’, and vice versa. The display shows ‘F’ or ‘C’ to

indicate which mode has been selected. Repeat within 3

seconds to change the display again.

The default Temperature Mode is Celsius.

Figure 4

Press Button 3

Toaster Grills

Models 247 & 248

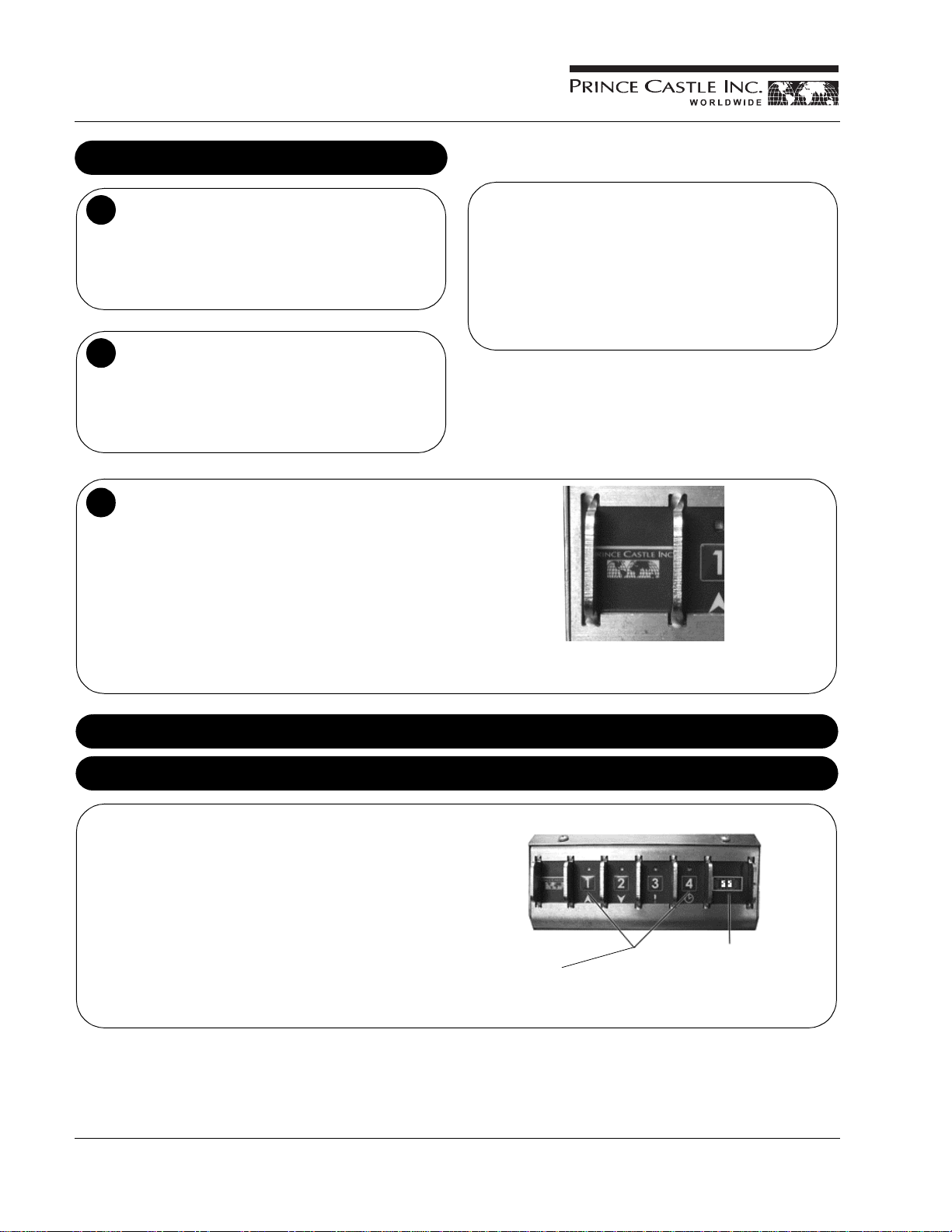

Resetting to Factory Presets

To reset all settings to factory presets, at power-on immediately

(within 3 seconds) press and hold the LOGO, UP and DOWN

buttons simultaneously until the display shows ‘PSET’. Release

all buttons. After about 10 seconds, the unit will operate with

factory preset temperature, time and display name values. (See

Figure 5.)

All previously saved settings are lost upon resetting the defaults.

Figure 5

Press These Buttons

at the Same Time

View/Change Set Temperature

To View the Current Set Temperature

In Product Mode:

Press and hold the currently selected product’s button and

immediately press the TEMPERATURE button. Release both

buttons.

The display will show the pre-set toasting temperature for the

selected product. (See Figure 6.)

Figure 6

Product Mode

Press PRODUCT Button and

TEMPERATURE Button

Product’s Set

Temperature Is

Displayed

In Dedicated Mode:

Press and release the TEMPERATURE button. The display

will show the pre-set toasting temperature for “BUN1”.

(See Figure 7.)

Figure 7

Dedicated Mode

Press TEMPERATURE

Button

Display Shows BUN1

Set Temperature

Toaster Grills

Models 247 & 248

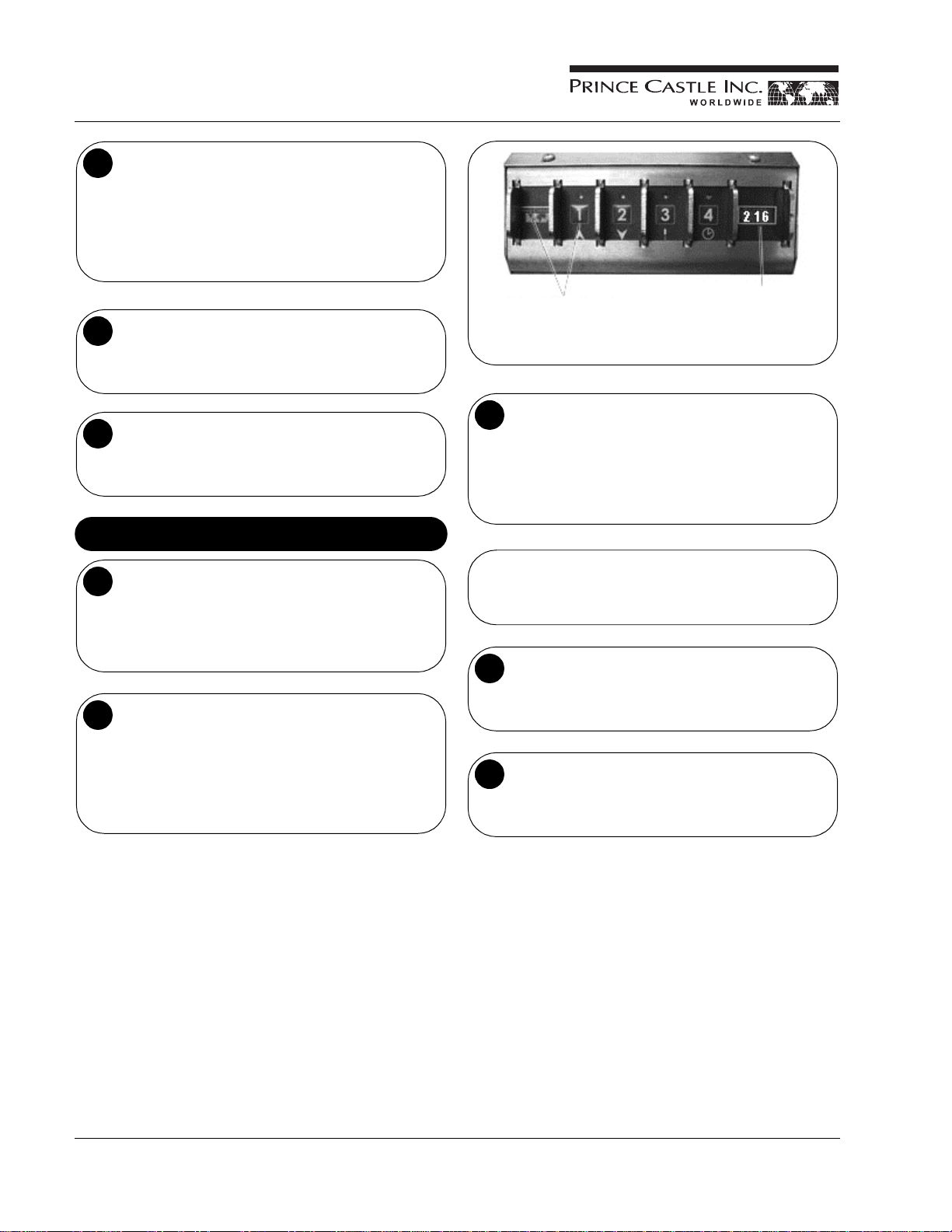

To Change the Set Temperature

Press the button(s) used to view the set temperature.

Hold the button(s) for 6 seconds.

The LED above the TEMPERATURE button will

flash yellow, indicating that the unit is now in set-

temperature programming mode. Release all

buttons.

Press and release the UP or DOWN buttons to change

the currently selected product’s toasting temperature.

Holding either button for 3 seconds will allow

automatic “fast scrolling” for easier programming.

The temperature can be set from 37°C to 287°C

(100°F to 550°F).

NOTE: While the unit is adjusting to the new set temperature,

the product name flashes in the display. In the Dedicated

Mode this is “BUN1”. In the Product Mode, the name will be

the currently selected product.

When the unit reaches set temperature, the product’s name

is displayed steadily in Product Mode, or the display shows

“RDY” in Dedicated Mode.

The adjustment time necessary will depend on the set

temperature.

Figure 8

LOGO Button

When finished, press and release the TIME button to

save the new value and return to toasting.

Press and release the LOGO button at any time to

exit the programming mode without saving any

changes made.

View/Change Set Toasting Time

To View the Set Toasting Time

In Product Mode:

Press and Hold the currently selected product’s button and

immediately press the TIME button. Release both buttons. The

display will show the present toasting time for the selected

product. (See Figure 9.)

Figure 9

Product Mode

Press PRODUCT Button

and TIME Button

Product’s Set Time

Is Displayed

Toaster Grills

Models 247 & 248

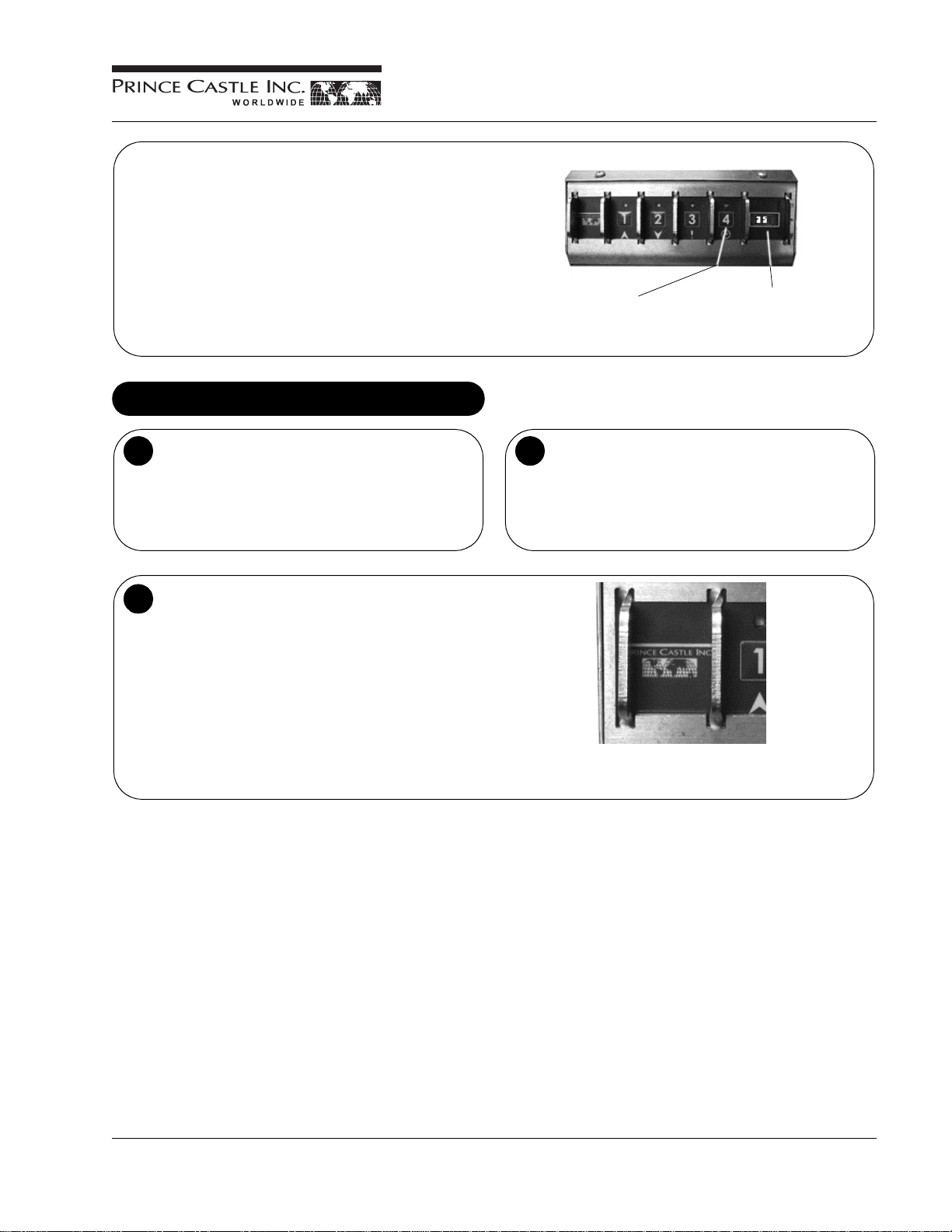

In Dedicated Mode:

Press and release the TIME button. The display will show the

present toasting time for “BUN1”.

In either mode, after 3 seconds the display will return to showing

the currently selected product time. (See Figure 10.)

Figure 10

Dedicated Mode

Press the TIME Button Display Shows

BUN1 Set Time

To Change the Set Toasting Time

To change the toasting time of the currently selected

product, press the same button(s) used to view the

toasting time. Hold the button(s) for 6 seconds.

The LED above the TIME button will flash yellow,

indicating that the unit is now in set-time

programming mode. Release all buttons.

1Press and release the UP or DOWN buttons to change

the currently selected product’s toasting time. Holding

either button for 3 seconds will allow automatic “fast

scrolling” for easier programming.

The time can be set from 1 sec. to 9 minutes,

59 seconds.

Figure 11

LOGO Button

When finished, press and release the TIME button to

save the new value and return to toasting.

Press and release the LOGO button at any time to

exit the programming mode without saving any

changes. (See Figure 11.)

Toaster Grills

Models 247 & 248

View/Change Duty Time Alarm

A. Press and hold the LOGO button. Immediately press

the TIME button.

B. Release all buttons. The display will show the present

duty time for “BUN1” in Dedicated Mode and for

whichever product is selected in Product Mode.

To change the duty time of the currently selected product,

press and hold the buttons in Step 1 for 6 seconds.

The LEDs above the TIME and UP Arrow button will

flash yellow, indicating that the unit is now in the duty

time programming mode.

Press and release the UP or DOWN buttons to change

the currently selected product’s duty time.

When finished, press and release the TIME button to save

the new value and return to toasting.

To exit the programming mode without saving any

changes, press and release the LOGO button.

Note: The duty time may be set to OFF or 15 – 20

seconds. If not off, the duty alarm will sound the

programmed number of seconds after toasting is started.

Standby (Energy Saving) Mode

Figure 12

UP and DOWN Arrows

Direct Method: To place the unit in Standby Mode,

close the platen and press and hold the UP and

DOWN buttons together for 3 seconds. The unit will

stop timing and the display will indicate “STBY”. Open

the platen to cancel Standby mode. (See Figure 12.)

Figure 13

After Toasting: After toasting is complete, the Done

Alarm will sound for 7 seconds. If the platen is left

closed, the Toaster Grill will automatically enter the

Standby Mode and the display will read “STBY”. Open

the Toaster Grill to reactivate it from Standby Mode.

(See Figure 13.)

Toaster Grills

Models 247 & 248

View/Calibrate Platen Temperature

Important!

Do NOT perform this procedure until the Toaster Grill has been

on for at least 45 mins. and the temperature has stabilized. Do

NOT use the Toaster Grill during the first 45 minutes.

Temperature can only be adjusted ±10°C (±18°F) during

calibration.

Important!

If the temperature reading from the external temperature port is

greater than ±3°C (±5°F) compared to the Toaster Grill

temperature display, proceed with the following. If temperature

reading is within ±3°C (±5°F), the Toaster Grill is functioning

properly and does not need calibration.

Upper Platen (248 Models Only)

A. Plug an external temperature meter into the external

port (Type K mini-jack) of the heater platen.

B. Using the external temperature meter as a standard,

adjust the Toaster Grill’s temperature display to match

the meter’s temperature display by the following

procedure.

Note: Yellow Type K Thermocouple mini-jack temperature ports

are located on the back of the 248 Model, behind each of the

two platens. (See Figure 14.)

Figure 14

Upper External Lower External

A. To view and/or calibrate the platen temperature, press

and hold the LOGO button.

B. Immediately press the UP button to view the Upper

Platen temperature on 248 Models.

C. Release both buttons. (See Figure 15.)

The display shows the Upper Platen’s temperature.

After 3 seconds, the display returns to showing the

currently selected product.

Figure 15

Press LOGO Button

and UP Arrow

Display Shows the

Upper Platen

Temperature (248 Only)

Toaster Grills

Models 247 & 248

To calibrate the Upper Platen, press and hold the LOGO

and UP buttons, as in Step 2, but continue holding them

for 6 secs.

The LEDs above to buttons 1& 3flash, indicating that

the unit is now in Upper Platen temperature calibration

mode.

Release all buttons.

To change the Upper Platen’s displayed temperature,

press and release button UP or DOWN Arrow.

After changing the value, be sure to wait for the display

to show the temperature change.

To save the new value and return to toasting, press and

release button 4.

To exit programming without saving any changes

made, press and release the LOGO button.

Lower Platen (All Models)

A. Plug an external temperature meter into the external

port of the heater platen.

B. Using the external temperature meter as a standard,

adjust the Toaster Grill’s temperature display to match

the meter’s temperature display, by the following

procedure.

A. To view the Lower Platen’s temperature, press and

hold the LOGO button.

B. Immediately press the DOWN button. Release all

buttons.

The display shows the Lower Platen’s temperature.

After 3 seconds, the display returns to showing the

currently selected product. (See Figure 16.)

Figure 16

Press LOGO Button

and DOWN Arrow

Display Shows the

Lower Platen

Temperature

To calibrate the Lower Platen, press and hold the LOGO

button and DOWN arrow, as in Step 2, but continue

holding them for 6 seconds.

The LEDs above buttons 2& 3flash, indicating that the

unit is now in Lower Platen temperature calibration

mode.

Release all buttons.

Note: A yellow temperature port is located on the back of the

247 Model, behind the platen (same as the Lower External Port

in on 248 Model figure above). (See Figure 16.)

To change the Lower Platen’s displayed temperature,

press and release UP or DOWN arrows.

After changing the value, besure to waitfor the display

to show the temperature change.

When finished, press and release button 4to save the

new value and return to toasting.

To exit programming without saving any changes

made, press and release the LOGO button.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Tostadora de Prince Castle

Prince Castle

Prince Castle TX-208 Manual de usuario

Prince Castle

Prince Castle 297 Series Manual de usuario

Prince Castle

Prince Castle 454-B Manual de usuario

Prince Castle

Prince Castle 464-B Manual de usuario

Prince Castle

Prince Castle IRT-SB-NA-1PS Manual de usuario

Prince Castle

Prince Castle 428-3B Manual de usuario

Prince Castle

Prince Castle 428 Manual de usuario

Prince Castle

Prince Castle 212-GFCCE Manual de usuario

Prince Castle

Prince Castle IRT-SB-NA-1PS Manual de usuario

Prince Castle

Prince Castle DCFT-MCD Series Manual de usuario

Prince Castle

Prince Castle CTD Manual de usuario

Prince Castle

Prince Castle 296 Series Manual de usuario

Prince Castle

Prince Castle DCFT-MINI-MCD Series Manual de usuario

Prince Castle

Prince Castle 428-BX Manual de usuario

Prince Castle

Prince Castle 247-ACC Manual de usuario

Prince Castle

Prince Castle DCFT-MCD Manual de usuario

Prince Castle

Prince Castle Slim-Line 296 Series Manual de usuario

Prince Castle

Prince Castle DCFT-MCD Series Manual de usuario

Prince Castle

Prince Castle TX-230EBKCE Manual de usuario

Prince Castle

Prince Castle CTD Manual de usuario

Prince Castle

Prince Castle DCFT-MCD Series Manual de usuario

Prince Castle

Prince Castle DCFT-BK Manual de usuario

Prince Castle

Prince Castle CBT-SB-NA-1PS Manual de usuario

Prince Castle

Prince Castle 297-T12 Manual de usuario

Manuales populares de Tostadora de otras marcas

Taurus

Taurus ARCTIC 960648 Manual de usuario

Redfox

Redfox TO 920 G Manual de usuario

Moulinex

Moulinex LS340D11 Manual de usuario

Amica

Amica TD 3021 Manual de usuario

Electrolux

Electrolux EAT978 Manual de usuario

SEVERIN

SEVERIN SA 9275 Manual de usuario

Breville

Breville the Big One BTS100 Manual de usuario

Sunbeam

Sunbeam TA2540 Manual de usuario

ARENDO

ARENDO 305716 Manual de usuario

Life

Life Crispy AT-001 Manual de usuario

Beko

Beko TAM 6201 I Manual de usuario

Zephir

Zephir ZHC485 Manual de usuario

H.Koenig

H.Koenig TOS9 Manual de usuario

ZIEGELMULLER

ZIEGELMULLER Ritter ET 10 Guía del producto

HURAKAN

HURAKAN HKN-TOP3 Manual de usuario

Philips

Philips HD2565 Manual de usuario

Bosch

Bosch DesignLine Plus TAT4P44 GB Series Manual de usuario

Panasonic

Panasonic NT-ZP1-V Manual de usuario
