INSTALLATION INSTRUCTIONS

SCM-103

Suspended Ceiling Mount

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: 800-368-9700

Fax: 800-832-4888

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

AUSTRALIA, NEW ZEALAND,

OCEANIA (DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: 039586 6330

www.premiermounts.com.au

Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044

©Premier Mounts 2008

9531-027-224-02

Page 2 Installation Instructions

Table of Contents

Warning Statements

Warning Statements 2

Parts List 3

Installation Tools 3

Locating the Mounting Points 4

Mounting the Brackets to the Display 5

Securing the Lower Cover 6

Securing the Tubes to the Mounting Brackets 6

Lifting the Display into Position 8

Cable Routing 9

Installing the Beauty Covers 12

Technical Specifications 14

Warranty 15

SCM-103

Redundancy in Engineering is the duplication of critical components of a system with the intention of increasing reliability of the system, usually in the

case of a backup or fail-safe.

IT IS REQUIRED THAT THE INSTALLATION LOCATION BE INSPECTED AND APPROVED BY A

LICENSED STRUCTURAL ENGINEER.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY

UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP

THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR

PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFI-

CATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER

KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY. IF NOT, THE CEILING

STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT IS 2000LBS. PROPER

INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE

ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY GEAR

AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the display.

If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud finder is recommended.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

Installation Instructions Page 3

Parts List

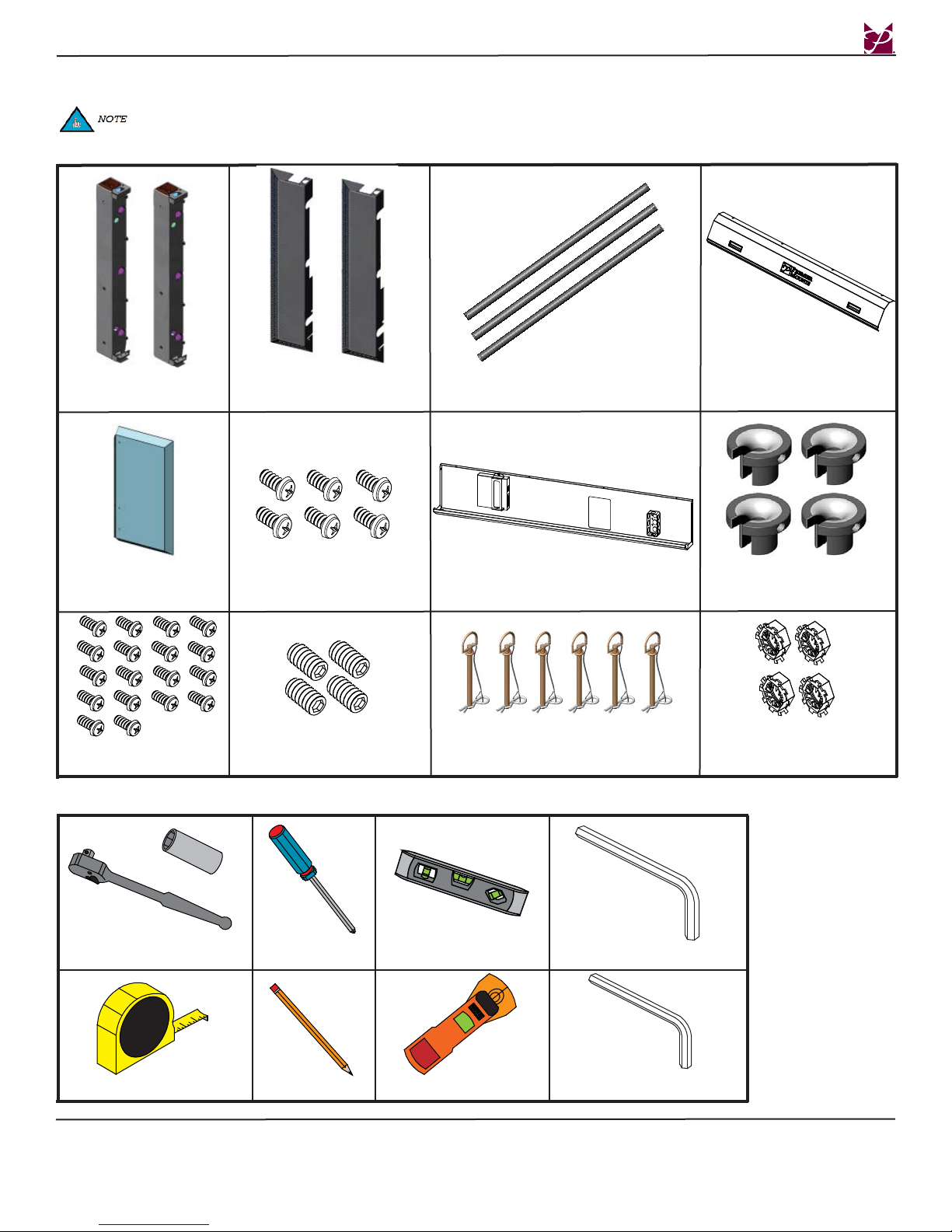

This ceiling mount is shipped with all proper installation hardware and components. Make sure that none of these

parts are missing and/or damaged before beginning installation. If there are missing and/or damaged parts, please

stop the installation and contact Premier Mounts (800-368-9700).

Recommended Installation Tools

Mounting Bracket Covers

(Qty 2)

Mounting Brackets

(Qty 2)

Display Input Cover

(Qty 1)

Tubing

(Qty 3)

Lower Cover Panel

(Qty 1)

Lower Cover

(Qty 1)

Plastic Coupler Inserts

(Qty 4)

8-32 x 3/8” Phillips

Screws (Qty 18)

8-32 x 1/2” Phillips Screws

(Qty 6)

10-32 Kep Nut

(Qty 4)

6-32 x 1/4” Set Screw

(Qty 4)

Clevis Pins

(Qty 6)

SCM-103

Spirit Level (Supplied)1/2” Socket and Wrench

Tape Measure

Screwdriver

Pencil Stud Finder

1/8” Allen wrench (Supplied)

1/16” Allen wrench (Supplied)

Page 4 Installation Instructions

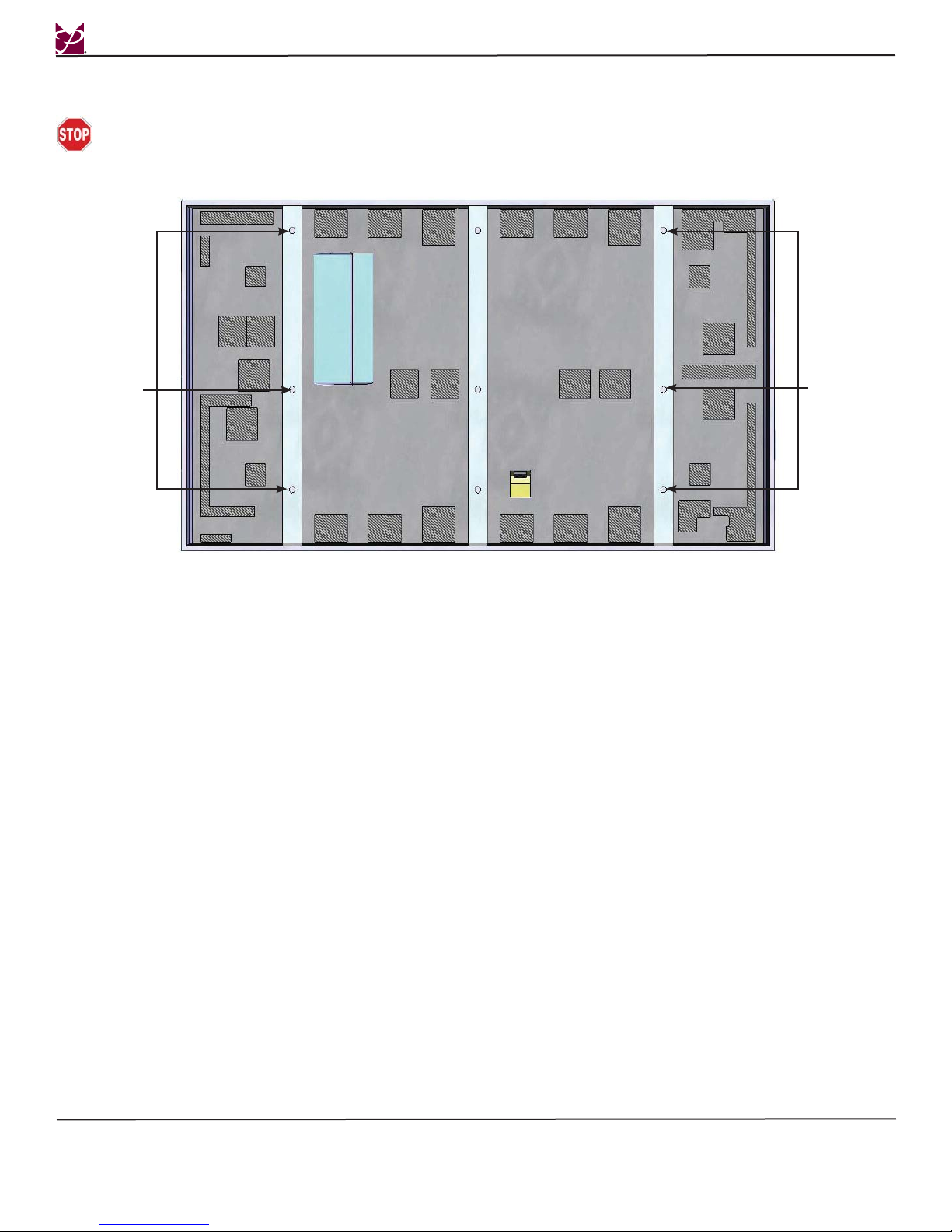

Locate the Mounting Points

The display comes with four (4) M16 screws with quick release sleeves that are pre-installed on the display.

Mounting

Points

Mounting

Points

Step 1. Locate the 4 quick release sleeves on the back of the display and remove. Place the M16 bolts and split washers to the side.

These will be used for bracket installation on the next page.

SCM-103

Installation Instructions Page 5

Mounting the Brackets to the Display

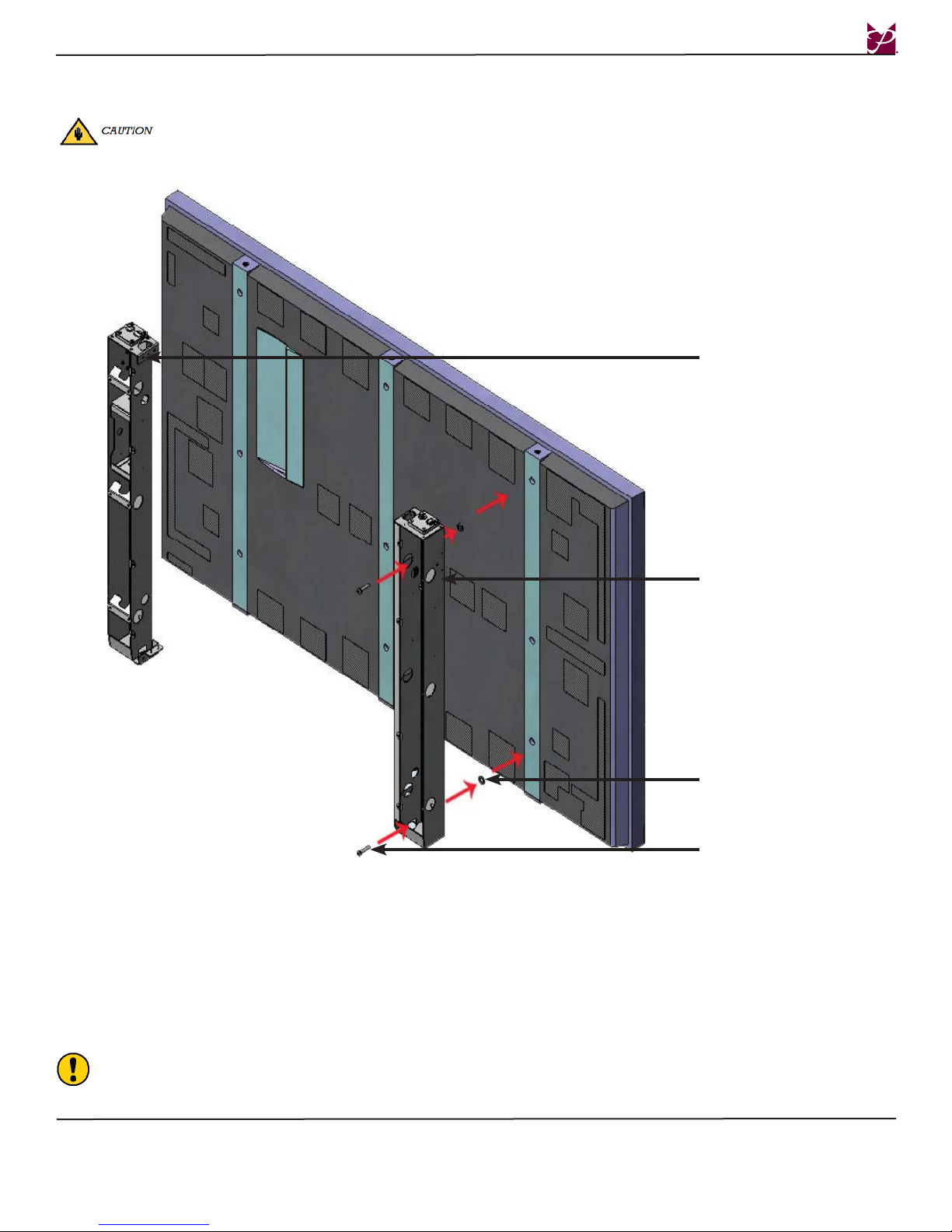

Step 1. Align the mounting bracket holes up with the mounting holes on the back of the display. There are two mounting holes used on

each side of the display.

Step 2. Place the split washer between the display and the mounting bracket.

Step 3. Insert the M16 mounting bolt through the mounting bracket then through the split washer into the display.

Step 4. Tighten the bolt into place and repeat the steps for the remaining three bolts.

The following steps will require a minimum of 3 people. This should not be done with less then 3 people due to the

weight of mounting brackets.

Right Mounting

Bracket

Left Mounting

Bracket

Split Washer

M16 Bolt

DO NOT OVERTIGHTEN THE M16 BOLTS. DOING SO MAY RESULT IN DAMAGE TO

THE DISPLAY. TIGHTEN TO MANUFACTURERS SPECIFICATIONS.

SCM-103

Page 6 Installation Instructions

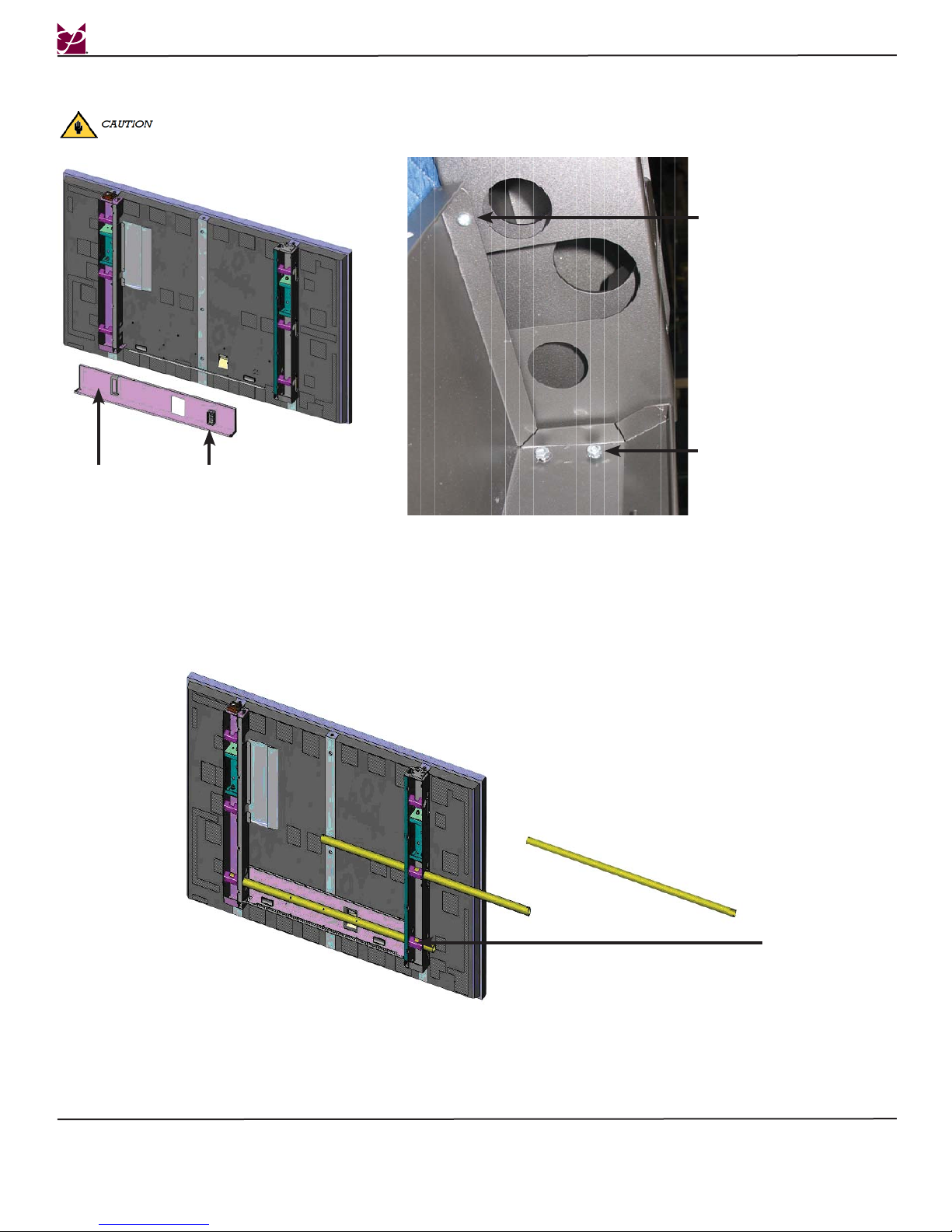

Step 1. Insert the lower cover between the vertical mounting brackets.

Step 2. Attach four (4) 10-32 Kep Nuts and tighten down securing the lower cover into place.

Step 3. Insert two (2) 8-32 x ½” screws and tighten down the lower cover bracket against the vertical side mounting brackets.

Securing the Lower Cover

THE SCM-103 IS HEAVY. IT IS STRONGLY RECOMMENDED THAT THREE PEOPLE PERFORM ALL

INSTALLATION STEPS.

8-32 x ½”

Screw

10-32 Kep Nut

Securing Tubes to Mounting Brackets

Step 1. Slide the tubes into the cut outs on the side of the mounting brackets.

Step 2. Slide the tubes in enough to have an even amount showing on each side of the left & right mounting brackets.

Step 3. Once tubes are slid into place, tighten all twelve (12) pre-installed set screws located in the display mounting brackets using the

1/8” Allen wrench (supplied). These screws are installed at the factory and are used to lock the tubes into place.

SCM-103

Factory

Installed Set

Screw

Pre Installed

Handy Box

Lower Cover

Installation Instructions Page 7

THE SCM-103 IS HEAVY. IT IS STRONGLY RECOMMENDED THAT THREE PEOPLE PERFORM ALL

INSTALLATION STEPS.

Now that the mount is attached to the display, double check all mounting locations to insure all hardware is

properly tightened and secured.

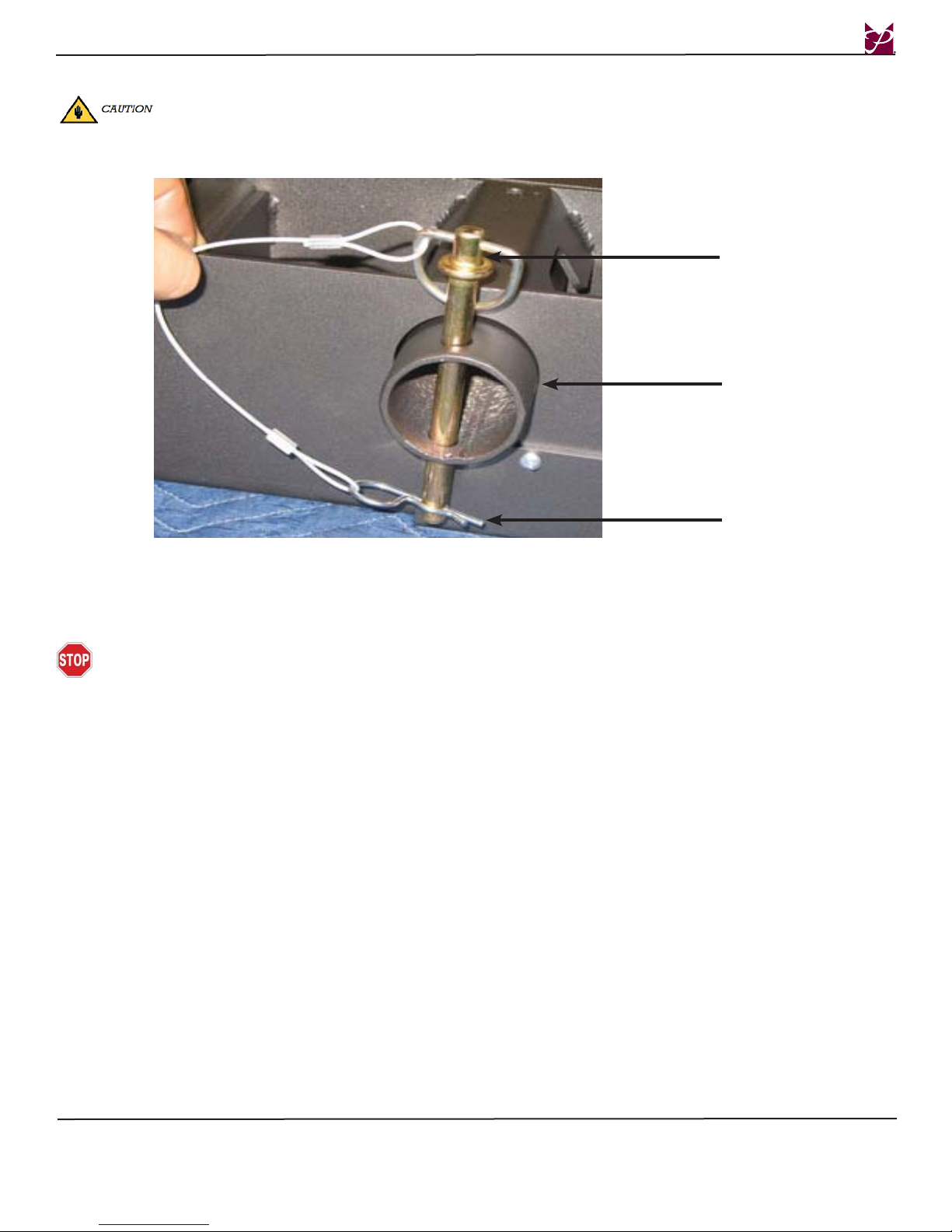

Step 5. Once the tubes are locked into place insert the clevis pins into the hole at the end of each tube.

Step 6. Lock each clevis pin into place by inserting the attached cotter pin into the hole.

Cotter Pin

2” Tube

Clevis Pin

SCM-103

Page 8 Installation Instructions

THE SCM-103 IS HEAVY. IT IS STRONGLY RECOMMENDED THAT THREE PEOPLE PERFORM ALL

INSTALLATION STEPS.

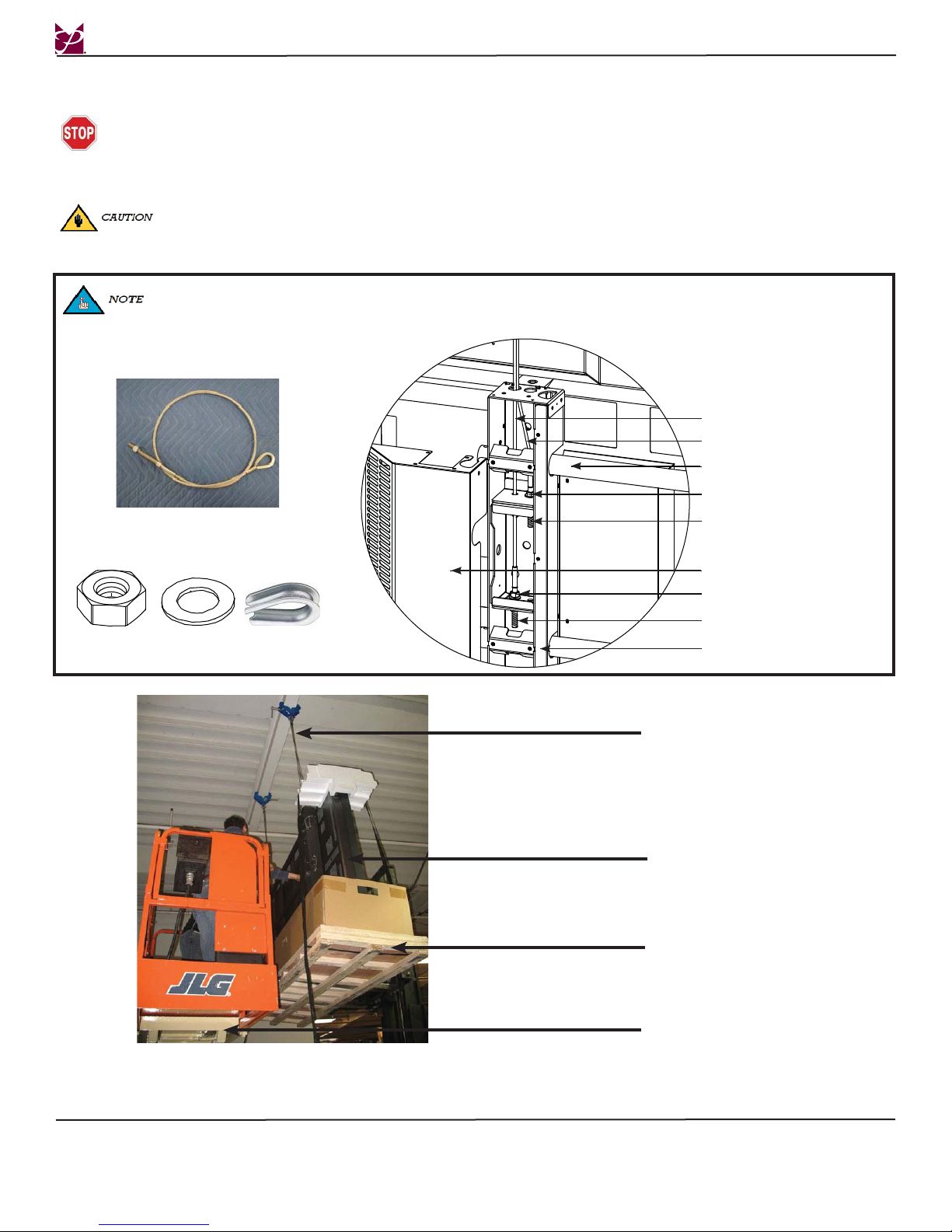

Lifting the Display into Position

Step 1. Raise the display to the desired height (Refer to the display manufacturer specs on raising the display into position and the

different options available).

IN THE NEXT STEP A LIFTING DEVICE SUCH AS A FORKLIFT , SCISSOR LIFT, OR HOIST WILL NEED TO

BE UTILIZED IN ORDER TO LIFT DISPLAY INTO POSITION. NOT DOING SO COULD RESULT IN PERSON-

AL INJURY OR DAMAGE TO THE DISPLAY.

Pre-Hung

Cable

Scissor Lift

Display Sucured to

Pallet

Fork Lift

SCM-103

The display may be hung from a ceiling structure using two (2) main support cables and two (2) safety cables. Length,

mounting location and method of attachment will be provided by the installer. The components (below) that are used

to hang the SCM-103 are sold separately and may be ordered through Premier Mounts (800) 368-9700.

1/4” stainless steel 7 x 19 wire rope assembly w/

1/2” - 20 NF stainless steel threaded stud with

3-1/2” thread min. on one end only

1/2-20 NF hex nut

(Qty 18)

Flat Washer

(Qty 8) Cable Access Channel

1/2-20 Threaded Stud

1/4” Cable

1/4” Redundancy Cable

Support Bar

1/2-20 Hex Nut and Flat Washer

1/2-20 Threaded Stud

Bracket Cover

1/2-20 Hex Nut and Flat Washer

1/4” Steel Thimble

Installation Instructions Page 9

Cable Routing

Pre-Hung

Cable

2 Hole

Locations for

Cable Routing

Two holes are provided at the top of each mounting bracket. Cables can be routed so both are going through one hole or

routed so each cable runs through its own hole.

The system is designed to allow for 2 cables on each mounting bracket. 1 cable for support & 1 as a safety redundancy

cable.

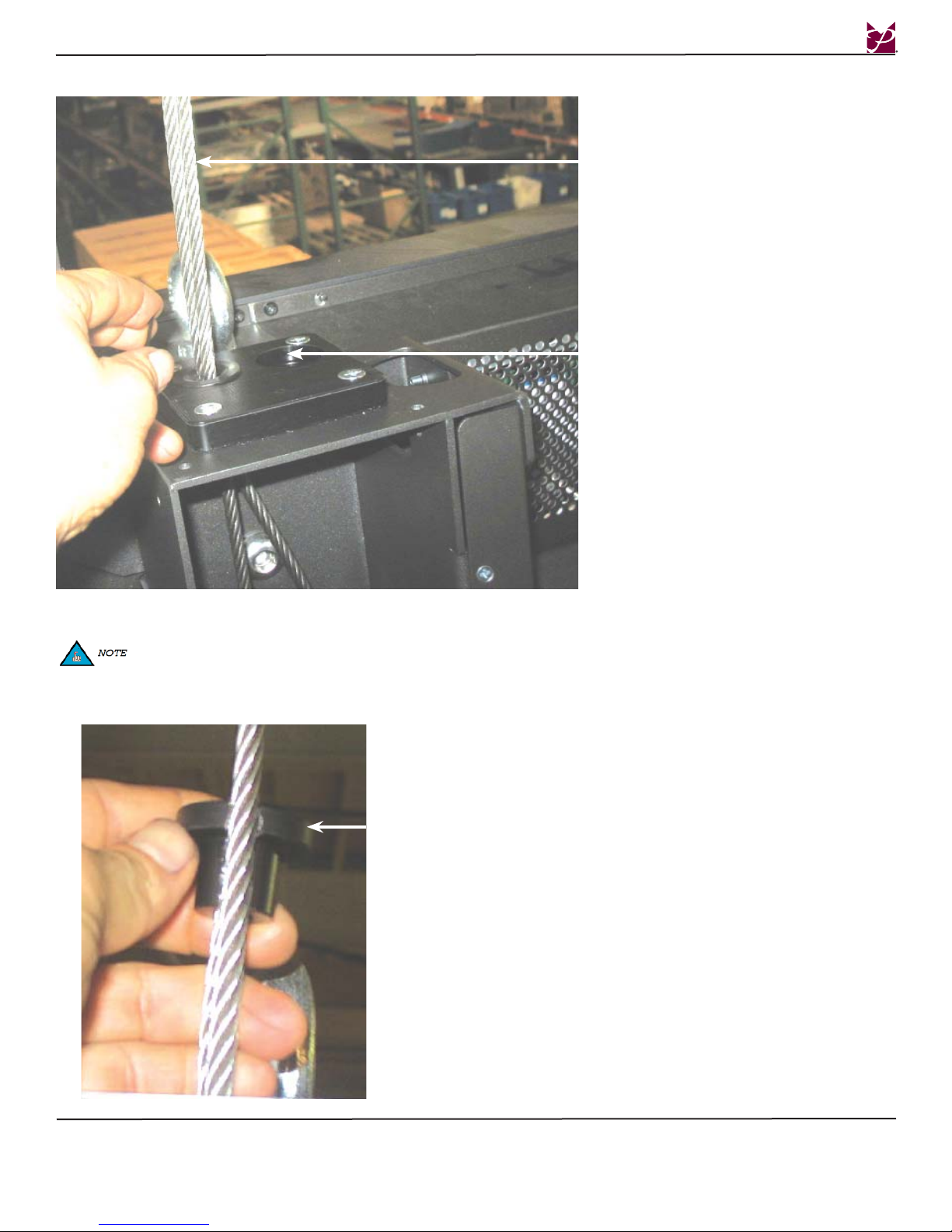

Step 1. Route the pre-hung cables through the top of the left and right mounting brackets attached to the display.

Step 2. Locate the plastic insert plugs and slip around cable

through the cut out in the side of the insert.

Plastic Insert

Plug

SCM-103

Page 10 Installation Instructions

THE SCM-103 IS HEAVY. IT IS STRONGLY RECOMMENDED THAT THREE PEOPLE PERFORM ALL

INSTALLATION STEPS.

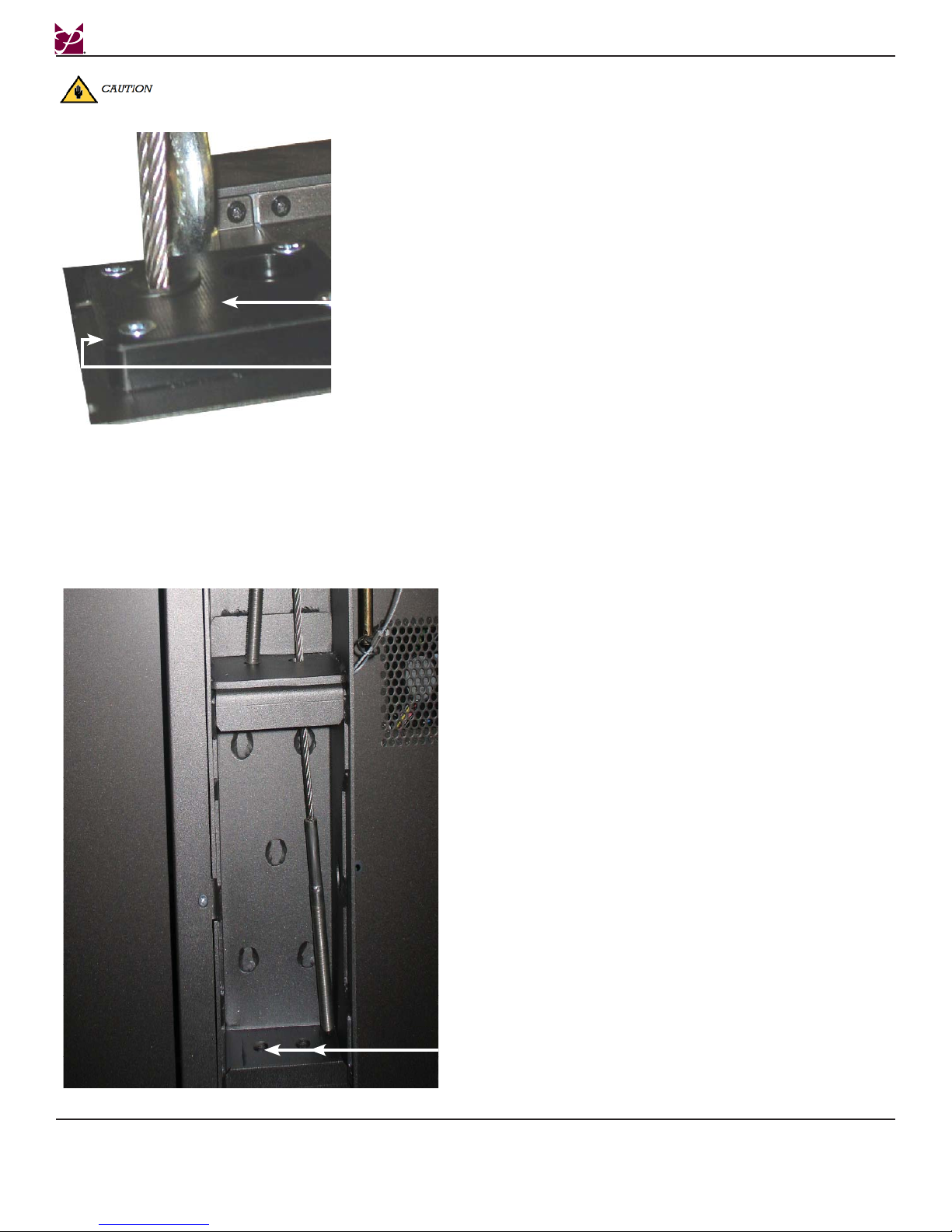

Step 5. Route the cable down through the provided holes

on the display mounting bracket.

6-32 x 1/4”

Set Screw

Step 3. Slide plastic insert plug down cabling and

insert into the top of the mounting bracket. A cut

out in the mounting bracket is provided that will

allow the plastic cap to sit flush with the top of

the mounting bracket

Step 4. Locate the 6-32 x 1/4” Set Screw and insert

into the sides of the plastic top locking the plastic

plug into position. The set screw location is on

the side of each plastic top. Tighten the set screw

using 1/16” Allen wrench.

Cable Routing Holes

SCM-103

Plastic Top
