SABRE P MODEL PD603

PROCESS METER

Instruction Manual

•0-20, 4-20 mA, 0-5, 1-5, 0-10, ±10 V Inputs

•Type 4X, NEMA 4X, IP65 Front

•Shallow Depth Case 3.6" Behind Panel

•4 Digit Display, 0.56" (14 mm) High, Red LEDs

•Easy Front Panel Programming

•Scale without a Signal Source

•Calibrate with a Signal Source

•Maximum/Minimum Display

•Universal Power Supply 85-265 VAC

•12-36 VDC/12-24 VAC Power Option

•24 VDC @ 200 mA Transmitter Supply Option

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

Disclaimer

The information contained in this document is subject to change

without notice. Precision Digital makes no representations or war-

ranties with respect to the contents hereof, and specifically disclaims

any implied warranties of merchantability or fitness for a particular

purpose.

INTRODUCTION

The Sabre P model PD603 is an easy to use process input meter. It ac-

cepts 0-20 mA, 4-20 mA, 0-5, 1-5, or ±10 V input signals. The four front

panel buttons make the setup and programming an easy task.

The isolated 24 VDC transmitter power (optional) can be used to power

the input transmitter or other devices.

ORDERING INFORMATION

85-265 VAC*

Model 12-36 VDC*

Model Description

PD603-6R0-0 PD603-7R0-0 Process Meter

PD603-6R0-1 Process Meter with

24 V transmitter supply

*All models may be powered from AC or DC, see Specifications for details.

NEMA 4 & NEMA 4X Enclosures

Model # of

Meters Description Mounting

PDA2500 1 - 6 Plastic NEMA 4X Enclosure Through Door

PDA2600 1 - 6 Stainless Steel NEMA 4X Enclosure Through Door

PDA2700 1 - 6 Steel NEMA 4 Enclosure Through Door

PDA2801 1 Plastic NEMA 4X Enclosure Through Cover

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

Table of Contents

INTRODUCTION------------------------------------------------------------ 2

ORDERING INFORMATION--------------------------------------------- 2

SPECIFICATIONS---------------------------------------------------------- 5

General-------------------------------------------------------------------------------5

Process Input----------------------------------------------------------------------6

COMPLIANCE INFORMATION----------------------------------------- 7

Safety---------------------------------------------------------------------------------7

Electromagnetic Compatibility-----------------------------------------------7

SAFETY INFORMATION ------------------------------------------------- 8

INSTALLATION------------------------------------------------------------- 9

Unpacking---------------------------------------------------------------------------9

Panel Mounting--------------------------------------------------------------------9

Connections---------------------------------------------------------------------- 10

Connector Labeling ---------------------------------------------------------- 10

Power Connections ---------------------------------------------------------- 10

Signal Connections ---------------------------------------------------------- 11

SETUP AND PROGRAMMING ----------------------------------------13

Front Panel Buttons and Status LED Indicators--------------------- 14

Display Functions and Messages----------------------------------------- 15

Main Menu ------------------------------------------------------------------------ 16

Setting Numeric Values ------------------------------------------------------ 17

Setting Up the Meter (

setu

) ------------------------------------------------- 18

Setting the Input Signal (inpt)-------------------------------------------- 18

Setting the Decimal Point (dec.p)----------------------------------------- 19

Programming the Meter (

prog

)--------------------------------------------- 20

Scaling the Meter (ScAL)---------------------------------------------------- 21

Calibrating the Meter (Cal)------------------------------------------------- 23

Setting Up the Password (

pass

) ------------------------------------------- 24

Locking the Meter ------------------------------------------------------------ 24

Unlocking the Meter---------------------------------------------------------- 24

OPERATION----------------------------------------------------------------26

Front Panel Buttons Operation -------------------------------------------- 26

Maximum/Minimum Readings---------------------------------------------- 27

MOUNTING DIMENSIONS----------------------------------------------28

TROUBLESHOOTING----------------------------------------------------29

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

Troubleshooting Tips --------------------------------------------------------- 29

QUICK USER INTERFACE REFERENCE GUIDE----------------30

EU DECLARATION OF CONFORMITY -----------------------------31

Table of Figures

Figure 1. Panel Cutout and Mounting.................................................9

Figure 2. Connector Labeling - Meter with 24 V Supply..................10

Figure 3. Power Connections............................................................10

Figure 4. Transmitter Powered by Ext. Supply or Self-Powered....11

Figure 5. Transmitters Powered by Internal Supply (Optional)......11

Figure 6. Voltage Input Connections................................................12

Figure 7. Meter Dimensions - Side View...........................................28

Figure 8. Case Dimensions - Top View.............................................28

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.

General

DISPLAY 0.56" (14 mm) high, red LED

Four digits (-1999 to 9999), automatic lead zero blanking.

DISPLAY

UPDATE RATE 5/second

OVERRANGE Display flashes 9999

UNDERRANGE Display flashes -1999

PROGRAMMING

METHODS Four front panel buttons

RECALIBRATION All ranges are calibrated at the factory.

Recalibration is recommended at least every 12 months.

MAX/MIN

DISPLAY Max/min readings reached by the process are stored until

reset by the user or until power to the meter is turned off.

PASSWORD Programmable password restricts modification of

programmed settings.

NON-VOLATILE

MEMORY All programmed settings are stored in non-volatile memory

for a minimum of ten years if power is lost.

POWER

OPTIONS 85-265 VAC, 50/60 Hz; 90-265 VDC, 20 W max

or 12-36 VDC, 12-24 VAC, 6 W max

FUSE Required fuse: UL Recognized, 5 A max, slow blow

Up to 6 meters may share one 5 A fuse

ISOLATED

TRANSMITTER

POWER SUPPLY

P+, P- terminals: 24 VDC ±10% @ 200 mA max

NORMAL MODE

REJECTION 64 dB at 50/60 Hz

ISOLATION 4 kV input-to-power line

500 V input-to-24 V supply

OVERVOLTAGE

CATEGORY Installation Overvoltage Category II:

Local level with smaller transient overvoltages than Instal-

lation Overvoltage Category III.

ENVIRONMENTAL Operating temperature range: 0 to 65°C

Storage temperature range: -40 to 85°C

Relative humidity: 0 to 90% non-condensing

CONNECTIONS Removable screw terminal blocks accept 12 to 22 AWG

wire, RJ11 for factory use only.

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

ENCLOSURE 1/8 DIN, high impact plastic, UL 94V-0, color: gray

MOUNTING 1/8 DIN panel cutout required. Two panel mounting

bracket assemblies provided

TIGHTENING

TORQUE Screw terminal connectors: 5 lb-in (0.56 Nm)

OVERALL

DIMENSIONS 2.45" x 4.68" x 4.19" (62 mm x 119 mm x 106 mm)

(H x W x D)

WEIGHT 8.5 oz (241 g)

WARRANTY 1 year parts & labor

EXTENDED

WARRANTY 1 or 2 years, refer to the Price List for details.

Process Input

INPUTS Field selectable:

0-20, 4-20 mA, 0-5, 1-5, 0-10 V, or ±10 V

ACCURACY ±0.05% FS ±1 count

FUNCTION Linear

TEMPERATURE

DRIFT 50 PPM/°C from 0 to 65°C ambient

DECIMAL POINT Up to three decimal places:

d.ddd, dd.dd, ddd.d,or dddd

CALIBRATION

RANGE An Error message will appear if input 1 and input 2 signals

are too close together.

Input

Range Minimum Span

Input 1 & Input 2

4-20 mA 0.40 mA

±10 V 0.20 V

INPUT

IMPEDANCE Voltage ranges: greater than 1 MΩ

Current ranges: 50 - 100 Ω(depending on resettable fuse impedance)

INPUT

OVERLOAD Current input protected by resettable fuse.

Fuse resets automatically after fault is removed.

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

COMPLIANCE INFORMATION

Safety

UL LISTED USA and Canada

UL 508 Industrial Control Equipment

UL FILE NUMBER E160849

FRONT PANEL UL Type 4X, NEMA 4X, IP65; panel gasket provided

LOW VOLTAGE

DIRECTIVE EN 61010-1:2010

Safety requirements for measurement, control, and

laboratory use

Electromagnetic Compatibility

EMISSIONS EN 55011:2009+Al:2010

Group 1 Class A ISM emissions requirements

Radiated

Emissions Class A

AC Mains Con-

ducted Emissions Class A

IMMUNITY EN 61326-1:2013

Measurement, control, and laboratory equipment

EN 61000-6-2:2005

EMC heavy industrial generic immunity standard

RFI - Amplitude

Modulated 80 -1000 MHz 10 V/m 80% AM (1 kHz)

1.4 - 2.0 GHz 3 V/m 80% AM (1 kHz)

2.0 - 2.7 GHz 1 V/m 80% AM (1 kHz)

Electrical Fast

Transients ±2kV AC mains, ±1kV other

Electrostatic

Discharge ±4kV contact, ±8kV air

RFI - Conducted 10V, 0.15-80 MHz, 1kHz 80% AM

AC Surge ±2kV Common, ±1kV Differential

Surge 1KV (CM)

Power-Frequency

Magnetic Field 30 A/m 70%V for 0.5 period

Voltage Dips 40%V for 5 & 50 periods

70%V for 25 periods

Voltage

Interruptions <5%V for 250 periods

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

Note:

Testing was conducted on PD603 meters installed through the co-

vers of grounded metal enclosures with cable shields grounded at

the point of entry representing installations designed to optimize

EMC performance.

SAFETY INFORMATION

CAUTION: Read complete

instructions prior to instal-

lation and operation of the

meter.

WARNING: Risk of

electric shock.

WARNING

Hazardous voltages exist within enclosure. Installation and service

should be performed only by trained service personnel.

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

INSTALLATION

There is no need to remove the meter from its case to com-

plete the installation, wiring, and setup of the meter.

Unpacking

Remove the meter from box. Inspect the packaging and con-

tents for damage. Report damages, if any, to the carrier.

If any part is missing or the meter malfunctions, please contact

your supplier or the factory for assistance.

Panel Mounting

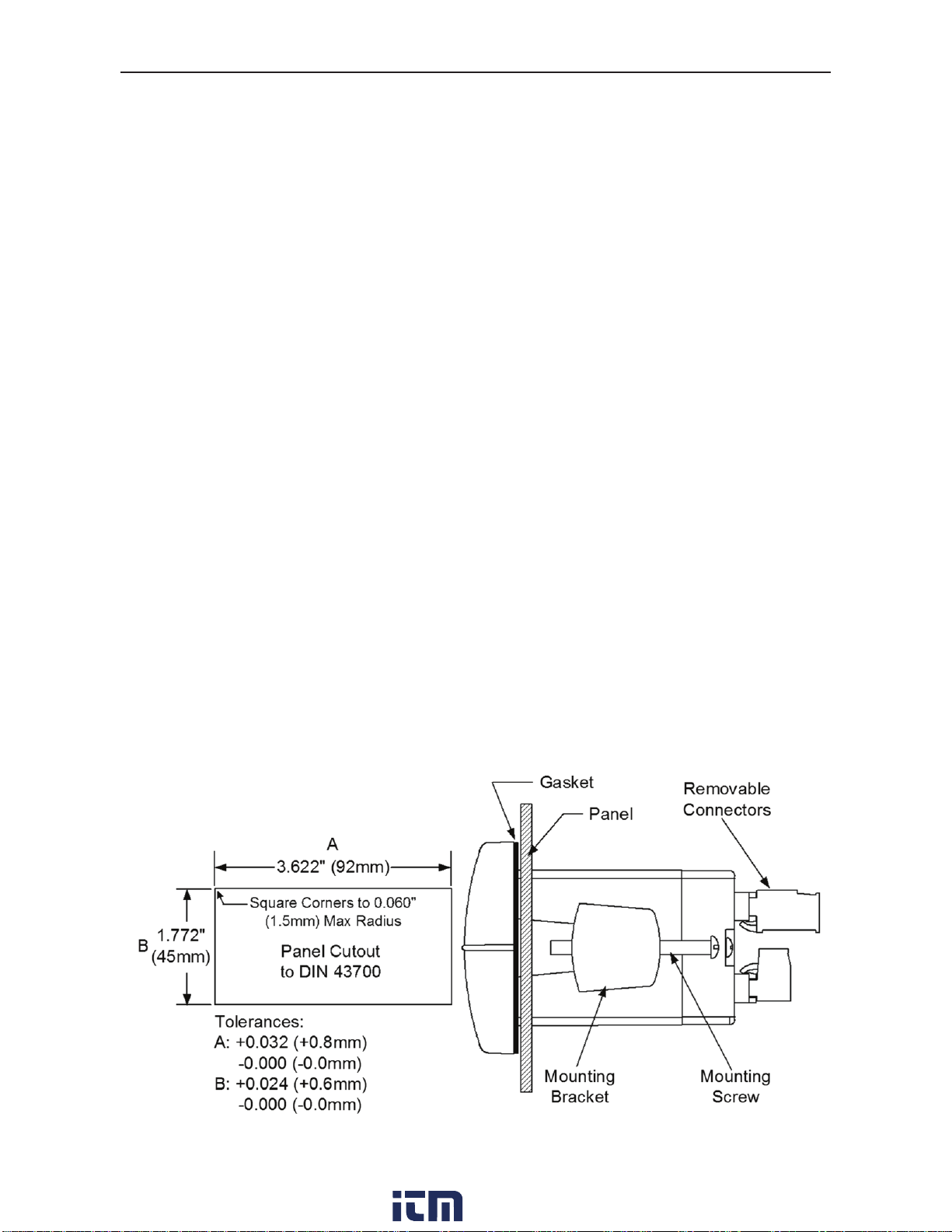

•Prepare a standard 1/8 DIN panel cutout – 3.622" x 1.772" (92 mm

x 45 mm). Refer to Mounting Dimensions, page 28 for more details.

•Clearance: allow at least 4" (102 mm) behind the panel for wiring.

•Panel thickness: 0.04" - 0.25" (1.0 mm - 6.4 mm).

Recommended minimum panel thickness to maintain Type 4X

rating: 0.06" (1.5 mm) steel panel, 0.16" (4.1 mm) plastic panel.

•Remove the two mounting brackets provided with the meter (back-off

the two screws so that there is ¼" (6.4 mm) or less through the

bracket. Slide the bracket toward the front of the case and remove).

•Insert meter into the panel cutout.

•Install mounting brackets and tighten the screws against the panel.

To achieve a proper seal, tighten the mounting bracket screws

evenly until meter is snug to the panel along its short side. DO NOT

OVER TIGHTEN, as the rear of the panel may be damaged.

Figure 1. Panel Cutout and Mounting

www. .com information@itm.com1.800.561.8187

Sabre P Model PD603 Process Meter Instruction Manual

Connections

All connections are made to removable screw terminal connectors

located at the rear of the meter.

Use copper wire with 60°C or 60/75°C insulation

for all line voltage connections. Observe all safety

regulations. Electrical wiring should be performed

in accordance with all applicable national, state,

and local codes to prevent damage to the meter

and ensure personnel safety.

Connector Labeling

The connectors label, affixed to the meter, shows the location of the

connectors available with requested configuration.

Figure 2. Connector Labeling - Meter with 24 V Supply

Power Connections

Power connections are made to a two-terminal connector labeled

POWER on Figure 2. The meter will operate regardless of DC polarity

connection. The + and - symbols are only a suggested wiring convention.

Figure 3. Power Connections

24V OUT

DW1911

POWER

XXV+ mA+ COM Factory

Use

Only

3412 5

2121

P+ P-

SIGNAL

AC or DC

POWER

Required External Fuse:

5 A max, Slow Blow

POWER CONNECTOR

www. .com information@itm.com1.800.561.8187

Tabla de contenidos

Otros manuales de Instrumento de medición de PRECISION DIGITAL

PRECISION DIGITAL

PRECISION DIGITAL pd663 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD660 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD677 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Sabre Series Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Javelin D PD644 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL vantageview Safe Touch PD6700 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD755 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL ProtEX-MAX PD8-7000 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD6000-6R0 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD6060 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL SABRE T PD743 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL pd6300 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader PD683 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader PD689 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL ProtEX-MAX PD8-6001 Series Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD6800 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader PD683 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL Loop Leader PD6620 Series Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD685 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD6060 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD661 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD6200 Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL PD8-7000 Series Manual de usuario

PRECISION DIGITAL

PRECISION DIGITAL ProVu Series Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
