Poynting EPOYNT Manual de usuario

Version 3.0

EPOYNT

User Guide

South Africa

Unit 4, N1 Industrial Park

Landmarks Ave

Samrand, 0157

South Africa

Tel: +27 12 657 0050

[email protected]ch

Europe

Kronstadler Straße 4,

81677 München

Germany

Tel: +49 89 2080 265 38

Mob.: +49 176 529 733 50

sales-europe@poynting.tech

USA

1804 Owen Court,

Suite 104, Mansfield,

TX 76063

Tel: +1 817 533-8130

sales-us@poynting.tech

2UG-EPNT-CPE

Version 3.0 3

Index

Packing Check List

Setting up the CPE

CPE Mounting Configurations

CPE Mounting Precautions

Cable Routing

Safety

Basic Troubleshooting

Note: Please ensure that you are using the latest version of this User

Guide, which can be downloaded from www.poynting.tech

4UG-EPNT-CPE

1. Packing Check List

Item

Description

Quantity

EPOYNT-CPE Only

Wall Knock-in Screws

Pipe Clamp

Suckers

Sucker Mounting Pins

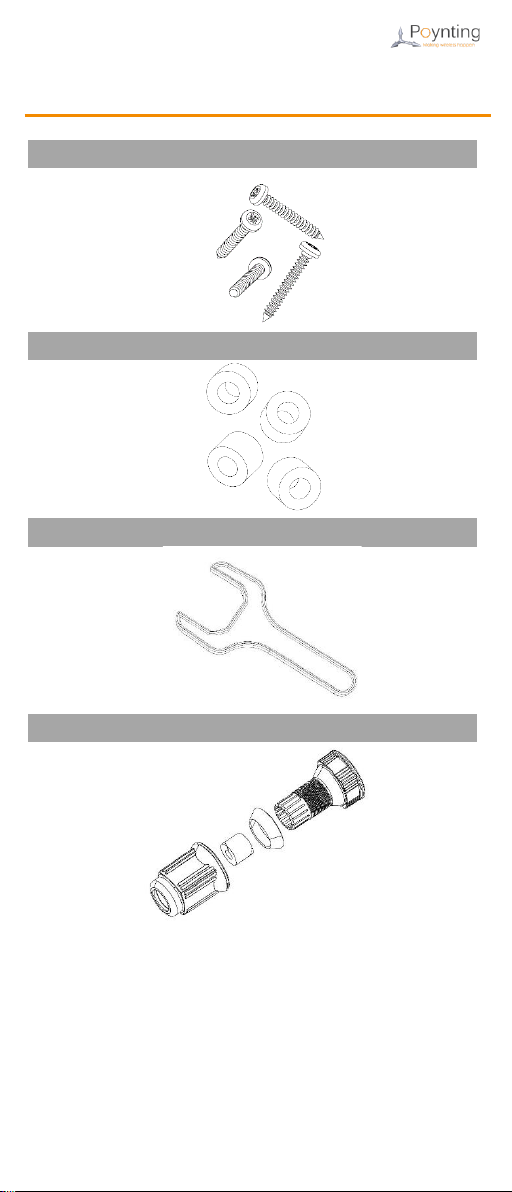

PCB Mounting Screws

PCB Spacers

Spanner

10.

Ethernet Gland

Version 3.0 5

Appearance of components

CPE Unit

Wall Knock-in Screw

Pipe Clamp

Suckers

Sucker Mounting Pins

6UG-EPNT-CPE

PCB Mounting Screws

PCB Spacers

Spanner

Ethernet Gland

Version 3.0 7

Gland

Knock-out

PoE

Port

Optional SIM

Ports Available

(ADPT-10)

8UG-EPNT-CPE

2. Setting up the CPE

Install router into the CPE

•Carefully unscrew the fasteners at the

back cover of the CPE using a Phillips

screwdriver.

Step 1

Version 3.0 9

•Assess mounting options.

a) Option 1: Use provided holes

Locate the router mounting holes

on the CPE and align the holes to

those of your router using the

template below.

b) Option 2: Download backplate

template from www.poynting.tech

to create an adapter plate which

interfaces between the provided

holes and your router.

c) Option 3: Drill and use self-tapping

screws on the backplate to mount

your router.

Precautions on router mounting

oEnsure that the screws used do not

protrude more than 5mm on the

other side of the backplate as this

will damage the antenna

components.

oDamage caused to components

during the drilling process will void

your warranty, proceed with

caution. Ensure that the drilling

operation and effects thereof are

10 UG-EPNT-CPE

limited to the backplate which is

used for mounting the router.

•Secure the router onto the CPE using

the provided spacers and screws.

•Disassemble the Ethernet gland on

the PoE port of the CPE and pass an

Ethernet cable through it, with the

over-nut first, then the rubber gasket

and finally the contracting gland as

shown below.

•Make sure that the Ethernet cable

goes through the CPE's PoE port and

manually rotate the screw cap to

lock the Ethernet gland.
