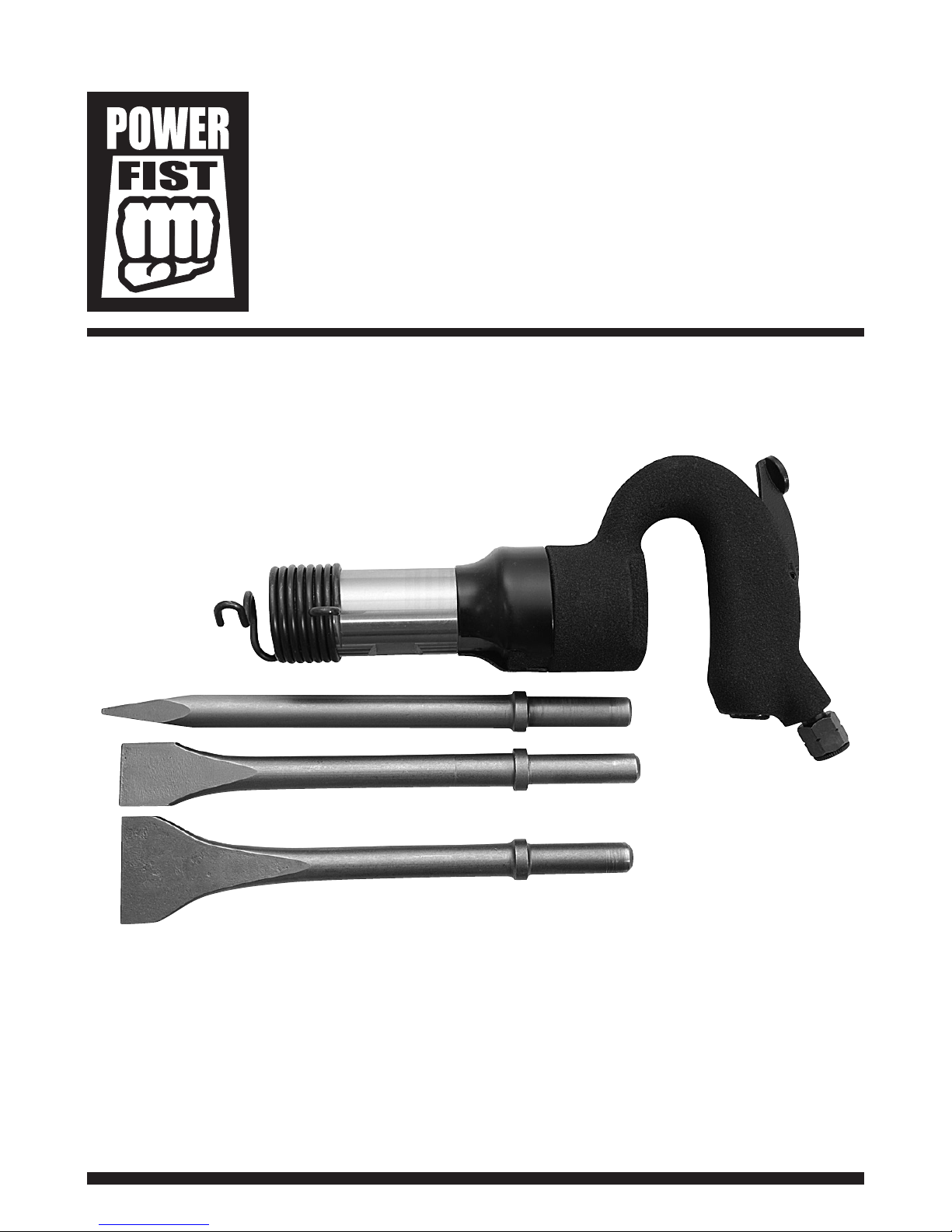

User Manual
Air Hammer with
3 pc Chisels
Please read and understand all instructions before use.
Retain this manual for future reference.
V 2.1
8435893
Air Hammer with
3 pc Chisels
3
For technical questions call: 1-800-665-8685
V 2.
1
SPECIFICATIONS
Type 3 pc
Air Consumption @ 90 PSI 5 CFM
Impact Rate 3,600 BPM
Stroke Length 2 in.
Housing Gravity die-casting
Max. Pressure 120 PSI
SAFETY
IMPORTANT SAFETY PRECAUTIONS
WARNING! Read and understand all instructions before using this tool. The operator must follow basic
precautions to reduce the risk of personal injury and/or damage to the equipment. Before allowing
someone else to use this tool, make sure they are aware of all safety information.
WARNING! The warnings, cautions and instructions discussed in this instruction manual cannot cover
all possible conditions and situations that may occur. Common sense and caution are factors that
cannot be built into this product, but must be supplied by the operator.
NOTE: Keep this manual for safety warnings, precautions, operating, inspection and
maintenance instructions.
Air Hammer with 3 pc Chisels
4For technical questions call: 1-800-665-8685
8435893V 2.1
WORK AREA
1. Operate in a safe work environment. Keep your work area clean and well lit.
2. Do not use in the presence of flammable gases or liquids.
3. Keep anyone not wearing the appropriate safety equipment away from the work area.
4. Minimize distractions in the work environment. Distractions can cause you to lose
control of the tool.
5. Store tools properly in a safe and dry location to prevent rust or damage.
6. Always lock up tools and keep them out of the reach of children.
PERSONAL SAFETY
CAUTION! Wear protective equipment approved by the Canadian Standards Association (CSA) or
American National Standards Institute (ANSI) when using the tool.
1. Head Protection
a. Always wear impact safety goggles that provide front and side protection for the eyes.
b. Wear the appropriate rated dust mask or respirator.
c. Wear earplugs if the power tool or work environment is noisy.
d. Wear a full-face shield if your work creates metal filings or wood chips.
e. Wear a hard hat to protect your head from falling objects.
2. Gloves
a. The gloves should provide protection based on the work materials.
b. Wear suitable gloves to reduce the effects of vibration.
3. Protective Clothing
a. Wear protective clothing designed for the work environment and tool. Examples are
electrical non-conductive clothes or clothes treated to resist corrosive liquids or materials.
4. Foot Protection
a. Steel toe footwear or steel toe caps to prevent injury from falling objects.
b. Non-skid footwear is recommended to maintain footing and balance.
5. Control the tool, personal movement and the work environment to avoid personal injury or
damage to tool. Stay alert, watch what you are doing and use your common sense.
a. Keep articles of clothing, jewelry, hair, etc., away from moving parts to avoid entanglement
with a tool.
b. Do not operate any machine/tool when tired or under the influence of drugs,
alcohol or medications.
c. Do not overreach when operating a tool. Proper footing and balance enables better control
of a tool in unexpected situations.
d. Use clamps or other practical ways to support or secure the workpiece to a stable
platform. Holding the workpiece by hand or against your body is not stable and may lead
to loss of control and injury.
Air Hammer with 3 pc Chisels
5
Visit www.princessauto.com for more information
8435893 V 2.
1
VIBRATION PRECAUTIONS
1. This tool vibrates during use. Repeated or long-term exposure to vibration may cause
temporary or permanent physical injury, particularly to the hands, arms and shoulders.
2. Anyone using vibrating tools regularly or for an extended period should first be examined by
a doctor and then have regular medical check ups to ensure medical problems are not being
caused by or worsened from tool use.
3. If you feel any medical symptoms related to vibrations (such as tingling, numbness, and white
or blue fingers), seek medical attention as soon as possible.
4. DO NOT use this tool if one of the following applies:
a. Pregnant
b. Impaired blood circulation to the hands
c. Past hand injuries
d. Nervous system disorders
e. Diabetes
f. Raynaud’s Disease
5. Do not smoke while operating the tool. Nicotine reduces the blood flow to the hands and
fingers, increasing the risk of vibration-related injury.
6. Wear suitable gloves to reduce the effects of vibration.
7. Use the tool with the least amount of vibration, when there is a choice between
different processes.
8. Do not use for extended periods. Take frequent breaks to when using this tool.
9. Let the tool do the work. Grip the tool as lightly as possible
(while still keeping safe control of it).
10. To reduce vibrations, maintain the tool as explained in this manual. If abnormal vibrations
occur, stop using this tool immediately.
Air Hammer with 3 pc Chisels
6For technical questions call: 1-800-665-8685
8435893V 2.1
TOOL USE AND CARE
1. Use the correct tool for the job. Do not force a tool or attachment to do the work of a larger
industrial tool. Maximize tool performance and safety by using the tool for its intended task.
2. This tool was designed for a specific function. Do not modify or alter this tool or use it for an
unintended purpose.
3. Securely hold this tool using both hands, unless it is designed for single hand use.
Using a tool with only one hand can result in loss of control.
4. Maintain tools with care (see Maintenance).
5. Remove adjusting keys and wrenches from the tool before operation or connecting it to a power
source. A wrench or key that is left attached to a rotating part of the tool increases the risk of
personal injury.
6. Avoid unintentional starts. Be sure that the throttle/ignition switch is in the neutral or OFF
position when not in use and before connecting it to any air source.
7. Do not carry the tool with fingers near or on the trigger/switch.
AIR COMPRESSOR
Ensure the compressor used with the tool can supply the required Cubic Feet per Minute at the required
PSI (see Specifications).
1. Use proper size and type of air pressure line and fittings.
2. Use only clean, dry, regulated compressed air at the rated range as marked on the tool.
CAUTION! Do not use an air source other than an air compressor to power this tool.
3. Always use an air regulator, an in-line
filter and a moisture trap in your
compressed air system. These
accessories will increase the tool’s life
and keeps the tool in good working
condition. See the diagram for
recommended components of
an air line.
4. Avoid using an air hose that is too long.
The longer the hose, the lower the
pressure that reaches the tool, possibly
causing it to cease functioning.
As well, a longer hose can become a
tripping hazard.
5. Air tool CFM consumption ratings
are based upon a 25% duty cycle. If
you require continuous duty, a larger
compressor is required. Figure. 1
Air Hammer with 3 pc Chisels
7
Visit www.princessauto.com for more information
8435893 V 2.
1
AIR SOURCE INSTALLATION
WARNING! Never use pure oxygen, carbon dioxide, combustible gases or any bottled gas as an air
source for a tool. Such gases are capable of causing an explosion and serious injury to persons.
1. Set the air pressure regulator on the air compressor to the recommended PSI level (see
Specifications). Do not exceed the tool recommended air pressure. Excess pressure could
result in damage to the tool, to your workpiece or serious injury.
2. Prepare a standard 1/4 in. air connector for use with your tool. Wrap the threaded portion of
the air connector with thread tape. Wrap in a clockwise direction so it will not unravel when
attaching to a quick connector. Attach it to the tool air inlet and tighten.
3. Attach a standard quick connector to the air source’s hose. Attach the air hose to
the tool’s air connector.
4. Check the air line and its connections for air leaks. Do not use the tool until you have
repaired all air leaks.
DISCONNECTING AIR SOURCE
WARNING! Failure to follow these steps could result in severe injury, tool or property damage.
Disconnect tool from air source before cleaning, servicing, changing parts/accessories or
when not in use.
1. Turn hopper regulator to the OFF position.
2. Turn the air regulator to the OFF or L position.
3. Turn off the air compressor.
4. Disconnect the air pressure hose.
5. Discharge any residual pressure inside the tool.
Air Hammer with 3 pc Chisels
8For technical questions call: 1-800-665-8685
8435893V 2.1
AIR TOOL LUBRICATION
CAUTION! NEVER use a penetrating oil to lubricate the tool. Penetrating oil may act as a solvent that
will break down the grease and cause the tool to seize up.
1. All air tools are packed in grease to prevent corrosion of internal parts during shipping and
storage. We recommend you clean this out to have optimum performance from your new air
tool. Add a generous amount of air tool oil in the air inlet, and then run the tool under no load
until exhaust is clear to remove packing grease.
2. It is very important that the tool is lubricated. Without lubrication, the tool will not work
properly and parts will wear prematurely. Manually adding a drop or two of air tool oil into the
tool’s male connector once a day is better than using an automatic in-line lubricator. In-line
lubricators should only be required when there are multiple users of the same tool.
3. Air tool oil is the only recommended lubricant for use in all air tools. Do not use other types of
lubricants to oil your tools. Using the wrong lubricant will cause premature tool failure
and/or loss of power. Substitutes may harm the rubber compounds in the tool’s O-rings
and other seals.
4. Keep the airline lubricator filled and correctly adjusted. The in-line lubricator should be regularly
checked and filled with air tool oil. Proper adjustment of the in-line lubricator is performed by
placing a sheet of paper next to the exhaust ports and holding the throttle open approximately
30 seconds. The lubricator is properly set when a light stain of oil collects on the paper.
Excessive amounts of oil should be avoided.
5. Avoid adding too much air tool oil during normal use. Too much oil can cause premature power
loss and eventual tool failure. The tool will need to be taken apart by a qualified technician and
cleaned of excess oil.
6. In the event that it becomes necessary to store the tool for an extended period of time
(overnight, weekend, etc.), it should receive a generous amount of lubrication at that time.
The tool should be run for approximately 30 seconds to ensure oil has been evenly distributed
throughout the tool. The tool should be stored in a clean and dry environment.
Air Hammer with 3 pc Chisels
9
Visit www.princessauto.com for more information
8435893 V 2.
1
AIR TOOL PRECAUTIONS
1. Air tools produce more noise than their electric counterparts. Extended exposure to this noise
may cause hearing loss.
a. Wear ear protection gear to eliminate or reduce the noise.
b. If possible add a muffling device to the air tool’s exhaust.
2. Do not operate this tool if the air hose is damaged.
a. Inspect the tool’s air line for cracks, fraying or other faults before each use.
b. Discontinue use if a hissing can be heard from the air line or connectors while operating
the tool.
c. Take the following steps if either of the above situations occur:
i. Tag or mark the tool as 'defective' or 'out of service' until repaired.
ii. Contact a qualified person repair or replace the defective component/hose.
3. Prevent damage to air hose by observing the following:
a. Never use the hose to carry the tool.
b. Keep the air hose of the tool and the tool’s work path while in operation. The hose should
always stay behind the tool.
c. Keep the hose away from heat, oil, sharp edges or moving parts.
d. Do not allow people, mobile equipment or vehicles to pass over unprotected air hose.
i. Position air hose away from traffic areas.
ii. Place hose in reinforced conduit.
iii. Place planks on either side of the hose to create a protective trench.
e. Do not wrap hose around the tool as sharp edges may pierce the hose or cause cracks if
wound too tight. Gently coil the hose and either hang on a hook or fasten with a device to
keep hose together when storing.
4. An air hose under pressure that is damaged or disconnected from an air tool may whip around
and cause damage to the work area or personal injury. Secure the compressor’s air hose to a
fixed or permanent structure with clamps or cable ties.
Air Hammer with 3 pc Chisels
10 For technical questions call: 1-800-665-8685
8435893V 2.1
AIR POWER TOOL PRECAUTIONS
WARNING! Immediately switch off the power tool if any of the following occurs:
• Malfunction of the air inlet, air compressor or damage to the air supply hose.
• The switch or trigger is broken.
• User sees or smells smoke.
• The user smells the odor of scorched insulation.
• The chisel moves in an unsafe way.
1. Ensure air source matches the pressure rating of the tool’s motor (see Specifications).
2. Make sure the power switch is in the OFF position before connecting the tool to the air source.
3. Do not place the tool down until the chisel has stopped moving.
The chisel may catch the surface of work material and wrench itself free, causing injury to the
user or others in the work area.
4. Never use a tool with a cracked or worn chisel. Change the chisel before use.
5. Always use both hands when operating the tool, unless the tool is designed for single hand use.
6. Hold tool by insulated gripping surfaces when performing an operation where it may contact
hidden wiring or its own cord. Contact with a live wire will electrify exposed metal parts and
shock the operator.
7. Before using the tool on a work piece, test the tool by running it at the highest no-load speed
for at least 30 seconds in a safe position. Stop immediately if there is any abnormal vibration or
wobbling that could indicate poor installation of the chisel. Check the tool to determine
the cause.
8. Take work breaks to prevent the tool’s motor from overloading and/or overheating.
9. When the tool is in operation, keep hands away from the chisel and the area it is
being applied to.
10. Do not use the tool on any material containing asbestos.
11. Do not touch the chisel or the surface that has been cut with this tool immediately after use.
The surface will be hot and may cause an injury.
12. Do not allow persons who are not familiar with the tool or have not read these instructions to
use the tool.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Herramientas de Power Fist
Power Fist
Power Fist 8012660 Manual de usuario
Power Fist
Power Fist Air Line Delivery Kit Manual de usuario
Power Fist
Power Fist 8308231 Manual de usuario
Power Fist
Power Fist 8623159 Manual de usuario
Power Fist
Power Fist 8662330 Manual de usuario
Power Fist
Power Fist 8774465 Manual de usuario
Power Fist
Power Fist 8823494 Manual de usuario
Power Fist
Power Fist 9011438 Manual de usuario
Power Fist
Power Fist 8885642 Manual de usuario
Power Fist
Power Fist 8814436 Manual de usuario
Power Fist
Power Fist 8685042 Manual de usuario
Power Fist
Power Fist 8887408 Manual de usuario
Power Fist
Power Fist 9151051 Manual de usuario
Power Fist
Power Fist 9166695 Manual de usuario
Power Fist
Power Fist 8916793 Manual de usuario
Power Fist
Power Fist 8843583 Manual de usuario
Power Fist
Power Fist 1/2 in. Air Ratchet and Socket Set Manual de usuario
Power Fist
Power Fist 8655888 Manual de usuario
Power Fist
Power Fist 8843799 Manual de usuario
Power Fist
Power Fist 8873358 Manual de usuario
