Porsche 924 Guía

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

001-00

Restrictions UPD

248

12:06

Remark

PET

Page: 001 KAT 9

accessories

1 477 011 033 scissors type jack 1

2 944 721 027 05 tool bag

with contents

comprising:

tool bag

angular screw driver

3 477 012 233 spark plug wrench

rim wrench

operating rod

for

rim wrench

double-end spanner

10 X 13

handle

insert

for

cross-recess screw

and

slotted screw

universal pliers

- 928 361 311 00 hook

for

cover

wheel nut

use also:

4 996 721 151 00 towing lug 1

(4) 928 722 101 05 towing lug 1 M058

- 944 721 101 00 key

for

emergency operation

lifting roof

- 900 029 010 40 plastic nut

for

emergency operation

lifting roof

et_bt1.frm

PET

Model

924S Year

1988 23.01.2010

Pos Part Number Description Qty Model

Page: 001

0SG

01 Illustration

001-05 Restrictions UPD

248 12:06

Remark

KAT 9

stickers

- 477 000 257 G sticker

tyre pressure

185/70 - HR 14

- 477 000 257 L sticker

tyre pressure

195/65 - VR 15

(AUS) 1

- 477 000 260 sticker

tyre pressure

205/55 - VR 16

(AUS) 1

- 937 701 127 00 sticker

tyre pressure 1

- 944 006 113 03 sticker

engine specifications (S) 1

et_text.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

002-00

Restrictions UPD

248

12:07

Remark

PET

Page: 001 KAT 9

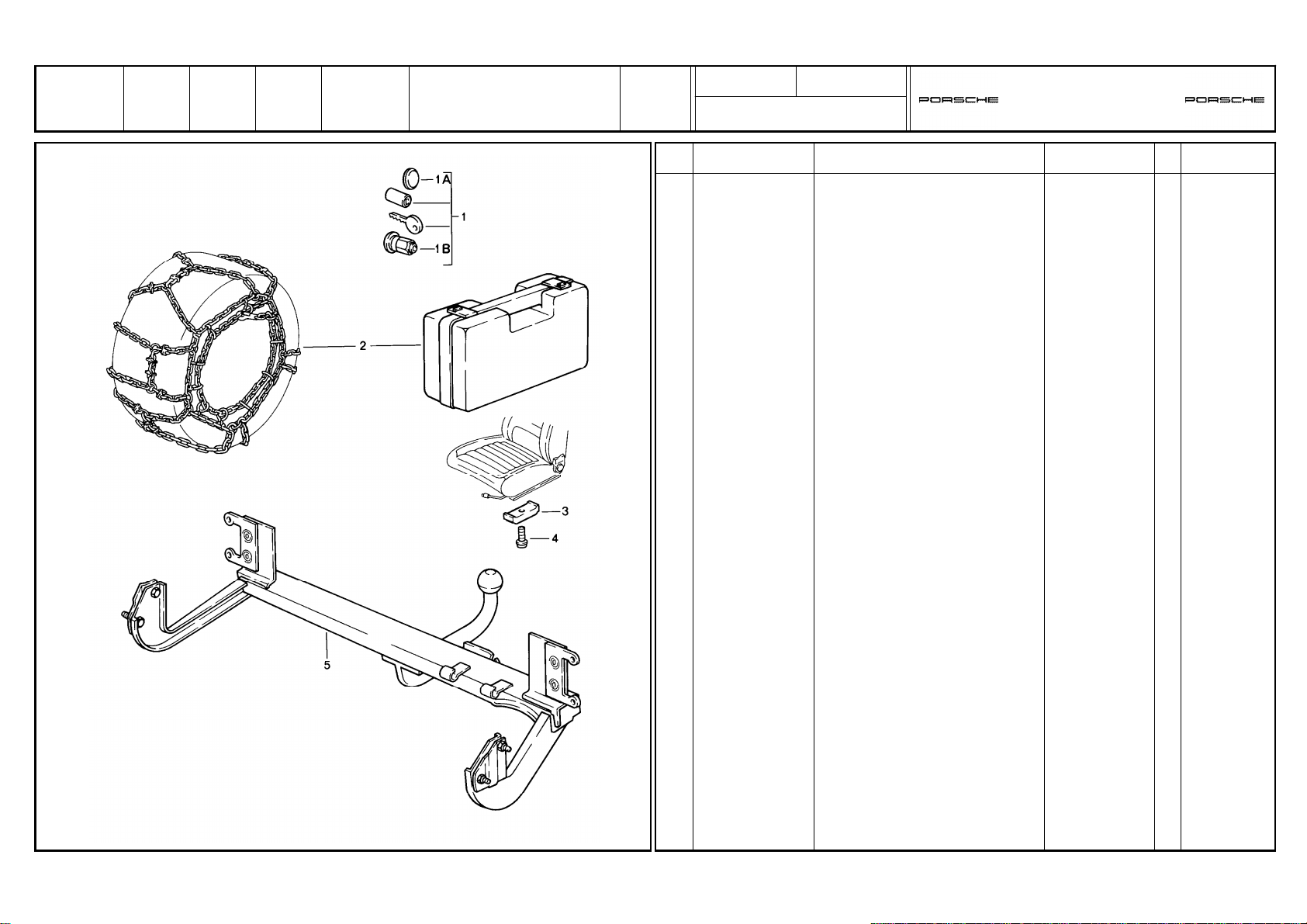

accessories

1 928 361 047 03 wheel nut

lockable

1 set

1A 965 361 167 00 cap 1

1B 928 361 306 03 wheel nut

lockable without lock

snow chains

2 911 361 909 00 snow chains

1 set

for

tyre

195/65 R 15

vertical seat adjustment

3 911 521 493 00 spacer

13 MM

4 900 067 089 02 pan-head screw

M 6 X 25

for

13 MM

elevation

(4) N 014 749 2 pan-head screw

M 6 X 40

for

26 MM

elevation

- 477 821 161 A mud flap /L 1

- 477 821 162 A mud flap /R 1

- N 010 264 4 hexagon-head bolt

M 5 X 20

- N 011 692 3 washer 6

- N 012 005 3 lock ring

B 5

- N 011 005 14 hexagon nut

M 5

trailer coupling

5 477 800 805 D trailer coupling

installation set

complete

et_bt1.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

002-00

Restrictions UPD

248

12:07

Remark

PET

Page: 002 KAT 9

Pos Part Number Description Qty ModelRemark

(5) 477 800 805 E trailer coupling

installation set

complete

1 M058

- 928 006 901 00 sticker

drawbar load

- 111 919 209 A indicator light 1

- 900 631 132 90 bulb

12 V, 1,2 W

- 431 953 231 relay 1

et_bt2.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

002-06

Restrictions UPD

248

12:07

Remark

PET

Page: 001 KAT 9

roof transport system

1 944 801 005 00 main support 1

2 928 801 061 02 retaining strip

1 set

2A 928 801 903 02 rubber support for skis X

2B 928 801 193 02 retaining strap X

3 928 801 063 02 ski box /L 1

(3) 928 801 064 02 ski box /R 1

5 928 801 081 02 roof luggage rack set 1

6 999 119 012 07 pan-head screw 4

8 928 801 011 02 cylinder lock

with keys

only for replacement

state lock number

9 477 091 145 protection cap 2

10 477 091 151 A protective rubber /L 1

(10) 477 091 152 A protective rubber /R 1

11 928 801 267 02 rubber plate

front

12 928 801 111 02 protection cap 4

13 928 801 107 02 lid 2

14 944 801 901 01 parts kit

comprising:

bolt

screw

lock

15 944 801 901 00 parts kit

comprising:

tension shackle

desk pad

screw

washer

key

et_bt1.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

002-07

Restrictions UPD

248

12:07

Remark

PET

Page: 001 KAT 9

roof transport system M 388

1 928 801 019 02 set of surf board supports 1

2 928 801 017 02 set - canoe carrier 1

3 928 801 085 02 ladder support mandrel X

4 928 801 093 02 set - bike carrier

racing bike

5 928 801 095 02 set - bike carrier

standard bike

6 928 801 079 02 safety rope 1

7 928 801 097 02 support for bicycle 1

et_bt1.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

002-10

Restrictions UPD

248

12:07

Remark

PET

Page: 001 KAT 9

accessories

1 477 863 539 luggage net 1

2 000 043 002 00 car basket

foldable

3 944 522 051 01 child car seat

up to 4 years

4 928 522 050 00 child car seat

older than 4 years

only together with

child car seat cushion

5 944 522 159 00 child car seat cushion /L 1

4CR black

for

back seat

6 944 522 160 00 child car seat cushion /R 1

4CR black

for

back seat

et_bt1.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

003-00

Restrictions UPD

248

12:07

Remark

PET

Page: 001 KAT 9

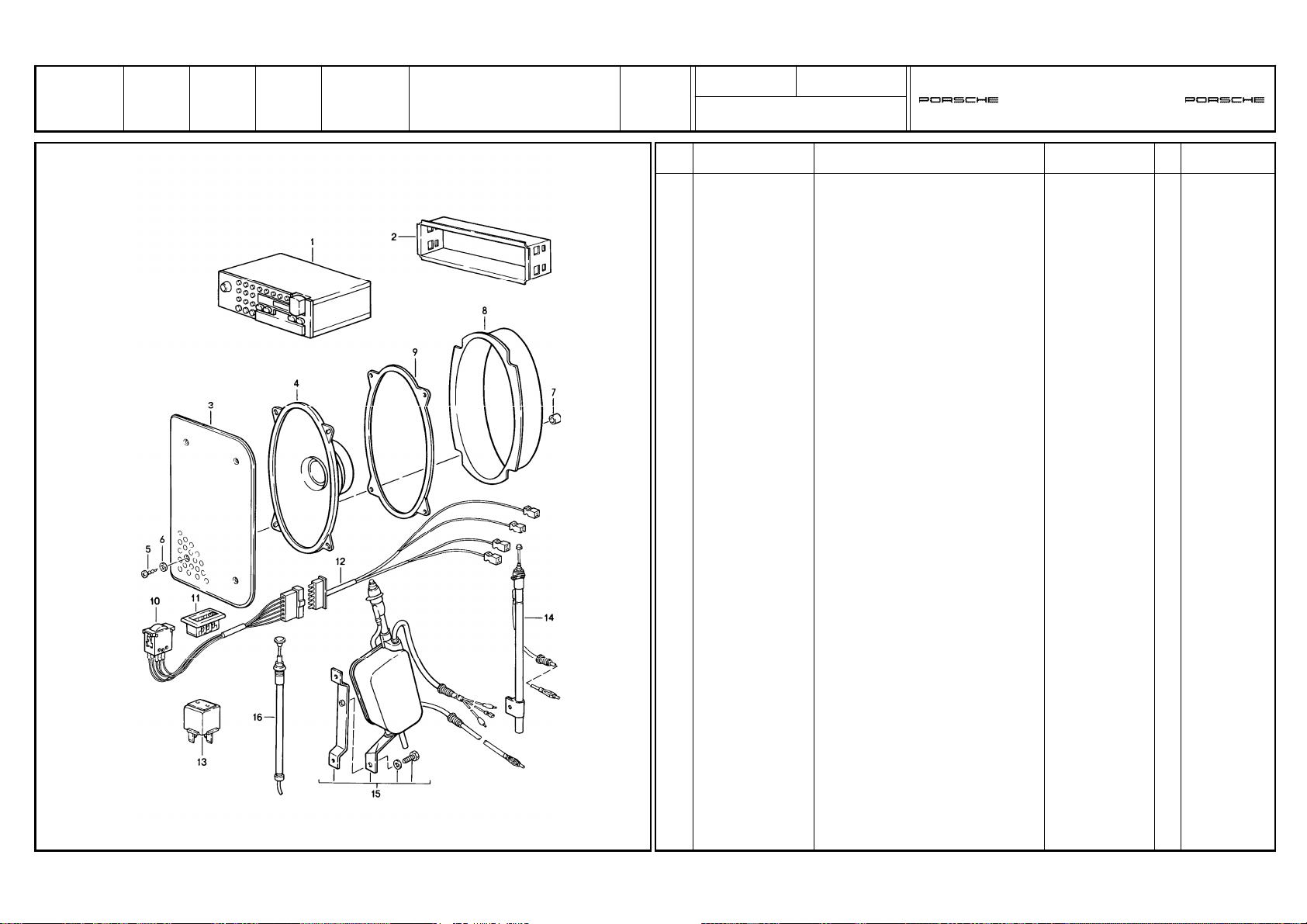

radio

accessories

(1) > 911 645 139 00 radio

TORONTO SQR 45

w/o motorist radio information

(1) > 911 645 157 00 radio

HAMBURG SQM 24

(1) > 911 645 158 00 radio

BOSTON SQM 23

(1) > 911 645 168 00 radio

LUDWIGSBURG SQM 26

(1) > 911 645 159 01 radio

BREMEN SQR 46

(1) > 911 645 139 02 radio

TORONTO SQR 46

2 911 645 173 02 retaining frame 1

3 477 867 081 loudspeaker grille /V 2

01C black

4RB brown

4 944 645 451 00 loudspeaker /V 2

(4) 944 645 461 01 loudspeaker /H 2

5 900 145 041 07 tapping screw

B 3,5 X 16

/V 8

(5) N 013 962 2 tapping screw

B 3,9 X 16

/H 8

6 900 151 028 02 washer /H 8

7 477 867 373 bush /V 8

(7) 477 035 375 bush /H 8

8 944 645 015 00 water protection /V 2

9 477 035 999 gasket /H 2

10 944 645 053 00 fader 1

11 477 035 463 A rosette 1

12 944 612 145 00 wiring harness 1

(13) 944 615 103 00 switch unit 1

et_bt1.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

003-00

Restrictions UPD

248

12:07

Remark

PET

Page: 002 KAT 9

Pos Part Number Description Qty ModelRemark

14 944 645 101 00 antenna

manually

15 > 944 645 911 00 automatic antenna 1

16 944 645 913 00 antenna rod

for

automatic antenna

et_bt2.frm

Model

924S

Year

1988

23.01.2010

Pos Part Number Description Qty Model

Illustration

004-00

Restrictions UPD

248

12:08

Remark

PET

Page: 001 KAT 9

lacquers

basic materials

- 911 096 050 00 polyester filler

1 KG

GLASSIT-NON-FERRO 839-10

- 911 096 051 00 hardener

30 GR

GLASSIT 948-36

red

- 911 096 052 00 primer filler

1 LTR

GLASSOFIX 238-150

- 911 096 053 00 hardener

500 ML

GLASSOFIX 352-228

- 911 096 054 00 primer filler

1 LTR

GLASSODUR 285-100

white

- 911 096 055 00 hardener

500 ML

GLASSODUR 929-28/1

- 911 096 056 00 wash primer

2 LTR

GLASSOFIX 2K 934-200

- 911 096 057 00 hardener

1 LTR

GLASSOFIX 934-100

- 911 096 058 00 polyurethane plastic putty

1 KG

GLASSODUR 995-20

- 911 096 059 00 hardener

1 KG

GLASSODUR 929-13

- 911 096 060 00 thinner

1 LTR

GLASSODUR 352-91

- 911 096 061 00 hardener

500 ML

GLASSODUR 929-73

- 911 096 062 00 additional lacquer

1 LTR

GLASSODUR 521-111

et_bt1.frm
