Getting Started with Polycom® VVX®

Business IP Phones

Topics:

•Overview of Phone Hardware and Keys

▪Accessing Screens on VVX Business IP Phones

▪Icons and Status Indicators on VVX Business IP Phones

•Entering Information in Data Fields

Before you use your phone, take a few moments to familiarize yourself with its features and user

interface.

The terms “the phone” and “your phone” refer to any of the VVX business IP phones. Unless specifically

noted in this guide, especially with regard to phone graphics, all phone models operate in similar ways.

Note: As you read this guide, keep in mind that certain features are configurable by your system

administrator or determined by your network environment. As a result, some features may not be

enabled or may operate differently on your device. Additionally, the examples and graphics in this

guide may not directly reflect what is displayed or is available on your device screen.

Overview of Phone Hardware and Keys

Use the following figures and tables to understand hardware features available on VVX business IP

phones. For more information about attaching phone hardware, including how to connect your phone to

the network, see the Setup Sheet for your phone available on your phone's support page on Polycom

Voice Support.

VVX 150 Hardware

The following figure displays the hardware features on the VVX 150 business IP phones. The table lists

each feature numbered in the figure.

Polycom, Inc. 10

VVX 150 hardware features

VVX 150 Hardware Feature Descriptions

Reference

Number

Feature Feature Description

1 Line keys Enable you to select a phone line, view calls on a line,

or quickly call a favorite contact.

2 Reversible tab Secures the handset in the cradle when your phone

stand is positioned at a high angle. To secure the

handset, remove the tab, reverse it so the protrusion

points up, and re-insert it. Position the handset so the

protrusion on the tab fits into the slot on the handset.

3 Speaker Provides ringer and speakerphone audio output.

4 Back key Enables you to return to the previous screen.

5 Transfer key Transfers an active call to a contact.

6 Hold key Holds an active call or resumes a held call.

7 Volume keys Adjust the volume of the handset, headset, speaker,

and ringer.

8 Dial pad Enables you to enter numbers, letters, and special

characters. You can also use the dial pad keys to

select menu items that have index numbers.

9 Mute key Mutes local audio during calls and conferences.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 11

Reference

Number

Feature Feature Description

10 Speakerphone key Enables you to place and receive calls using the

speakerphone.

11 Headset key Enables you to place and receive calls through a

headset.

12 Home key Displays the Home screen from other screens and

displays the Lines and Calls screen from the Home

screen.

13 Navigation keys / Select key Scrolls through information or options displayed on the

phone's screen. Selects a field of displayed data.

14 Soft keys Enable you to select context sensitive keys that display

along the bottom of the screen.

15 Security slot (on back) Enables you to attach a universal security cable lock to

your phone so you can secure it to a desktop.

16 Screen Shows a 6.35 cm (2.5-inch) monochrome display that

enables you to view menu options and data.

17 Message Waiting Indicator Flashes red to indicate when you have new messages.

VVX 250 Hardware

The following figure displays the hardware features on VVX 250 business IP phones. The table lists each

feature numbered in the figure.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 12

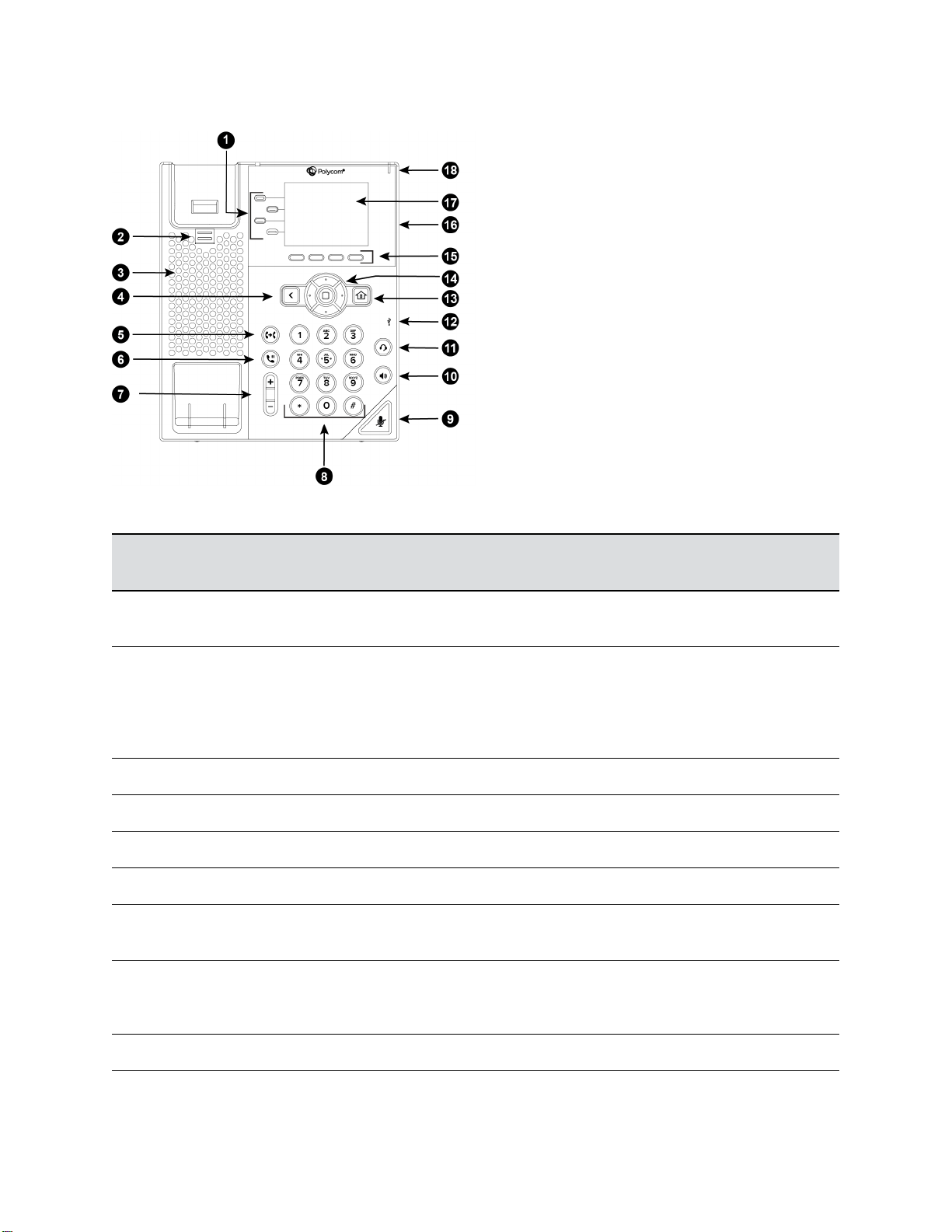

VVX 250 hardware features

VVX 250 Hardware Features

Reference

Number

Feature Feature Description

1 Line keys Enable you to select a phone line, view calls on a line,

or quickly call a favorite contact.

2 Reversible tab Secures the handset in the cradle when your phone

stand is positioned at a high angle. To secure the

handset, remove the tab, reverse it so the protrusion

points up, and re-insert it. Position the handset so the

protrusion on the tab fits into the slot on the handset.

3 Speaker Provides ringer and speakerphone audio output.

4 Back key Enables you to return to the previous screen.

5 Transfer key Transfers an active call to a contact.

6 Hold key Holds an active call or resumes a held call.

7 Volume keys Adjust the volume of the handset, headset, speaker,

and ringer.

8 Dial pad Enables you to enter numbers, letters, and special

characters. You can also use the dial pad keys to

select menu items that have index numbers.

9 Mute key Mutes local audio during calls and conferences.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 13

Reference

Number

Feature Feature Description

10 Speakerphone key Enables you to place and receive calls using the

speakerphone.

11 Headset key Enables you to place and receive calls through a

headset.

12 USB Port Enables you to attach a USB flash drive or USB

headset.

13 Home key Displays the Home screen from other screens and

displays the Lines and Calls screen from the Home

screen.

14 Navigation keys / Select key Scrolls through information or options displayed on the

phone's screen. Selects a field of displayed data.

15 Soft keys Enable you to select context sensitive keys that display

along the bottom of the screen.

16 Security slot (on back) Enables you to attach a universal security cable lock to

your phone so you can secure it to a desktop.

17 Screen Shows a 7.1 cm (2.8 in) color display that enables you

to view menu options and data.

18 Message Waiting Indicator Flashes red to indicate when you have new messages.

VVX 350 Hardware

The following figure displays the hardware features on VVX 350 business IP phones. The table lists each

feature numbered in the figure.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 14

VVX 350 hardware features

VVX 350 Hardware Feature Descriptions

Reference

Number

Feature Feature Description

1 Line keys Enable you to select a phone line, view calls on a line,

or quickly call a favorite contact.

2 Reversible tab Secures the handset in the cradle when your phone

stand is positioned at a high angle. To secure the

handset, remove the tab, reverse it so the protrusion

points up, and re-insert it. Position the handset so the

protrusion on the tab fits into the slot on the handset.

3 Speaker Provides ringer and speakerphone audio output.

4 Back key Enables you to return to the previous screen.

5 Transfer key Transfers an active call to a contact.

6 Messages key Enables you to access and manage instant and voice

messages.

7 Hold key Holds an active call or resumes a held call.

8 Volume keys Adjust the volume of the handset, headset, speaker,

and ringer.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 15

Reference

Number

Feature Feature Description

9 Dial pad Enables you to enter numbers, letters, and special

characters. You can also use the dial pad keys to

select menu items that have index numbers.

10 Mute key Mutes local audio during calls and conferences.

11 Speakerphone key Enables you to place and receive calls using the

speakerphone.

12 Headset key Enables you to place and receive calls through a

headset.

13 USB Port Enables you to attach a USB flash drive or USB

headset.

14 Home key Displays the Home screen from other screens and

displays the Lines and Calls screen from the Home

screen.

15 Navigation keys / Select key Scrolls through information or options displayed on the

phone's screen. Selects a field of displayed data.

16 Soft keys Enable you to select context sensitive keys that display

along the bottom of the screen.

17 Security slot (on back) Enables you to attach a universal security cable lock to

your phone so you can secure it to a desktop.

18 Screen Shows a 8.89 cm (3.5 in) color screen with a backlight

that enables you to view menu options and data.

19 Message Waiting Indicator Flashes red to indicate when you have new messages.

VVX 450 Hardware

The following figure displays the hardware features on VVX 450 business IP phones. The table lists each

feature numbered in the figure.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 16

VVX 450 hardware features

VVX 450 Hardware Feature Descriptions

Reference

Number

Feature Feature Description

1 Line keys Enable you to select a phone line, view calls on a line,

or quickly call a favorite contact.

2 Reversible tab Secures the handset in the cradle when your phone

stand is positioned at a high angle. To secure the

handset, remove the tab, reverse it so the protrusion

points up, and re-insert it. Position the handset so the

protrusion on the tab fits into the slot on the handset.

3 Speaker Provides ringer and speakerphone audio output.

4 Back key Enables you to return to the previous screen.

5 Transfer key Transfers an active call to a contact.

6 Messages key Enables you to access and manage instant and voice

messages.

7 Hold key Holds an active call or resumes a held call.

8 Volume keys Adjust the volume of the handset, headset, speaker,

and ringer.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 17

Reference

Number

Feature Feature Description

9 Dial pad Enables you to enter numbers, letters, and special

characters. You can also use the dial pad keys to

select menu items that have index numbers.

10 Mute key Mutes local audio during calls and conferences.

11 Speakerphone key Enables you to place and receive calls using the

speakerphone.

12 Headset key Enables you to place and receive calls through a

headset.

13 USB Port Enables you to attach a USB flash drive or USB

headset.

14 Home key Displays the Home screen from other screens and

displays the Lines and Calls screen from the Home

screen.

15 Navigation keys / Select key Scrolls through information or options displayed on the

phone's screen. Selects a field of displayed data.

16 Soft keys Enable you to select context sensitive keys that display

along the bottom of the screen.

17 Security slot (on back) Enables you to attach a universal security cable lock to

your phone so you can secure it to a desktop.

18 Screen Shows a 10.9 cm (4.3 in) color display with a backlight

that enables you to view menu options and data.

19 Message Waiting Indicator Flashes red to indicate when you have new messages.

Securing Your Phone with the Security Slot

By fastening one end of a universal security cable to a desk or table and the other end to the security slot

available on VVX business IP phones, you can prevent your phone from being removed.

See the hardware figure for your phone for the location of the security slot . Refer to the universal

security documentation for more information on securing your phone.

Accessing Screens on VVX Business IP Phones

You can access the following screens on your phone:

▪ Main Menu—Displays menu options for settings and device information.

▪ Calls Screen—Displays all active and held calls on your line.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 18

▪ Lines Screen—Displays your phone lines, favorites, and conditional soft keys.

Access the Main Menu

On VVX business IP phones, you can access phone features and settings from the Main Menu screen.

Main Menu on VVX 250 Phones

Procedure

1. Press .

Access the Calls Screen

You can access the Calls screen when you have one held call or an active and held call in progress on

your phone.

The Calls screen is automatically displayed when you have an active call and one or more held calls on

your phone. The total number of calls is displayed on your line. If you have multiple lines on your phone,

the calls display under the associated line, as shown next.

Call Screen on VVX 250

Procedure

1. During a call, do one of the following:

• Press the Home key .

• From the Lines screen, press the Calls soft key.

Getting Started with Polycom® VVX® Business IP Phones

Polycom, Inc. 19

Otros manuales para VVX 150

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teléfono IP de Polycom

Polycom

Polycom Polycom SoundPoint IP 430 Manual de instrucciones

Polycom

Polycom SoundPoint 321 Manual de usuario

Polycom

Polycom VVX 3 Series Manual de usuario

Polycom

Polycom SoundPoint IP 331 Manual de usuario

Polycom

Polycom SoundPoint IP 550 Manual de usuario

Polycom

Polycom PENNNET 650 Manual de usuario

Polycom

Polycom VVX 501 Manual de usuario

Polycom

Polycom SoundStation IP 5000 Manual de instrucciones

Polycom

Polycom SoundPoint IP 501 Manual de usuario

Polycom

Polycom SoundStation IP 7000 Manual de usuario

Polycom

Polycom SoundPoint IP 501 SIP Manual de usuario

Polycom

Polycom Integra VVX 500 Guía de instalación

Polycom

Polycom SoundPoint IP 331 Manual de usuario

Polycom

Polycom VVX 411 Manual de instrucciones

Polycom

Polycom VVX101 Manual de usuario

Polycom

Polycom VVX 250 Manual de usuario

Polycom

Polycom VVX 400 Manual de usuario

Polycom

Polycom SoundPoint IP 301 SIP Manual de usuario

Polycom

Polycom VVX 501 Manual de usuario

Polycom

Polycom SoundPoint IP 650 Manual de usuario

Polycom

Polycom SoundPoint IP 600 Manual de instrucciones

Polycom

Polycom IP 331-EN Manual de usuario

Polycom

Polycom VVX-450 Series Manual de instrucciones

Polycom

Polycom SoundPoint IP 670 Manual de usuario

Manuales populares de Teléfono IP de otras marcas

Alcatel

Alcatel 4028 Manual de usuario

Cisco

Cisco SPA-500 Series Manual de usuario

Proximus

Proximus Maestro 3016 IP Manual de usuario

Fanvil

Fanvil X4 Manual de usuario

Cisco

Cisco 7962 Manual de usuario

Snom

Snom 320 Manual de usuario

Yealink

Yealink Yealink SIP-T46G Manual de usuario

Avaya

Avaya 4625SW Manual de usuario

Yealink

Yealink SIP-T52S Manual de usuario

Nortel

Nortel 1140E Manual de usuario

Nexotek

Nexotek NT-P500 Manual de usuario

Avaya

Avaya Integral 5 R3.0 Manual de usuario

GE 28320EE2 - Dect 6.0 InfoLink 2 Manual de usuario

Avaya

Avaya 4600 Series Manual de servicio

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP Manual de usuario

Nortel

Nortel i2050 Manual de usuario

Fiberme

Fiberme FAP260 Series Manual de usuario

Meridian

Meridian M5009 Manual de usuario
