Polycom QSX Manual de usuario

IOIOIO

LAN

Power connector

Connect to power

supply

POTS module

connector

Connect to conference

phone interface

module (if phone is

used)

VGA output

Connect to VGA

monitor or

projector

VGA input

Connect to

content controller

or computer

LAN connector

Connect to LAN

8-wire conference

phone connector

Connect to conference

phone (if phone is

used.)

Conference link

connector

Connect to SoundStation

VTX 1000 only (if phone is

used.)

RS-232 connector

Use to reset forgotten

password or set a static

IP address (optional)

Audio connectors

Reserved for future

use (inactive)

The QSX™System Quick Start Guide

Unit Overview

Included in the Box

QSX 400

* Content Controller with VGA Cable

* 3 foot VGA Extension

* Straight-through Serial Cable

QSX 300

(for use with SoundStation VTX 1000)

* VGA Cable

* Straight-through Serial Cable

* Conference Link Cable

For information about configuring the QSX system, see the QSX Administration Guide.

For the latest product information, see the Release Notes available at www.polycom.com/resource_center.

For product support, visit the Polycom Support Center at www.polycom.com/support.

Cable Bag

* LAN Cable

* Power Cord

* Power Supply

* 8-Wire Cable for phone console

* Mounting Brackets

1725-45077-001/B

Connect Conference Phone (optional)

Connect SoundStation

™

, SoundStation Premier

™

, SoundStation2

™

VoiceStation

™

conference phones

Connect Power Supply and LAN Cable

Connect VGA Cables

Connect the QSX™ System

QSX 300

QSX 400

Connection to projector

or display. (Not included)

IOIOIO

LAN

IOIOIO

LAN

IOIOIO

LAN

100V - 120V

220V - 240V

VGA Extension

Plug red & white plugs into

red & white jacks

QSX,VoiceStation, SoundStation2, SoundStation VTX 1000, and the industrial design of SoundStation are trademarks of Polycom,Inc.in the U.S.and various countries.

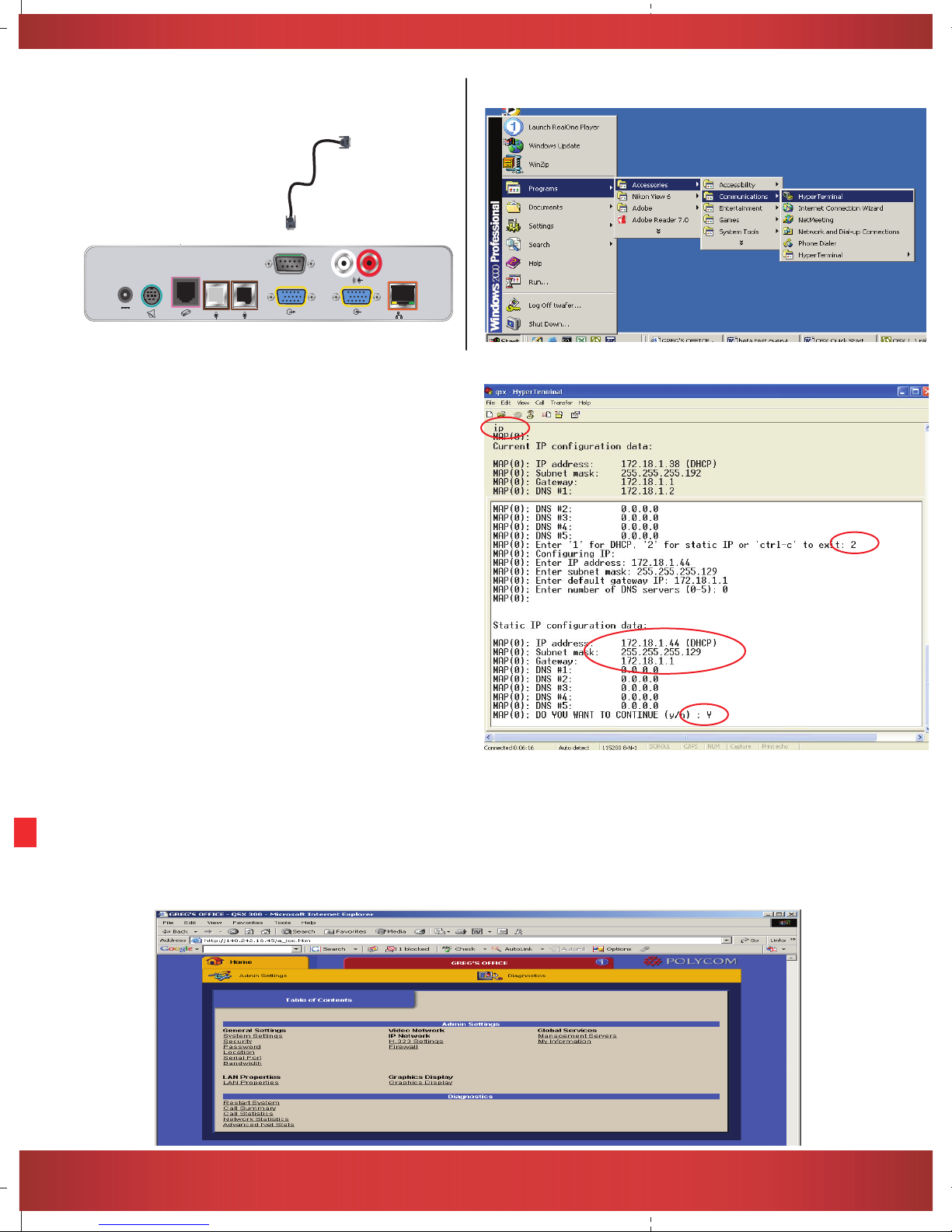

Set a Static IP Address* (optional)

A. Via QSX Web Admin Page

Connect a SoundStation VTX 1000

™

conference phone

(optional)

To Get to QSX Web Admin Page

1. Once QSX is connected, hit the Info button on

Content Controller.

2. If screen shows an IP address in the“My IP”

field, go to Step 3. Otherwise, proceed to

next page.

3. Open your internet browser and type in the

IP address, followed by “/admin.htm”

(e.g. http//140.242.16.45/admin.htm).

4. Click on LAN properties. Select “Enter IP

Address Manually.” After typing IP Address,

Subnet Mask Gateway and DNS information,

click the update button.

* By default QSX is DHCP enabled. If your

network has a DHCP server, an IP address

will automatically be assigned to the QSX.

IOIOIO

LAN

8-Wire Cable Conference Link Cable

Open Web Browser and Type IP Address in Browser Window

followed by “admin.htm” (e.g.-http//140.242.16.45/admin.htm)

4. Configure Static IP Address

a. Enter “2”, IP Address, Subnet Mask,

Gateway and DNS

b. Enter“Y”and the system will reboot.

5. Restart QSX by unplugging and re-plugging the QSX power cord

3. Connect to QSX

a. Open Hyperterminal, enter a name

(e.g.-QSX) and click OK.

b. Select COM1 (or the actual port) and

click OK.

c. Select bitrate of 115200 and click OK.

d. The status bar at the bottom of the

screen should say“Connected”.

e. Enter“ip”and hit return to see the IP

configuration page.

Access QSX Web Admin Page (optional)

3B. Via Hyperterminal

IOIOIO

LAN

1. Plug a straight-through serial cable from

your PC to the QSX

2. Start Hyperterminal
