USER GUIDE

STEREO HEADSET + MIXER FOR XBOX,® PLAYSTATION,® PC + MAC

Contents

Welcome 3

What's in the box 4

System overview 5

Headset basics 7

Installing a mic 7

Using the inline mic 8

PC setup 9

Xbox 360®setup 10

Xbox 360 optical cable setup 10

Xbox 360 component setup 11

Xbox 360 HDMI setup* 12

Sony Playstation 3 (PS3) setup 13

PS3 optical cable setup 13

PS3 component setup 14

The RIG Mixer 15

Powering up 15

Connecting a mobile device 15

Master volume control 15

[MIC ROCKER] switch 16

[GAME/CHAT SOUND] balancer 16

[GAME/MOBILE SOUND] balancer 17

Mixing and controlling music from a mobile device 17

Take calls. Keep playing. 18

Mic mute 18

Equalizer 18

Combo chat 19

FAQ 21

Congratulations on the purchase of your new RIG Headset + Mixer! Plantronics Gaming would

like to welcome you into the RIG family of high-end audio products.

RIG was designed from the ground up for deeply immersive game audio but without losing

your connection to the world. When connected to a mobile device, RIG blends game and chat

with mobile audio, apps, and alerts—and best of all—enables you to take calls without pausing

the game.

This guide will help you get set up and start exploring all RIG has to offer.

GLHF!

Welcome

RIG Headset RIG Mixer Boom microphone/cable

Xbox LIVE®chat cable RCA piggyback cable

Optional in-line microphone/

cable

What's in the box

RIG Headset

1Headband adjustment 3Microphone port

2Right ear indicator

RIG Mixer

1Power on/off 6[GAME/CHAT SOUND] balancer

2[MASTER VOLUME] dial 7[CALL] button

3Mobile microphone 8[EQUALIZER] button

4Game microphone 9[MIC MUTE] button

5[GAME/MOBILE SOUND] balancer

System overview

Boom microphone/cable

1Boom

Optional inline microphone/cable

1[CALL] button 2[MUTE] switch

Designed to connect and mix audio from your mobile device with a game

console or PC, the RIG mixer shines when integrated with a mobile device.

This next section enables you to get the most out of everything RIG can do

for your game.

Installing a microphone and switching cables is fast and easy. Two microphones are included: a

boom microphone/cable for the best gaming audio experience and a low proﬁle in-line

microphone/cable to use with mobile devices.

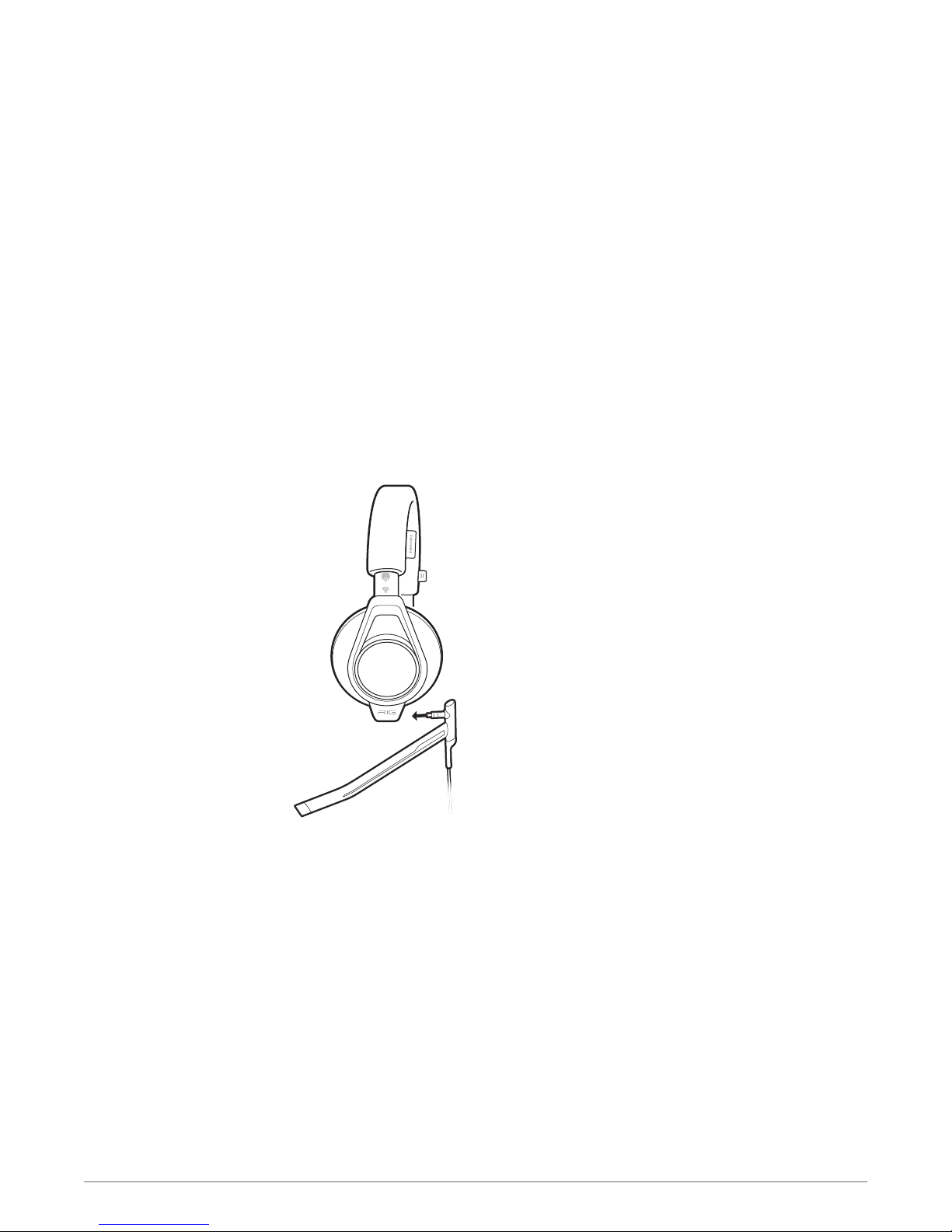

1Insert the connector of the desired microphone cable into the port located on the bottom left

ear cup of the headset.

PRO TIP For proper performance, make sure that the microphone is fully seated in the left ear cup.

Press the microphone boom ﬁrmly into the port until you feel it lock into place.

2If you are using the boom/microphone cable, adjust it so the boom microphone is near your

mouth for the best ﬁdelity.

PRO TIP The [MIC MUTE] button will also glow red when the headset jack is disconnected or

improperly connected to the RIG Mixer. Be certain that the headset jack is fully inserted into the RIG

Mixer. As the RIG Headset connects properly to the RIG Mixer, the red light on the [MIC MUTE] button

will automatically shut off.

Headset basics

Installing a mic

Plantronics Gaming recommends using the stealth inline mic for the occasions when

connecting directly to a mobile device. The controls are easy to use and perfect for mobile calls,

gaming and music on-the-go. Using the noise canceling, high ﬁdelity boom microphone is

recommended for gaming sessions.

1[CALL] button

2[MUTE] button

1Make a call To make a call, dial the number on your mobile device.

2Answer a call To answer a call, press the call control button.

3End a call To end a call, press the call button again.

4Adjust volume To adjust volume, adjust it on your mobile device.

5Mute To mute the call, switch the mute button up towards the headset. To unmute, move it back

down.

PRO TIP If the inline cable is plugged into the RIG mixer, the call button on the inline mic will be

disabled and will not perform any call control functions.

Using the inline mic

1Make sure the boom microphone is attached properly to the headset. Insert the headset 3.5mm

plug into the headset jack on the front of the mixer located under the RIG logo tab, on the left

side.

2Attached to the RIG Mixer is a set of cables that includes a long cord with a 3.5mm audio and

USB connectors. Plug the USB into an available port on your PC and the 3.5mm into the

headset/headphone speaker jack.

For proper function, make sure that the USB connector is plugged into the PC itself and not an

external USB power source

3For best performance, assign "Plantronics Gaming RIG" as the PC microphone via USB. Game

audio is received via the 3.5mm input. Having these two connections provides discrete audio

streams to the mixer, enabling balance of voice-to-game sound on-the-ﬂy with the game/chat

sound balancer without having to adjust software settings during a game.

PRO TIP Dedicated VoIP software, such as Skype, Ventrilo, and Team Speak all enable discrete

assignment of microphone transmit/receive to the RIG Mixer USB device. However, some games that

provide in-game VoIP may not enable discreet assignment of voice/game audio. Adjustment will need

to be done using the in-game software.

4Find a good balance of game and voice audio by adjusting the [GAME/CHAT SOUND] balancer

on the right side of the mixer (over the orange LEDs). Remember that the 3 o'clock position will

enable equal volume of both game and voice audio signal. Sliding the control upward makes

game sound louder and voice (game chat) quieter. Sliding the control downward increases voice

(game chat) while making game audio quieter.

PC setup

How you connect your Xbox 360's audio/video to your TV will generally be

the most important factor in how audio is connected to the RIG Mixer.

Use this setup if your TV or primary audio device has an optical port, and you have an optical

cable (not included in package, sold separately by other manufacturers). An optical cable is an

optional connection method that offers the highest performance audio possible with the RIG

Mixer.

HDMI

1Attach a Toslink digital optical cable to the appropriate port on your Xbox 360 (Xbox 360 Slim

models or to the Microsoft AV Adapter with included optical audio port), HDTV, A/V Receiver, or

other audio device.

2Plug the opposite end of the optical cable into the optical port on the rear of the RIG Mixer

3Make sure the boom mic is attached properly to the RIG headset. Insert the 3.5mm plug into the

headset jack on the front of the mixer located under the RIG logo tab, on the left side.

4Insert the included Xbox Live chat cable into the 2.5mm jack (smaller of the two) located to the

right of the headset jack on front of the mixer. Insert the other end into your Xbox game

controller. For best performance, use the connector with the 90 degree angled plug attached to

the Xbox 360 controller and the straight plug connected to the RIG Mixer.

5Find a good balance of game and voice audio by adjusting the [GAME/CHAT SOUND] balancer

on the right side of the mixer (over the orange LEDs). Remember that the 3 o'clock position will

enable equal volume of both game and voice audio signal. Sliding the control upward makes

game sound louder and voice (game chat) quieter. Sliding the control downward increases voice

(game chat) while making game audio quieter.

Xbox 360®setup

Xbox 360 optical cable

setup
