Plantronics RIG 800 series Manual de usuario

RIG 800 series

RIG 800HS, RIG 800HX

User Guide

Contents

Setup and basics 3

Fit 3

Setup PS4 4

Setup Xbox One 4

Charge 5

Adjust volume 6

Mute 6

Set EQ 6

Support 8

Your adapter comes pre-paired to your headset. After you adjust and charge

your headset and conﬁgure your adapter, power on your headset and it's

ready to go.

Your headset components easily snap into the headset frame to configure the best fit and sound.

The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an

earcup, press the earcup to detach it from the headband.

Setup and basics

Fit

PS4

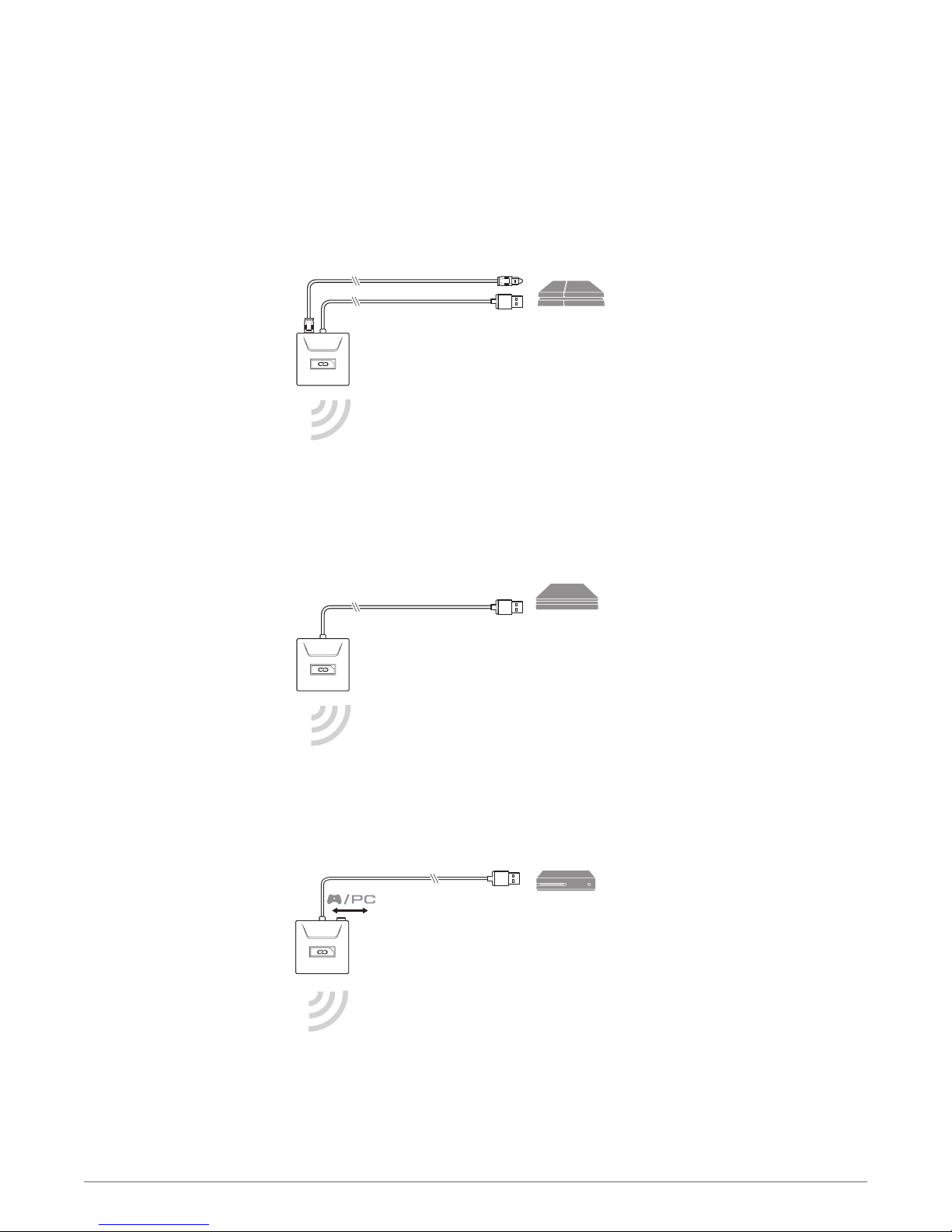

1Connect your adapter to your system.

PS4

2Power on your PS4 and Check for updates

3Go to Settings > Sound and Screen > Audio Output Settings > Select Digital Out (Optical)

4Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX

PS4 (slim version)

1Connect your adapter to your system.

PS4

(slim version)

2Power on your PS4 and Check for updates

3Go to Settings > Devices > Audio Devices > Output Devices Select Plantronics RIG800XX

4Go to Settings > Devices > Audio Devices > Output to headphones > All audio

1Connect your adapter to your system.

Xbox One

NOTE Ensure the switch on the back of the adapter is set to your preference: console or PC.

2Power on your Xbox One and Check for updates

3Go to All settings > Kinect and Devices > Device Options and Accessories > Assign

Setup PS4

Setup Xbox One

It takes up to 4.5 hours to fully charge your headphones. The headset LED is red while charging

and turns off when complete.

04:30:00= 100%

Charge

1To increase or decrease the game and chat volume, adjust the top headset dial.

2To increase or decrease the master volume, adjust the bottom headset dial.

IMPORTANT For the PS4 (slim version), set the top headset dial in the middle; game and chat

remain balanced. Use the bottom headset dial to increase or decrease the master volume.

Lift the boom to a full stop to mute the microphone.

CAUTION Do not force the boom past its upper or lower limits.

Cycle through the EQ modes by tapping the EQ button.

Adjust volume

Mute

Set EQ

Tap the EQ button and hear EQ mode

one tone Pure EQ maintains high frequencies.

two tones Seismic EQ emphasizes mid-range sounds.

three tones Intensify EQ boosts bass.

four tones Vocal Focus EQ

0800 410014

0800 117095

80011336

+44 (0)1793 842443*

0800 945770

+44 (0)1793 842443*

1800 551 896

800 84 45 17

80 88 46 10

+44 (0)1793 842443*

Deutschland 0800 9323 400

Österreich 0800 242 500

Schweiz 0800 932 340

+44 (0)1793 842443*

8-800-100-64-14

+44 (0)1793 842443*

800 950934

0200 21 46 81

900 803 666

NL 0800 7526876

BE 0800 39202

LUX 800 24870

+44 (0)1793 842443*

*Support in English

For warranty details, go to plantronics.com/warranty.

Support

NEED MORE HELP?

plantronics.com/support

Plantronics, Inc. Plantronics B.V.

345 Encinal Street

Santa Cruz, CA 95060

United States

Scorpius 171

2132 LR Hoofddorp

Netherlands

Dolby Laboratories, Dolby and the double-D symbol are registerd trademarks of Dolby Laboratories. All other trademarks are the property of their

respective owners.

Patents pending.

208788-06 (12.16)
