Planet MGSD-10080F Manual de usuario
8-Port 100/1000X SFP + 2-Port 10/100/1000T Managed
Metro Ethernet Switch
MGSD-10080F
Quick Installation Guide
Table of Contents
1. Package Content......................................................................................... 3
2. Requirements ............................................................................................. 4
3. Wiring DC Power Inputs .............................................................................. 5
4. Terminal Setup ........................................................................................... 6
5. Logon to the Console .................................................................................. 8
6. CongureIPAddress .................................................................................. 9
7. Start Web Management..............................................................................11
8. Customer Support .....................................................................................15
3
1. Package Content
Thank you for purchasing PLANET Layer 2 Managed Metro Ethernet Switch, MGSD-
10080F. “Managed Switch” will also be mentioned as an alternative to the
MGSD-10080FinthisQuickInstallationGuide.
Open the box of the Managed Switch and carefully unpack it. The box should
contain the following items:
TheMGSD-10080FSwitchx1l
User’s Manual CD x 1l
QuickInstallationGuidex1l
DB9toRJ-45ConsoleCablex1l
Dust Cap x 11l
Rubber Feet x 4l
RackMountAccessoryKitx1l
ACPowerCordx1l
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
Workstations of subscribers running Windows XP/2003/Vista/7/2008, MAC OS9l
orlater,Linux,UNIXorotherplatformcompatiblewithTCP/IPprotocols.
WorkstationinstalledwithEthernetNIC(NetworkInterfaceCard)l
Serial Port connectl(Terminal)
TheabovePCwithCOMPort(DB9)
Ethernet Port connectl
Networkcables-Usestandardnetwork(UTP)cableswithRJ-45connectors.
TheabovePCinstalledwithWEBBrowserandJAVAruntimeenvironmentPlug-
in.
Note
It is recommended to use Internet Explore 7.0 or above to access
theManagedSwitch.
5

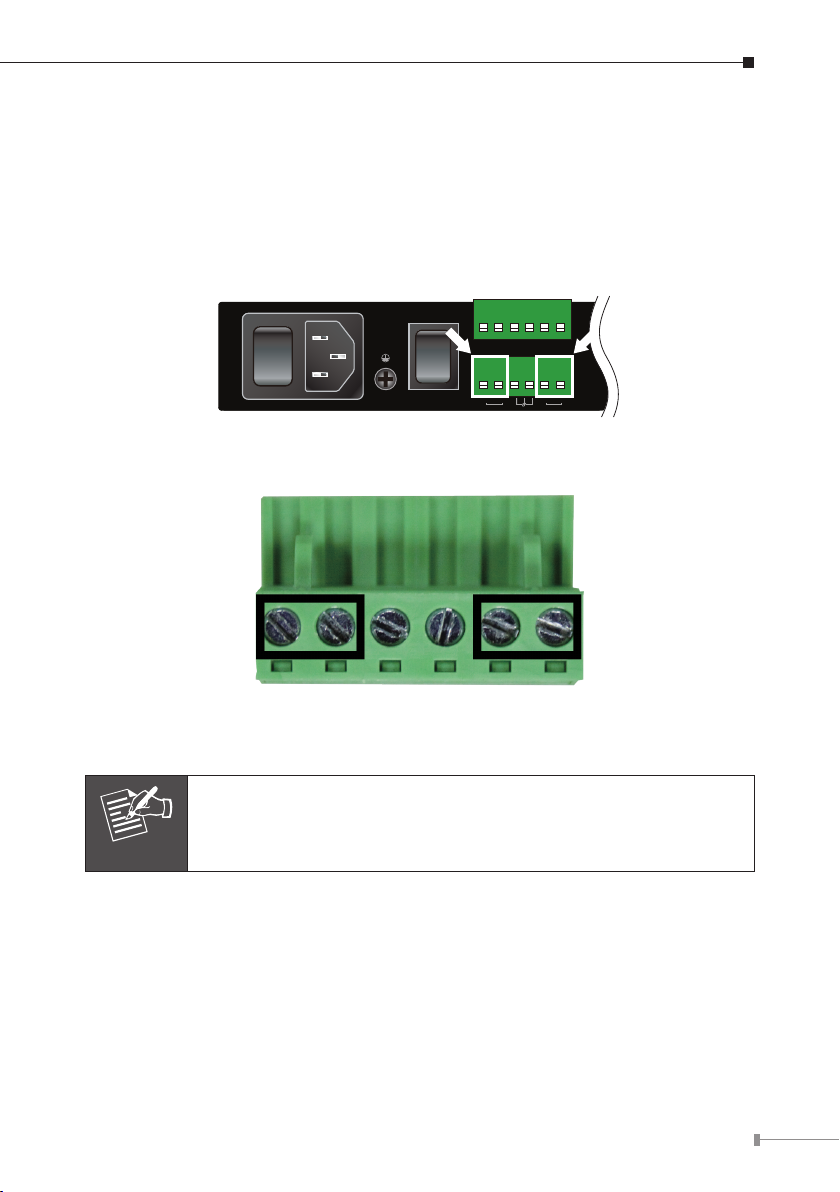

3. Wiring DC Power Inputs
The6-contactterminalblockconnector ontherearpanel ofMGSD-10080Fisused
for two DC redundant powers input. Please follow the steps below to insert the
power wire.
1.Insert positive / negative DC power wires into the contacts 1 and 2 for DC
POWER1,or5and6forDCPOWER2.
100~240V AC
50/60 Hz
ON
AC POWER
OFF
DC POWER
ON
DC Input Range 36V~72V
OFF
Fault
GNDGNDDO 1DO 0DI 1DI 0
DC 2DC 1
V1+ V2+
123456
123456
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosing.
1 2 3 4 5 6
DC 1 FaultAlarm DC 2
+-+-
Note
Thewiregaugefortheterminalblockshouldbeintherangeof12
~24AWG.
6
4. Terminal Setup
Tocongurethesystem,connectaserialcabletoaCOM port on a PC or notebook
computer and to serial (console) port of the Managed Switch. The console port of
the Managed Switch is DCE already. So, you can connect the console port directly
tothePCwithouttheneedofNullModem.
PC / Workstation
with
Terminal emulation software
Serial Port
PLANET Metro Managed Switch
RJ-45 to DB9 RS-232 Cable
A terminal program is required to make the software connection to the Managed
Switch. Windows' Hyper Terminal program may be a good choice. The Hyper
TerminalcanbeaccessedfromtheStart menu.
1. Click START,thenPrograms,AccessoriesandthenHyper Terminal.
7
2.When the following screen appears, make sure that the COM port should be
conguredas:
Baud :115200
Data bits : 8
Parity :None
Stop bits : 1
FlowContro:None
8
5. Logon to the Console
Once the terminal is connected to the device, power on the Managed Switch and
theterminalwillstartrunningtestingprocedures.
Then, the following message of the login username and password appears. Both
the factory default username and password are "admin" as the login screen in
Figure5-1appears.
Username: admin
Password:admin
Figure 5-1: MGSD-10080F Managed Switch Console Login Screen
Note
1. For security reason, please change and memorize the new pass-
wordafterthisfirstsetup.
2.Only accept command in lowercase letter under console inter-
face.
9
6.CongureIPAddress
TheManagedSwitchisshippedwithdefaultIPaddressasshownbelow.
IPAddress:192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or create a new IP address for the Switch, please
usetheproceduresasfollows:
Show the current IP address
1. On “Switch/>” prompt,enter“show ip”.
2.ThescreendisplaysthecurrentIPaddress,SubnetMaskandGateway,asshown
inFigure6-1.
Figure 6-1: Display of IP Information
10
Congure IP address
3. On “Switch/>” prompt, enter the following command and press <Enter> as
showninFigure6-2.
Switch/>ipsetup192.168.1.100255.255.255.0192.168.1.1
ThepreviouscommandwouldapplythefollowingsettingsfortheSwitch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
Figure 6-2: Setting IP Address
4.RepeatStep1tocheckiftheIPaddressischanged.
If the IP is successfully congured, the Managed Switch will apply the new IP
address setting immediately. You can access the Web interface of the Managed
SwitchthroughthenewIPaddress.
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“help”anytimeinconsoletogetthehelpdescription.
