Planet IGS-6325-4T2X Manual de usuario
Industrial L3 Multi-Gigabit/10Gigabit
Managed Ethernet Switch
IGS-6325-4T2X/IGS-6325-5X1T
Quick Installation Guide
Table of Contents
1. Package Contents................................................................................. 3
2. Requirements....................................................................................... 4
3. Wiring the Power Inputs ....................................................................... 5
3.1 Grounding the Device..................................................................... 6
4. Terminal Setup..................................................................................... 7
4.1 Logging on to the Console.............................................................. 8
4.2 ConguringIPAddressviaConsole ................................................. 9
4.3 Storing the current switch ............................................................ 10
5. Starting Web Management .................................................................. 11
5.1 Logging in to the Industrial Managed Switch .................................. 11
5.2 SavingCongurationviaWeb ....................................................... 14
6. RestoringDefaultConguration ........................................................... 15
7. Customer Support .............................................................................. 16
3
1. Package Contents
Thank you for purchasing PLANET L3 Multi-Gigabit/10Gigabit Industrial
Managed Switch, IGS-6325-4T2X/IGS-6325-5X1T. “Industrial Managed
Switch” mentioned in this Quick Installation Guide refers to the above models.
The descriptions of these models are shown below:
IGS-6325-4T2X IndustrialL34-Port2.5GBASE-T+2-Port10GSFP+
ManagedEthernetSwitch
IGS-6325-5X1T IndustrialL35-Port10GBASE-XSFP++1-Port10GBASE-T
ManagedEthernetSwitch
Open the box of the Industrial Managed Switch and carefully unpack it. The
box should contain the following items:
IGS-6325-4T2X IGS-6325-5X1T
The Industrial Managed Switch
DB9toRJ45InterfaceRS232
Console Cable
Quick Installation Guide sheet
Wall Mounting Kit
RJ45DustCap 5 2
SFPDustCap 2 5
If any of these are missing or damaged, please contact your dealer
immediately. If possible, retain the carton including the original packing
materials to enable you to repack the product in case there is a need to return
it to us for repair.
4
2. Requirements
The Industrial Managed Switch provides remote login interface for
management purposes. The following equipment is necessary for further
management:
Workstations running Windows XP/2003/2008/Vista/7/8/10/11, MAC OS X
or later, Linux, UNIX, or other platforms are compatible with TCP/IP Proto-
cols.
Workstationsareinstalled withEthernetNIC(NetworkInterfaceCard).
Serial Port Connection(Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
The above Workstations have been installed with terminal emulator,
suchasHyperTerminalincludedinWindowsXP/2003,puttyorteraterm.
Serial cable -- one end is attached to the RS232 serial port, while the
other end to the console port of the Industrial Managed Switch.
Ethernet Port Connection
Network cables -- Use standard network (UTP) cables with RJ45
connectors.
The above PC is installed with Web browser.
It is recommended to use Chrome 98.0.xxx or above to access
the Industrial Managed Switch.
5
3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch indicates an inlet power
socket and consists of one green terminal block connector with 6 contacts.
Please follow the steps below to insert the power wire.
1.Insert positive/negative DC power wires into Contacts 1 and 2 for Power 1,
or Contacts 5 and 6 for Power 2.
DC9-48V,AC24V
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V
, 4A max.
AC Input: 24V
, 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
Figure 3-1: IGS-6325-5X1T Upper Panel
Refer to the table below for the Input Voltage and Current values for each
model.
IGS-6325-4T2X IGS-6325-5X1T
DCInputVoltage 9-48VDC 9-48VDC
DC Max. Input Current 3A 4A
ACInputVoltage 24VAC 24VAC
ACMax.InputCurrent 1.5A 2A
PWR1 and PWR2 must provide exactly the same DC voltage for
power load balance while operating with dual power input.
6
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
V1+ V1-V2+ V2-
Power 1 Power 2
Figure 3-2: Power 1 & 2 Pins of Terminal Block Connector
1. The wire gauge for the terminal block should be in the range
from 12 to 24 AWG.
2.Please check the AWG Ampere specification before connecting
PLANETIndustrialManagedSwitch.
3.1 Grounding the Device
Users MUST complete grounding wired with the device; otherwise, a sudden
lightning could cause fatal damage to the device.
Max. Fault Alarm Loading: 24V, 1A
DI1 DO0 DO1DI0 GNDGND
V1+ V2+
PWR1 PWR2Alarm
DC Input: 9-48V
, 4A max.
AC Input: 24V
, 2A max.
1 2 3 4 5 6
1 2 3 4 5 6
7

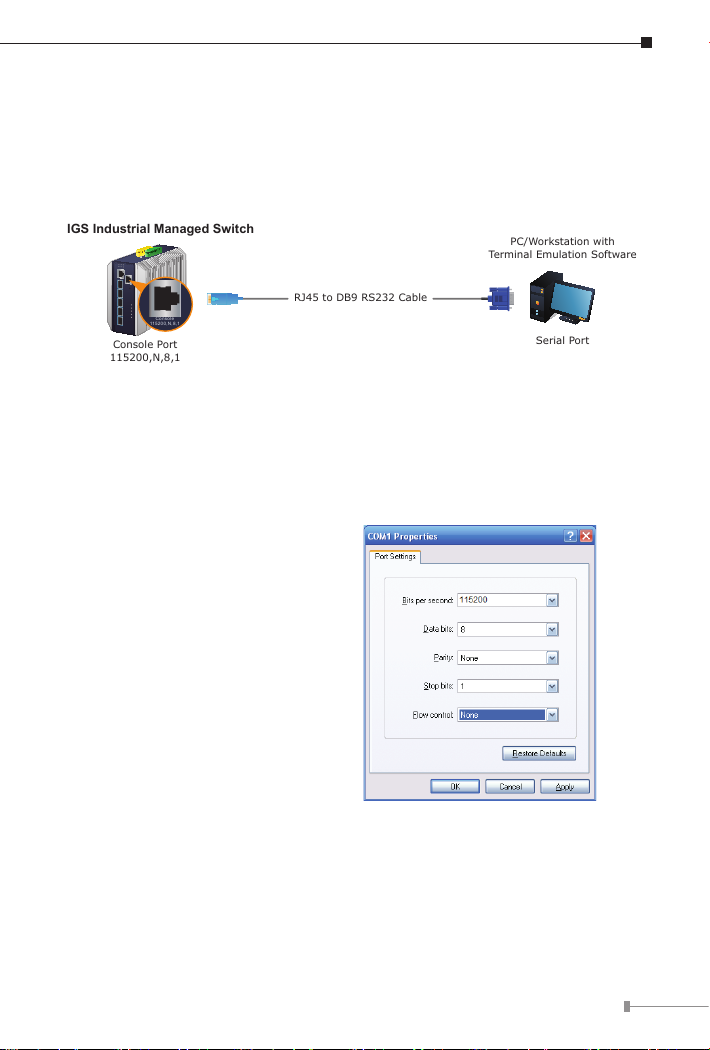

4. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or
notebook computer and to RJ45 type serial (console) port of the Industrial
Managed Switch.
PC/Workstation with
Terminal Emulation Software
Serial Port
Console Port
115200,N,8,1
IGS Industrial Managed Switch
Console
115200,N,8,1
RJ45 to DB9 RS232 Cable
A terminal program is required to make the software connected to the
Industrial Managed Switch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port should be
conguredas:
Baud:115200
Parity:None
Data bits: 8
Stop bits: 1
Flowcontrol:None
8
4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Industrial
Managed Switch and the terminal will display “running testing procedures”.
Then, the following message asks to log in user name and password. The
factory default user name and password are shown as follows as the login
screeninFigure4-1appears.
IGS-6325-5X1T is used as a representative in all the following
console screens.
Username: admin
Password: admin
Figure 4-1: Console Login Screen
The user can now enter commands to manage the Industrial Managed Switch.
For a detailed description of the commands, please refer to the following
chapters.
1.For security reason, please change and memorize the
new password after this first setup.
2.Only accept command in lowercase letter under console inter-
face.
9
4.2 ConguringIPAddressviaConsole
The Industrial Managed Switch is shipped with default IP address shown
below:
IPAddress:192.168.1.100
Subnet Mask: 255.255.255.0
To check the current IP address or assign a new IP address to the Switch,
please use the procedure as follows:
Display of the Current IP Address
1.Atthe“#” prompt, enter “show ip interface brief”.
IGS-6325-Series#show ip interface brief
2.ThescreendisplaysthecurrentIPaddressshowninFigure4-2.
Figure 4-2: IP Information Screen
Conguration of the IP Address
3.At the “#” prompt, enter the following command and press <Enter> as
showninFigure4-3.
IGS-6325-Series#congure terminal
IGS-6325-Series(cong)#interface vlan 1
IGS-6325-Series(cong-if-vlan)#ip address 192.168.1.100 255.255.255.0
The previous command would apply the following settings for the Industrial
Managed Switch.
10
Figure 4-3: Conguring IP Address Screen
4.Enter“exit”commandtwicetoreturntotheglobalcongurationmode.
5. Repeat step 1 to check if the IP address has changed.
4.3 Storing the current switch
1.Atthe“#” prompt, enter the following command and press <Enter>.
# copy running-cong startup-cong
Figure 4-4: Saving Current Conguration
If the IP is successfully congured, the Industrial Managed Switch will apply
the new IP address setting immediately. You can access the Web interface of
the Industrial Managed Switch through the new IP address.
If you are not familiar with the console command or the related
parameter, enter “help” anytime in console to get the help
description.
