Planet EPL-2000 Manual de usuario

2

x

PON Interface, 2

x

GbE SFP + 2

x

GbE RJ45,

1

x

MGT Port

EPL-2000

Quick Installation Guide

Table of Contents

1. Package Contents ....................................................................................... 3

2. Requirements ............................................................................................. 4

3. MySQL Server Installation ........................................................................... 5

4. EMS Installation ......................................................................................... 9

5. Starting PLANET-EMS Management..............................................................11

6. Customer Support .....................................................................................13

3

1. Package Contents

Thank you for purchasing PLANET GEPON OLT EPL-2000. The term “GEPON OLT”

refers to the Switch mentioned in this Quick Installation Guide.

The box should contain the following items:

zGEPON OLT x 1

zMGB-PX20 SFP Transceiver x 2

zQuick Installation Guide x 1

zUser’s Manual CD x 1

zPower Cord x 1

zTwo Rack-mounting Brackets with Attachment Screws x 1 (set)

If any item is found missing or damaged, please contact your local reseller for

replacement.

4

2. Requirements

PLANET GEPON OLT provides a GUI utility to manage the system; the following

equipment is necessary for further management:

Subscriber PC is installed with Ethernet NIC (Network Card)

MySQL Software (Windows Platform) http://dev.mysql.com/

EMS Software (Windows Platform)

Management Port connection

zNetwork cables - Use standard network (UTP) cables with RJ45 connectors

PON Port connection

zFiber Transceiver - Slot with a 1000BASE-PX20 SFP PON transceiver

zFiber Cable - Use single mode of ber (SC) cable

5

3. MySQL Server Installation

Install the MySQL software with the purpose of saving equipment’s alarm message,

administrator message, system log, etc.

1. Please visit MySQL ofcial website http://dev.mysql.com/ and download MySQL-

Installer-Community-5.5.50.0.msi.

2. Once the Setup program starts running, please click the “Next” button for

starting installation.

Figure 3-1 MySQL License Agreement Screen

6

3. Select Server only and click “Next” button.

Figure 3-2 Selection of a Setup type

4. The Installation window appears. Please click the “Execute” button.

Figure 3-3 Selection of an Installation Type

7

5. Please select a Server type. Keep the default setting of “Development Machine”

and click the “Next” button.

Figure 3-4 Selection of a Server Type

6. Please set the security options. Type the password “1234” for the current root.

Click the “Next” button.

Figure 3-5 Setting of Security Options

8

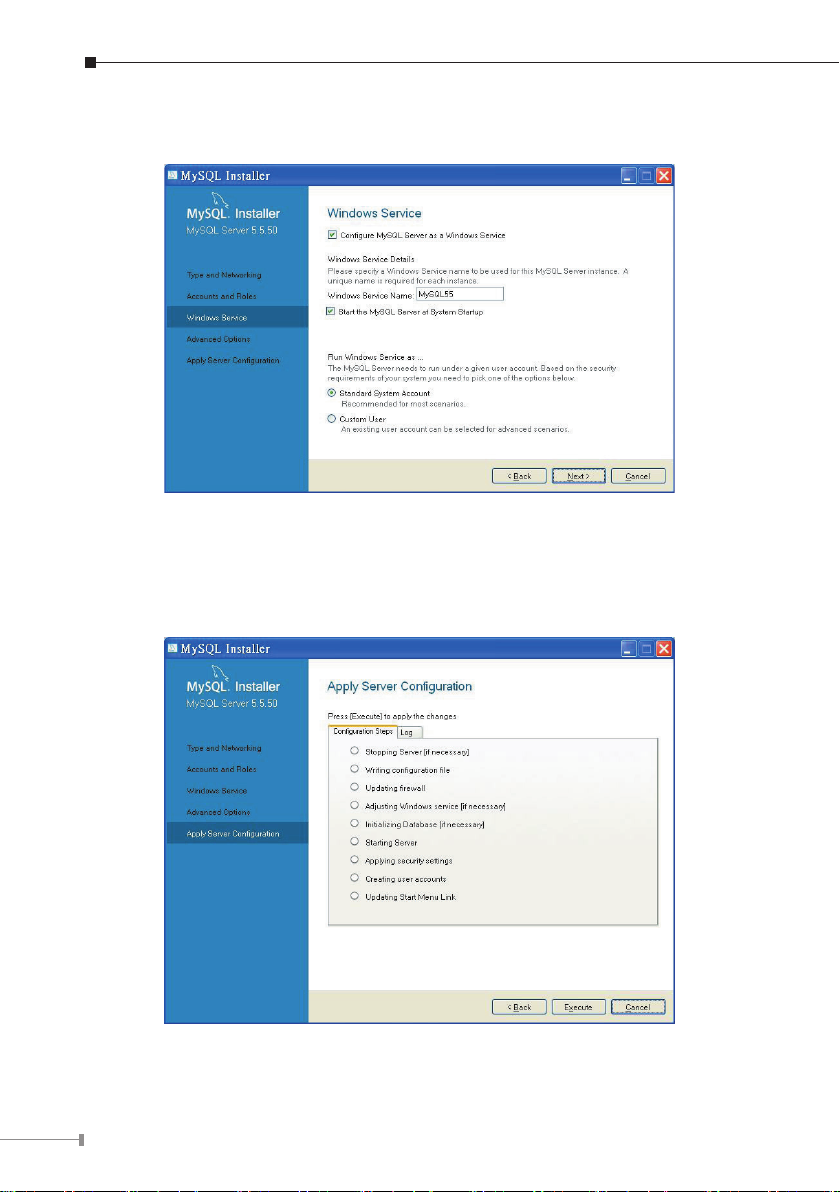

7. Please keep the default setting and click the “Next” button.

Figure 3-6 Selection of Windows Service

8. Please click the “Execute” button for starting the conguration. And then click

the “Finish” button when the conguration is done.

Figure 3-7 Start of Conguration

9

4. EMS Installation

1. Insert the bundled CD disk into the CD-ROM drive to launch the autorun

program. Once completed, a welcome screen will appear. Click the “Utility”

button and the InstallShield Wizard dialog box will appear as shown below.

2. Once the Setup program starts running, please click the “Next” button for

starting installation.

Figure 4-1 EMS Setup Wizard Screen

3. During the installation, it will ask for the place to put the EMS folder.

Figure 4-2 EMS Folder Installation Screen

10

4. Click “Install” for starting installation.

Figure 4-3 EMS Installation Screen

5. Click the “Finish” button for completing the EMS Setup.

Figure 4-4 EMS Installation Completed Screen

6. When the EMS installation is done, the icon will appear on the desktop.
