Planet WGSW-2620HP Manual de usuario

24-Port 10/100Mbps + 2 Gigabit TP/SFP Combo

Managed 802.3at PoE Switch

WGSW-2620HP

Quick Installation Guide

Table of Contents

1. Package Content.......................................................................................... 3

2. Requirements .............................................................................................. 4

3. Terminal Setup ............................................................................................ 5

4. Logon to the Console ................................................................................... 6

5. Congure IP Address ................................................................................... 7

6. Start Web Management................................................................................ 9

7. While IP Address be changed or forgotten admin password – ........................11

8. Customer Support .....................................................................................12

1. Package Content

Thank you for purchasing PLANET 24-Port Fast Ethernet + 2-Port Gigabit TP/

SFP Combo Managed 802.3at PoE Switch – WGSW-2620HP. Terms of “Managed

Switch” means the WGSW-2620HP of this Quick Installation Guide.

Upon open the box of the Managed Switch and carefully unpack it. The box should

contain the following items:

The Managed Switch x 1

This Quick Installation Guide x 1

User’s Manual CD x 1

Power Cord x 1

Rubber Feet x 4

 Two Rack-mounting Brackets with Attachment Screws x 1 (Set)

 RS-232 DB9 Male Console Cable x 1

If any item is found missing or damaged, please contact your local reseller

for replacement.

2. Requirements

The Managed Switch provide remote Web interface for manage; the following

equipments are necessary for further management.

Workstation installed with Ethernet NIC (Network Interface Card)

The operate system of subscriber PC that running Windows XP/2003, Vista,

Windows 7, MAC OS X, Linux, Fedora, Ubuntu or other platform compatible with

TCP/IP protocols.

Ethernet Port connect

Network cables - use standard network (UTP) cables with RJ45 connectors.

Above Workstation installed with WEB Browser and JAVA runtime environment

Plug-in

Serial Port connect

Above PC with COM Port (DB-9 / RS-232) or USB-to-RS-232 converter

Note

It is recommended to use Internet Explore 6.0 or above to access

the Managed Switch.

3. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the Managed Switch. The console

port of the Managed Switch is DCE already, so that you can connect the console

port directly through PC without the need of Null Modem.

PC / Workstation

with

Termianl emulation software

RS-232

Serial Port Serial Port

57600,8,n,1

Managed Switch

Figure 3-1 Serial / Console connection

A terminal program is required to make the software connection to the Managed

Switch. Windows’ Hyper Terminal program may be a good choice. The Hyper

Terminal can be accessed from the Start menu.

1. Click START, then Programs, Accessories and then Hyper Terminal.

2. When the following screen appears, make sure that the COM port should be

congured as:

 Baud : 57600

 Parity : None

 Data bits : 8

 Stop bits : 1

 Flow Control : None

Figure 3-2 Hyper Terminal Setting

4. Logon to the Console

Once the terminal has connected to the device, power on the Managed Switch, the

terminal will display that it is running testing procedures.

Then, the following message asks the login user name and password. The factory

default user name / password as following and the login screen in Figure 4-1

appear.

User name: admin

Password: admin

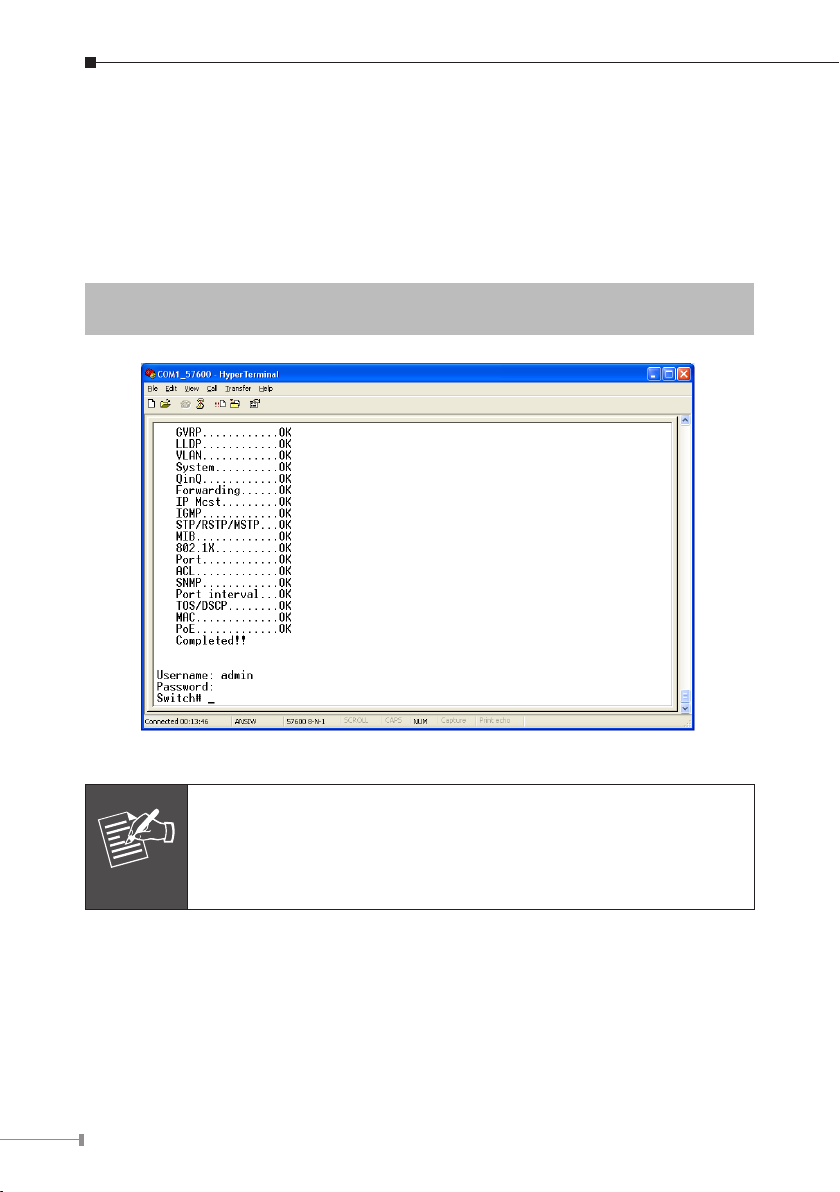

Figure 4-1 Managed Switch Console Login screen

Note

1. For security reason, please change and memorize the new pass-

word after this first setup.

2. Only accept command in lowercase letter under console inter-

face.

5. Congure IP Address

The Managed Switch is shipped with default IP address as following.

IP Address: 192.168.0.100

Subnet Mask: 255.255.255.0

To check the current IP address or modify a new IP address for the Managed

Switch, please use the procedures as follow:

Show the current IP address

1. On “Switch#” prompt, enter “congure”

2. On “Switch(cong)#” prompt, enter “show ip”.

3. The screen displays the current IP address, Subnet Mask and Gateway. As show

in Figure 5-1.

Figure 5-1 Show IP Information Screen

Congure IP address and Default Gateway

4. On “Switch(cong)#” prompt, enter the following command and press

<Enter>. As show in Figure 5-2.

Switch(cong)# ip address 192.168.1.100 255.255.255.0

Switch(Cong)# ip default-gateway 192.168.1.254

The previous command would apply the follow settings for the Managed Switch.

IP: 192.168.1.100

Subnet Mask: 255.255.255.0

Gateway: 192.168.1.254

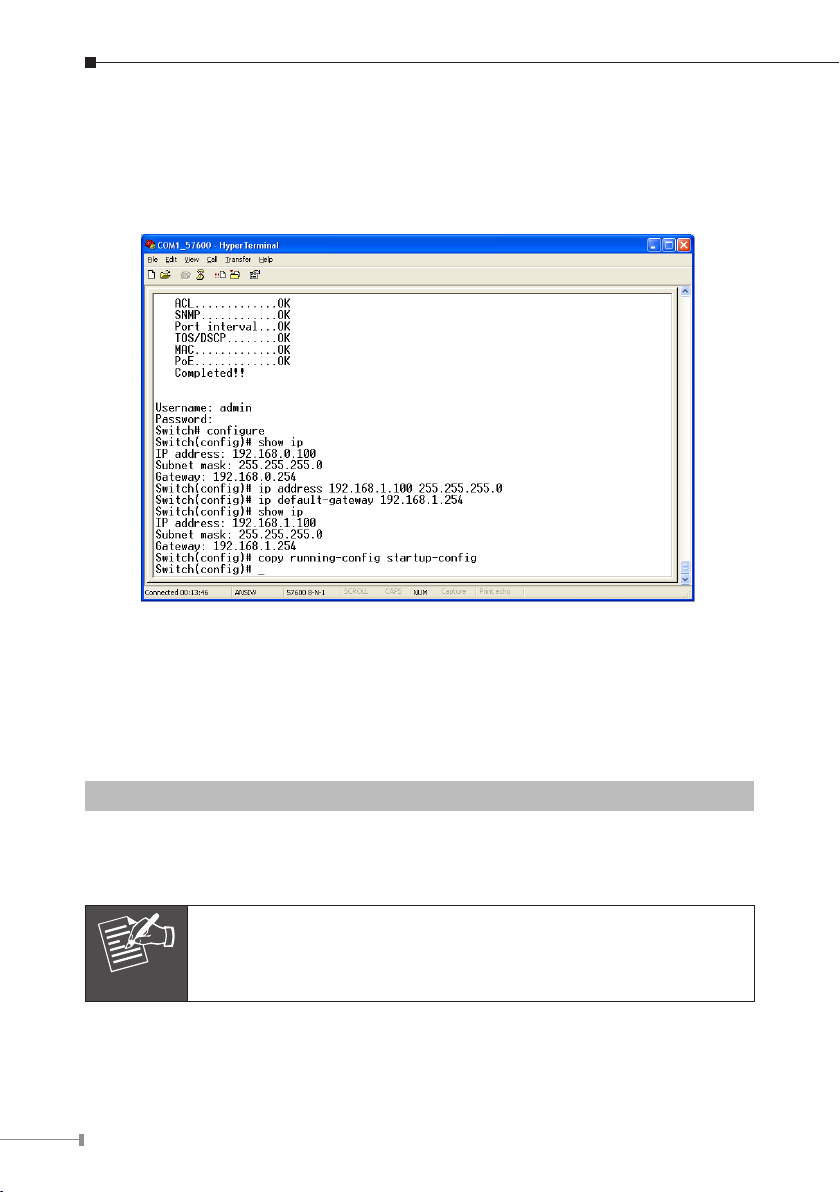

Figure 5-2 Set IP Address Screen

5. Repeat Step 1 to check if the IP address is changed.

 Store current switch conguration

6. On “Switch(cong)#” prompt, enter the following command and press

<Enter>.

Switch(cong)# copy running-cong startup-cong

If the IP is successfully congured, the Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of the Managed

Switch through the new IP address.

Note

If you do not familiar with console command or the related param-

eter, enter “help” anytime in console to get the help description.

6. Start Web Management

The Managed Switch provides a built-in browser interface. You can manage it

remotely by having a remote host with Web browser, such as Microsoft Internet

Explorer, Mozilla Firefox, Google Chrome or Apple Safari.

Managed Switch

RJ-45/UTP-Cable

PC / Workstation

with

IE Browser

IP Address:

192.168.0.x

IP Address:

192.168.0.100

Figure 6-1 IP Management Diagram

The following shows how to startup the Web Management of the Managed Switch,

please note the Managed Switch is congured through an Ethernet connection,

make sure the manager PC must be set on the same IP subnet address.

For example, the default IP address of the Managed Switch is 192.168.0.100 (the

factory-default IP address), then the manager PC should be set at 192.168.0.x

(where x is a number between 1 and 254, except 100), and the default subnet

mask is 255.255.255.0.

1. Use Internet Explorer 6.0 or above Web browser, enter IP address

http://192.168.0.100 (the factory-default IP address or that you have just

changed in console) to access the Web interface.

2. When the following dialog box appears, please enter the default user name

“admin” and password “admin”. The login screen in Figure 6-2 appears.

Default IP Address: 192.168.0.100

Default User name: admin

Default Password: admin

Figure 6-2 Web Login Screen of WGSW-2620HP

3. After entering the user name and password, the Web main screen appears as

Figure 6-3.

Figure 6-3 Web Main Screen of WGSW-2620HP Managed Switch

Now, you can use the Web management interface to continue the Managed Switch

management, please refer to the user manual for more detail.

Note

For security reason, please change and memorize the new pass-

word after this first setup.
