Planet WGT-705A Manual de usuario

Trademarks

Contents subject to revision without prior notice.

PLANET is a registered trademark of PLANET Technol-

ogy Corp. The information in this manual is subject to

change without notice. All other trademarks belong to

their respective owners.

FCC Warning

This equipment has been tested and found to comply

with the regulations for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated in

a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not

installed and used in accordance with this user’s guide,

may cause harmful interference to radio communica-

tions. Operation of this equipment in a residential area

is likely to cause harmful interference, in which case the

user will be required to correct the interference at his

own expense.

CE Mark Warning

This is a Class B product. In a domestic environment,

this product may cause radio interference, in which case

the user may be required to take adequate measures.

Revision

User’s manual for PLANET Gigabit Ethernet Media Con-

verter

For Models: WGT-702, WGT-702S, WGT-705A

Rev 1.0 (Mar. 2004)

Part No. EM-WGT7v2

This page is intentionally left blank

Table of Contents

Chapter 1 Overview 1

About Media Converter 1

About Link Pass Through 1

Chapter 2 Product Features 2

Chapter 3 Model List 3

Chapter 4 Checklist 3

Chapter 5 DIP Switch 4

Chapter 6 Installing the Converter to Chassis 5

Chapter 7 Manage the Media Converter 6

Chapter 8 LED Indicators 7

Chapter 9 Link Through Function 8

Chapter 10 Product Specification 11

This page is intentionally left blank

Chapter 1

OVERVIEW

Thank you for choosing the 1000 Base Gigabit Ethernet Media

Converter, The Converter introduced here provides one channel

media conversion between 1000BASE-T, 1000BASE-SX/LX and

1000BASE-SX/LX through mini-GBIC (WGT-705A only).

About Media Converter

Media Converter utilizes a network technology specied by IEEE

802.3ab and IEEE 802.3z 1000BASE- T/FX standards.

About Link Pass Through

When LLCF is enabled, the ports do not transmit a link signal

until they receive a link signal from the opposite port. Link loss is

“carried forward” to the managed switch or hub that is sending the

link. LLCF can be used for either the copper or ber ports.

When LLR is enabled, the ber port’s transmitter shuts down if

its receiver fails to detect a valid receive link. If one of the optical

conductors is bad, the card with LLR enabled will return a no link

condition to its link partner. LLR is used to detect link problems

only on the ber port.

Chapter 2

PRODUCT FEATURES

• One-channel media conversion between 1000BASE-T

and 1000BASE-SX/LX

• Provide one 1000BASE-T and one mini-GBIC port sup-

porting either multi-mode or single-mode (WGT-705A)

• Fiber media allows: multi-mode fiber and single-mode

fiber using SC connector

• Link Pass Through function

• Auto negotiation of duplex mode on TP port

• Auto MDI/MDI-X for TP port

• Full wire-speed forwarding rate

• Front panel status LEDs

• Used as a stand-alone device or with a chassis

• Hot-swappable when used with a chassis

• Manageable through Intelligent Chassis System

Chapter 3

MODEL LIST

Your Gigabit Ethernet Converter comes with one of the following

models.

• WGT-702 1000Baes-SX Multimode, SC

• WGT-702S 1000Baes-LX Singlemode, SC, 10km

• WGT-705A Depends on the Mini-GBIC module

capacity

In the following sections, the term “WGT-70X” indicates the

product family above.

Chapter 4

CHECKLIST

Your WGT-702/WGT-705A carton should contain the following

items:

• The Gigabit Ethernet Converter

• AC-DC Power Adapter (Output: 7.5VDC, 1.5 A max.)

• This user’s manual

If any item is missing or damaged, please consult the dealer from

whom you purchased your Gigabit Ethernet Converter.

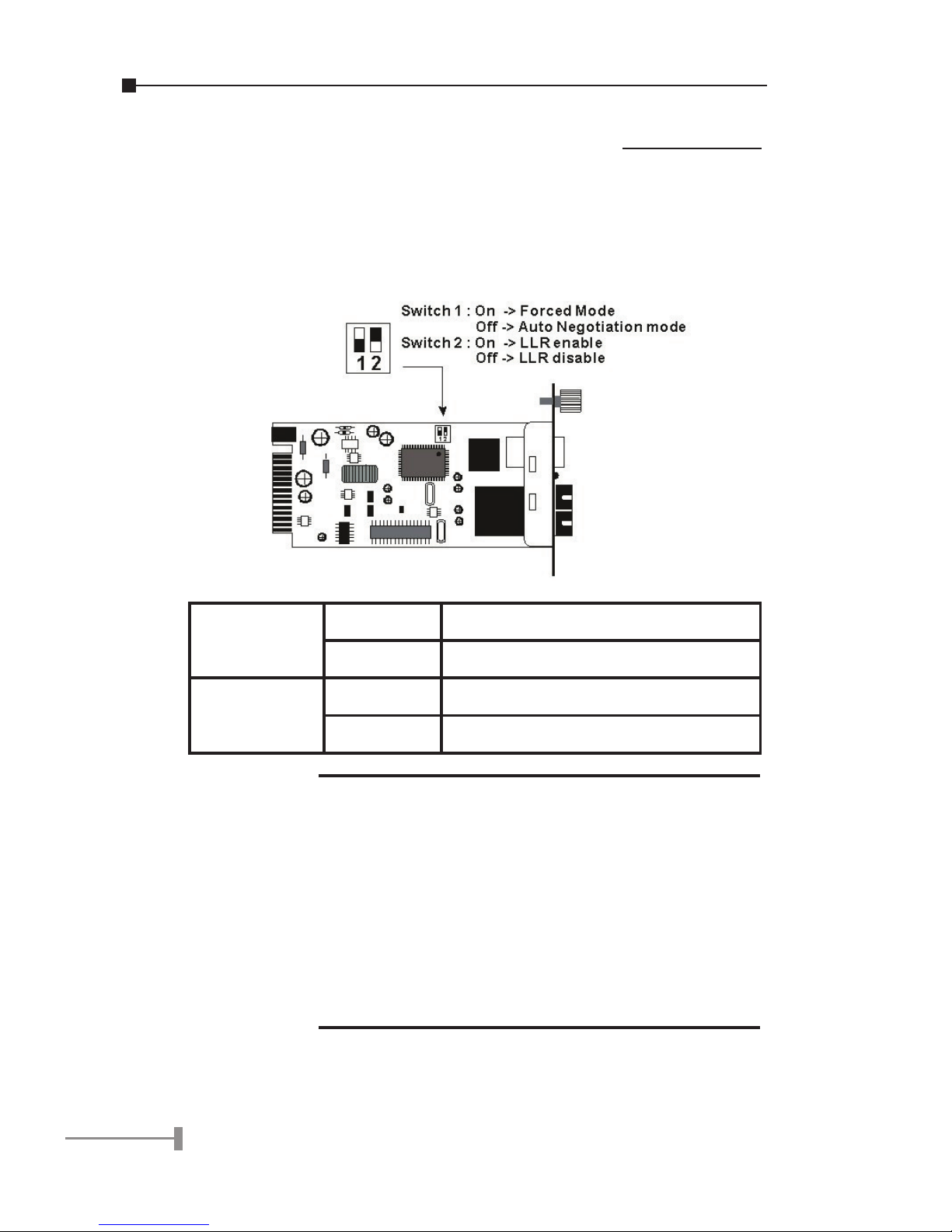

Chapter 5

DIP SWITCH

There is a DIP switch for the setting on copper and ber port.

Refer to the table below for more details.

Switch 1

On Fiber is Forced Mode

Off Fiber is Auto-Negotiation

Switch 2

On LLR enable

Off LLR disable

 NOTE:

1. Be sure the opposite end is using the

same setting (forced or Auto-negotia-

tion). And when using two converters

at the same time, the two converters

MUST set to forced mode.

2. When using two converters, don’t en-

able the both device’s LLR function at

the same time.

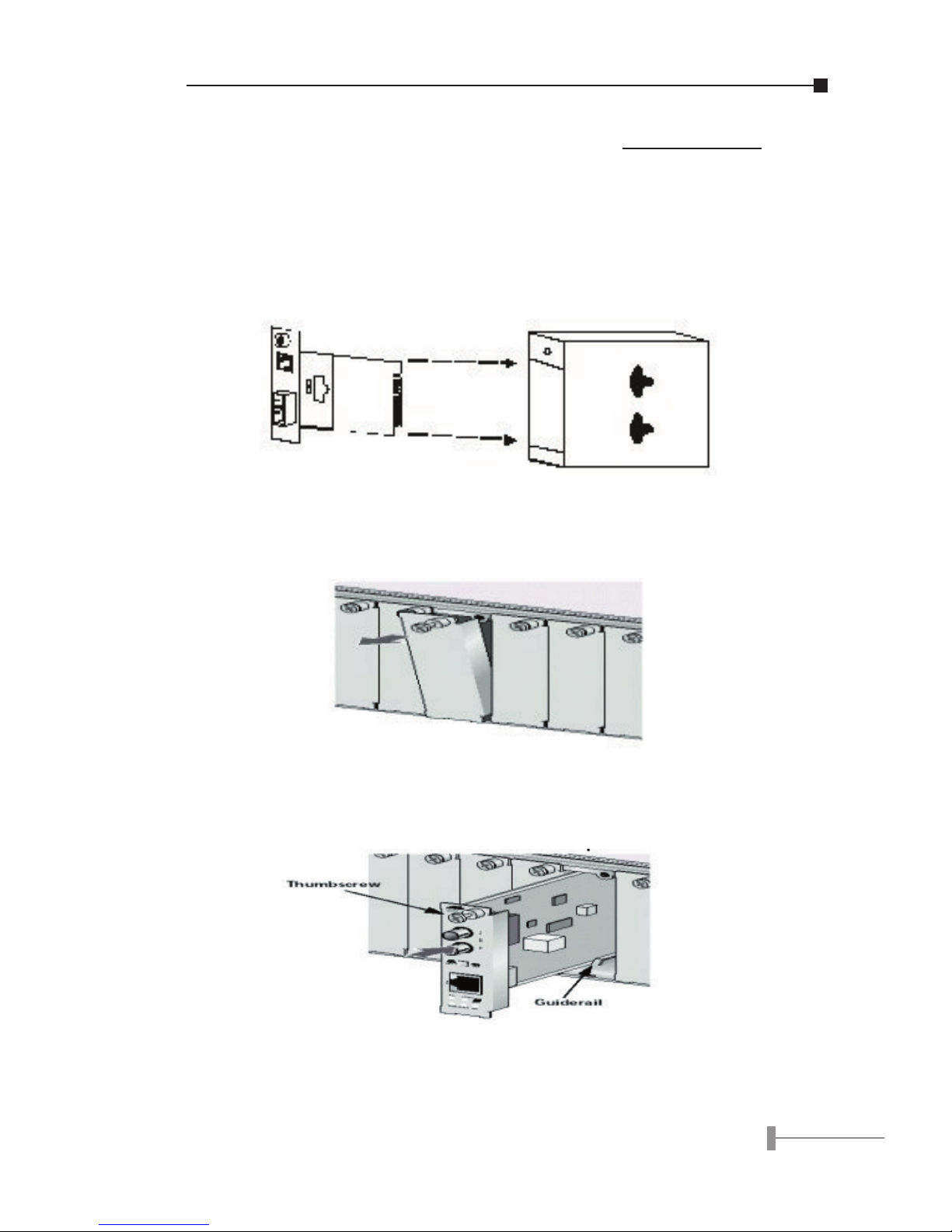

Chapter 6

INSTALLING THE CONVERTER TO

CHASSIS

Step 1- Unscrew and pull out the media converter board

Step 2- Remove a blank faceplate from an empty expansion

slot on the front of the chassis. The module can be

installed in any expansion slot.

Step 3- Slide the module into the expansion slot, aligning

it with the guiderails, until it firmly connects to the

chassis’ backplane.

Step 4- Secure the module to the chassis by tightening the

thumbscrew.

Chapter 7

MANAGE THE MEDIA CONVERTER

The Intelligent Media Converter Chassis that can control this

Smart Media Converter through the management system, this

Smart Media Converter can be controlled through Web Browser,

SNMP management utility and terminal emulation program.

The Intelligent Media Converter Chassis will detect the setting on

the DIP switches and display out the status, also the Management

Chassis can control the function through the maanagement

system.

 NOTE:

To control the function in a working station,

need to collocate together with Intelligent

Media
