Manual overview

Before using this product, be sure to read Im-

portant Information for the User (a separate

manual) which contains warnings, cautions,

and other important information that you

should note.

How to use this manual

Finding the operation procedure for

what you want to do

When you have decided what you want to do,

you can find the page you need from the Con-

tents.

Finding the operation procedure from

a menu name

If you want to check the meaning of an item

displayed on the screen, you will find the ne-

cessary page from the Display information at

the end of the manual.

Glossary

Use the glossary to find the meanings of

terms.

Conventions used in this manual

Before moving on, take a few minutes to read

the following information about the conven-

tions used in this manual. Familiarity with

these conventions will help you greatly as you

learn how to use your new equipment.

!Buttons on your navigation system are de-

scribed in ALL CAPITAL,BOLD lettering:

e.g.)

MODE button

!Items in different menus, screen titles, and

functional components are described in

bold with double quotation marks “”:

e.g.)

“Navigation Menu”screen

!Touch panel keys that are available on the

screen are described in bold in brackets [ ]:

e.g.)

[Address], [Settings].

!Extra information, alternatives and other

notes are presented in the following for-

mat:

e.g.)

pIf the home location has not been stored

yet, set the location first.

!Descriptions of separate operations to be

performed on the same screen are indi-

cated with #at the beginning of the de-

scription:

e.g.)

#Touch [OK].

!References are indicated like this:

e.g.)

=For details, refer to Registering your

home on page 40.

Terms used in this manual

“SD memory card”

The SD memory card and SDHC memory card

are collectively referred to as the “SD memory

card”.

Map coverage

For details about the map coverage of this na-

vigation system, refer to the information on

our website.

Resetting the microprocessor

CAUTION

Please refer to the related section before clearing.

=For detailed information about the items

which would be erased, refer to Returning the

navigation system to the default or factory set-

tings on page 57.

The microprocessor must be reset under the

following conditions:

!Prior to using this product for the first time

after installation.

!If the product fails to operate properly.

En 5

Chapter

Introduction

!If there appear to be problems with the op-

eration of the system.

!When changing the combination of equip-

ment.

!When adding/removing additional pro-

ducts that connect to the navigation sys-

tem.

!If your vehicle position is shown on the

map with a significant positioning error.

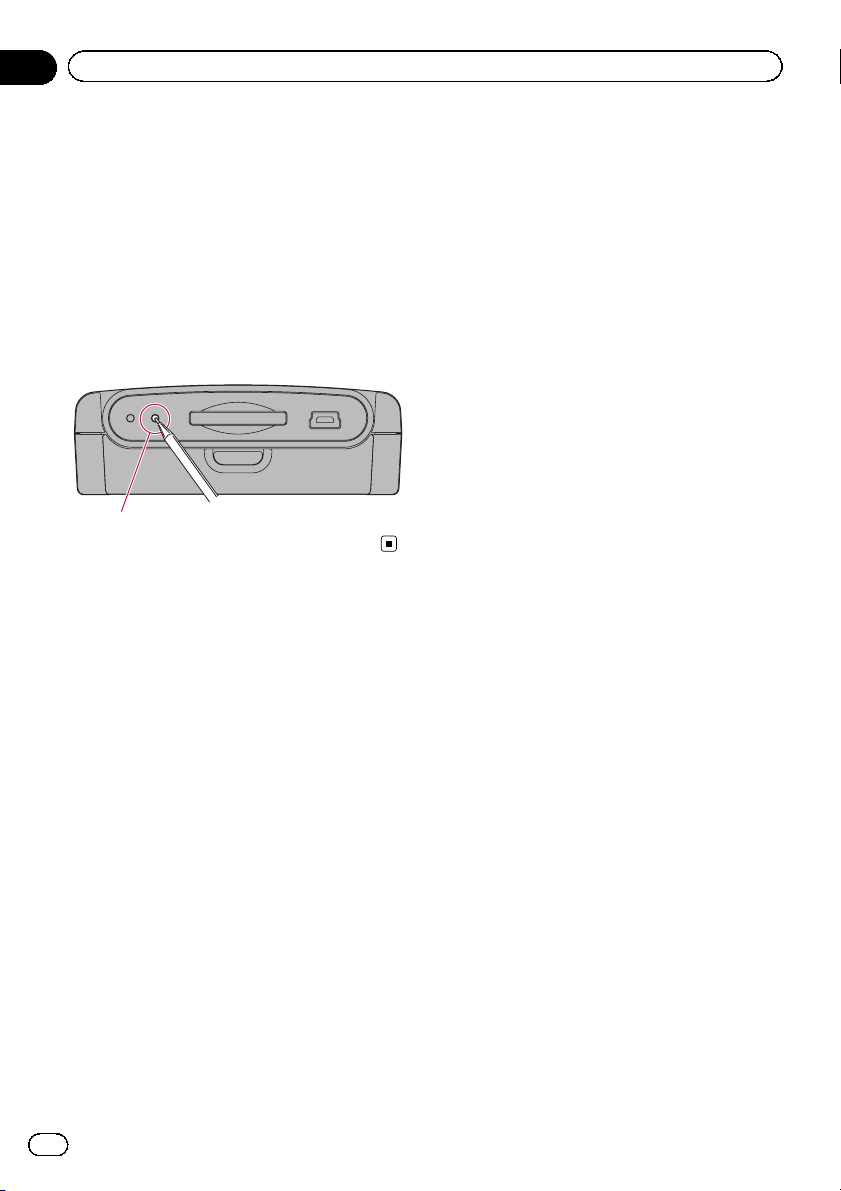

%Press the RESET button with a pen tip

or other pointed implement.

RESET button

Chapter

01 Introduction

Checking part names and

functions

This chapter gives information about the

names of the parts and the main features

using the buttons.

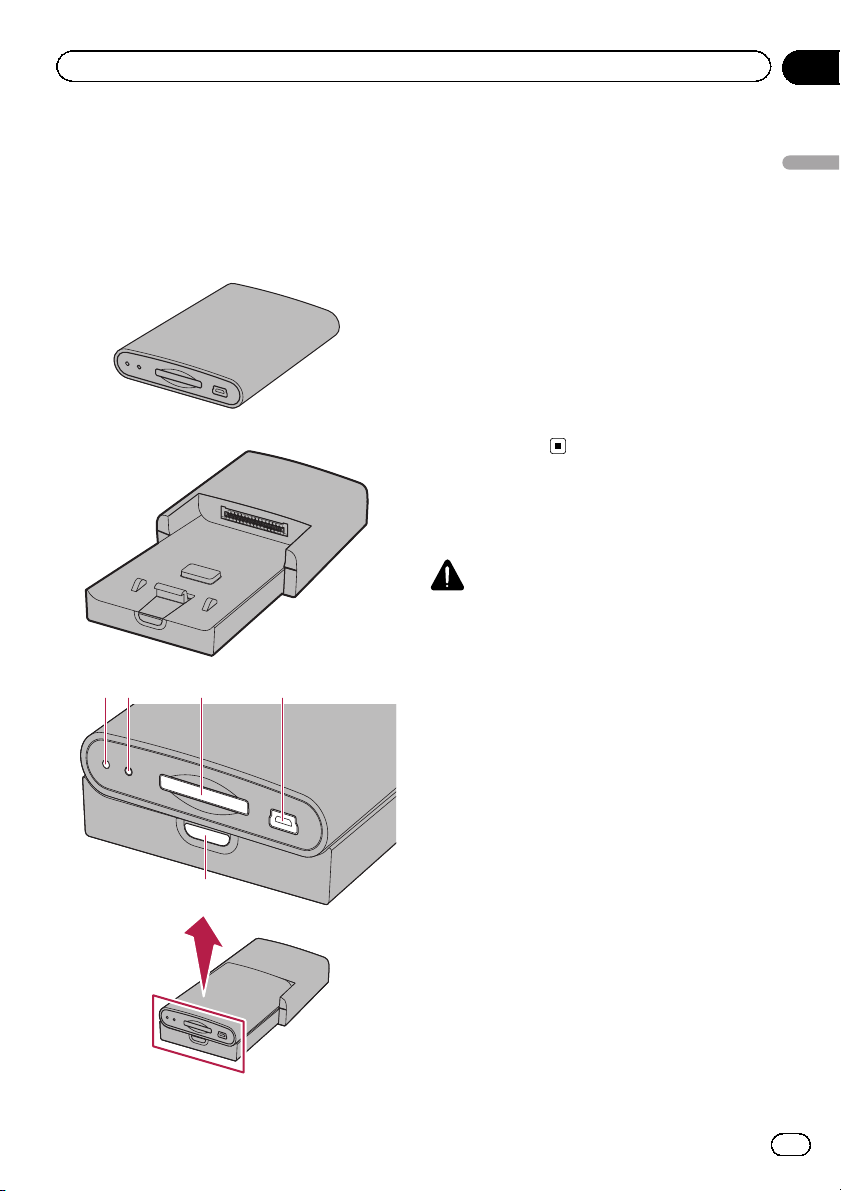

Detachable device

Base unit

324

1Power indicator

2RESET button

=For details, refer to Resetting the micro-

processor on page 5.

3SD card slot

=For more detailed information, refer to In-

serting and ejecting an SD memory card

on page 9.

4USB port (Mini-B)

Use to connect with your PC.

5Detach button

Press to remove the detachable device from

the base unit.

Removing and attaching

the detachable device

CAUTION

!Before removing the detachable device, turn

the ignition switch off (ACC OFF).

!When you attach the detachable device, be

sure to attach it to the base unit before turn-

ing the ignition switch on (ACC ON).

!Never use force when removing or attaching.

!Avoid subjecting the detachable device to ex-

cessive shocks.

!Keep the detachable device out of direct sun-

light and high temperatures.

!After removing the detachable device, keep it

in a safe place so it is not scratched or da-

maged.

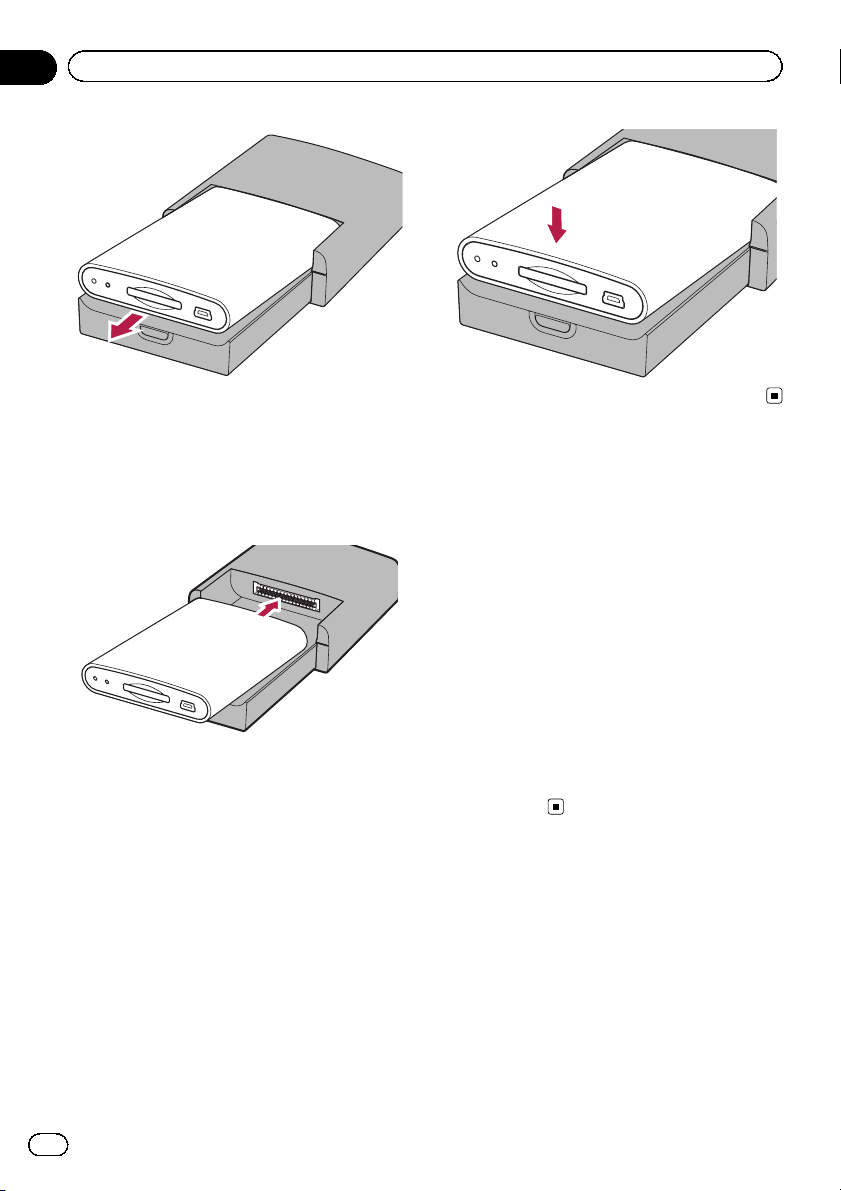

Removing the detachable device

1 Press the Detach button to release the

detachable device.

2 Gently grip both sides of the detach-

able device and slowly pull it out.

Take care not to drop the detachable device

and protect it from contact with water or other

fluids to prevent permanent damage.

En 7

Chapter

Before you start

Attaching the detachable device

1 Slide the detachable device all the way

into the base unit.

Make sure that the detachable device is se-

curely connected to the base unit terminal.

2 Press the center of the front of the de-

tachable device until you hear a click.

If you fail to successfully attach the detach-

able device to the base unit, try again but be

careful not to force it as the unit could be da-

maged.

Charging the battery of the

detachable device

!Charging cannot be done when the tempera-

ture is outside of the charging temperature

range.

!The operating temperature range of the bat-

tery is from –4 °F to +140 °F.

!The charging temperature range of the battery

is from 32 °F to +131 °F.

The battery of the detachable device is

charged in the following situations.

!When the detachable device is attached to

the base unit while the ignition switch is

turned on (ACC ON).

!When the detachable device is connected

to your PC.

Monitoring the battery status

You can check the battery status of the detach-

able device.

1 Touch [Home] on the map screen.

The “Top Menu”screen appears.

2 Touch [Settings].

The “Settings Menu”screen appears.

The battery status indicator is displayed on the

upper right of the “Settings Menu”screen.

Chapter

02 Before you start

Battery status indicator

Fully charged

Sufficient power

Charging

Inserting and ejecting an

SD memory card

CAUTION

!Ejecting an SD memory card during data

transfer can damage the SD memory card. Be

sure to eject the SD memory card by following

the procedure described in this manual.

!If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not

possible to recover the data. Pioneer accepts

no liability for damages, costs or expenses

arising from data loss or corruption.

pThis system is not compatible with Multi

Media Card (MMC).

pCompatibility with all SD memory cards is

not guaranteed.

pThis unit may not achieve optimum perfor-

mance with some SD memory cards.

pDo not insert anything other than SD mem-

ory cards.

pIf data related to map data, such as custo-

mized POI data, is stored on the SD mem-

ory card, the navigation system restarts.

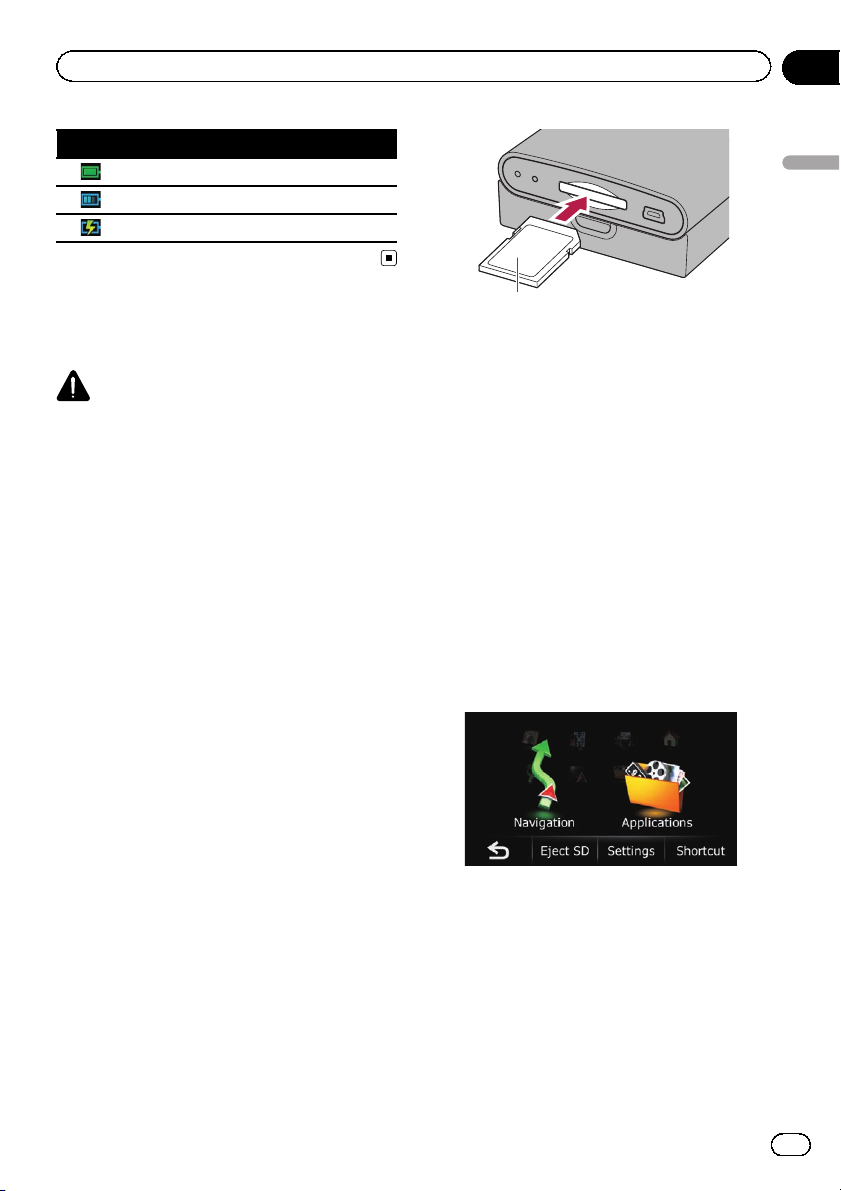

Inserting an SD memory card

%Insert an SD memory card into the SD

card slot.

Insert the card with the contact end first into

the SD card slot and press the card until it

clicks and completely locks.

Label side

Ejecting an SD memory card

1 Press the MODE button of the AV recei-

ver.

After a short pause, the navigation screen ap-

pears.

pThe display will turn off if you press the

MODE button of the AV receiver immedi-

ately after the navigation system restarts, so

wait (approximately 10 seconds) after re-

start before pressing the MODE button.

=For details of the operations, refer to Screen

switching overview on page 12.

2 Touch [Home] on the map screen.

The “Top Menu”screen appears.

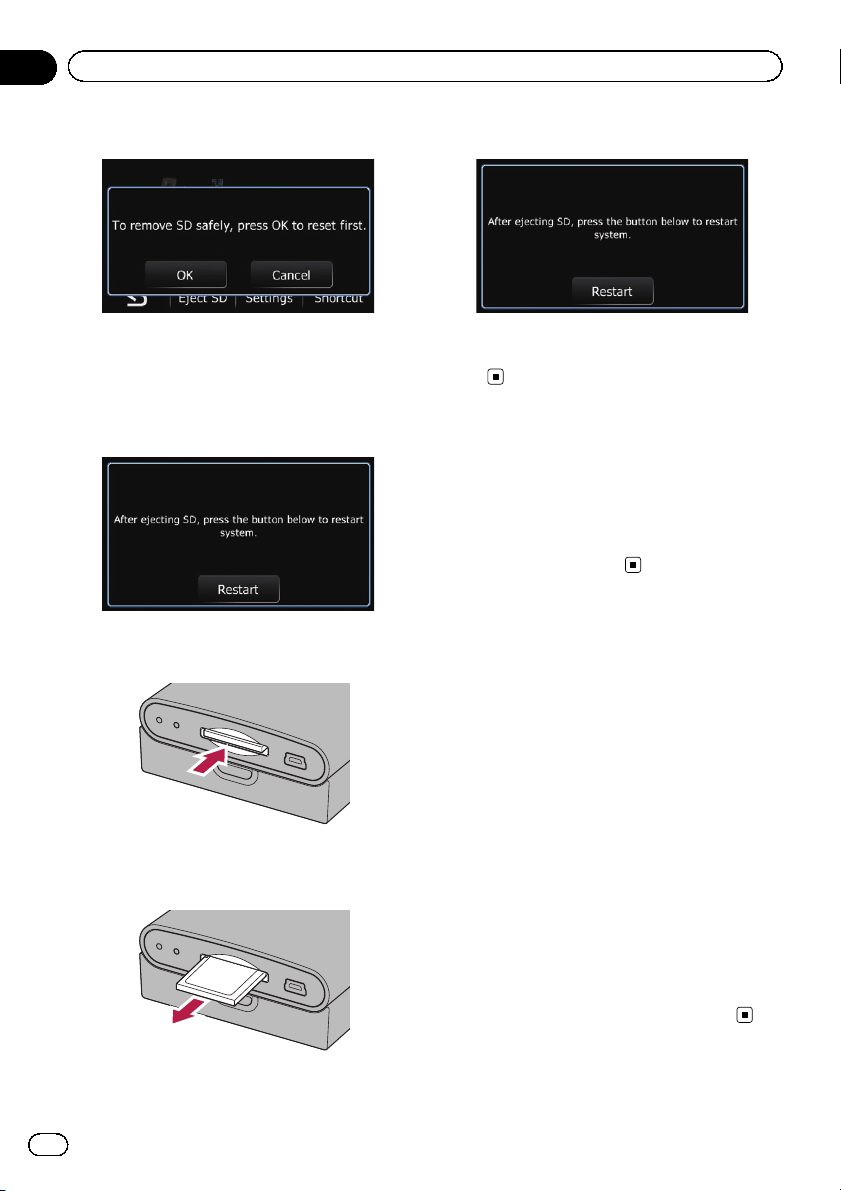

3 Touch [Eject SD].

A message confirming whether to restart the

navigation system appears.

En 9

Chapter

Before you start

4 Touch [OK].

The navigation system restarts.

After a short pause, the navigation screen re-

turns.

5 Check that the following screen is dis-

played.

6 Press the middle of the SD memory

card gently until it clicks.

The SD memory card is ejected.

7 Pull the SD memory card out straight.

8 Touch [Restart].

The navigation system restarts.

After a short pause, the navigation screen re-

turns.

Protecting your product

from theft

The detachable device can be removed from

the base unit to discourage theft.

=For details, refer to Removing the detach-

able device on page 7.

Flow from startup to

termination

1 Start the engine to boot up the system.

2 Press the MODE button of the AV recei-

ver.

After a short pause, the navigation screen ap-

pears.

pThe display will turn off if you press the

MODE button of the AV receiver immedi-

ately after the navigation system restarts, so

wait (approximately 10 seconds) after re-

start before pressing the MODE button.

=For details of the operations, refer to Screen

switching overview on page 12.

3 Turn off the vehicle engine to termi-

nate the system.

The navigation system is also turned off.

Chapter

02 Before you start

Otros manuales para AVIC-U220

Tabla de contenidos

Otros manuales de Sistema de navegación para automóviles de Pioneer

Pioneer

Pioneer AVIC-F60BT Manual de usuario

Pioneer

Pioneer AVIC-U310BT Manual de usuario

Pioneer

Pioneer Super Tuner IIID AVIC-F900BT Manual de usuario

Pioneer

Pioneer AVICF500BT - CD-VM1 Optional Microphone Manual de usuario

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC-Z820DAB Manual de usuario

Pioneer

Pioneer AVIC-U260 Manual de usuario

Pioneer

Pioneer avic-u280 Manual de usuario

Pioneer

Pioneer AVIC-Z3 Manual de usuario

Pioneer

Pioneer AVIC-Z1000DAB Manual de usuario

Pioneer

Pioneer AVIC-Z810DAB-C Manual de uso y cuidado

Pioneer

Pioneer AVIC-D1 Manual de usuario

Pioneer

Pioneer AVIC-F60BT Manual de usuario

Pioneer

Pioneer AVIC-HD1BT Manual de usuario

Pioneer

Pioneer AVIC-80DVD Manual de usuario

Pioneer

Pioneer AVIC-U220 Manual de usuario

Pioneer

Pioneer AVIC-Z910DAB Manual de usuario

Pioneer

Pioneer AVIC-HD3 Manual de usuario

Pioneer

Pioneer AVIC-Z910DAB Manual de usuario

Pioneer

Pioneer AVIC-Z1 Manual de usuario

Pioneer

Pioneer AVIC-D3 - Navigation System With DVD Player Manual de usuario

Pioneer

Pioneer AVIC-Z1 Manual de usuario

Pioneer

Pioneer AVIC-F850BT Manual de usuario

Pioneer

Pioneer AVIC-S2 Manual de usuario

Manuales populares de Sistema de navegación para automóviles de otras marcas

Clarion

Clarion Navigation In-Car Entertainment Manual de usuario

Rosen

Rosen DP-1001 Manual de usuario

Alpine

Alpine INE-W970HD Manual de usuario

Skoda

Skoda AMUNDSEN+ Manual de usuario

Blaupunkt

Blaupunkt TravelPilot DX-N Manual de usuario

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manual de usuario

Kenwood

Kenwood DNN991HD Manual de usuario

AvMap

AvMap Geosat 2C Manual de usuario

Eonon

Eonon GE01B Manual de usuario

Nextar

Nextar M3-MX - Automotive GPS Receiver Manual de usuario

Furrion

Furrion NV2200 Manual de usuario

Mio

Mio MOOV 200-Series Manual de usuario

Prestigio

Prestigio GeoVision 5150 Manual de usuario

Hummer

Hummer 2006 H3 Manual de usuario

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guía de configuración

Garmin

Garmin StreetPilot c510 Manual de usuario

Garmin

Garmin nüvi 2200 Manual de usuario

Garmin

Garmin 2610/2650 Manual de usuario
