Phonak CROSLink Manual de usuario

CROSLink™

User Guide

Welcome to the world

of wireless communication.

CROSLink is a wireless hearing solution which

allows voices and sounds to be picked up from

an unaidable ear to enable hearing from all

direction. It is easy to handle, very discreet, and

fits to a vast range of behind-the-ear hearing

instruments on the market. For maximum benefit,

it is recommended that CROSLink is used in

combination with Phonak hearing instruments.

Please read this user guide carefully.

Ask your hearingcare professional if you have

any questions.

Phonak wishes you much hearing enjoyment.

Contents

Welcome 2

Instrument description 4

How to wear 5

Insert/Change batteries 6

Switch on and go 8

For experienced users (BiCROS) 10

Readjust the CROSLink 10

To adjust the volume of the CROSLink 14

Important points 15

Warning 15

Declaration of conformity 16

Service and warranty 18

Phonak distributors worldwide 19

Instrument description

CROSLink transmitter

CROSLink receiver

Wax guard tip

Retention

Battery compartment

ON/OFF switch

Volume control

Plug for connection to the

hearing instrument /audio shoe

Switch

°=Off position: The signal from the

CROSLink transmitter on the

unaidable ear cannot be received.

Please consult your hearingcare

professional about the correct switch

position when using CROSLink with

your hearing instrument.



•

•

}











How to wear

The CROSLink transmitter (pictured) is worn on

the unaidable ear.

The tiny CROSLink receiver can be plugged into the

hearing instrument worn on the better hearing ear by

means of a 3-pin assembly. The receiver receives the

speech signal coming from the CROSLink transmitter.

Insert retention:

The Fit’n Go retention holds the CROSLink transmitter

securely in the ear while keeping the ear canal open for

maximum comfort. Place the CROSLink transmitter

behind the unaidable ear. Insert wax guard tip into ear

canal. Bend retention towards the back to ensure it

fits securely into the recessed portion of the outer ear

as pictured.

off

Insert/Change batteries

The CROSLink transmitter requires size 13 batteries.

Operating time of a new battery: between 100 and

150 hours

1) Switch off

the CROSLink

instrument

2) Open the

battery door

3) Remove

the old battery

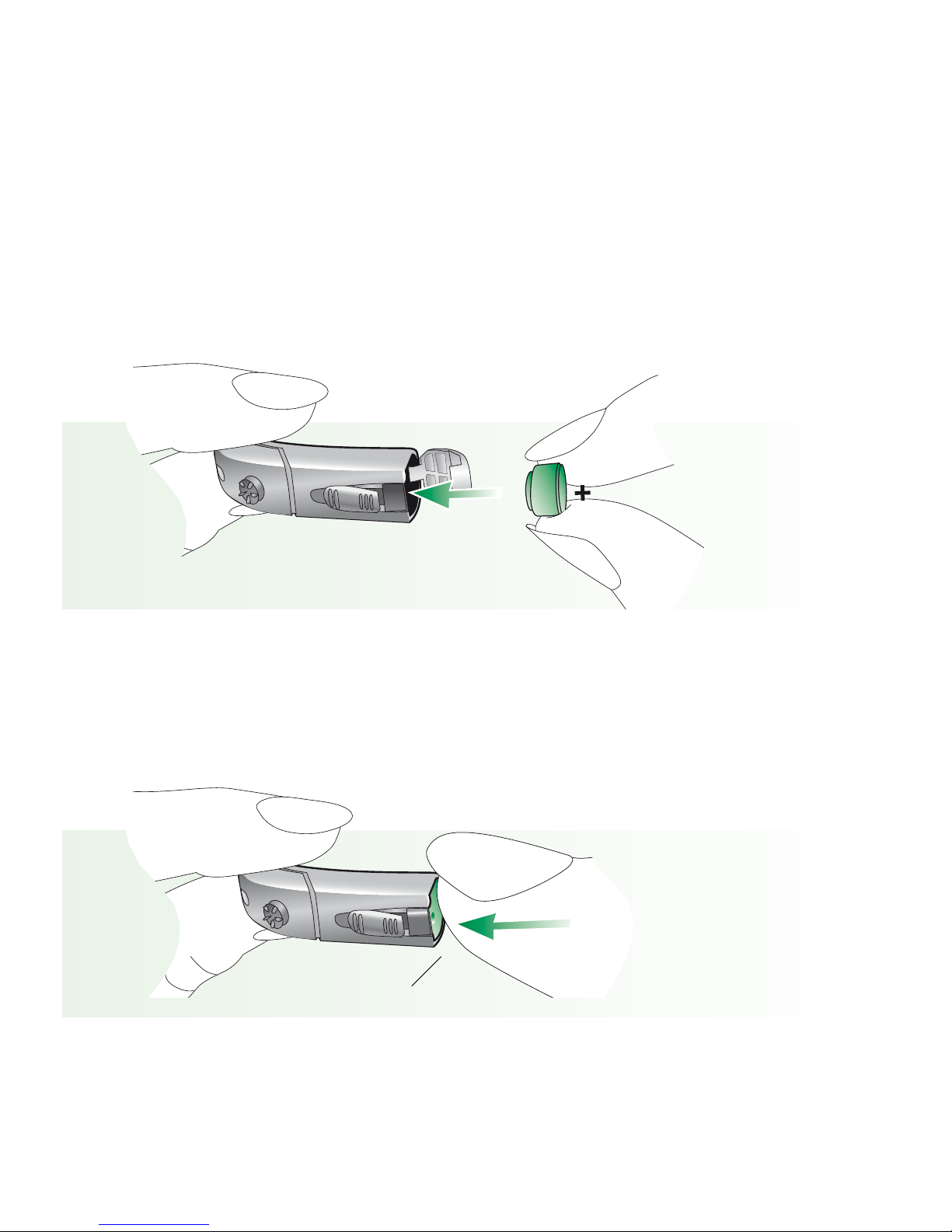

4) Remove the tab from the new battery (size 13)

and insert it. Make sure that the “+” sign

(flat side of the battery) is on the same side as

the battery door

5) Gently shut the battery cover until you feel it

“click” into place and switch on the instrument

The CROSLink receiver uses the battery from the

hearing instrument.

click

Switch on and go

1) Switch the CROSLink transmitter on and wear

it on the unaidable ear

2) Switch on the hearing instrument and set the

CROSLink receiver to the setting recommended by

the hearingcare professional:

one dot position

two dot position

3) Attach receiver to audioshoe

4) Attach audioshoe to hearing instrument

5) Attach the CROSLink receiver to the hearing

instrument and wear it on the better ear.

Ready!

For experienced users (BiCROS)

Readjust the CROSLink

To achieve a balanced sound quality from all directions

proceed as follows:

Step 1: Adjust the volume on the hearing instrument

Wear the CROSLink system and switch on only the

hearing instrument.
