Philips 9400 Manual de usuario

Instruction manual

Quick Reference Guide

SIMPLY WORKING S MARTERSIMPLY WORKING S MARTER

Digital

Pocket

Memo 9400

Digital

Pocket

Memo 9400

www.philips.com/dictation

Recording: LED red

Inserting: LED green

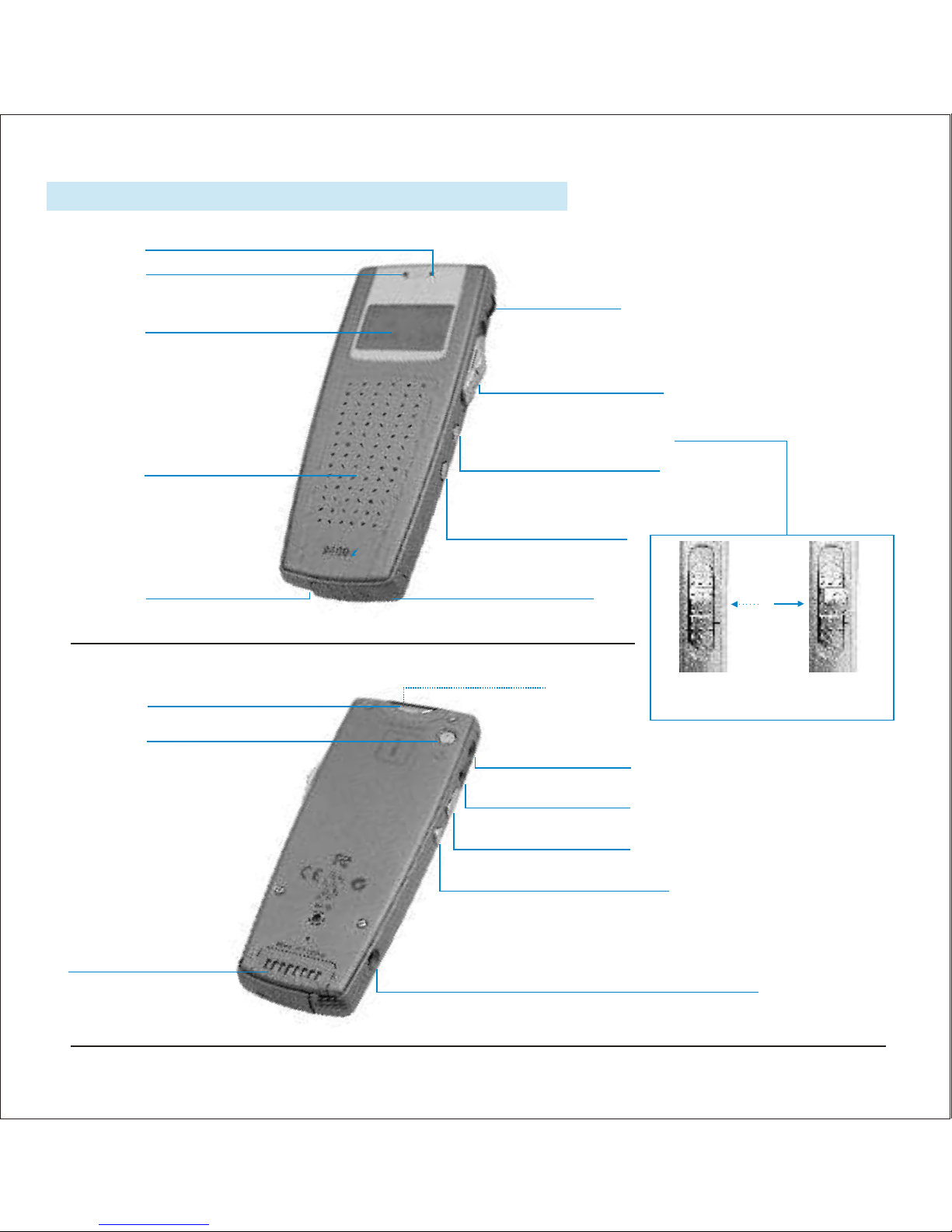

LC-display

Built-in speaker

Built-in microphone

4-position switch

the positions from top to bottom:

fast-forward, playback, stop, fast-reverse.

With lock/shift lock button

INS/OVR button

(switching between insert mode and

overwrite mode)

DEL button

(deleting)

USB connection Battery

compartment

Memory card slot

EOL/P button

(assigning end-of-letter

and priority index)

Detailed operating instructions can be found on the supplied CD-ROM under „User Manuals".

Microphone connection socket

(MIC)

Connection for headphones

(EAR)

REC button

(recording)

DL/S.Instr button

(for PC download, setting of Index marks,

Spoken Instructions)

Connection for power adapter

(for Philips LFH 9145)

Charging

station contacts

(for Docking Station LFH 9110)

„unlocked“

stop position device switches off

„locked“

Barcode scanner slot

(Option: Philips LFH 9284)

Jog shuttle

(for controlling the volume, skipping forward and backward,

accessing the DPM menu, moving between menu items,

confirming a selection)

Digital

Pocket Memo 9400

Functions

Recording

EOL (End-of-Letter) and Priority

Inserting Text

Recording for the first time with the DPM 9400: Check whether a memory card has been inserted into

the device and that the DPM has power, then unlock the 4-position switch = stop position.

Record standby:

Press the REC button =

record standby mode.

LED blinks red.

Ending the dictation

Press the EOL/P button (6): When you are finished with the dictation and do not wish to make any further changes.This only

functions if the 4-position switch is in the stop position and something has already been recorded to the file!

For short pauses:

Move the 4-position switch to the stop position. - Continuing recording: Move the 4-position switch back to the playback position.

Spoken Instruction:

Make sure the DPM is in Recording mode. Press and hold the DL/S button to dictate your instruction. Release the button to return to your

dictation.

• Pressing the EOL/P button once marks the current file as finished.The file is closed and assigned the

EOL symbol: .

• If you press the EOL/P twice within half a second, the current file is marked as finished and it is assigned

priority status.The file is closed and assigned the symbols: and .

After closing the file, the Pocket Memo automatically creates a new, empty file.

Inserting text into the current file: Move the playback cursor to the desired location in the file. Stop the

playback. Press the INS/OVR button followed by the REC button and move the 4-position switch back to the

playback position. Dictate your addition. LED is green.

Inserting text into a saved audio file: Select the corresponding file using the jog shuttle.To confirm the

file selection and access the file, press the jog shuttle. Unlock it by pressing on the EOL/P button, then follow

the steps as described above.

To end the process: Either move the 4-position switch to the fast-forward/reverse position or press

the REC button and don´t forget to end the insertion mode by pressing the INS/OVR button again.

(Press the EOL/P button again.)

MIC

(Recording: LED steady red)

(Inserting: LED green) Hold the DPM approximately 10 centimetres

away from your mouth. Speak clearly.

Record Start:

Move the 4-position switch to the playback

position. LED steady red.

Stopping recording:

Press the REC button = stop mode

4-position switch in the stop position.

4-position switch back to the stop

position.

(EOL/P-button:

back side)

Quick Reference

Instruction manual

Play back

Deleting

• Current audio file: Move the 4-position switch from the stop position to the playback position.

To stop the playback, move it back again.

• Saved audio file: Select the sound file using the jog shuttle and move the 4-position switch from

the stop to the playback position.To stop the playback, move it back again. Playback stops automatically

when the end of the file is reached.

Adjusting the volume

You can adjust the playback volume for the headphones and the built-in speaker by moving the jog

shuttle up or down during playback.

Fast-Forward and Fast Reverse

Move the 4-position switch to the upper or lower end point to start, in other words, the fast-forward or

fast-reverse position. Hold the switch in this position during the entire time. As soon as the end or start

of the file is reached, the Pocket Memo automatically stops.

Deleting a section from the current dictation:

1. Move to the start of the section you would like to delete by using the functions fast-forward, fast-

reverse or playback. Move the 4-position switch to the stop position and press the DEL button once.

2. Move to the end of the section you would like to delete by using the functions playback, fast-forward

or fast-reverse and press the DEL button again.

3. Confirm the deletion by pressing the DEL button again and holding it pressed for at least two

seconds; this will permanently delete the selected section from the file.

Permanently deleting an entire audio file:

Current audio file

1. Delete the current file by pressing the DEL button (for at least 2 seconds).

2. Confirm the deletion by pressing the DEL button again and holding it pressed for at least 2 seconds.

Saved audio file

1. Make certain that the 4-position switch is in the stop position.

2. Move to the desired file by moving the jog shuttle up or down. Confirm the file selection by pressing

on the jog shuttle.

3. Unlock the file by pressing the EOL/P button again, the disappears.

4. Now press the DEL key for at least two seconds.

5. Confirm the deletion by pressing the DEL button again and holding it pressed for at least 2 seconds.

Quick Reference

Instruction manual

DPM-Menu

Low Power Mode

Switching the DPM On/Off

This menu offers you options for inputting user-defined designations, assigning key words, setting the

date and time, recording format and microphone sensitivity, (de)activation of the device signals and

voice-activated recording, switching the illumination on/off, changing the contrast, displaying the

remaining or used recording time and reformatting the memory card.

Access to the DPM menu:

• The DPM menu can only be accessed while the DPM is in stop mode.

• Press the jog shuttle for about two seconds.You can switch between the DPM menu items by turning

the jog shuttle: . A checkmark ( ) next to a menu item means that the corresponding setting

is activated.

Changing the settings:

• To select a menu item, for instance, to set the date and time, move the jog shuttle up or down to the

corresponding symbol.

• Press the jog shuttle to confirm the selection.This opens the menu item and allows you to make

changes to it. Confirm the changes by pressing the jog shuttle; this returns you to the DPM main

menu.

To leave the DPM menu, press the DEL button, wait 5 seconds or select the menu item to close the

DPM menu and confirm this by pressing the jog shuttle.

If the DPM remains inactive for longer than four minutes, it automatically switches to low power mode

and the device displays the date and time. - To reactivate the DPM, press any button or move the

4-position switch.

If the DPM is inactive for longer than 2 hours, the device automatically switches off.To reactivate the

DPM, use the lock/shift lock button of the 4-position switch.

Switching the DPM on: Unlock the 4-position switch by moving its centre part forward to the stop

position.The current file, the time recorded in the file, the total remaining recording time and, for

example, the current time are shown on the LC display.

Switching the DPM off: Move the 4-position switch to the stop position and push back the movable

centre part of the cap.This locks the 4-position switch and the device switches itself off.

Detailed operating instructions can be found on the supplied CD-ROM under „User Manuals".

Quick Reference

Instruction manual

Standard Play / Long Play mode

Recording

Stop

Voice-activated recording

EOL (End-of-Letter)

Write-protected SD card

Battery strength: 100%

Keyword assignment

DPM device beep

Voice-activated recording

Contrast

Format memory card

Playback

File delete

Fast Rewind / Fast Forward

Record Standby

Playback

Barcode information

Priority

Insert mode

Battery: empty

Batteries/Power Supply

Memory Card

The DPM is operated with two supplied batteries of type Alkaline AAA.Alternatively, it can also be operated

with rechargeable NiMH batteries (only Philips LFH 9144) or the power adapter (Philips LFH 9145).

The DPM 9400 works with a memory card of type MMC or SD up to a memory capacity

of 1 GB (1000 GB).

Example: A 32 MB memory card of type MMC supports about 312 minutes of recording time in standard

mode or 468 minutes of recording time in long play mode .

Changing the memory card: Press the memory card down into the guide slot against the spring

resistance until you hear a soft click; then pull out the card and push the new card into the slot until it

clicks.

DPM-Menu-Icons:

LCD-Display-Icons

5103 109 9511.5 Please note that we cannot accept any liability for loss of data. Pocket Memo® is a trademark of Koninklijke Philips Elektronics NV.

User-defined labels

Standard Play/Long Play mode

Microphone sensitivity

Display backlight

Remaining (-) or

used-up (+) recording time

Recording

Section delete

Spoken instruction
