Philips Voice Tracer LFH0645 Manual de usuario

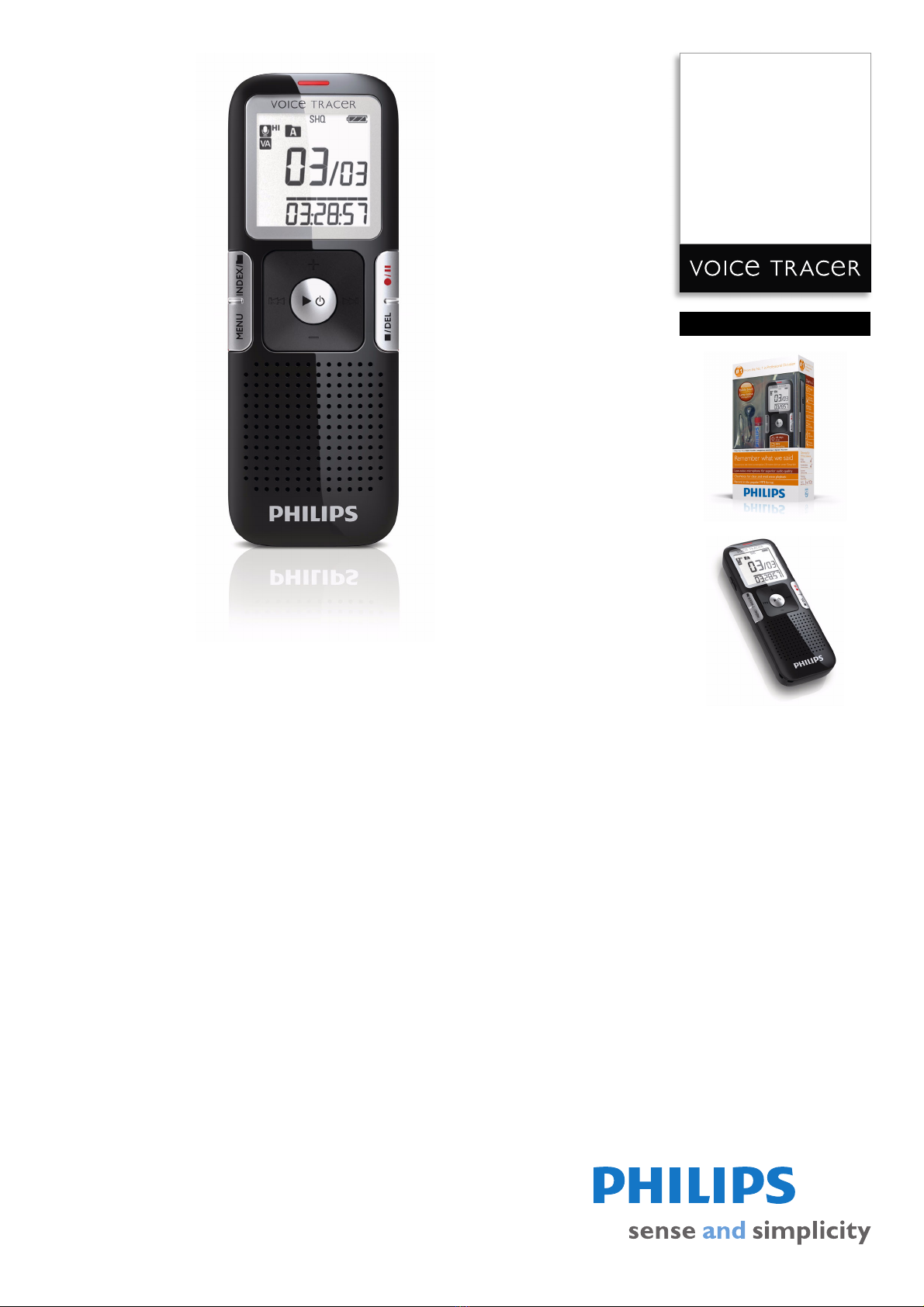

Philips Voice Tracer

digital recorder with

ClearVoice

Low noise microphone

LFH0645

Remember what we said

With ClearVoice for crystal-clear playback

The Voice Tracer digital recorder captures every conversation for you, even if you are

distracted. Record up to 1100 hours, then transfer the files to your PC via USB and your

recordings are ready to use.

Superior audio quality

• Low-noise microphone for utmost speech clarity

• Record in the popular MP3 format with five recording modes

• ClearVoice for clear and vivid voice playback

Easy and intuitive experience

• Rapidly transfer recordings and data via USB 2.0

• Index function for finding relevant passages easily

• Large, easy-to-read backlit display

• Voice volume indicator for clear volume feedback

• Plug and play in Windows, Mac OS and Linux

Designed around you

• Lightweight and ergonomic design

• Front speaker for crystal-clear voice playback

• Comfortable hands-free headset included

LFH0645/00

Highlights

Digital recorder with ClearVoice

Low noise microphone

Low-noise microphone

The signal–to-noise (S/N) ratio of the high-

sensitivity microphone is far better than those

of standard microphones. Recording sensitivity

is increased (picks up more voice signal)

without compromising sound quality.

ClearVoice

Recording with good audio quality at lectures

or presentations can be a challenge. Especially

if you do not sit in the front row, the voice of

the speaker may be to quiet too record in

acceptable quality. The ClearVoice feature

adjusts quiet passages dynamically, thus

improving the intelligibility of quieter voices.

Five recording modes

Choose among several recording modes,

including SHQ, HQ, SP, LP and SLP for

extended recording times.

Plug and play

Your VoiceTracer just works - Plug and Play in

Windows, Mac OS and Linux.

Voice volume indicator

Voice volume indicator for clear volume

feedback. The innovative voice volume

indicator directly shows you the sound input

volume on the display.

Large backlit display

The large graphical display lets you view all

important file information at a glance, even in

poor lighting conditions, thanks to the backlit

display.

Ergonomic and lightweight

Small and lightweight, you'll hardly notice it's

with you. Pop it in your pocket or bag and take

it anywhere. The durable casing and attractive,

ergonomic design will make you want to carry

it everywhere you go.

Crystal-clear voice playback

The more powerful front speaker offers a

potent, rich and crystal clear sound

experience.

Hands-free headset included

The hands-free headset is ideal for using on the

move with its tie clip that keeps the

microphone always in the perfect position.

Rapidly transfer recordings

Thanks to the fast data transfer of a hi-speed

2.0 USB connection, transferring recordings to

your PC is up to 40 times faster compared with

the original USB standard.

Index function

The index function helps and eases finding

relevant passages in an instant.

LFH0645/00

Specifications

Digital recorder with ClearVoice

Low noise microphone

Connectivity

• Headphones: 3.5 mm

• Microphone: 3.5 mm

•USB:High-speedUSB2.0

Display

•Type:LCD

• Diagonal screen size: 34.5 mm/1.4 in.

• Backlight: white

Storage media

• Built-in memory capacity: 4 GB

• Built-in memory type: NAND Flash

• Mass storage class compliant

Audio recording

• Recording formats: MPEG1 layer 3 (MP3)

• Built-in microphone: high-sensitivity, low-noise

microphone, mono

• Recording modes: SHQ (MP3/mono), HQ (MP3/

mono), SP (MP3/mono), LP (MP3/mono), SLP

(MP3/mono)

• Bit rate: 8, 32, 48, 64, 192 kbps

• Sample rate: 44.1 kHz (SHQ), 22 kHz (HQ), 16

kHz (SP/LP/SLP)

• Recording time: 44 days (SLP), 11 days (LP), 8 days

(SP), 5.5 days (HQ), 2 days (SHQ)

Sound

• Speaker type: built-in round dynamic speaker

• Speaker diameter: 23 mm

• Speaker output power: 110 mW

• Sound enhancement: ClearVoice

• Frequency response: 250-2000 Hz (SLP), 60-3500

Hz (LP), 60-5500 Hz (SP), 60-7000 Hz (HQ), 60-

16000 Hz (SHQ)

• Signal-to-noise ratio: > 60 dB

Convenience

• Voice volume indicator

• Instant one-touch recording

• Voice-activated recording

•Keypadlock

• Firmware upgradeable

• Variable playback speed

• Optimised for conversations

Power

• Battery type: AAA/LR03 Alkaline, Philips AAA Ni-

MH LFH9154

• Number of batteries: 1

• Battery lifetime: up to 22 hours in SLP recording

mode

•Batteryincluded

• Rechargeable: yes, via USB with optional LFH9154

battery

System requirements

• Operating system: Linux, Mac OS X, Windows 7/

Vista/XP/2000

• Free USB port

Accessories

• Hands-free headset

•USBcable

• 1 × AAA battery

•Quickstartguide

Design and finishing

• Colour(s): piano black/platinum chrome

Product dimensions

• Product dimensions (W x H x D):

3.8 x 10.5 x 1.64 cm

• Product dimensions (W x H x D):

1.5 x 4.1 x 0.6 inch

• Weight: 0.044 kg

• Weight: 0.097 lb

•

Issue date 2013-01-10

Version: 3.1.7

12 NC: 8735 064 50011

UPC: 6 09585 21337 1

Specifications are subject to change without notice.

Trademarks are the property of Koninklijke Philips

Electronics N.V. or their respective owners.

www.philips.com
