Philips FC9206 Manual de usuario

ServiceManual

Philips DomesticAppliances and Personal Care

Published by Philips DomesticAppliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9206

06/08

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio andTV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Black

- Power consumption : 1800 W

(IEC) 230V

- Maximum Air displacement : 37 l/s

- Vacuum : 285 mbar / 28.5 kPa

- Duststorage capacity : 2 L

- Cord length : 9 m

- Fiter system : HEPA cyclone-filtration

system

: Permanent motor

protection filter

: Super Clean Air

HEPA12 exhaust filter

- Dimensions of cleaner : 470 x 320 x 340 mm

- Dimensions of packaging : 590 x 390 x 380 mm

- Net weight : 7.2 kg

ACCESSORIES

- Special nozzle : Turbo Brush nozzle

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Brush, crevice nozzle and

small nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC 8031 : Super Clean Air HEPA filter,

HEPA12 exhaust filter

= changed

FC9206

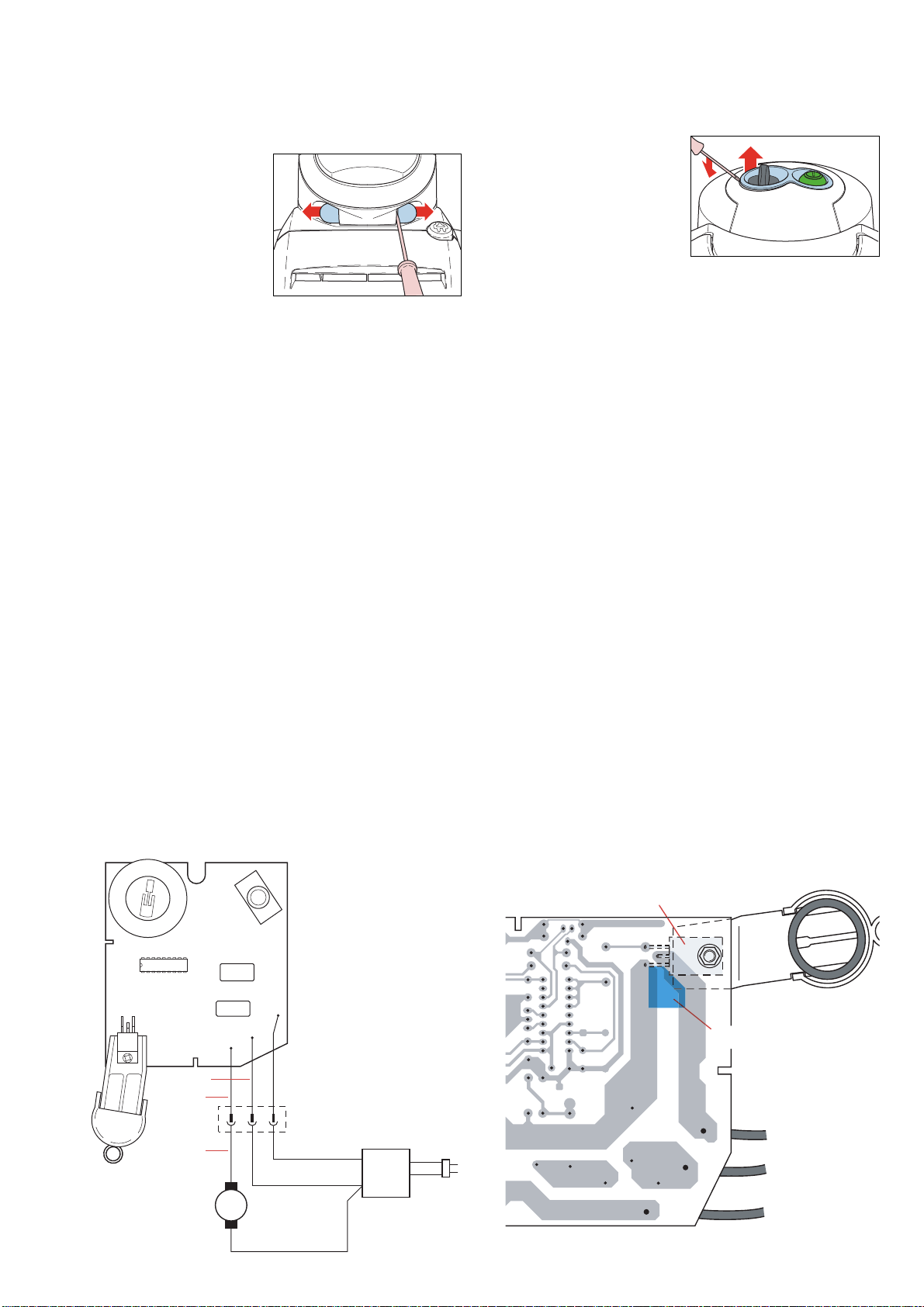

- To open the appliance first remove the filter cover (item 31)

and then remove the 5 screws from the appliance.

- To remove the hinge,

first remove the end caps

(item 16) this can be done

with a screwdriver,

see picture.

- When the end caps are

removed, the hinging pin

can be removed.

- When this is done the hinge can be taken off the appliance.

- Remove the can with the filters.

- To remove the housing (7 screws) you will require for some

screws a screwdriver with a 14.5 cm long shrank for this.

Screwdriver 4322 009 08490 forT15 can be used.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, useTORX screwdriver no.

T10, which is one of a set consisting ofT20;T15;T10;T9;

T8;T7 andT6 (code number 4822 395 505145)

Further disassembly advise for the hinge:

- The chromium ornamental

plate can be removed with

a screwdriver (see picture)

after that the min/max

button and the On/Off

button can be removed

from the plate.

- Remove the screw (B) underneath the ring with aT15

screwdriver; the orange user panel (item 4) can be removed.

- Choke assy can be taken out.

- PCB can be removed.

- To remove the sealing disk and the detector with the spring

you have to remove the 2 screws (C) next to the sealing

disk.

REPAIR INSTRUCTION

- If the reel half spring unit is replaced, shaft Lmust be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (item 46) or

conductors (item 47).

- The cord winder spring must be tensioned to the maximum

level and the be rewound approx 1.5 turn.

- Item 5, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- If the function of the electronic control unit is not required,

theTriac must be short-circuited in the manner shown in

the circuit diagram.

ELECTRICAL DIAGRAM

DISASSEMBLY-AND RE-ASSEMBLYADVISE

iac

Short-circuit

MOTOR

POWER

MODULE

Blue

Brown

CORD WINDER

Black

Blue

Brown

Black

2-8

FC9206

PARTS LIST

3-8

Pos Service code Description

51a

4322 003 25630

4322 004 92920

4322 001 73460

4322 000 38790

4322 003 25460

4322 000 38760

4322 000 38770

4322 003 25390

4322 003 25360

4322 001 73440

4322 006 97670

4322 000 38780

4322 001 73450

4322 003 25370

4322 005 18670

4322 005 17430

4322 005 17910

4322 006 01720

4322 006 01410

4322 003 25510

4322 005 17570

4322 004 20090

4322 007 31640

4322 004 22510

4322 001 99120

4322 007 45550

4341 004 20510

4322 003 25560

4322 005 17590

4341 004 20490

4322 004 23200

4322 004 22960

Filter cover black

Hepa ﬁlter phoenix

Exhaust sealing

Silencer 4 wall backpanel

S-Class h. sealing

Silencer 1 wall

Silencer 2 bottom

Inlet sealing 1

Motor housing top grey

Motor buffer front

Motor A 1451 230 V

Silencer 3 compas

Motor buffer back

Motor housing bottom

Reel half spring unit

Reelh. cordside assy

Contact plate assy

U.K. / H.K. L = 9.3 m

Euro 4.8 mm pins L = 9.3 m

Curve bend a1

Curve bend a1/conical hose

Conical hose assy

Leaf spring assy

Telescopic tube silver

Coupling bush

Coupling spring

Plumeau assy

Crevicle nozzle 140 mm

Accessory bridge assy

Small nozzle

Tri-active nozzle

Turbo brush nozzle

Pos Service code Description

4322 005 18630

4322 003 25670

4322 005 17720

4322 003 25230

4322 005 17930

4322 005 17500

4322 006 22770

4322 006 23270

4322 005 17730

4322 005 19440

4322 001 73370

4322 004 20130

4322 003 26010

4322 005 17610

4322 005 17520

4322 003 25130

4322 005 18640

4322 006 22880

4322 006 23280

4322 003 25310

4322 005 17900

4322 005 19450

4322 000 38800

4322 003 23250

4322 003 25030

4322 000 09750

4322 001 73430

4322 003 24400

4322 003 27210

4322 003 25010

4322 003 25000

4322 003 25040

4322 003 25050

4322 003 24950

4322 005 17510

4322 003 25080

Handle assy black

Hinge back black

Ornamental plate chronium

Turn Knob soft touch

User panel pr. Animal Care

Choke valve assy

PCB assy 220/240 V 50/60 Hz

PCB assy 220/240 V 50/60 Hz *

Hinge front pr. black

Hinge front pr. black *

Bucket sealing

Filter brush

Brush holder black

Detector assy

Permanent ﬁlter

Tower bltr. apricot

Bucket assy black

Wire beam assy

Wire beam assy *

End caps s. grey

Upper black pr.

Upper black pr. *

Motor inlet ﬁlter

Inletsealing airchanel

Air chanel grey

Pedal spring

Rubber bump

Backpanel odyssey grey

Backpanel odyssey grey *

Cord outlet grey

Bumper grey

Bucket hook left grey

Bucket hook right grey

Lowerhousing grey

Caster assy

Filter cover lock l. grey

* From 0552 onwards

= changed

FC9206

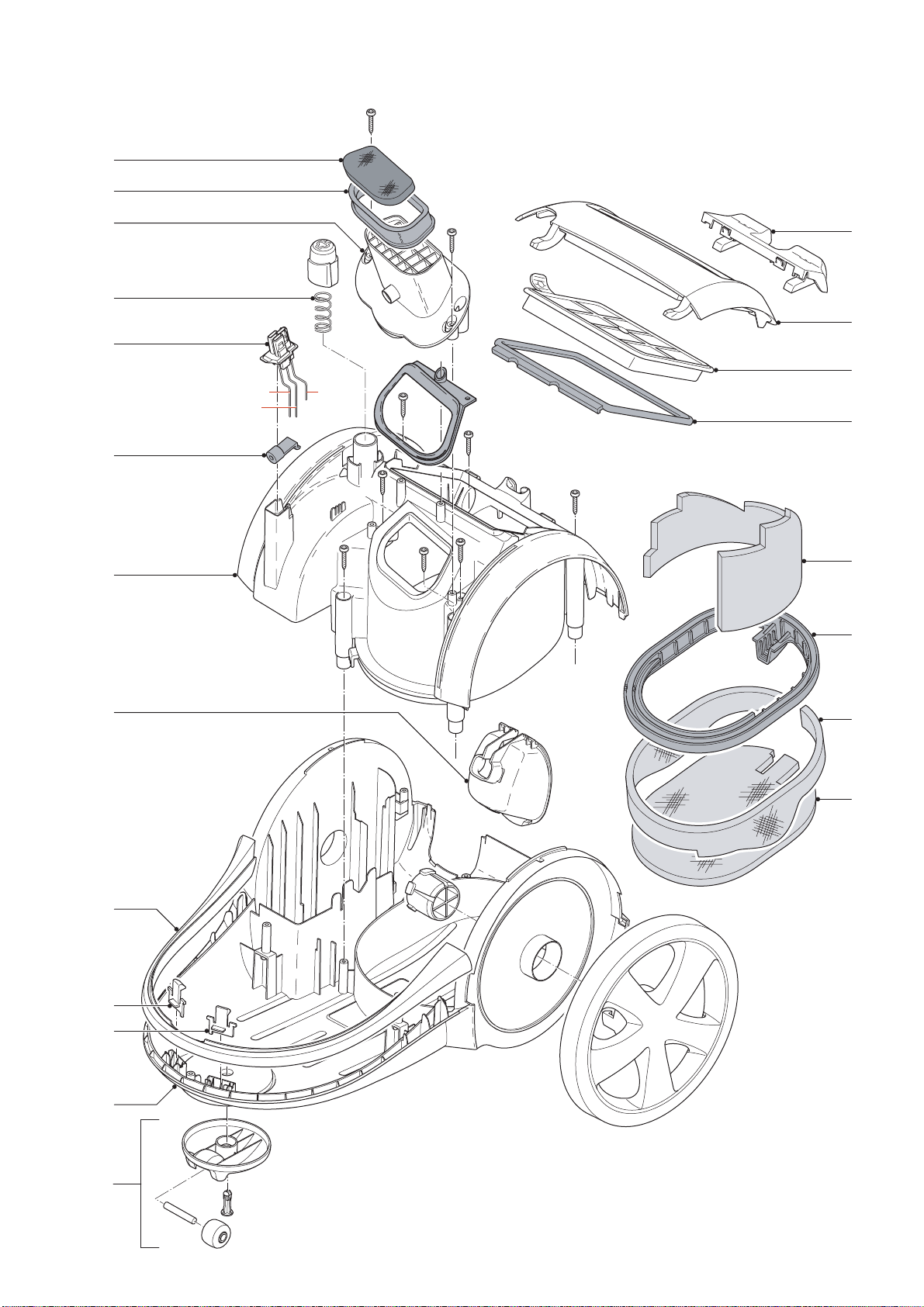

EXPLODEDVIEW

Black

Blue

Brown

4-8

FC9206

EXPLODEDVIEW

Brown Black

BlueZX

5-8

FC9206

EXPLODEDVIEW

48 49

Black

YBlack

Blue

Brown

6-8

FC9206

EXPLODEDVIEW

5856

Europe Ø 4.8mm 49

Swiss

Italy

48U.K. / H.K.

50 51a

7-8

FC9206

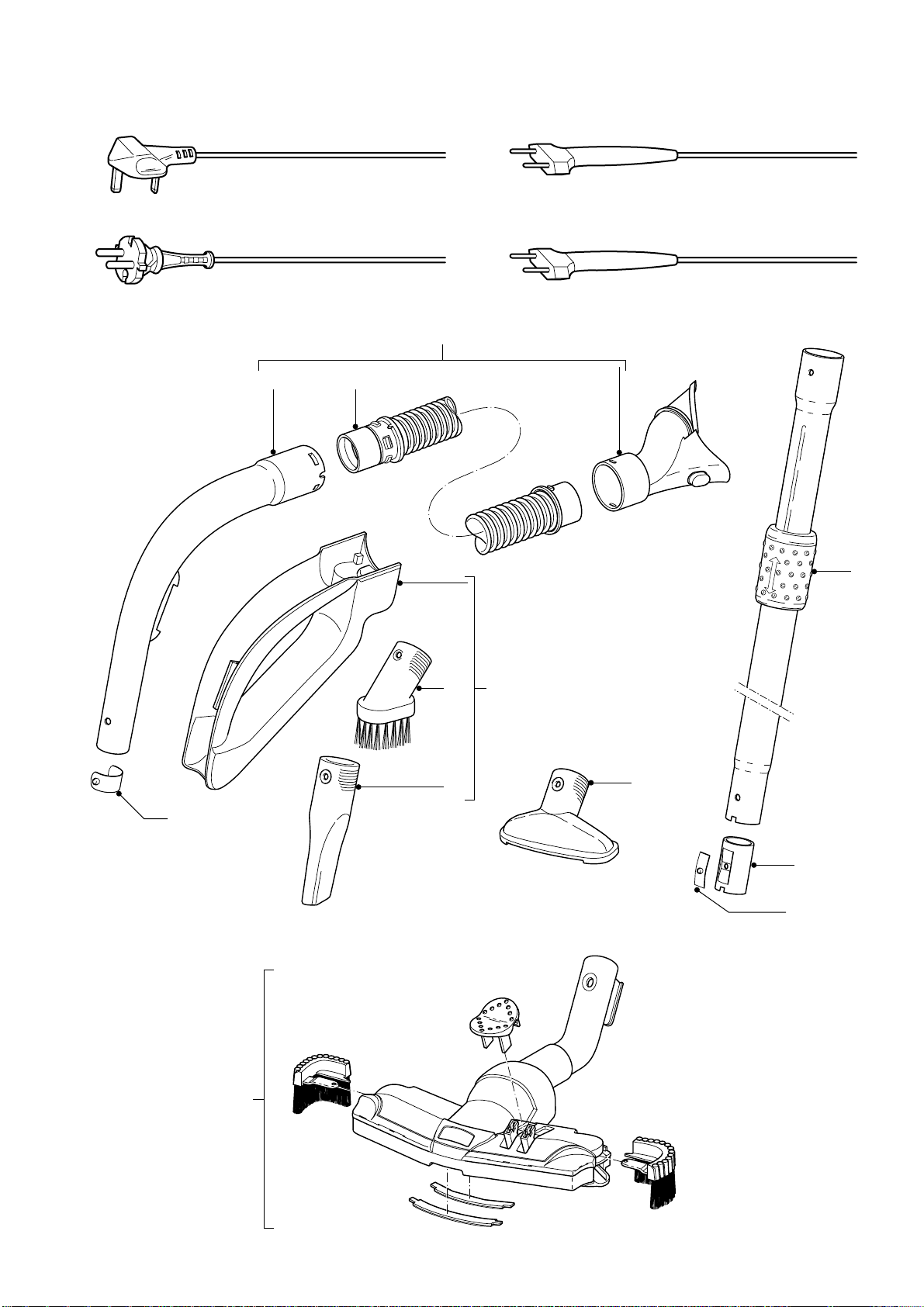

EXPLODEDVIEW

8-8
