Philips FC8620 Manual de usuario

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC8620

09/07

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Chocolate brown

- Power consumption : 1800 W

(IEC) 230V

- Maximum Air displacement : 42 l/s

- Vacuum : 33 kPa

- Type number dustbag : FC8022

- Duststorage capacity : 3 L

- Cord length : 7 m

- Fiter system : 5 Layer

Ultra Filtration System:

- Double layered compatible S-bagTM

- 2 layer permanent motor protection filter

- Super clean air exhaust filter

- Dimensions of cleaner : 252 x 299 x 457 mm

- Dimensions of packaging : 580 x 375 x 280 mm

ACCESSORIES

- Nozzle : All purpose wheeled nozzle

- Additional nozzle : Hard Floor nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Crevice nozzle and small nozzle

- Accessory storage : Accessory clip on tube

- Coupling : Conical coupling

After sales accessoires.

- FC8032 : Super clean air filter +

Motor protection filter

OPTIONAL (accessories)

- FC 8021 : S-Bag Classic Long performance

- FC 8022 : S-bag Clinic

- FC 8023 : S-bag Anti-Odour

FC8620

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- Open the appliance, first pull off the vario knob button,

then remove the ring under the knob, after that screw (A)

under the vario knob can be removed with a screwdriver.

- After removing the filtercover the second screw (B) for

releasing the backpanel can be removed.

- The dustcover, button panel, bumper and the PCB’s can

now easily be removed.

- The upperhousing (dustchamber + motorhousing) can be

released by removing 6 screws (C).

- The wires for the motor are placed under the sealing ring of

the motor.

- The sealing ring is placed in two grooves, which are made in

the lower housing.

- When you re-assemble then make sure that the wires for the

motor are placed underneath the sealing ring.

REPAIR INSTRUCTION

- Cotton dustbags, are used in countries in which paper

dustbags are not available.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn.

- Item 8, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- If the function of the electronic control unit is not required,

the Triac must be short-circuited in the manner shown in

the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust the

pores of the dustbag may become clogged, causing the

passage of air through the dustbag to become obstructed.

As a result, the dustbag-full indicator will indicate that the

dustbag needs to be replaced, eventhough the dustbag is not

full at all.

ELECTRICAL DIAGRAM

Triac

Short-circuit

MOTOR

POWER

MODULE

Black

Black/White

Brown

CORD WINDER

Blue

2-6

FC8620

PARTS LIST

3-6

Pos Service code Description

4322 009 00100

4322 000 38830

4322 003 26070

4322 003 25850

4322 003 37920

4322 003 37910

4322 003 37950

4322 005 29370

4322 006 22960

4341 003 02390

4322 003 11730

4322 001 73480

4322 003 37900

4322 003 37940

4322 003 37890

4322 000 09970

4322 003 37860

4322 001 73440

4322 009 09430

4322 000 38820

Dustcover assy Chocol. brown

Duo ﬁlter

Inlet grille

Dustbag carrier

Back grille Chocol. brown

Turn knob Chinese ﬁre

Turn knob base Chocol. brown

DBF assy

PCB assy 220 - 240 V 50/60 Hz

Switch lever

Adjuster

Dustchamber seal

Back panel FL pr. Chocol. brown

Bumper back Dark Raven

Buttons Chinese ﬁre

Button spring

Upper housing

Motor buffer front bl.

Moter Domel 1761 220 - 240 V

Silencer 3 VCM

Pos Service code Description

4322 001 73470

4322 003 37840

4322 001 74390

4322 005 53220

4322 009 00040

4322 005 17910

4322 006 02170

4322 006 07390

4322 006 07400

4822 530 10235

4341 004 20420

4341 004 20170

4341 003 02470

4322 004 22880

4322 004 23810

4322 004 23620

4322 004 23780

4322 004 93330

4322 005 18070

4322 000 39340

Motorpot seal

Lower housing Chocol. brown

Buffer short

Caster wheel assy

Cordwinder assy (no cord)

Contact plate assy

U.K. / H.K. L = 9.3 m

Euro 4.8 mm pins L = 9.3 m

Swiss L = 9.3 m

Bend handle

Bend/hose assy

Crevice nozzle conical

Acc. clip exp.

Small nozzle conical

RD264 Nozzle conical

Telescopic tube easy touch, con.

HF Nozzle conical

Electrostatic ﬁlter

AFS Support

Bottom Silencer

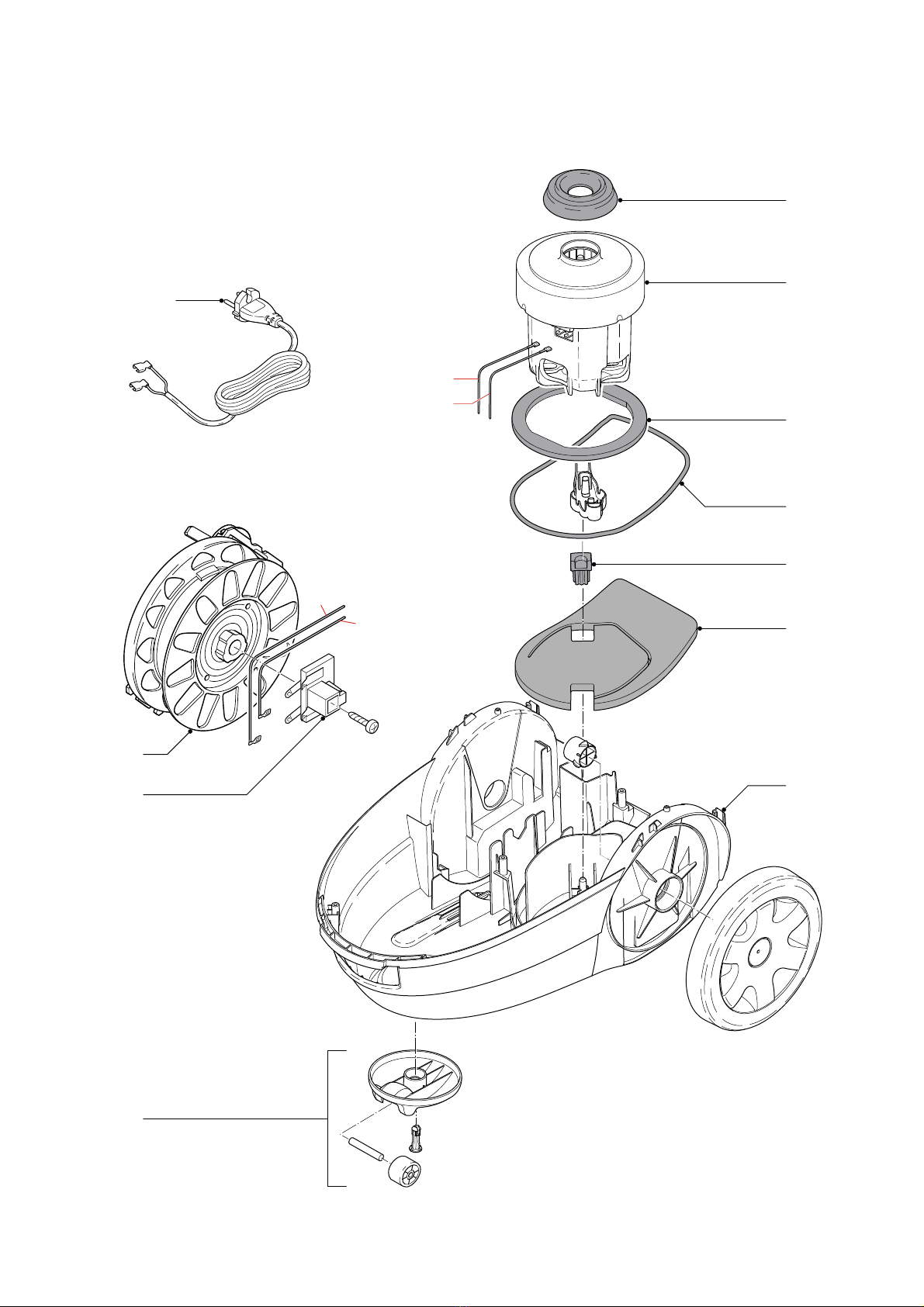

FC8620

EXPLODED VIEW

Blue

Brown

Black

Black/White

4-6

FC8620

EXPLODED VIEW

22 (2x)

Black/White

Black

Blue

Brown

27÷29

5-6

FC8620

EXPLODED VIEW

Korea / Europe 2827U.K. / H.K.

Swiss 29

6-6
