ServiceManual

Philips Consumer Lifestyle

Vacuum cleaner

FC8631/01

13/02

PRODUCT INFORMATION

Safety

• This product meets the requirements regarding

interference suppression on radio and TV.

• After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

• Colour : Deep Black

• Power consumption : 1800 W

• Duststorage capacity : 1,7 liter

• Cord length : 6 m

• Action radius : 9 m

• Filter system : HEPA 10 filter

Outlet : Microfilter

• Noise : 80 dB

• Power control : Electronic on appliance

• Coupling : Conical

• Dimensions of the appliance : 33,5 x 54 x 32,5 cm

• Weight : 6 kg

ACCESSORIES

• Nozzle : Multi nozzle

• Tubes : Aluminium 2-pieces telescopic tube

• Accessories : Crevice nozzle and Small nozzle

• Accessory storage : Clip on Tube

• Bend : Curved Bend with airslide

REPAIR INSTRUCTION

• No specific issues

OPTIONAL (accessories)

• FC8058 : Replacement Filter set

FC8631/01

2-9

• To open the appliance, first remove the bucket by

pushing the dislock-button and lifting the bucket straight

upwards, and remove the Exhaust grille and filter.

• To disassemble the Upper housing:

Remove the CW Button and On/off button by using a

screwdriver to push the buttons upwards, in this way the

clicknocks can be loosened. (see picture)

• Remove the 6 screws (B), two are positioned under the

buttons. (see exploded view on page 6-9)

• To remove the Uppperhousing:

Place one hand on the handle and the other hand in the

bottom of the Dustchamber, now simultaneously pull

on the handle and push at the bottom to separate the

upperhousing from the appliance. (see picture)

• Disconnect the connector from the potmeter PCBA

(18).

• To remove the Turning knob (11) & Potmeter

PCBA(18):

Turn the Upper housing upside down and remove the 2

screws (C). The Potmeter PCBA can now be removed

and replaced.

• Turning knob (11) can be pushed to the outside with a

screwdriver.

• The Cordwinder can be removed by pulling it in upwards

direction, the Cordwinder can replaced by placing it back

in the opposite direction.

• To remove the Motor housing:

Remove the 2 screws (D) and unclick the clicknocks

with a screwdriver. Start with the left clicknock. (see

picture)

• To re-assemble the Motor housing:

Lead the wires in the correct way and click the knocks in

place.

Remark: To replace the Motor housing in the Lower housing

it is advisable to use a magnetic screwdriver, otherwise the

appliance should be laid on its side.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

FC8631/01

3-9

220 - 240V

50Hz

0.47µF

275V

Motor

TMP

TR1

27-¼W

10k

220µF

16V

ZD1

4.7V

½W

47k

22nF

1N4007

10M-¼W

CIRCUIT DIAGRAM

FC8631/01

4-9

PARTS LIST

Pos Service code Description Remark

9965 100 62305

9965 100 62295

4322 004 93801

4322 004 93811

9965 100 62285

Lid

Bucket assy

HEPA lter

Sponge

Exhaust grille assy

Buffalo - Mistral

4322 004 93821

9965 100 62299

9965 100 62306

9965 100 62291

9965 100 62292

Micro lter

Unlock button Bucket

Upper housing

CW button

On/Off button

Mistral

Deep Black

9965 100 62287

9965 100 62293

9965 100 62284

4322 005 34101

9965 100 62297

Turning knob

Spring for Buttons

Handle cover (Bucket assy)

Cordwinder 6 m / 4.8 plug

Safety valve assy

Mistral

9965 100 62288

9965 100 60941

4322 006 24891

9965 100 60949

9965 100 62294

Lower housing

Casterdish assy

PCBA

Switch

Wheel assy

Deep Black

Mistral

9965 100 62289

4322 006 99361

9965 100 62296

4322 004 25021

4322 004 25071

Motor front

KC Motor PHB0 1800 W IEC

Motor housing

Hose

Aluminum TT tube Conical 35 mm

230 V 50 / 60 Hz

Buffalo - Mistral

4322 004 25131

4322 004 25121

4322 004 25111

4322 004 25101

Tube clip

Small nozzle Conical 35 mm

Crevice nozzle Conical 35 mm

All oor nozzle # 34 Conical 35 mm

Deep Black 80231

FC8631/01

5-9

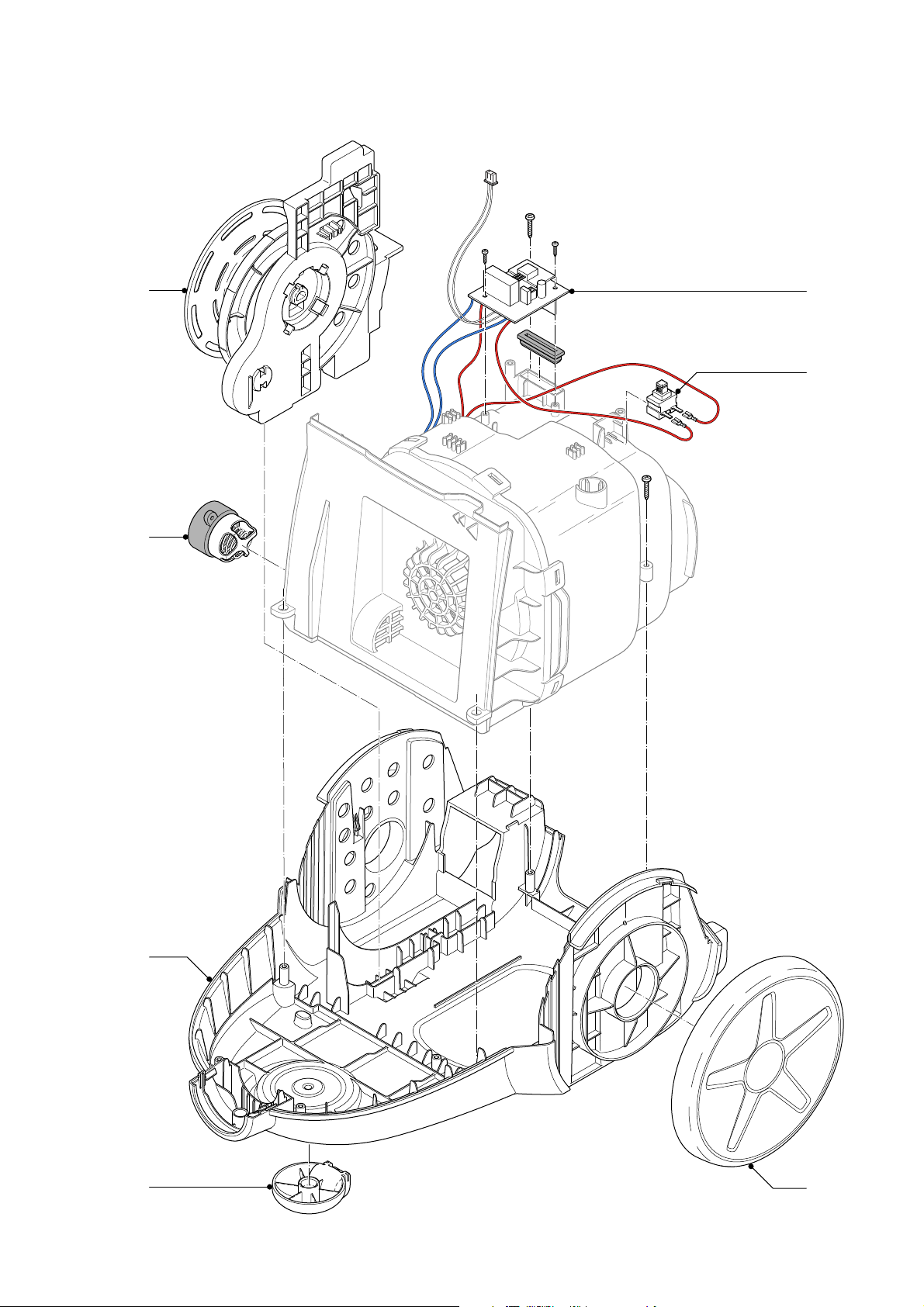

EXPLODED VIEW

FC8631/01

6-9

EXPLODED VIEW

FC8631/01

7-9

EXPLODED VIEW

FC8631/01

8-9

EXPLODED VIEW

FC8631/01

9-9

2826

EXPLODED VIEW
