Philips FC6148 Manual de usuario

FC6148,FC6146

ENGLISH 6

DANSK 15

DEUTSCH 24

 34

ESPAÑOL 45

SUOMI 55

FRANÇAIS 63

ITALIANO 73

NEDERLANDS 83

NORSK 92

PORTUGUÊS 101

SVENSKA 111

TÜRKÇE 120

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips.

com/welcome.

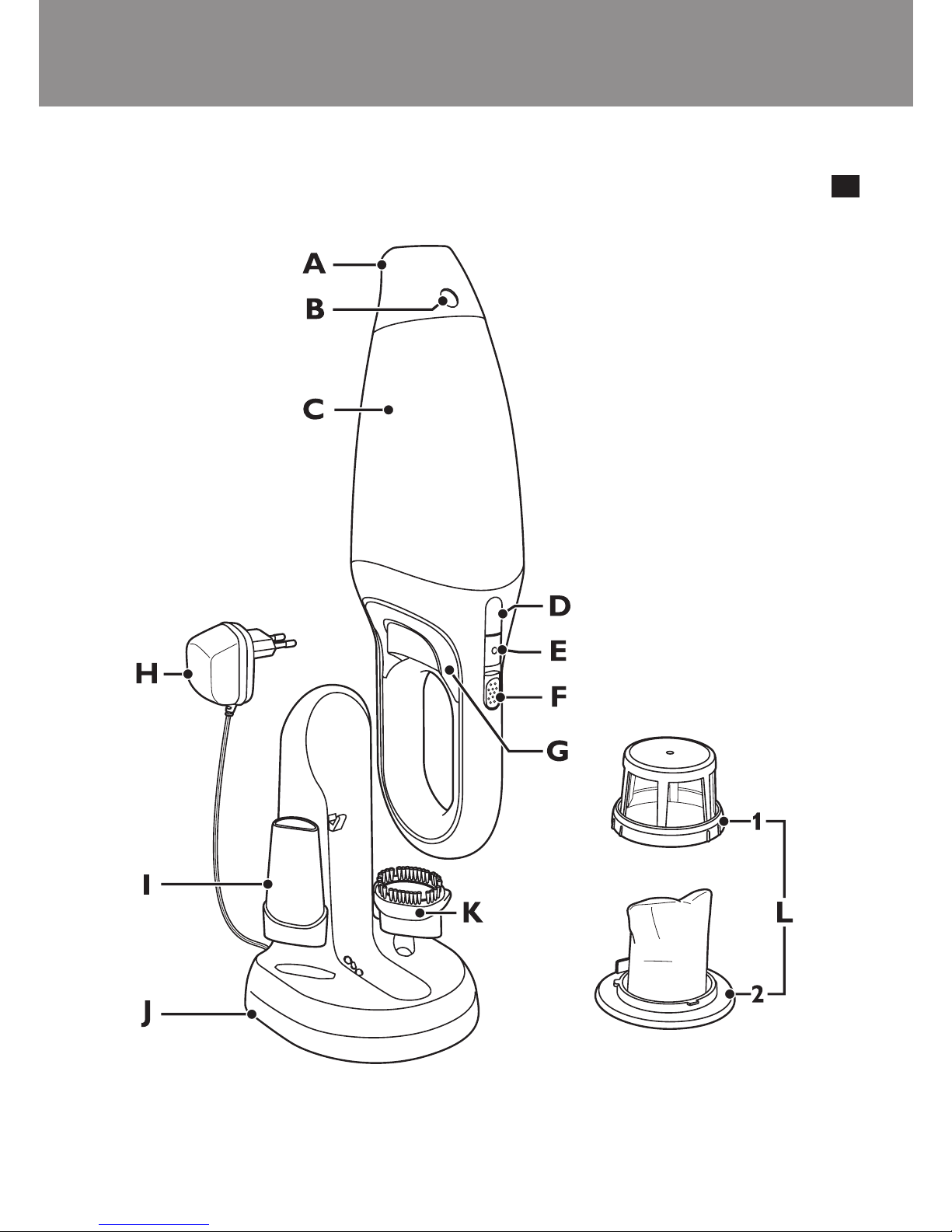

General description (Fig. 1)

ADetachable nozzle

BNozzle release button

CDust compartment

DDust compartment release button

ECharging light

FOn/off slide with 2 speeds

GExhaust air openings

HAdapter

ICrevice tool

JCharger

KBrush tool

LFilter unit

1 Outer lter

2 Inner lter with lter holder

Important

Read this user manual carefully before you use the appliance and save it

for future reference.

Danger

- Never suck up water or any other liquid. Never suck up ammable

substances and do not suck up ashes until they are cold.

- Never immerse the vacuum cleaner or the charger in water or any

other liquid.

Warning

- Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

- Do not use the vacuum cleaner or the charger if it is damaged.

ENGLISH

- The charger and its adapter cannot be replaced. If the charger or its

adapter is damaged, the appliance must be discarded.

- The adapter contains a transformer. Do not cut off the adapter to

replace it with another plug, as this causes a hazardous situation.

- This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person

responsible for their safety.

- Children should be supervised to ensure that they do not play with

the appliance.

Caution

- Remove the adapter from the wall socket before you clean the

charger.

- Only charge the vacuum cleaner with the charger supplied. During

charging, the adapter feels warm to the touch.This is normal.

- Always switch off the vacuum cleaner after use.

- The voltage on the contact strips in the charger is low (max. 12 volts)

and therefore not dangerous.

- Never block the exhaust air openings during vacuuming.

- Switch off the appliance when you recharge it.

- Always use the vacuum cleaner with the lter unit assembled.

- To avoid the risk of electric shock, be careful when you drill holes in

the wall to attach the charger, especially close to a wall socket.

- Charge, store and use the appliance at a temperature between 5°C

and 35°C.

- Do not dismantle or short-circuit the batteries. Protect the batteries

from re, heat and direct sunlight.



This Philips appliance complies with all standards regarding

electromagnetic elds (EMF). If handled properly and according to the

instructions in this user manual, the appliance is safe to use based on

scientic evidence available today.

ENGLISH 7

Preparing for use

Installing the charger

1 Attachthechargertothewallasshowninthegure.(Fig.2)

If you attach the charger to the wall, the space between the screw holes

has to be 12cm.

2 Youcanalsoplacethechargeronahorizontalsurface(e.g.atable

ordesk)(Fig.3).

3 Windexcessmainscordaroundthereelinthebackofthecharger

andpassthecordthroughtheslot(Fig.4).

Charging the appliance

Charge the appliance for at least 16 hours before you use it for the rst

time.

Tip: If you are not going to use the appliance for a longer period of

time, remove the adapter from the wall socket to save energy.

1 Makesuretheapplianceisswitchedoff.

2 Puttheadapterinthewallsocket.

3 Placethevacuumcleaneronthecharger(Fig.5).

- Make sure you place the opening in the back of the vacuum cleaner

on the hook of the charger (Fig. 6).

,Thecharginglightashestoindicatethattheappliance

ischarging(Fig.7).

,Thecharginglightisoncontinuouslytoindicatethattheappliance

isfullycharged.

Using the appliance

1 Pushtheon/offslideforwardstoswitchontheappliance(Fig.8).

- If you want to use normal power, select speed 1.

- If you want to use high power, select speed 2.

2 Pushtheon/offslidebackwardstoswitchofftheappliance(Fig.9).

ENGLISH8

Accessories

The appliance comes with the following accessories:

- a brush tool to clean delicate surfaces;

- a crevice tool to vacuum corners or narrow gaps.

1 Taketheaccessoryyouwanttousefromthecharger.

2 Attachtheaccessorytothenozzleoftheappliance(Fig.10).

Cleaning

Neverimmersethevacuumcleanerorthechargerinwaterorany

otherliquid.

Alwaysremovetheadapterfromthewallsocketbeforeyoucleanthe

charger.

1 Cleantheoutsideoftheapplianceandthechargerwithadamp

cloth.

2 Ifthecontactpointsofthechargeraredirty,wipethemwithadry

cloth.

Emptying and cleaning the dust compartment

Make sure you empty and clean the dust compartment regularly.

Quick cleaning

To empty the dust compartment quickly:

1 Pressthenozzlereleasebutton(1)andtakethedetachablenozzle

offtheappliance(2)(Fig.11).

2 Shakethecontentsofthedustcompartmentoutintoa

dustbin(Fig.12).

Thorough cleaning

1 Holdtheapplianceoveradustbin,pressthedustcompartment

releasebutton(1)andremovethedustcompartment(2)(Fig.13).

2 Removethelterunitfromthedustcompartment(Fig.14).

ENGLISH 9

3 Emptythedustcompartmentbyshakingitwithyourfree

hand(Fig.15).

4 Ifnecessary,cleanthedustcompartmentwithadampcloth.

5 Ifnecessary,cleanthelterunit.Seesection‘Cleaningthelter

unit’.

6 Toreattachthedustcompartment,aligntheslotonthedust

compartmentwiththeprojectionontheappliance.Firstattachthe

bottomofthedustcompartment(1).Thenpushthetopofthedust

compartmenttowardstheappliance(2)untilitlocksintoplace

(‘click’)(Fig.16).



Make sure you clean the lter unit regularly.

1 Turntheouterlteranticlockwise(1)andremoveitfromthelter

holder(2)(Fig.17).

Leave the inner lter attached to the lter holder.

2 Cleantheinnerlterandtheouterlterwithabrushorwitha

normalvacuumcleaneriftheyareverydirty.

Note: If necessary , you can clean the inner lter and the outer lter in cold

or lukewarm water. Dry the inner and outer lter thoroughly before you use

the lter unit again.

3 Placetheouterlterbackontothelterholder(1)andturnit

clockwisetoattachit(2).(Fig.18)

4 Putthelterunitbackintothedustcompartment(Fig.19).

Note: Make sure you insert the lter unit in the correct way.

Storage

1 Youcanstorethevacuumcleanerandtheaccessoriesonthe

charger(Fig.20).

ENGLISH10
