Philips Fidelio TAFB1/37 Manual de usuario

User manual

www.philips.com/support

Soundbar TAFB1/37

Fidelio

TAFB1RE/37

2EN

Contents

1 Important safety instructions 3

Safety 3

Care for your product 4

Care of the environment 4

Declaration of conformity 5

Help and support 5

FCC information 6

2 Your Soundbar 7

What’s in the box 7

Main unit 7

Connectors 8

Remote control 9

Prepare the remote control 10

Placement 11

Wall mount 11

3 Connect 12

Dolby Atmos® 12

Connect to HDMI Socket 12

Connect to Optical Socket 13

Connect the IR pass-through cable 13

Connect to Power 14

Pairing with Subwoofer (TAFW1) 14

Connect to Wi-Fi (Wireless

Operation) 14

Connect the soundbar to Philips

Play- enabled TV 16

4 Use your Soundbar 17

Turn ON and OFF 17

Select Modes 18

Adjust the Volume 18

Enjoy Dolby Atmos sound 18

Choose your Sound 18

Setup Menu 20

Factory Reset 22

Play from Bluetooth devices 22

Listen to an external device 23

Play audio through USB 23

Listen to Spotify 24

Upgrade Firmware 24

5 Product specications 25

6 Troubleshooting 27

Trademarks: 29

3EN

1 Important

safety

instructions

Read and understand all instructions

before you use your product. If damage

is caused by failure to follow instructions,

the warranty does not apply.

Safety

Know these safety symbols

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This is CLASS II apparatus with

double insulation, and no

protective earth provided.

AC voltage

Follow the instructions in the user

manual!

WARNING!

Warning: Risk of electric shock!

The exclamatory mark is intended

to alert the user to the presence of

important operating instructions.

Risk of electric shock or re!

• Before you make or change any

connections, make sure that all

devices are disconnected from the

power outlet.

• Never expose the product and

accessories to rain or water. Never

place liquid containers, such as vases,

near the product. If liquids are spilt

on or into the product, disconnect it

from the power outlet immediately.

Contact Consumer Care to have the

product checked before use.

• Never place the product and

accessories near naked ames or other

heat sources, including direct sunlight.

• Never insert objects into the

ventilation slots or other openings

on the product.

• Where the mains plug or an

appliance coupler is used as the

disconnect device, the disconnect

device shall remain readily operable.

• Battery (battery pack or batteries

installed) shall not be exposed to

excessive heat such as sunshine, re

or the like.

• Disconnect the product from the

power outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

• Use the product in tropical and/or

moderate climates.

Risk of short circuit or re!

• For identication and supply ratings,

see the type plate at the back or

bottom of the product.

• Before you connect the product to

the power outlet, ensure that the

power voltage matches the value

printed on the back or bottom of the

product. Never connect the product

to the power outlet if the voltage is

dierent.

Risk of injury or damage to this

product!

• For wall mounting, this product must

be securely attached to the wall in

accordance with the installation

instructions. Use only the supplied

wall mount bracket (if available).

Improper wall mounting may result

in accident, injury or damage. If you

have any query, contact Consumer

Care in your country.

4EN

• Never place the product or any

objects on power cords or on other

electrical equipment.

• If the product is transported in

temperatures below 5°C, unpack

the product and wait until its

temperature matches room

temperature before connecting it to

the power outlet.

• Parts of this product can be made

of glass. Handle with care to avoid

injury and damage.

Risk of overheating!

• Never install this product in a

conned space. Always leave a

space of at least four inches around

the product for ventilation. Ensure

curtains or other objects never cover

the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or

carbon and alkaine, etc.).

• CAUTION: Danger of explosion if

batteries are incorrectly replaced.

Replace only with the same or

equivalent type.

• Remove batteries if they are

exhausted or if the remote control is

not to be used for a long time.

• Batteries contain chemical

substances, they should be disposed

of properly.

Note

• The rating label is pasted on the bottom or back

of the equipment.

Care for your product

Use only microber cloth to clean the

product.

Care of the environment

Disposal of your old product and

battery

Your product is designed and

manufactured with high quality

materials and components, which

can be recycled and reused.

This symbol on a product means

that the product is covered by

European Directive 2012/19/EU.

This symbol means that the

product contains batteries covered

by European Directive 2013/56/EU

which cannot be disposed of with

normal household waste.

Inform yourself about the local separate

collection system for electrical and

electronic products and batteries.

Follow local rules and never dispose of

the product and batteries with normal

household waste. Correct disposal

of old products and batteries helps

prevent negative consequences for the

environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see

battery installation section.

5EN

EN For 5G Wi-Fi Device

The device for operation in the

band 5150–5350 MHz is only for

indoor use to reduce the potential

for harmful interference to co-

channel mobile satellite systems.

FR Pour un appareil Wi-Fi 5G

les dispositifs fonctionnant dans

la bande 5150-5250 MHz sont

réservés uniquement pour une

utilisation à l’intérieur an de

réduire les risques de brouillage

préjudiciable aux systèmes de

satellites mobiles utilisant les

mêmes canaux.

Declaration of conformity

This product complies with the radio

interference requirements of the

European community.

Hereby, MMD Hong Kong Holding

Limited declares that the product

is in compliance with the essential

requirements and other relevant

provisions of RED Directive 2014/53/EU

and UK Radio Equipment Regulations

SI 2017 No 1206. You can nd the

Declaration of Conformity on

www.philips.com/support.

Help and support

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the

quick start guide

• watch video tutorials (available only

for selected models)

• nd answers to frequently answered

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website

to select your language, and then enter

your product model number.

Alternatively, you can contact Consumer

Care in your country. Before you contact,

note down the model number and serial

number of your product. You can nd

this information on the back or bottom

of your product.

6EN

FCC information

NOTE: This equipment has been tested

and found to comply with the limits

for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits

are designed to provide reasonable

protection against harmful interference

in a residential installation. This

equipment generates, uses and can

radiate radio frequency energy and, if

not installed and used in accordance

with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does

cause harmful interference to radio

or television reception, which can be

determined by turning the equipment

o and on, the user is encouraged to

try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an

outlet on a circuit dierent from that

to which the receiver is connected.

• Consult the dealer or an experienced

radio / TV technician for help.

FCC&IC Warning:

• This equipment should be installed

and operated with minimum

distance 20cm between the radiator

& your body.

• Changes or modications to this unit

not expressly approved by the party

responsible for compliance could

void the user’s authority to operate

the equipment.

FCC & IC Attention

• Cet appareil est conforme à FCC et

IC l’exposition aux rayonnements

limites xées pour un environnement

non contrôlé. Cet appareil doit être

installé et utilisé avec une distance

minimale de 20 cm entre le radiateur

et votre corps. Cet transmetteur ne

doit pas être co-situé ou opérant en

liaison avec toute autre antenne ou

transmetteur.

• Des câbles blindés doivent être

utilisés avec cet apparei l pour

assurer la conformité avec les

limites de la classe B de la FCC.

fonctionnement de I’appareil.

IC-Canada: CAN ICES-003(B)/NMB-

003(B)

This device contains licence-exempt

transmitter(s) / receiver(s) that comply

with Innovation, Science and Economic

Development Canada’s licence-exempt

RSS(s). Operation is subject to the

following two conditions:

1 This device may not cause

interference.

2 This device must accept any

interference, including interference

that may cause undesired operation

of the device.

Avis d’Industrie Canada: CAN ICES-

003(B)/NMB-003(B)

L’émetteur/récepteur exempt de licence

contenu dans le présent appareil est

conforme aux CNR d’Innovation, Sciences

et Développement économique Canada

applicables aux appareils radio exempts

de licence. L’exploitation est autorisée

aux deux conditions suivantes :

1 L’appareil ne doit pas produire de

brouillage;

2 L’appareil doit accepter tout

brouillage radioélectrique

subi, même si le brouillage est

susceptible d’en compromettre le

fonctionnement.

7EN

2 Your Soundbar

Congratulations on your purchase,

and welcome to Philips! To fully

benet from the support that Philips

oers, register your soundbar at

www.philips.com/support.

What’s in the box

Check and identify the items in the

package:

• Soundbar x 1

• IR pass-through Cable x 1

• Remote control x 1

(AAA batteries x 2)

• Microphone x 1

• Power cord * x 1

• Wall mount kit x 1

(Brackets x2 / Bracket screw x2 /

Wall mounting screws x2 / Wall anchors x2)

• Quick start guide / Warranty card / Safety

sheet / Wall mount template x 1

Remote control

(AAA batteries x 2)

Soundbar

Wall mount kit x1

(brackets x2/bracket screw x2/

wall mounting screws x2/

wall anchors x2)

Quick start guide

Warranty card/Safety sheet

Wall mount template

2 X

AT M O S

Mic

IR pass-through

Cable

Headphones

Series

CTN

SafetyInformation

FB1/96 FB1/37 FB1/10 FB1/98

for Taiwan

BSMI VDEBS

for Europe/UK

for US/Canada

VDEBSSAA

for Asia

FB1/93

for China

CCC

• Power cord quantity and plug type

vary by regions.

• Images, illustrations and drawings

shown on this User Manual are for

reference only, actual product may

vary in appearance.

Main unit

This section includes an overview of the

main unit.

ATMOS

1 2 3 4 5

1- (Volume) button

Decrease the volume.

2+ (Volume) button

Increase the volume.

3(Play/Pause) button

Start, pause or resume play.

4(Source)/Bluetooth pairing button

• Press to select an input source for

soundbar.

• Press and hold for 3 seconds to

enter the Bluetooth pairing mode.

5(Standby-On) button

8EN

Power

State Action Function

On Follow source state

Semi

Standby

Press

the

button

once

• Wi-Fi is still on.

• It still supports

Play- and

Airplay2.

Eco

Standby

Press

and

hold 5

seconds

• Wi-Fi is o.

• The product enters

the lower power

consumption mode.

• Restarting the

system will take a

relatively longer

time.

6Remote control sensor /

Display panel

7Audio light ring (White)

When dierent types of audio

formats are detected, the audio

format indicator will light up

accordingly (e.g. While entering

Dolby Atmos format, the audio light

ring will light up White.)

8Power LED

• Turns white when in Eco standby

(network disconnected).

• Turns amber when in semi standby

(network connected).

• Blinks fast when in Bluetooth

pairing mode.

9Wi-Fi LED indicator (Yellow)

LED State Status

Blink Wi-Fi Access Point (AP)

mode

Double blink Wi-Fi Protected Setup

(WPS) mode

Constant on Connected / Pairing

successful

Connectors

This section includes an overview of the

connectors available on your soundbar.

IR out

Mic in

1 2 3 4 5 6 7

1(Wi-Fi Setup) button

• Trigger Wi-Fi setup for Play-.

• Press and hold the button for 3

seconds to active the Wps mode.

• Press and hold the button for 8

seconds to active the AP mode.

2Mic in

Microphone input for auto room

calibration.

3IR out

IR pass-through cable connector.

4USB

• Connect to a USB storage device for

audio media play.

• Upgrade software of this product.

5Optical

Connect to an optical audio output

on the TV or a digital device.

6HDMI out (eARC/ARC) Socket

Connect to the HDMI (eARC/ARC)

input on the TV.

7HDMI in Socket

Connect to the HDMI source devices,

such as a DVD player, Blu-ray Disc™

player, or gaming console.

8AC Socket

Connect to the power supply.

9Wall bracket slot

9EN

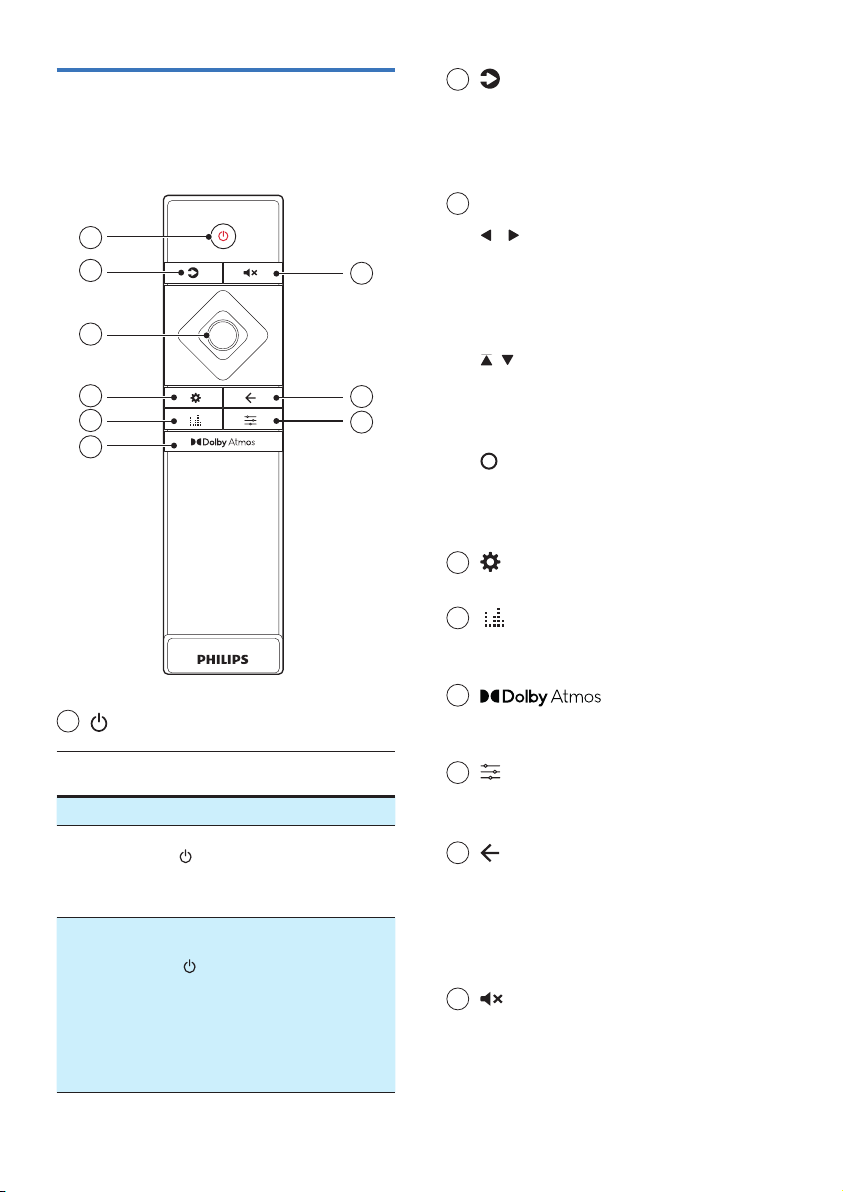

Remote control

This section includes an overview of the

remote control.

1(Standby-On) button

Power

State Action Function

On Follow source state

Semi

Standby

Press

the

button

once

• Wi-Fi is still on.

• It still supports

Play- and

Airplay2.

Eco

Standby

Press

and

hold 5

seconds

• Wi-Fi is o.

• The product enters

the lower power

consumption mode.

• Restarting the

system will take a

relatively longer

time.

2(Source)

• Press to select an input source for

soundbar.

• Press and hold for 3 seconds to

enter the Bluetooth pairing mode.

3Navigation buttons

/ (Left/Right)

• Skip to the previous or next track in

USB/BT/Play- mode.

• Navigate Left/Right in menu

structure.

/ (Up/Down)

• Navigate Up/Down in menu

structure.

• Increase/decrease the volume.

(Center)

• Start, pause or resume play in USB/

BT/Play- mode.

• Conrm a selection.

4(MENU)

Enter setup menu.

5(EQ)

Select Equalizer (EQ) Eect. (Movie/

Music/Voice/Stadium/Custom)

Select a height eect level for Dolby

Atmos.

7(Sound)

Sound enhancement settings.

(Surround/Bass/Treble/AV sync).

8(Back)

• Return to previous menu.

Exit menu.

• Press and hold the button for 10

seconds to reset the Wi-Fi module

of soundbar to factory settings.

9(Mute)

Mute or restore volume.

10 EN

Prepare the remote

control

• The provided remote control allows

the unit to be operated from a

distance.

• Even if the remote control is

operated within the eective range

19.7 feet (6m), remote control

operation may be impossible if there

are any obstacles between the unit

and the remote control.

• If the remote control is operated

near other products which generate

infrared rays, or if other remote

control devices using infra-red

rays are used near the unit, it may

operate incorrectly. Conversely,

the other products may operate

incorrectly.

Replace the remote control battery

Slide to remove the battery

compartment cover, insert 2 AAA

batteries (1.5V) with correct polarity,

then slide the battery compartment

cover back into position.

• Make sure the (+) and (–) ends of

the batteries match the (+) and

(–) ends indicated in the battery

compartment.

Precautions Concerning Batteries

• Be sure to insert the batteries with

correct positive “” and negative

“” polarities.

• Use batteries of the same type.

Never use dierent types of batteries

together.

• Either rechargeable or non-

rechargeable batteries can be used.

Refer to the precautions on their

labels.

• Be aware of your ngernails when

removing the battery cover and the

battery.

• Do not drop the remote control.

• Do not allow anything to impact the

remote control.

• Do not spill water or any liquid on

the remote control.

• Do not place the remote control on a

wet object.

• Do not place the remote control

under direct sunlight or near sources

of excessive heat.

• Remove the battery from the remote

control when not in use for a long

period of time, as corrosion or

battery leakage may occur and result

in physical injury, and/or property

damage, and/or re.

• Do not use any batteries other than

those specied.

• Do not mix new batteries with old

ones.

• Never recharge a battery unless it is

conrmed to be a rechargeable type.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de altavoces de Philips

Philips

Philips HTL2163B/77 Manual de usuario

Philips

Philips Essence 5000 Series Manual de usuario

Philips

Philips HTL3140B Manual de usuario

Philips

Philips 6000 Series Manual de usuario

Philips

Philips Fidelio B97 Manual de usuario

Philips

Philips MMS 430G Manual de usuario

Philips

Philips SBA230 Manual de usuario

Philips

Philips MMS460 Manual de usuario

Philips

Philips HTL1190B Manual de usuario

Philips

Philips HTB3520X Manual de usuario

Philips

Philips MMS 305 Manual de usuario

Philips

Philips F1385 Manual de usuario

Philips

Philips NTX400 Manual de usuario

Philips

Philips Fidelio CSS7235Y Manual de usuario

Philips

Philips Immersive HTB7530KD Manual de usuario

Philips

Philips HTL5140B Manual de usuario

Philips

Philips A5.600 Seismic Power 600/MMS 506 Manual de usuario

Philips

Philips SS-GNX60 Manual de usuario

Philips

Philips Fidelio B1 Manual de usuario

Philips

Philips Fidelio DS6800W Manual de usuario

Philips

Philips HTL3160B/79 Manual de usuario

Philips

Philips CSS6530B Manual de usuario

Philips

Philips Fidelio B95 Manual de usuario

Philips

Philips Active Speaker System Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
