Philips 7000 series Manual de usuario

User manual

www.philips.com/support

TAB7807

7000 Series

Soundbar

2EN

Contents

1 Important safety instructions 3

Safety 3

Care for your product 4

Care of the environment 4

Declaration of conformity 5

Help and support 5

FCC information 6

2 Your Soundbar 7

What’s in the box 7

Soundbar 7

Connectors 8

Wireless subwoofer 8

Remote control 9

Prepare the remote control 9

Placement 10

Wall mount 11

3 Connect 12

Dolby Atmos® 12

Connect to HDMI socket 12

Connect to Optical socket 13

Connect to Audio in socket 13

Connect to power 14

Pair up with the subwoofer 14

4 Use your soundbar 15

ŏľĚġĚ½ĚÞġŻ ԛԟ

Select modes 15

Adjust the volume 15

Dolby sound mode 16

Setup menu 16

Factory reset 17

Play from Bluetooth devices 18

Listen to an external device 19

Play audio through USB 19

ԟ ~ľġÞŏØŊłĻâØÿžØ½ŊÿġĚł 20

6 Troubleshooting 21

Trademarks: 22

3EN

1 Important

safety

instructions

Read and understand all instructions

before you use your product. If damage is

caused by failure to follow instructions, the

warranty does not apply.

Safety

Know these safety symbols

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This is CLASS II apparatus with

double insulation, and no

protective earth provided.

AC voltage

Follow the instructions in the user

manual!

WARNING!

Warning: Risk of electric shock!

The exclamatory mark is intended

to alert the user to the presence of

important operating instructions.

ÿłĐġõâēâØŊľÿØłüġØĐġľžľâ֨

• Before you make or change any

connections, make sure that all

devices are disconnected from the

power outlet.

• Never expose the product and

accessories to rain or water. Never

place liquid containers, such as vases,

near the product. If liquids are spilt on

or into the product, disconnect it from

the power outlet immediately. Contact

Consumer Care to have the product

checked before use.

• Never place the product and

½ØØâłłġľÿâłĚâ½ľĚ½ĐâÞſ½ęâłġľġŊüâľ

heat sources, including direct sunlight.

• Never insert objects into the

ventilation slots or other openings

on the product.

• Where the mains plug or an

appliance coupler is used as the

disconnect device, the disconnect

device shall remain readily operable.

• Battery (battery pack or batteries

installed) shall not be exposed to

âŭØâłłÿŧâüâ½ŊłŏØü½łłŏĚłüÿĚâ֤žľâ

or the like.

• Disconnect the product from the

power outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

• Use the product in tropical and/or

moderate climates.

ÿłĐġõłüġľŊØÿľØŏÿŊġľžľâ֨

• ;ġľÿÞâĚŊÿžØ½ŊÿġĚ½ĚÞłŏĻĻēŮľ½ŊÿĚöł֤

see the type plate at the back or

bottom of the product.

• Before you connect the product to the

power outlet, ensure that the power

voltage matches the value printed on

the back or bottom of the product.

Never connect the product to the

ĻġŨâľġŏŊēâŊÿõŊüâŧġēŊ½öâÿłÞÿŻâľâĚŊ֣

Risk of injury or damage to this

ĻľġÞŏØŊ֨

• For wall mounting, this product must

be securely attached to the wall in

accordance with the installation

instructions. Use only the supplied

wall mount bracket (if available).

Improper wall mounting may result

in accident, injury or damage. If you

have any query, contact Consumer

Care in your country.

4EN

• Never place the product or any

objects on power cords or on other

electrical equipment.

• If the product is transported in

temperatures below 5°C, unpack

the product and wait until its

temperature matches room

temperature before connecting it to

the power outlet.

• Parts of this product can be made

of glass. Handle with care to avoid

injury and damage.

ÿłĐġõġŧâľüâ½ŊÿĚö֨

• Never install this product in a

ØġĚžĚâÞłĻ½Øâ֣ēŨ½Ůłēâ½ŧâ½

space of at least four inches around

the product for ventilation. Ensure

curtains or other objects never cover

the ventilation slots on the product.

ÿłĐġõØġĚŊ½ęÿĚ½ŊÿġĚ֨

• Do not mix batteries (old and new or

carbon and alkaine, etc.).

• CAUTION: Danger of explosion if

batteries are incorrectly replaced.

Replace only with the same or

equivalent type.

• Remove batteries if they are

exhausted or if the remote control is

not to be used for a long time.

• Batteries contain chemical

substances, they should be disposed

of properly.

Note

• The rating label is pasted on the bottom or back

of the equipment.

Care for your product

łâġĚēŮęÿØľġž×âľØēġŊüŊġØēâ½ĚŊüâ

product.

Care of the environment

Disposal of your old product and

battery

Your product is designed and

manufactured with high quality

materials and components, which

can be recycled and reused.

This symbol on a product means

that the product is covered by

European Directive 2012/19/EU.

This symbol means that the

product contains batteries covered

by European Directive 2013/56/EU

which cannot be disposed of with

normal household waste.

Inform yourself about the local separate

collection system for electrical and

electronic products and batteries.

Follow local rules and never dispose of

the product and batteries with normal

household waste. Correct disposal

of old products and batteries helps

prevent negative consequences for the

environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see

battery installation section.

5EN

Declaration of conformity

This product complies with the radio

interference requirements of the

European community.

Hereby, MMD Hong Kong Holding

Limited declares that the product

is in compliance with the essential

requirements and other relevant

provisions of RED Directive 2014/53/EU

and UK Radio Equipment Regulations

EԜԚԛԡ^ġԛԜԚԠ֣±ġŏØ½ĚžĚÞŊüâ

Declaration of Conformity on

www.philips.com/support.

Help and support

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the

quick start guide

• watch video tutorials (available only

for selected models)

• žĚÞ½ĚłŨâľłŊġõľâĽŏâĚŊēŮ½ĚłŨâľâÞ

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website

to select your language, and then enter

your product model number.

Alternatively, you can contact Consumer

Care in your country. Before you contact,

note down the model number and serial

Ěŏę×âľġõŮġŏľĻľġÞŏØŊ֣±ġŏØ½ĚžĚÞ

this information on the back or bottom

of your product.

6EN

FCC information

NOTE: This equipment has been tested

and found to comply with the limits

for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits

are designed to provide reasonable

protection against harmful interference

in a residential installation. This

equipment generates, uses and can

radiate radio frequency energy and, if

not installed and used in accordance

with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does

cause harmful interference to radio

or television reception, which can be

determined by turning the equipment

ġŻ½ĚÞġĚ֤ŊüâŏłâľÿłâĚØġŏľ½öâÞŊġ

try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an

ġŏŊēâŊġĚ½ØÿľØŏÿŊÞÿŻâľâĚŊõľġęŊü½Ŋ

to which the receiver is connected.

• Consult the dealer or an experienced

radio / TV technician for help.

FCC&IC Warning:

• This equipment should be installed

and operated with minimum

distance 20cm between the radiator

& your body.

• ü½ĚöâłġľęġÞÿžØ½ŊÿġĚłŊġŊüÿłŏĚÿŊ

not expressly approved by the party

responsible for compliance could

void the user’s authority to operate

the equipment.

FCC & IC Attention

• Cet appareil est conforme à FCC et

IC l’exposition aux rayonnements

ēÿęÿŊâłžŭãâłĻġŏľŏĚâĚŧÿľġĚĚâęâĚŊ

ĚġĚØġĚŊľĥēã֣âŊ½ĻĻ½ľâÿēÞġÿŊæŊľâ

ÿĚłŊ½ēēãâŊŏŊÿēÿłã½ŧâØŏĚâÞÿłŊ½ĚØâ

minimale de 20 cm entre le radiateur

et votre corps. Cet transmetteur ne

ÞġÿŊĻ½łæŊľâØġֿłÿŊŏãġŏġĻãľ½ĚŊâĚ

liaison avec toute autre antenne ou

transmetteur.

• %âłØÆ×ēâł×ēÿĚÞãłÞġÿŧâĚŊæŊľâ

ŏŊÿēÿłãł½ŧâØØâŊ½ĻĻ½ľâÿēĻġŏľ

½łłŏľâľē½ØġĚõġľęÿŊã½ŧâØēâł

limites de la classe B de la FCC.

fonctionnement de I’appareil.

IC-Canada: CAN ICES-003(B)/NMB-

003(B)

This device contains licence-exempt

transmitter(s) / receiver(s) that comply

with Innovation, Science and Economic

Development Canada’s licence-exempt

RSS(s). Operation is subject to the

following two conditions:

1 This device may not cause

interference.

2 This device must accept any

interference, including interference

that may cause undesired operation

of the device.

Avis d’Industrie Canada: CAN ICES-

003(B)/NMB-003(B)

W׍ãęâŊŊâŏľֳľãØâĻŊâŏľâŭâęĻŊÞâēÿØâĚØâ

ØġĚŊâĚŏÞ½ĚłēâĻľãłâĚŊ½ĻĻ½ľâÿēâłŊ

conforme aux CNR d’Innovation, Sciences

âŊ%ãŧâēġĻĻâęâĚŊãØġĚġęÿĽŏâ½Ě½Þ½

applicables aux appareils radio exempts

ÞâēÿØâĚØâ֣W׍âŭĻēġÿŊ½ŊÿġĚâłŊ½ŏŊġľÿłãâ

aux deux conditions suivantes :

1 L’appareil ne doit pas produire de

brouillage;

2 L’appareil doit accepter tout

×ľġŏÿēē½öâľ½ÞÿġãēâØŊľÿĽŏâ

łŏ×ÿ֤ęæęâłÿēâ×ľġŏÿēē½öââłŊ

susceptible d’en compromettre le

fonctionnement.

7EN

2 Your

Soundbar

Congratulations on your purchase,

and welcome to Philips! To fully

×âĚâžŊõľġęŊüâłŏĻĻġľŊŊü½Ŋ~üÿēÿĻł

ġŻâľł֤ľâöÿłŊâľŮġŏľłġŏĚÞ×½ľ½Ŋ

www.philips.com/support.

What’s in the box

Check and identify the items in the

package:

• Soundbar x 1

• Remote control x 1

(AAA batteries x 2)

• Wireless subwoofer x 1

• Power cord (Bar and subwoofer)* x 4

• Wall mount kit x 1

(Brackets x2 / Bracket screws x2 /

Wall mounting screws x2 / Wall anchors x2)

• Quick start guide / Warranty card /

Safety sheet x 1

Remote control

(AAA batteries x 2)

Soundbar

Wireless subwoofer

Quick start guide

Power cord *

EU & UK only Wall mount kit

(brackets x2 / bracket screws x2 /

wall mounting screws x2 / wall anchors x2)

2 X

Quick start guide

Warranty card / Safety sheet

• Power cord quantity and plug type

vary by regions.

• Images, illustrations and drawings

shown on this User Manual are for

reference only, actual product may

vary in appearance.

Soundbar

This section includes an overview of the

soundbar.

1 2 3 4

1+ / - (Volume) button

Increase/decrease the volume.

2(Bluetooth) button

• Press to select the Bluetooth mode.

• Press and hold to disconnect all

devices and enter the Bluetooth

pairing mode.

3(Source) button

• Press to select an input source for

soundbar.

4(Standby-On) button

• Switch the soundbar On or to

standby.

• Long press for 20 seconds in power

on state to enable or disable Auto-

Standy (15 minutes Auto-Standby).

5Remote control sensor /

Display panel

8EN

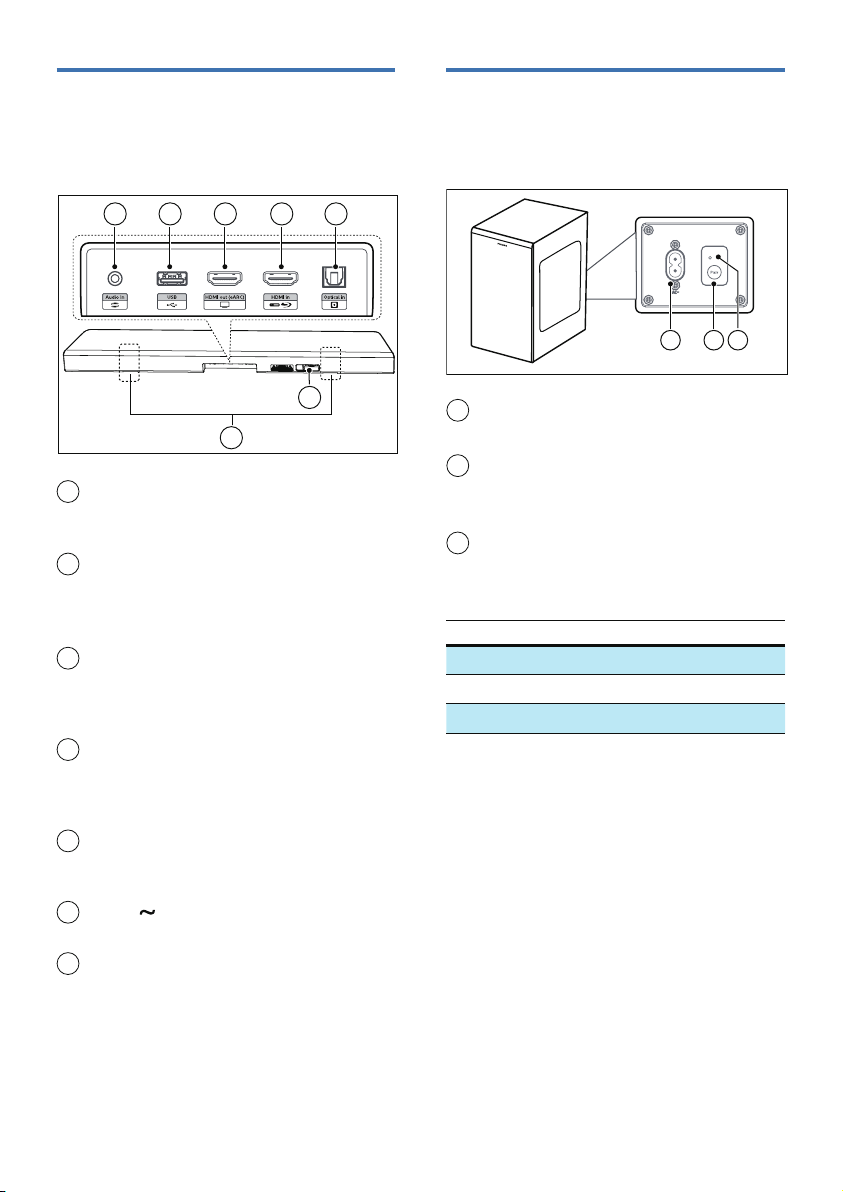

Connectors

This section includes an overview of the

connectors available on your soundbar.

1 2 3 4 5

1Audio in

Audio input from, for example, an

MP3 player (3.5mm jack).

2USB

• Connect to a USB storage device for

audio media play.

• Upgrade software of this product.

3HDMI out (eARC) socket

The port supports the eARC/ARC

HDMI feature, connect to the HDMI

(eARC/ARC) input on the TV.

4HDMI in socket

Connect to the HDMI source devices,

such as a DVD player, Blu-ray Disc™

player, or gaming console.

5Optical in socket

Connect to an optical audio output

on the TV or a digital device.

6AC in socket

Connect to the power supply.

7Wall bracket slot

Wireless subwoofer

This section includes an overview of the

wireless subwoofer.

123

1AC~ socket

Connect to the power supply.

2Pair button

Press and hold to enter the pairing

mode for the subwoofer.

3Subwoofer indicator

Determine the status based on the

wireless subwoofer indicator.

LED State Status

Fast blink Subwoofer in pairing mode

Constant on Connected / Pairing successful

Slow blink Pairing failed

9EN

Remote control

This section includes an overview of the

remote control.

1(Standby-On) button

• Switch the soundbar On or to

standby.

• Long press for 20 seconds in power

on state to enable or disable APD

(15 minutes Auto-Standby)

2(Source)

• Press to select an input source for

soundbar.

• Press and hold to disconnect all

devices and enter the Bluetooth

pairing mode.

3(Dolby Atmos)

ªÿľŊŏ½ēŏľľġŏĚÞÞâØġÞâľġĚֳġŻ֣

4(Mute)

Mute or restore volume.

5Navigation buttons

/ (Left/Right)

• Skip to the previous or next track in

USB/BT mode.

• Navigate Left/Right in menu

structure.

/ (Up/Down)

• Navigate up/down in menu structure.

(Center)

• Start, pause or resume play in USB/

BT mode.

6(MENU)

Enter setup menu.

7(Back)

• Return to the previous menu.

• Exit menu.

8+/- (System’s volume)

Increase / decrease the system’s

volume.

9+/- (Subwoofer’s Volume)

Increase / decrease the subwoofer’s

volume.

Prepare the remote control

• The provided remote control allows

the unit to be operated from a

distance.

• Even if the remote control is

ġĻâľ½ŊâÞŨÿŊüÿĚŊüââŻâØŊÿŧâľ½Ěöâ

19.7 feet (6m), remote control

operation may be impossible if there

are any obstacles between the unit

and the remote control.

• If the remote control is operated

near other products which generate

infrared rays, or if other remote

control devices using infra-red rays

are used near the unit, it may operate

incorrectly. Conversely, the other

products may operate incorrectly.

10 EN

Replace the remote control battery

Slide to remove the battery compartment

cover, insert 2 AAA batteries (1.5V) with

correct polarity, then slide the battery

compartment cover back into position.

• Make sure the (+) and (–) ends of

the batteries match the (+) and

(–) ends indicated in the battery

compartment.

Precautions concerning batteries

• Be sure to insert the batteries with

correct positive “Q” and negative

“R” polarities.

• Use batteries of the same type.

^âŧâľŏłâÞÿŻâľâĚŊŊŮĻâłġõ×½ŊŊâľÿâł

together.

• Either rechargeable or non-

rechargeable batteries can be used.

Refer to the precautions on their

labels.

• â½Ũ½ľâġõŮġŏľžĚöâľĚ½ÿēłŨüâĚ

removing the battery cover and the

battery.

• Do not drop the remote control.

• Do not allow anything to impact the

remote control.

• Do not spill water or any liquid on

the remote control.

• Do not place the remote control on a

wet object.

• Do not place the remote control

under direct sunlight or near sources

of excessive heat.

• Remove the battery from the remote

control when not in use for a long

period of time, as corrosion or

battery leakage may occur and result

in physical injury, and/or property

Þ½ę½öâ֤½ĚÞֳġľžľâ֣

• Do not use any batteries other than

ŊüġłâłĻâØÿžâÞ֣

• Do not mix new batteries with old

ones.

• Never recharge a battery unless it is

ØġĚžľęâÞŊġ×â½ľâØü½ľöâ½×ēâŊŮĻâ֣

Placement

Place the subwoofer at least 1 meter (3

feet) away from your soundbar, and 10

centimeters away from the wall.

For best results, place your subwoofer as

shown below.

Otros manuales para 7000 series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de altavoces de Philips

Philips

Philips HTL5140B Manual de usuario

Philips

Philips SPA1312 Manual de usuario

Philips

Philips HTL3320 Manual de usuario

Philips

Philips A2.500 Manual de usuario

Philips

Philips HTB5150KD/78 Manual de usuario

Philips

Philips HTL2111A/96 Manual de usuario

Philips

Philips HTL5140B Manual de usuario

Philips

Philips MMS171 - MMS 171 2.1-CH PC Multimedia Speaker... Manual de usuario

Philips

Philips audio players Manual de usuario

Philips

Philips CSS2123/05 Manual de usuario

Philips

Philips Essence 5000 Series Manual de usuario

Philips

Philips AECS7000 Hoja de información del producto

Philips

Philips HTL2153B/F7 Manual de usuario

Philips

Philips Fidelio HTL9100 Manual de usuario

Philips

Philips Fidelio FB1 Manual de usuario

Philips

Philips 2000 series Manual de usuario

Philips

Philips HTL4110B Manual de usuario

Philips

Philips MMS 506 Manual de usuario

Philips

Philips FB 206W Manual de usuario

Philips

Philips HTL4110B Manual de usuario

Philips

Philips FB 206W Manual de usuario

Philips

Philips TAB8507B/10 Manual de usuario

Philips

Philips AECS7000E Hoja de información del producto

Philips

Philips MMS260 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
