TAB7207

7000 Series

Soundbar

2EN

Contents

1 Important safety instructions 3

Safety 3

Care for your product 4

Care of the environment 4

Compliance 4

Help and support 4

2 Your soundbar 6

What’s in the box 6

Main unit 6

Connectors 7

Wireless subwoofer 7

Remote control 8

Prepare the remote control 8

Placement 9

Wall mount 10

3 Connect 11

Dolby Audio 11

Connect to HDMI ARC socket 11

Connect to Optical socket 12

Connect to AUX socket 12

Connect to power 13

Pair up with the subwoofer 13

4 Use your soundbar 14

Turn ON and OFF 14

5 Product speci�cations 18

6 Troubleshooting 19

Trademarks 21

 14

Adjust the volume 14

Factory reset 15

Bluetooth operation 16

USB operation 17

AUX / OPTICAL / HDMI

ARC Operation

3EN

1 Important

safety

instructions

Safety

Read and understand all instructions before

you use your product. If damage is caused by

failure to follow instructions, the warranty

does not apply.

Risk of electric shock or �re!

• Before you make or change any

connections, make sure that all devices

are disconnected from the power outlet.

• Never expose the product and

accessories to rain or water. Never place

liquid containers, such as vases, near the

product. If liquids are spilt on or into the

product, disconnect it from the power

outlet immediately. Contact Consumer

Care to have the product checked before

use.

• Never place the product and accessories



including direct sunlight.

• Never insert objects into the ventilation

slots or other openings on the product.

• Where the mains plug or an appliance

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

• Battery (battery pack or batteries

installed) shall not be exposed to



the like.

• Disconnect the product from the power

outlet before lightning storms.

• When you disconnect the power cord,

always pull the plug, never the cable.

• Use the product in tropical and/or

moderate climates.

Risk of short circuit or �re!

 

the type plate at the back or bottom of

the product.

• Before you connect the product to the

power outlet, ensure that the power

voltage matches the value printed on the

back or bottom of the product. Never

connect the product to the power outlet



Risk of injury or damage to this product!

• For wall mounting, this product must be

securely attached to the wall in

accordance with the installation

instructions. Use only the supplied wall

mount bracket (if available). Improper

wall mounting may result in accident,

injury or damage. If you have any query,

contact Consumer Care in your country.

• Never place the product or any objects

on power cords or on other electrical

equipment.

• If the product is transported in

temperatures below 5°C, unpack the

product and wait until its temperature

matches room temperature before

connecting it to the power outlet.

• Parts of this product can be made of

glass. Handle with care to avoid injury

and damage.

• Please use the product safely in an

environment with temperature between

0°C and 40°C.

Risk of overheating!

 

space. Always leave a space of at least

four inches around the product for

ventilation. Ensure curtains or other

objects never cover the ventilation slots

on the product.

Risk of contamination!

• Do not mix batteries (old and new or

carbon and alkaline , etc.).

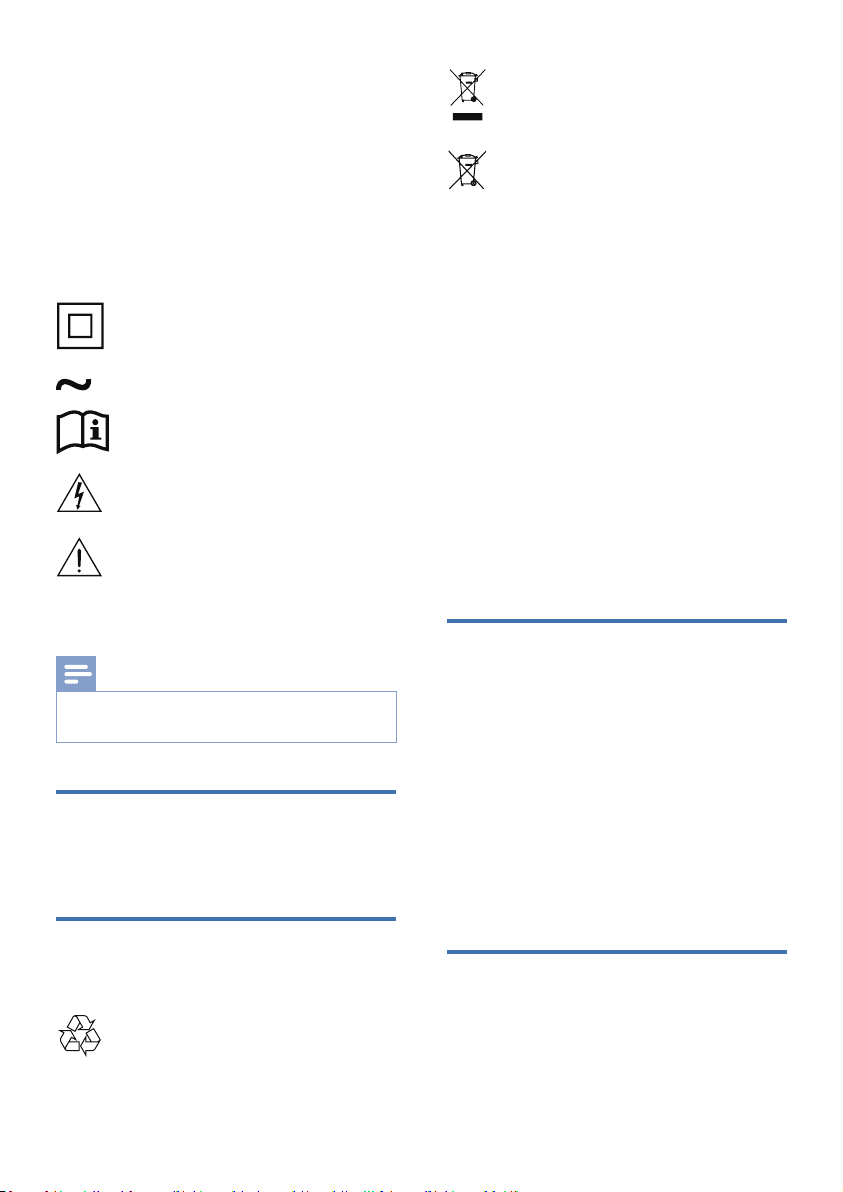

4EN

Note

• The rating label is pasted on the bottom or back

of the equipment.

Care for your product

Care of the environment

Declaration of conformity

Help and support

Your product is designed and

manufactured with high quality

materials and components, which

can be recycled and reused.

This symbol on a product means

that the product is covered by

European Directive 2012/19/EU.

This symbol means that the

product contains batteries

covered by European Directive

2013/56/EU which cannot be

disposed of with normal

household waste.

This is CLASS II apparatus with

double insulation, and no

protective earth provided.

The exclamatory mark is intended

to alert the user to the presence of

important operating instructions.

Follow the instructions in the user

manual!

AC voltage

WARNING!

Warning: Risk of electric shock!

• CAUTION: Danger of explosion if

batteries are incorrectly replaced. Replace

only with the same or equivalent type.

• Remove batteries if they are exhausted or

if the remote control is not to be used for

a long time.

• Batteries contain chemical substances,

they should be disposed of properly.



product.

This product complies with the radio

interference requirements of the European

community.

Hereby, MMD Hong Kong Holding Limited

declares that the product is in compliance

with the essential requirements and other

relevant provisions of RED Directive

2014/53/EU and UK Radio Equipment



the Declaration of Conformity on

www.philips.com/support.

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the

quick start guide

• watch video tutorials (available only for

selected models)

Inform yourself about the local separate

collection system for electrical and

electronic products and batteries. Follow

local rules and never dispose of the

product and batteries with normal

household waste. Correct disposal of old

products and batteries helps prevent

negative consequences for the

environment and human health.

Removing the disposable batteries

To remove the disposable batteries, see

battery installation section.

Disposal of your old product and battery

5EN

 

questions (FAQs)

• email us a question

• chat with our support representative.

Follow the instructions on the website to

select your language, and then enter your

product model number.

Alternatively, you can contact Consumer

Care in your country. Before you contact,

note down the model number and serial



information on the back or bottom of your

product.

FCC&IC Warning:

• This equipment should be installed and

operated with minimum distance 20cm

between the radiator & your body.

 

expressly approved by the party

responsible for compliance could void

the user’s authority to operate the

equipment.

FCC information

NOTE: This equipment has been tested and

found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by



encouraged to try to correct the interference

by one or more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and receiver.

• Connect the equipment into an outlet on



receiver is connected.

• Consult the dealer or an experienced

radio / TV technician for help.

IC-Canada: CAN ICAN ICES-003(B) /

NMB-003(B)

This device contains licence-exempt

transmitter(s) / receiver(s) that comply with

Innovation, Science and Economic

Development Canada’s licence-exempt

RSS(s). Operation is subject to the following

two conditions:

1. This device may not cause interference.

2. This device must accept any interference,

including interference that may cause

undesired operation of the device.

Avis d’Industrie Canada: CAN ICES-003

(B)/NMB-003(B)

L’émetteur/récepteur exempt de licence

contenu dans le présent appareil est

conforme aux CNR d’Innovation, Sciences et

Développement économique Canada

applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux

conditions suivantes :

1. L’appareil ne doit pas produire de

brouillage;

2. L’appareil doit accepter tout brouillage

radioélectrique subi, même si le

brouillage est susceptible d’en

compromettre le fonctionnement.

6EN

2 Your soundbar

What’s in the box

Check and identify the items in the

package:

• Soundbar x 1

• Remote control x 1

• Wireless subwoofer x 1

•Power cord (subwoofer)

Power cord (soundbar)

x 2

• Wall mount kit x 1

x 1

•

Quick start guide

Warranty card

Safety sheet

Wall mount template

Remote control

(AAA batteries x 2)

Soundbar Wireless subwoofer

Wall mount kit

(brackets x2 / wall mounting

screws x2 / wall anchors x2)

2 X

Power cords *

Bar (UK&EU): x2pcs

Subwoofer(UK&EU)x2pcs

Main unit

This section includes an overview of the

main unit.

1 2 3 4

HDMI

ARC

Pair

Vol+

Vol-

OpticalAUX

USB

Treble

Bass

Remote control sensor

Status

AUX [AUX/USB] Solid white

USB

Standby

BT(Bluetooth)

[BT] Solid white

[BT] Blinking white

OPTICAL [OPT] Solid white

HDMI ARC [HDMI ARC] Solid white

Headpho nes

Headp hones

hon

Headp hones

Series

CTN

Safety Information

Quick Start Guide

Headpho nes

hon

Headpho nes

Series

CTN

SafetyInform ation

Warranty Card

Headpho nes

hon

Headpho nes

Series

CTN

SafetyInformation

Safety Sheet Wall mount template

740mm

1 2 3

3.5-4mm/0.14”-0.16”

4mm/

0.16”

>25mm/0.98”

LED state

• Connected

• Connection

[AUX/USB] Blinking white

[Standby] Solid red

Congratulations on your purchase, and



from the support that Philips



www.philips.com/support.

+/- (Volume) button

Increase or decrease volume.

①

• Power cord quantity and plug type vary

by regions.

• Images, illustrations and drawings

shown on this User Manual are for

reference only, actual product may vary

in appearance.

④

Switch the soundbar On or to standby.

(Standby-On) button

⑥

⑤

Switch the playback source and the

front indicator lights up accordingly.

The indicator light on the front of the

main unit will show which mode is

currently in use.

Soundbar’s LED indicator

③

Select an input source for the

soundbar. Default source is HDMI ARC.

(Source)

②

• Press to select the Bluetooth mode.

• Press and hold to disconnect all

devices and enter the Bluetooth

pairing mode.

button

7EN

Connectors Wireless subwoofer

12 3 45

LED State Status

Fast blink Subwoofer in pairing mode

Constant on Connected / Pairing successful

Slow blink Connection / Pairing failed

This section includes an overview of the

connectors available on your soundbar.

①Audio in

Audio input from, for example, an MP3

player (3.5mm jack).

②USB

• Connect to a USB storage device for

audio media play.

• Upgrade software of this product.

③HDMI out (ARC)

Connect to the HDMI (ARC) input on

the TV.

④Optical in

Connect to an optical audio output on

the TV or a digital device.

⑤AC in

Connect to the power supply.

⑥Wall bracket slot.

①AC in

Connect to the power supply.

②Pair button

Press and hold to enter the pairing

mode for the subwoofer.

③Subwoofer indicator

Determine the status based on the

wireless subwoofer indicator.

This section includes an overview of the

wireless subwoofer.

1 2 3

-BASS

Decrease the subwoofer’s volume.

+BASS

Increase the subwoofer’s volume.

①(Standby-On) button

• Switch the soundbar On or to

standby.

②EQ (Mode)

Select from the four EQ modes:

Movie/Music/Voice/Stadium.

③HDMI ARC

Switch your source to HDMI ARC

connection.

④Pair / BT

Short press to switch to Bluetooth

source. The soundbar will reconnect to

the last paired device if it's available.

Press and hold for 3 seconds to

disconnect from all Bluetooth devices

and enter pairing mode.

⑤(Previous / Next)

Skip to the previous or next track in

USB/ BT mode.

(Play / Pause)

Start, pause or resume play in USB/ BT

mode.

VOL+ / VOL- (System volume)

Increase /decrease system volume level.

⑥Optical

Switch your audio source to the optical

connection.

⑦AUX/USB :

Switch your audio source to the

AUX/USB connection.

⑧- TREBLE

Decrease the soundbar’s treble volume.

⑨+TREBLE

Increase the soundbar’s treble volume.

8EN

Remote control

Prepare the remote control

10 11

This section includes an overview of the

remote control.

• The provided remote control allows the

unit to be operated from a distance.

• Even if the remote control is operated



(6m), remote control operation may be

impossible if there are any obstacles

between the unit and the remote

control.

• If the remote control is operated near

other products which generate infrared

rays, or if other remote control devices

using infra-red rays are used near the

unit, it may operate incorrectly.

Conversely, the other products may

operate incorrectly.

Precautions concerning batteries

• Be sure to insert the batteries with

correct positive “ ” and negative “ ”

polarities.

• Use batteries of the same type.

 

together.

• Either rechargeable or

non-rechargeable batteries can be

used. Refer to the precautions on their

labels.

 

removing the battery cover and the

battery.

• Do not drop the remote control.

• Do not allow anything to impact the

remote control.

• Do not spill water or any liquid on the

remote control. 9EN

Placement

• Do not place the remote control on a

wet object.

• Do not place the remote control under

direct sunlight or near sources of

excessive heat.

• Remove the battery from the remote

control when not in use for a long

period of time, as corrosion or battery

leakage may occur and result in

physical injury, and/or property



• Do not use any batteries other than



• Do not mix new batteries with old

ones.

• Never recharge a battery unless it is



Place the subwoofer at least 1 meter (3

feet) away from your soundbar, and 10

centimeters away from the wall.

For best results, place your subwoofer as

shown below.

Replace the remote control battery

Slide to remove the battery compartment

cover, insert 2 AAA batteries (1.5V) with

correct polarity, then slide the battery

compartment cover back into position.

• Make sure the (+) and (–) ends of the

batteries match the (+) and (–) ends

indicated in the battery compartment.

10 EN

Wall mount

Note

~50mm/2.0"

731mm / 28.78”

21.8-2.3mm/0.07-0.09”

4mm/

0.16"

>33mm/1.3"

4mm/

0.16"

>33mm/1.3“

1.8-2.3mm/0.07-0.09”

• Improper wall mounting may result in accident,

injury or damage. If you have any query, contact

Consumer Care in your country.

• Before wall mounting, make sure the wall can

support the weight of your soundbar.

• Before wall mounting, you need not remove the

rubber feet at the bottom of the soundbar,



• Depending on the type of wall mounting, make

sure that you use screws of a suitable length and

diameter.

• Please check whether the USB port on the back of

the soundbar is connected to a USB device. If it is



wall-mount, you need to use another USB device

of the appropriate size.

Screw length/diameter

Suggested wall mounting height

You are recommended to install the TV



With a TV preinstalled, wall mount the

soundbar 50mm/2.0’’ in distance from

the bottom of the TV.

1 Drill 2 parallel holes (diameter 3-8mm

each according to wall type) on the

wall.

2 Secure the dowels and screws in the

holes.

3 Attach the wall brackets (x2) into the

back of the unit.

4 Hang the soundbar on the fastening

screws.

• To prevent injury, this apparatus must be securely



installation instructions.

 

WARNING !

The distance between the holes

are: 731mm / 28.78”

You can use the wall mount

template provided for helping the

drilling holes position on the wall.

Be sure to leave a 1.8-2.3mm gap

between the wall and the screw’s

head.

Otros manuales para 7000 series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de altavoces de Philips

Philips

Philips Cordless Stereo Speakers SBC BC8320 Manual de usuario

Philips

Philips A 3.300 Acoustic Power Manual de usuario

Philips

Philips 4000 series Manual de usuario

Philips

Philips HTL1190B Manual de usuario

Philips

Philips HTL2183B/12 Manual de usuario

Philips

Philips HTL3110B Manual de usuario

Philips

Philips MMS460 Manual de usuario

Philips

Philips HTL4110B Manual de usuario

Philips

Philips Active Speaker System Manual de usuario

Philips

Philips FB900 Manual de usuario

Philips

Philips HTL2101T/93 Manual de usuario

Philips

Philips HTL2153B/93 Manual de usuario

Philips

Philips HTL4110B Manual de usuario

Philips

Philips Essence 5000 Series Manual de usuario

Philips

Philips A 2.300 Compact Power Manual de usuario

Philips

Philips HTL1170B/F7 Manual de usuario

Philips

Philips AECS7000 Hoja de información del producto

Philips

Philips HTS8160B/98 Manual de usuario

Philips

Philips NTX400 Manual de usuario

Philips

Philips MMS25017 Manual de usuario

Philips

Philips DS8300/10 Manual de usuario

Philips

Philips CSS2123/05 Manual de usuario

Philips

Philips HTL3140B/78 Manual de usuario

Philips

Philips HTL6140S Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
