Philips Active Speaker System Manual de usuario

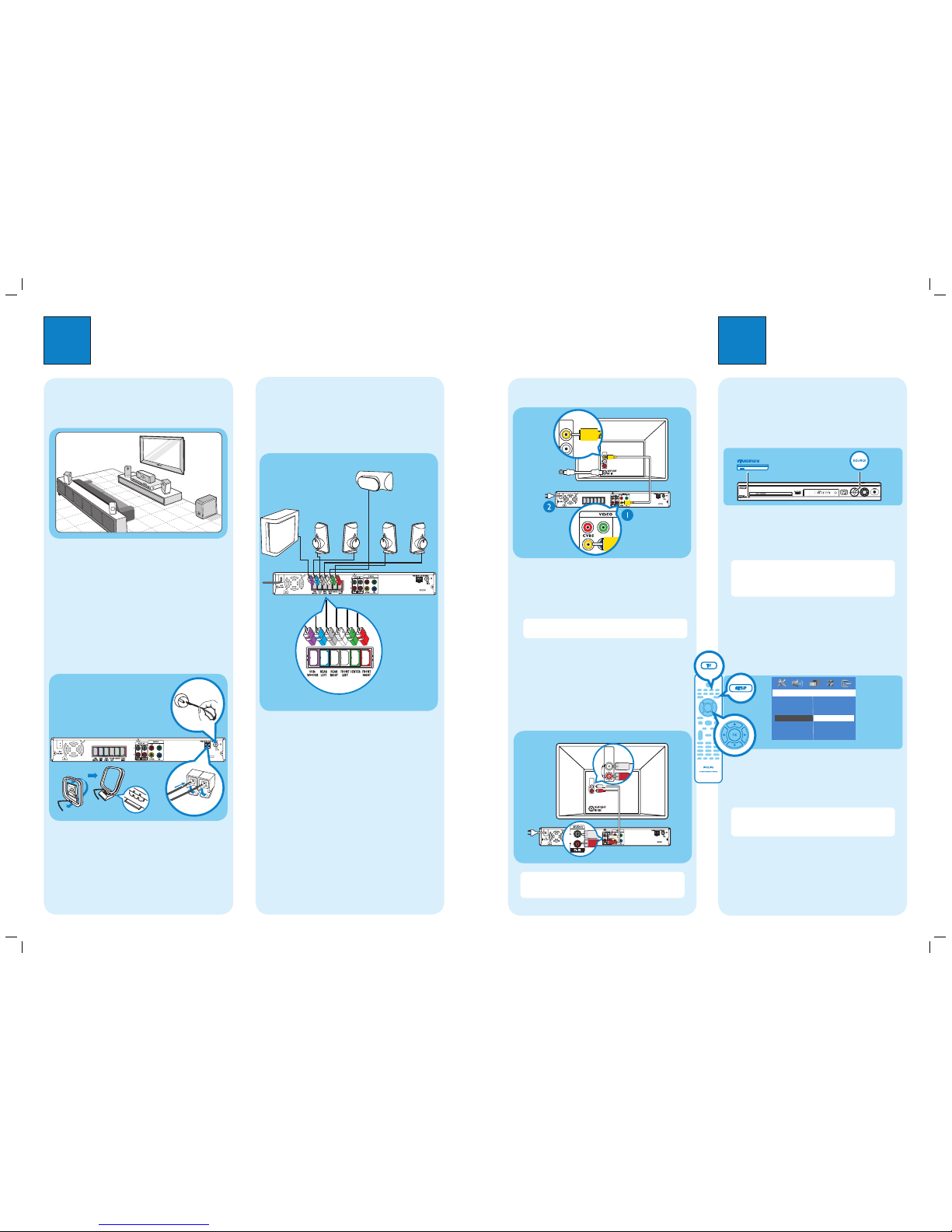

1Connect

Placement

Proper speakers system placement is important to

ensure optimum sound performance.

APlace the centre speaker above or close to the TV.

BPlace the subwoofer on the floor, at least one metre

away from the TV.

CPlace the front speakers at equal disctances from the

TV.

DPlace the rear speakers at normal listening ear level.

2Set up

DVD System (rear)

Connect the radio antennas

Keep the antennas away from the electronic devices to

prevent unwanted interference.

AConnect the FM antenna to the FM socket. Extend

the wire and fix its end to the wall.

BUnfold the AM/MW loop antenna and fix the claw

into the slot.

CPush the tabs and insert the wires into the AM/MW

sockets.

Connect the speakers and

subwoofer

Connect the various coloured plugs from the speakers

and subwoofer to the same coloured sockets at the rear

of the DVD system.

DVD System (rear)

REAR

LEFT

REAR

RIGHT

FRONT

LEFT

FRONT

RIGHT

CENTER

SUB-

WOOFER

Finding the viewing channel

APress STANDBY ON on the DVD system.

BPress SOURCE on the DVD system until “DISC”

appears on the display panel.

CTurn on the TV. Use the TV’s remote control to

select the correct viewing channel for the DVD

system.

You should see the blue DVD background on the

TV.

Note To search for the correct viewing channel,

press the Channel Down button on the TV’s remote

control repeatedly (or AV, SELECT, °button) until

you see the blue DVD background.

Select the display language on the

screen

APress SETUP.

The { General Setup Page } appears.

General Setup Page

Disc Lock

Display Dim

Program

OSD Language

Screen Saver

DivX(R) VOD Code

English

Espanõl

Brazil Por

BPress Tto select { OSD Language } and press X.

CUse TS keys to select a language option in the

menu and press OK to confirm.

DPress SETUP to exit.

There are various setup options (Audio Setup, Video

Setup, Preference Setup) available on this DVD system.

Refer to the user manual for more information.

Connect the DVD system to TV

VIDEOIN

(CVBS)

VIDEO IN

(CVBS)

Pr Y

AUse the supplied composite video cable to connect

the CVBS socket on this DVD system to the

VIDEO IN socket on your TV.

BPlug in the power cable from the DVD system to an

AC power outlet.

Note It is important to connect the DVD system

directly to your TV.

DVD System (rear)

Television ( rear)

Connect the audio from TV to DVD

system (optional)

To hear the TV audio through this home theatre system,

use the red and white audio cables (not supplied) to

connect the TV IN (R/L) sockets on this DVD system to

the AUDIO output sockets on your TV.

AUDIO

OUT

AUDIOIN

AUDIO

OUT

AUDIO OUT

Note Press TV on the remote control to get the

sound output from the speakers system when watching

the TV programme.

DVD System (rear)

Television ( rear)

To off-air

antenna or

set-top box

Note The language set here is only for the menus that

are shown on the TV while operating this DVD system,

not for the DVD disc menu.

3Enjoy DVD HOME THEATRE SYSTEM HTS3107

Quick Start Guide

Connect

Set up

Enjoy

What’s in the box?

DVD system Remote Control

and 2 batteries

User Manual

Composite video

cable

Start disc playback

APress OPEN CLOSE to open the disc tray.

Load a disc and close the disc tray.

BPlayback will start automatically.

CIf the disc menu appears, use TS keys

to select an option in the menu and

press PLAY Xto start playback.

DPress STOP xto stop playback.

Listen to radio

APress TUNER.

The display panel will show “AUTO INSTALL

PRESS PLAY”.

BPress PLAY Xuntil “START ...” appears on the

display panel.

All the available radio stations with strong reception

signal will be stored automatically.

COnce complete, use .>keys to select a

preset radio station.

DTo delete a preset radio station, hold down STOP

xuntil “FM/MW X DELETED” appears.

Experience surround sound

APress SURR to switch between stereo and multi-

channel.

BPress SOUND to select either CONCERT,

DRAMA, ACTION or SCI-FI preset digital sound

effects.

Troubleshooting

For more troubleshooting tips, see the user manual.

No picture.

• Press DISC button on the remote control.

• Check the connection to the TV and ensure the plugs are rmly in place.

No sound.

• Adjust the volume.

• Check the speaker connections and settings.

• Check the audio connections and press SOURCE button to select the correct input source.

• The centre and rear speakers operate only in multi-channel surround mode. Press SURR button to select

multi-channel surround output.

The DVD system does not work.

• Disconnect the power cord from the power outlet for a few minutes. Reconnect the power cord and try again.

1 centre, 2 front, 2 rear speakers

and subwoofer

FM wire antenna AM/MW loop

antenna

Need help?

User Manual

See the user manual that came with your Philips DVD System

Online

Go to www.philips.com/welcome 2007 CKoninklijke Philips N.V.

12 NC 3139 245 27411

www.philips.com

Note When you press PLAY button again, the

playback will resume from its last stopped point.

To start playback from the beginning, you have

to press STOP button two times to cancel the

resume mode, then press PLAY button.

Note This feature is only available for the rst time

setup. If you wish to reinstall all the radio stations, hold

down the PROGRAM button on the remote control.
