Contents

1 Important 4

Safety 4

Care for your product 5

Care of the environment 5

Help and support 6

2 Your Soundbar 7

What’s in the Box 7

Main unit 8

Main unit Connectors 9

Wireless subwoofer 9

Remote control 10

Prepare the Remote Control 11

Placement 12

Wall mount 13

3 Connect 14

Dolby Atmos® 14

Connect to HDMI Socket 14

Connect to Optical Socket 15

Connect to AUX Socket 15

Connect to Power 16

Pair up with the subwoofer 16

Connect to Wi-Fi (Wireless Operation) 17

4 Use your Soundbar 20

Turn ON and OFF 20

Auto Standby 20

Select Modes 20

Adjust the Volume 20

Dolby sound mode 20

Factory Reset 21

Setup Menu 21

Bluetooth®Operation 24

AUX / OPTICAL / HDMI ARC Operation 24

USB Operation 25

Upgrade Firmware 26

5 Product specications 27

6 Terms of Use and

Privacy Statement 28

7 Troubleshooting 30

8 Trademarks 32

EN 4

1 Important

Read and understand all instructions

before you use your product. If damage

is caused by failure to follow instructions,

the warranty does not apply.

Safety

Risk of electric shock or re!

• Before you make or change any

connections, make sure that all

devices are disconnected from the

power outlet.

• Never expose the product and

accessories to rain or water. Never

place liquid containers, such as

vases, near the product. If liquids

are spilt on or into the product,

disconnect it from the power outlet

immediately. Contact Consumer

Care to have the product checked

before use.

• Never place the product and

accessories near naked ames or

other heat sources, including direct

sunlight.

• Never insert objects into the

ventilation slots or other openings

on the product.

• Where the mains plug or an

appliance coupler is used as the

disconnect device, the disconnect

device shall remain readily

operable.

• Battery (battery pack or batteries

installed) shall not be exposed to

excessive heat such as sunshine,

re or the like.

• Disconnect the product from the

power outlet before lightning

storms.

• When you disconnect the power

cord, always pull the plug, never

the cable.

• Use the product in tropical and/or

moderate climates.

Risk of short circuit or re!

• For identication and supply

ratings, see the type plate at the

back or bottom of the product.

• Before you connect the product to

the power outlet, ensure that the

power voltage matches the value

printed on the back or bottom of

the product. Never connect the

product to the power outlet if the

voltage is dierent.

Risk of injury or damage to this product!

• For wall mounting, this product must

be securely attached to the wall

in accordance with the installation

instructions. Use only the supplied

wall mount bracket (if available).

Improper wall mounting may result in

accident, injury or damage. If you have

any query, contact Consumer Care in

your country.

• Never place the product or any

objects on power cords or on other

electrical equipment.

• If the product is transported in

temperatures below 5°C, unpack

the product and wait until its

temperature matches room

temperature before connecting it to

the power outlet.

• Parts of this product can be made

of glass. Handle with care to avoid

injury and damage.

Risk of overheating!

• Never install this product in a

conned space. Always leave a

space of at least four inches around

the product for ventilation. Ensure

curtains or other objects never

cover the ventilation slots on the

product.

Risk of contamination!

• Do not mix batteries (old and new

or carbon and alkaine, etc.).

• CAUTION: Danger of explosion if

batteries are incorrectly replaced.

Replace only with the same or

equivalent type.

EN 5

• Remove batteries if they are exhausted

or if the remote control is not to be used

for a long time.

• Batteries contain chemical

substances, they should be

disposed of properly.

Risk of swallowing batteries!

• The product/remote control may

contain a coin/button type battery,

which can be swallowed. Keep the

battery out of reach of children at

all times! If swallowed, the battery

can cause serious injury or death.

Severe internal burns can occur

within two hours of ingestion.

• If you suspect that a battery

has been swallowed or placed

inside any part of the body, seek

immediate medical attention.

• When you change the batteries,

always keep all new and

used batteries out of reach of

children. Ensure that the battery

compartment is completely secure

after you replace the battery.

• If the battery compartment cannot

be completely secured, discontinue

use of the product. Keep out of

reach of children and contact the

manufacturer.

This is CLASS II apparatus with double

insulation, and no protective earth

provided.

AC voltage

Use only the power supplies listed in

the user manual.

Care for your product

Use only microber cloth to clean the

product.

Care of the environment

Disposal of your old product and

battery

Your product is designed and

manufactured with high quality

materials and components, which can

be recycled and reused.

Removing the disposable batteries

To remove the disposable batteries, see

battery installation section.

EN 6

Help and support

For extensive online support, visit

www.philips.com/support to:

• download the user manual and the

quick start guide

• watch video tutorials (available only

for selected models)

• nd answers to frequently

answered questions (FAQs)

• email us a question

• chat with our support

representative.

Follow the instructions on the website

to select your language, and then enter

your product model number.

Alternatively, you can contact

Consumer Care in your country. Before

you contact, note down the model

number and serial number of your

product. You can nd this information

on the back or bottom of your product.

EN 7

2 Your

Soundbar

Congratulations on your purchase,

and welcome to Philips! To fully

benet from the support that Philips

oers, register your Soundbar at

www.philips.com/support.

What’s in the Box

Check and identify the items in the

package:

• Soundbar x 1

• Wireless Subwoofer x 1

• Remote Control x 1

(Battery AAA x 2)

• Power Cord * x 2

• Wall Mount kit - Soundbar x 1

(Wall Brackets x2, Wall Brackets Screws

x2, Dowels x2)

• Quick Start Guide / Warranty

Card / Safety Sheet / Wall Mount

Template / User Manual (only for

Taiwan, South Korea and Japan) x 1

Soundbar

* Power cord quantity and plug type vary by regions.

** Please refer to Quick Start Guide for Adapter Accessories

and Adapter assembly instructions.

Quick start guide

Wall Mount Template

Warranty Card

Safety Sheet

Wireless Subwoofer

Remote Control

and batteries

Soundbar

Wall Bracket

2 X

Soundbar

Wall Bracket

Screws (for walls)

Power Cord *

(Soundbar and

Subwoofer)

2 X

EN 8

* Power cord quantity and plug type

vary by regions.

• Images, illustrations and drawings

shown on this User Manual are for

reference only, actual product may

vary in appearance.

• Please use HDMI cable with ferrite

core for this product.

Main unit

This section includes an overview of the

main unit.

0 0 :0 0

1- (Volume) button

Decrease the volume.

2+ (Volume) button

Increase the volume.

3(Play/Pause) button

Start, pause or resume play.

4(Source)/Bluetooth pairing

button

• Select an input source for the

Soundbar.

• Press and hold to activate the

pairing function in Bluetooth mode

or disconnect the existing paired

Bluetooth device.

5(Standby-On) button

Power

State Action Function

On •Follow source state

Semi

Standby

Press the

button

once

•Wi-Fi is still on.

•It still supports Airplay 2

and Chromecast for Audio.

Eco

Standby

(Wi-Fi is

on)

Press and

hold

button 2

seconds.

Power

LED turns

on.

•Wi-Fi is on.

•The product enters the

lower power consumption

mode.

•Restarting the system will

take a relatively longer

time.

Eco

Standby

(Wi-Fi is

o)

Press the

button

once.

Power

LED turns

on.

•Wi-Fi is o.

•The product enters the

lower power consumption

mode.

•Restarting the system will

take a relatively longer

time.

6Display panel

7Remote Control Sensor

8Power LED

9Wi-Fi LED indicator (Yellow)

LED State Status

Blink Wi-Fi Access Point (AP) mode

Double blink Wi-Fi Protected Setup (WPS)

mode

Constant on Connected / Pairing successful

EN 9

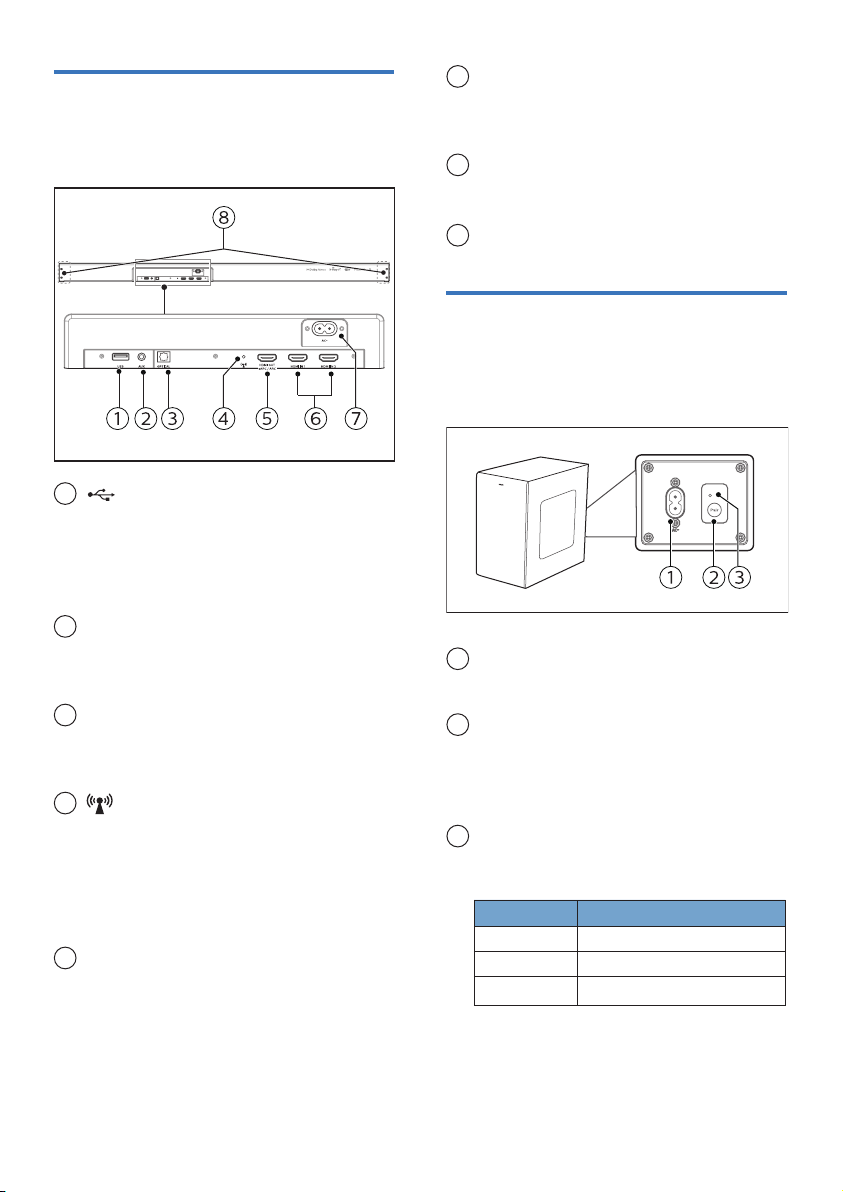

Main unit Connectors

This section includes an overview of the

connectors available on your Soundbar.

1USB

• Audio input from a USB storage

device.

• Upgrade software of this

product.

2AUX

Audio input from, for example, an

MP3 player (3.5mm jack).

3OPTICAL

Connect to an optical audio output

on the TV or a digital device.

4(Wi-Fi Setup) button

• Trigger Wi-Fi setup.

• Press and hold the button for 5

seconds to active the Wps mode.

• Press and hold the button for 20

seconds to reset the Wi-Fi settings.

5HDMI OUT (eARC/ARC)

Connect to the HDMI input on the

TV.

6HDMI 1/ HDMI 2

Connect to the HDMI input on the

TV.

7AC~Socket

Connect to the power supply.

8Wall bracket slot

Wireless subwoofer

This section includes an overview of the

Wireless subwoofer.

1AC~Socket

Connect to the power supply.

2Pair button

Press and hold for 5 seconds to

enter the pairing mode for the

subwoofer.

3Subwoofer indicator

Determine the status based on the

wireless subwoofer indicator.

LED State Status

Fast blink Subwoofer in pairing mode

Slow blink Pairing Failed

Constant on Connected / Pairing successful

EN 10

Remote control

This section includes an overview of the

remote control.

1(Standby-On)

Power

State Action Function

On •Follow source state

Semi

Standby

Press the

button once.

•Wi-Fi is still on.

•It still supports Airplay 2 and

Chromecast for Audio.

Eco

Standby

(Wi-Fi is

on)

Press and

hold

button 2

seconds.

Power LED

turns on.

•Wi-Fi is on.

•The product enters the lower

power consumption mode.

•Restarting the system will

take a relatively longer time.

Eco

Standby

(Wi-Fi is

o)

Press the

button once.

Power LED

turns on.

•Wi-Fi is o.

•The product enters the lower

power consumption mode.

•Restarting the system will

take a relatively longer time.

2EQ

Select sound modes. (Movie/

Music/Voice/Stadium)

3Previous/ Next

• Skip to the previous or next

track in USB / BT / Google

Home app / AirPlay 2 mode.

• Navigate Left/Right in menu

structure.

4(Play/Pause)

• Start, pause or resume play in

USB / BT / Google Home app /

AirPlay 2 mode.

• Conrm a selection.

5(MENU)

Enter setup menu.

6+/- (Dolby Atmos)

Increase / decrease the top

speaker’s gain.

7+/- (Subwoofer’s Gain)

Increase / decrease the subwoofer’s

gain.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de altavoces de Philips

Philips

Philips Fidelio FB1 Manual de usuario

Philips

Philips A5.600 Seismic Power 600/MMS 506 Manual de usuario

Philips

Philips HTL2140B/F7 Manual de usuario

Philips

Philips HTL2161B Manual de usuario

Philips

Philips FB206W/01 Manual de usuario

Philips

Philips HTL2193B Manual de usuario

Philips

Philips HTL6140B Manual de usuario

Philips

Philips Essence 5000 Series Manual de usuario

Philips

Philips HTL5140B Manual de usuario

Philips

Philips HTS7111/12 Manual de usuario

Philips

Philips 3000 series Manual de usuario

Philips

Philips CSS2133B/F7 Manual de usuario

Philips

Philips A 2.300 Compact Power Manual de usuario

Philips

Philips SBA1620 Manual de usuario

Philips

Philips MMS171 - MMS 171 2.1-CH PC Multimedia Speaker... Manual de usuario

Philips

Philips SS-GNX60 Manual de usuario

Philips

Philips Immersive HTB7530KD Manual de usuario

Philips

Philips DGX220/00 Manual de usuario

Philips

Philips FB209W Manual de usuario

Philips

Philips SBCBC730/00 Manual de usuario

Philips

Philips TAB8907 Manual de usuario

Philips

Philips FB 208W Manual de usuario

Philips

Philips HTL2163B Manual de usuario

Philips

Philips HSB2351/F7 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
