Philips CDR776C Manual de usuario

Dual deck CD-Recorder CDR 776C

• Two separate CD decks (Recording and playback)

• Double speed & Listen mode recording (disc)

• 2-disc simultaneously playback / 2-disc random playback

• Separate outputs for CDR and CD (digital/analogue)

• 3x CD text features (recording,input & editing for max.60 characters)

• CD deck plays unfinalised RW discs

• AD - DA convertor UDA1341TS (CODEC)

• Sample Rate Conversion (12-56 kHz)

• Direct Line Recording (DLR)

• Records HD-CD format (Via DLR only)

• Analogue + digital (separate channel) record level control (64 steps)

• Continuous calibration (Running OPC)

• Max.99-track program on both CDR and CD deck

• CD Synchronised auto start recording from

all analogue and digital sources (disc)

• Text scrolling

• Standby (via RC) + hard on/off

• Music calendar

• Easy jog (Menu controlled user interface)

• High quality starbust FTD (display)

• Auto (un) finalise

• Erasing per track,selection of last tracks & whole disc

(takes max.2 min.)

• Introscan

• Tray blocking (dealer function)

• Gold plated headphone connection

• Remote control

Audio CD-Recorder

CDR776C

Opm leaflets 26/4/99 2:14 pm Page 11

Audio CD-Recorder

CDR776C

Theproductsandservicesdescribedherearenotnecessarilytobecomeavailableinthemarket.Thisdocumentcontainspreliminaryinformation. Due to continuous improvements this specification is subject to changes without notice. Printed in the Netherlands.2/99

700+ series CD player

Technical Specifications CDR 775C

General

• System Compact disc digitalAudio

(Dual deck CD-recorder + CD-player)

• Number of channels 2 (stereo)

• Applicable supply Multi voltage 100V - 240V 50-60 Hz (/00 only) 117V (/17)

• Power consumption 19W (<=6W in standby)

• Operating temperature 5-35°C

• Weight 4 kg

• Dimensions 435 x 305 x 88 mm (w x d x h)

Audio

• Digital frequency range 2 Hz - 22,05 kHz

• Playback S/N (CDR &CD) 100 dB (A-weighted)

• Playback dynamic range (CDR &CD) 95 dB 90 dB

• Play back total harmonic distortion

+ Noise (CDR &CD) 88 dB (0,0039%) & 85 dB (0,0056%)

• Recording S/N (Analogue) 98 dB (A-weighted)

• Recording S/N (Digital) Recording quality equal to Source

• Recording dynamic range 92 dB

• Recording total harmonic distortion 85 dB (0,0079%)

• Headphones 3Vrms / 8-2000Ω

Output

• 1xAnalogue line output CDR (+ CD) 2Vrms +/- 2 dB / 0.2 kΩ

• 1xAnalogue line output CD 2Vrms +/- 2 dB / 0.2 kΩ

• 1x Digital coaxial output CDR (+CD) 0.5V(pp) / 75Ω

• 1x Digital coaxial output CD 0.5V(pp) / 75Ω

Input (level adjustment)

• Direct line recording (bypass SRC) for 44.1 kHz +/- 100 ppm

• 1x Digital coaxial input (SRC) 12 - 56 kHz / 0.5Vrms / 75Ω

• 1x Digital optical input (SRC) 12 - 56 kHz

• 1xAnalogue input 500 mVrms / 50 kΩ= 0 dB

Recording functions

• Recording on CD-R & CD-RW disc

• Records from all home stereo analogue and digital sources

• Recording from internal & external source

• Single & double speed recording (disc,track)

• Auto start recording

• Multi track erase (CD-RW disc)

• Soft mute insert function

• Erase disc (CD-RW disc)

• Auto finalise / unfinalise disc (CD-RW disc)

• Manual /Auto track increment

• Remaining recording time display

• Double speed finalising (make disc compatible to CD-player)

• SCMS (Serial Copy management system)

• Auto switch over to analogue recording in case

of copy protected track or disc.

• RID code (Recorder Unique identifier)

Playback functions

• Plays allAudio CD’s

(120 mm + 80 mm discs)

• Simultaneously playback

(recorder + player)

• Introscan - Pause - Stop

• Random playback from 2 discs

• Direct track selection

• Track selection with easy jog

• Search forward / reverse

• Repeat (all / per track)

• Program play (99 tracks)

• Time display switching

• Permanent text option

Accessories

• Remote control (+batteries)

• Audio cable (x2)

• Digital coaxial cable (x1)

• AC mains cord

DISPLAY SCROLL DJ MODE

REPEATSHUFFLE

PROG

Recordable

IR SENSOR

OPEN / CLOSE

REC

TYPE REC

START

OPEN / CLOSE PLAY/ PAUSE STOP

ENTER

PLAY/ PAUSE STOP FINALIZE ERASE SOURCE

CDR CD

PHONES

AUDIO CD RECORDABLE/REWRITABLE

CDR 775AUDIO CD RECORDER

AUDIO CD PLAYBACK

CANCEL/

DELETE

STORE/

EASY JOG

ON/OFF

TRACK

REC

DIGITAL PROG

SHUFFLE

REPEAT

CHANGER

SYNC MANUAL RECORD

TRACK

FADE

123456789

10 11 12 13 14 15 16 17 18 19 20 +

DOUBLE SPEED

SCAN

ABC

GHI

DEF

JKL OPQ

RST XYZ

UVW

SPACE

ENTER CANCEL

TRACK INCR.

MENU/

STORE

PROG.

CDR CD

SCROLL

SHUFFLE REPEAT

Opm leaflets 26/4/99 2:14 pm Page 12

Otros manuales de Equipo de grabación de Philips

Philips

Philips CDR Mozart Manual de usuario

Philips

Philips CDR-775 Manual de usuario

Philips

Philips CDR760BK Manual de usuario

Philips

Philips CDR 538 Manual de usuario

Philips

Philips TL720R/00T Manual de usuario

Philips

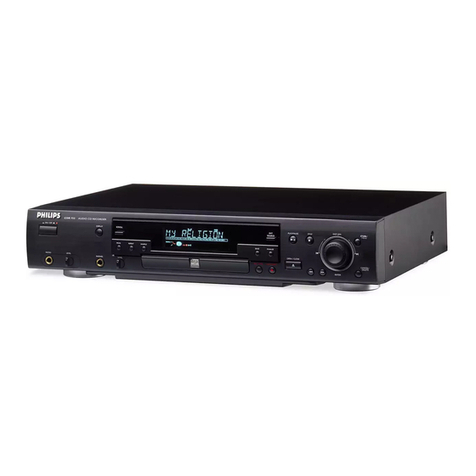

Philips CDR570 Manual de usuario

Philips

Philips VoiceTracer DVT4110 Manual de usuario

Philips

Philips POCKET MEMO LFH0955 Manual de usuario

Philips

Philips CDR 800/17 Manual de usuario

Philips

Philips CDR-600 Manual de usuario

Philips

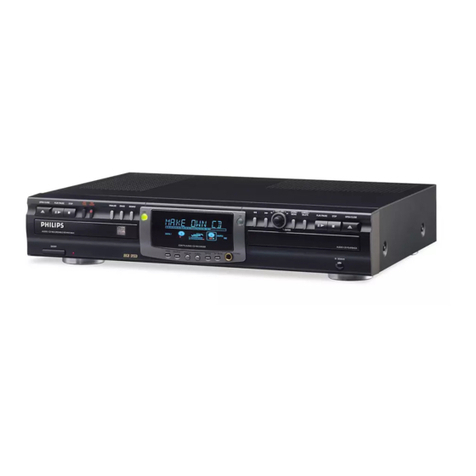

Philips CDR-775 Manual de usuario
