Philips CDD260 Manual de usuario

CD-Recorder

CDD2600

Recordable

OPEN

DISC IN

PHONES

ERROR

WRITING

CDD 2600

' User's manual

f Manuel d'utilisation

d Benutzerhandbuch

 Gebruikershandleiding

i Guida dell'Utente

e Guia del usuario

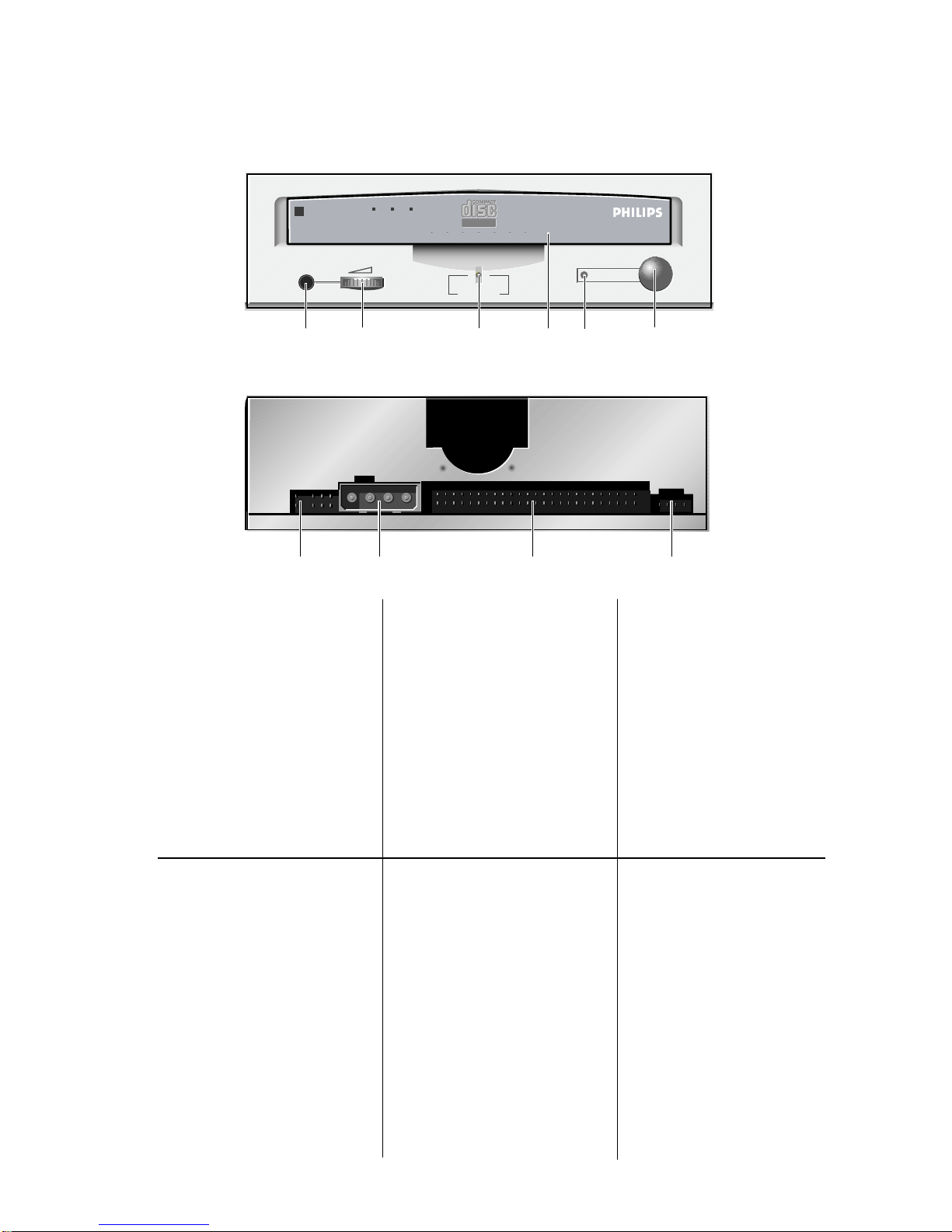

FIG.1 FRONT VIEW

1. Headphone plug

2. Headphone volume control

3. Write indicator

4. Disc Tray

5. Disc In/Read/Error indicator

6. Open/Close

FIG.1 REAR VIEW

7. Jumperblock

8. Host DC power connector

9. SCSI connector

10.Audio Line Out connector

Recordable



4 65

FRONT VIEW

CDD 2600 CD - Compact Disc Recorder

FIG.1

FIG.1 PANNEAU AVANT

1. Prise pour casque

2. Commande du volume du

casque

3. Témoin lumineux

d’enregistrement

4. Tiroir à disque

5. Témoin disque/lecture/erreur

6. Touche ouvrir/fermer

PANNEAU ARRIERE

7. Cavaliers

8. Connecteur au bloc

d'alimentation C.C.hôte

9. Connecteur SCSI

10. Connecteur de sortie de ligne

audio

REAR VIEW

91087

ABB.1 VORDERANSICHT

1. Anschlußbuchse Kopfhörer

2. Lautstärke Kopfhörer

3. Schreibanzeige

4. Schublade

5. Diskette ein/Lesen/Fehler

6. Open/Close Taste

RÜCKANSICHT

7. Jumperblock

8. Host Gleichstromnetzanschluß

9. SCSI Connector

10. Tonanschluß Aus-Connector

FIG.1 VOORKANT

1. Hoofdtelefoonaansluiting

2. Volumeregeling hoofdtelefoon

3. Schrijfindicator

4. Disc-lade

5. Disc aanwezig/lezen/

foutindicator

6. Openen/sluiten-toets

ACHTERKANT

7. Jumper-blok

8. Voedingsconnector host

computer

9. SCSI connector

10. Audio-connector lijnuitgang

FIG.1 PARTE ANTERIORE

1. Presa cuffie

2. Controllo volume cuffie

3. Indicatore di scrittura

4. Cassetto del disco

5. Indicatore disco

inserito/Leggi/Errore

6. Tasto Apri/Chiudi

PARTE POSTERIORE

7. Blocco Jumpers

8. Connettore alimentazione

9. Connettore SCSI

10. Connettore Line Out Audio

FIG.1 VISTA FRONTAL

1. Clavija de los auriculares

2. Control del volumen de los

auriculares C.D.

3. Indicador de escritura

4. Bandeja del Disco

5. Indicador de Disco

introducido/Lectura/Error

6. Botón de Apertura/Cierre

VISTA POSTERIOR

7. Bloque de conectores

8. Conector de alimentación

9. Conector SCSI

10. Conector de salida de Línea

de Audio

fæe

'di

WARNING

This device complies with Part 15 of the FCC (U.S.A.) Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that

may cause undesired operation.

NOTE

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This

equipment generates, uses and can be used in accordance with

the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television

reception, which can be determined by turning this equipment off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and

receiver.

- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician

for help.

IMPORTANT

Any change or modifications to the equipment by the user not

expressly approved by the grantee or manufacturer could void

the user's authority to operate such equipment.

FOR EUROPE

“The CDD2600 is in conformity with the EMC

directive and low-voltage directive.”

CONTENTS

ENGLISH

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Summary of controls and connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operating/testing your CD-Recordable system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Additional information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

FRANCAIS

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Aperçu des commandes et des connexions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Utilisation et test du système d'enregistrement de disque optique . . . . . . . . . . . . . . . . 19

Informations supplémentaires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

DEUTSCH

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Zusammenfassung Steuereinrichtungen und Anschlüsse . . . . . . . . . . . . . . . . . . . . . . 31

Betrieb/Testen des CD-beschreibbaren Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Zusatzinformationen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

NEDERLANDS

Installatie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Overzicht van bedieningsknoppen en aansluitingen . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Gebruiken/testen van uw ‘CD-Recordable’-systeem . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Aanvullende informatie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

ITALIANO

Installazione . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Sommario dei controlli e dei collegamenti . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Funzionamento/test del vostro sistema di registrazione per CD . . . . . . . . . . . . . . . . . . 61

Informazioni aggiuntive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

ESPANOL

Instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Lista de controles y conexiores . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Manejo/verificación de su grabador de CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Información adicional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

LASER SAFETY

This unit employs a laser. Do not remove the cover or attempt to service

this device when connected due to the possibility of eye damage.

LASER-SICHERHEIT

In das Gerät ist ein Laser eingebaut. Nehmen Sie die Abdeckung nicht ab

und versuchen Sie nicht, das Gerät zu reparieren, solange es

angeschlossen ist. Es besteht die Gefahr einer Augenverletzung.

CAUTION

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS LASER RADIATION EXPOSURE.

WARNUNG

DIE VORNAHME VON REGELUNGEN ODER EINSTELLUNGEN ODER

DIE DURCHFÜHRUNG VON VERFAHREN, DIE NICHT IN DIESEM

DOKUMENT (DIESER BESCHREIBUNG; IM NACHSTEHENDEN

TEXT) ANGEGEBEN SIND, KANN EINE GEFÄHRLICHE EINWIRKUNG

VON LASERSTRAHLUNG ZUR FOLGE HABEN.

CLASS 1

LASER PRODUCT LUOKAN I

LASERLAITE

KLASS 1

LASERAPPARAT

CAUTION INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO

BEAM

VARO! AVATTAESSA OLET ALTIINA NÄKYMÄTTÖMÄLLE LASER SÄTTEILYLLE

ÄLÄ KATSO SÄTEESEN

VARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD

BETRAKTA EJ STRÅLEN

ADVERSEL USYNLIG LASERSTRÅLING VED ÅBNING. UNDGÅ UNSAETTELSE FOR

STRÅLING

DANGER INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT

EXPOSURE TO BEAM

VORSICHT INSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET

NICHT DEM STRAHL AUSSETSEN

KLASSE 1

LASER-PRODUKT

LASER

Type Semiconductor laser GaAlAs

Wave lenght 775~795 nm (at 25° C)

Output Power 2,5 mW (Read)

35 mW (Write)

Beam divergence 60 degree.

INSTALLATION

Handling Static-Sensitive devices

This CD-Recorder drive, like all electronic equipment, is static

sensitive.

Please take the proper precautions when handling the drive.

Avoid touching the SCSI connector pins as well as the audio

connector pins and the jumper pins.

Keep the drive in its conductive wrapping until you are ready to

install the drive in your computer.

Installing the drive

- In order to mount the drive inside your PC (or other type of

computer), locate a free horizontal 5.25" bay and follow the

instructions, as provided with your computer systems, for

installing the drive.

- In order to prevent interference between the CD-Recorder

drive and the computer, please make sure to mount the drive

using all 4 mounting screws.

Safety Precautions

Europe: This drive shall be installed only with an EN60950

(IEC950) approved Power supply.

USA/Canada: This drive is for use only with IBM compatible

UL listed Personal Computers or Macintosh UL listed worksta-

tions weighing less than 18 kg.

INSTALLATION

Host interface connections

Connect the internal SCSI flatcable to the SCSI interface card of

your host. Connect the other end to one of the SCSI connectors

at the rear of the CD-Recorder drive.

Make sure to select a free SCSI address via the jumpers on the

back of the unit

Then connect the power cable in your PC to the plug on the

drive (see item 8 of the rear view, fig.1).

SUMMARY OF CONTROLS AND CONNECTIONS

Front view (See flap Fig.1)

1. HEADPHONE PLUG

Connect your headphone to listen to CD-DA discs (or

tracks).

2. HEADPHONE VOLUME CONTROL

Turn the wheel to the right to increase the audio volume of

your headphone.

3. WRITE INDICATOR

Lights “orange” when writing of a disc occurs.

Flashes “orange” during write emulation.

4. DISC TRAY

5. DISC IN/READ/ERROR indicator (dual color LED)

Lights “green” when a disc is present. Flashes “green”

asymmetrically when data is being transferred from disc.

Flashes “green” symmetrically when starting up a disc.

Lights “red” upon error (e.g. after failed selftest).

6. OPEN/CLOSE KEY

Press the OPEN/CLOSE key to open the disc loading tray.

To close the disc loading tray, push gently at the front of the

tray or press the Open/Close key.

SUMMARY OF CONTROLS AND CONNECTIONS

Rear view (See flap Fig.1)

7. JUMPERBLOCK

With jumpers 1 to 3 the SCSI address is selected.

Jumper 4 is for termination selection.

8. HOST DC POWER CONNECTOR (type AMP 00641737-1)

1: +12V

2: GND

3: GND

4: +5V

9. SCSI CONNECTOR (type MOLEX 70247-5005)

50 pin SCSI flatcable connector.

10. Audio line out connector (type: MOLEX 70555-0003)

1: Left

2: GND

3: GND

4: Right

Loader

11. SERVICE FLAP

For service applications only.

Not to be opened by unauthorised people without further

instructions from your supplier.

1 2 3 4

4 3 2 1

OPERATING/TESTING

YOUR CD-RECORDABLE SYSTEM

It is a criminal offence, under applicable copyrights laws, to make

unauthorised copies of copyright-protected material, including

computer programs, films, broadcasts and sound recordings.

This equipment should not be used for such purposes.

Switching on

When you have successfully installed the drive and established

all connections, it is now time to switch on the host.

Loading and unloading a disc

Follow the instructions below. (see Fig.1)

1. To open the tray: Press the Open/Close key (6).

2. Load a (CD-R) disc, with the label facing upwards.

The tray accommodates discs with 8 cm diameter

(CD-Single) or the more usual 12 cm discs.

3. To close the tray, either push gently at the front of

the tray or press the Open/Close key (6).

Note: for best results, use only empty discs qualified by Philips

(PDO 63CDR or PDO 74CDR).

Note: don’t use general purpose commercial head cleaning

discs.

Switching off

Do not switch off the drive via the host after a successful write :

either fixate the disc or eject it, else an incompatible disc is

made.

OPERATING/TESTING

Tabla de contenidos

Otros manuales de Equipo de grabación de Philips

Philips

Philips CDR775/777 Manual de usuario

Philips

Philips CDR770 Manual de usuario

Philips

Philips CDR870 Manual de usuario

Philips

Philips CDR 760 Manual de usuario

Philips

Philips POCKET MEMO LFH9600 Manual de usuario

Philips

Philips CDR-600 Manual de usuario

Philips

Philips CDR-775 Manual de usuario

Philips

Philips DP-IF8000 Manual de usuario

Philips

Philips AZ-2040 Manual de usuario

Philips

Philips CDR800/05 Manual de usuario

Philips

Philips CDR 785 Manual de usuario

Philips

Philips AZ1060 - annexe 1 Manual de usuario

Philips

Philips VoiceTracer VTR8062 Manual de usuario

Philips

Philips CDR-800 Manual de usuario

Philips

Philips CDR760BK99 Manual de usuario

Philips

Philips VoiceTracer DVT4110 Manual de usuario

Philips

Philips Voice Tracer DVT4110 Manual de usuario

Philips

Philips CDR765BK99 Manual de usuario

Philips

Philips CDR770 Manual de usuario

Philips

Philips CDR 765 Manual de usuario

Philips

Philips PSC805 Aurilium Manual de usuario

Philips

Philips CDR760BK99 Manual de usuario

Philips

Philips IS 5022 PROFESSIONAL Mark II Manual de usuario

Philips

Philips CDR800/00/17 Manual de usuario

Manuales populares de Equipo de grabación de otras marcas

KV2 Audio

KV2 Audio 500 Series Manual de usuario

Robotics Technologies

Robotics Technologies microBus-Cam II Manual de usuario

Seca

Seca 460 Manual de usuario

Cognex

Cognex MVS-8000 Series Manual de usuario

Mect

Mect MPNC006 Series Manual de usuario

Bad Caf

Bad Caf THE LEASH Manual de usuario

Strymon

Strymon NIGHTSKY Manual de usuario

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manual de usuario

Tews Technologies

Tews Technologies TPMC465 Manual de usuario

Honeywell

Honeywell Excel 50 Manual de usuario

SeaLevel

SeaLevel COMM+8.LPCI Manual de usuario

Arturia

Arturia AUDIOFUSE STUDIO Manual de usuario

Rukra

Rukra RK-1240 Manual de usuario

Samson

Samson SCOM Manual de usuario

Dynacord

Dynacord DPS260 Manual de usuario

Nice

Nice Core Manual de usuario

Pyle Pro

Pyle Pro PSS8 Manual de usuario

RF-System

RF-System TinyGate Manual de uso y cuidado
