Contents

1 TV Tour 3

1.1 Professional Mode 3

2 Setting Up 4

2.1 Read Safety 4

2.2 TV Stand and Wall Mounting 4

2.3 Tips on Placement 4

2.4 Power Cable 4

2.5 Antenna Cable 4

3 Switching On and Off 6

3.1 On or Standby 6

3.2 Keys on TV 6

4 Remote Control 7

4.1 Key overview 7

4.2 IR Sensor 8

4.3 Batteries 8

4.4 Cleaning 8

5 Specifications 9

5.1 Environmental 9

5.2 Power 9

5.3 Operating System 9

5.4 Reception 9

5.5 Display Type 9

5.6 Display Input Resolution 9

5.7 Connectivity 10

5.8 Sound 10

6 Connect Devices 11

6.1 Connect Devices 11

6.2 CAM with Smart Card - CI+ 12

6.3 Receiver - Set-Top Box 13

6.4 Home Theatre System - HTS 13

6.5 Blu-ray Disc Player 13

6.6 Headphones 13

6.7 Game Console 13

6.8 USB Flash Drive 14

6.9 Computer 14

7 Videos, Photos and Music 15

7.1 From a USB Connection 15

7.2 Play your Videos 15

7.3 View your Photos 15

7.4 Play your Music 16

8 TV Guide 18

8.1 Using the TV Guide 18

9 Games 19

9.1 Play a Game 19

10 Professional Menu App 20

10.1 About the Professional Menu App 20

10.2 Open the Professional Menu App 20

10.3 Recommended 20

10.4 Google Cast 20

10.5 Games 21

10.6 More 21

10.7 Professional Settings 22

10.8 Google Account 23

11 Android TV Home Screen 24

11.1 About the Android TV Home Screen 24

11.2 Open the Android TV Home Screen 24

11.3 Android TV Settings 24

11.4 Connect your Android TV 27

11.5 Channels 30

11.6 Channel Installation 31

11.7 Internet 32

11.8 Smartphones and Tablets 33

11.9 Software 33

12 Help and Support 35

12.1 Troubleshooting 35

12.2 Online Help 36

12.3 Support and Repair 37

13 Safety and Care 38

13.1 Safety 38

13.2 Health Care Facility Apparatus 39

13.3 Radiation Exposure Statement (for built-in

WiFi only)

14 Terms of Use 40

14.1 Terms of Use - TV 40

15 Copyrights 41

15.1 HDMI 41

15.2 Dolby Audio 41

15.3 DTS-HD 41

15.4 Wi-Fi Alliance 41

15.5 Kensington 41

15.6 Other Trademarks 41

16 Disclaimer regarding services

and/or software offered by third

parties

17 Open Source 43

17.1 Open Source Software 43

17.2 Open Source License 43

17.3 Announcements 43

Index 44

TV Tour

1.1

Professional Mode

What you can do

In Professional Mode ON, you can have access to a

large number of expert settings that enable advanced

control of the TV’s state or to add additional

functions.

This mode is intended for installations of TV’s in

places such as hotels, cruise ships, stadia or any other

business area where such control is required.

If you use the TV at home, it is recommended to use it

in Professional Mode OFF.

Please consult the Professional installation manual

for further details.

Setting Up

2.1

Read Safety

Read the safety instructions first before you use the

TV.

2.2

TV Stand and Wall Mounting

TV Stand

You can find the instructions for mounting the TV

stand in the Quick Start Guide that came with the TV.

In case you lost this guide, you can download it

from www.philips.com.

Use the product type number of the TV to look for

the Quick Start Guide to download.

Wall Mounting

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

• 43HFL5214U

VESA MIS-F 100x200, M6 (min.: 6 mm, max.:8 mm)

• 50HFL5214U

VESA MIS-F 200x100, M6 (min.: 18 mm, max.:22 mm)

• 55HFL5214U

VESA MIS-F 200x100, M6 (min.: 10 mm, max.:20 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TPV bears no responsibility for improper mounting or

any mounting that results in accident or injury.

2.3

Tips on Placement

• Position the TV where light does not shine directly

on the screen.

• The ideal distance to watch TV is 3 times its diagonal

screen size. When seated, your eyes should be level

with the centre of the screen.

Note:

Please keep the TV away from dust-producing

sources such as stoves. It is suggested to clean the

dust regularly to avoid getting dust into the TV.

2.4

Power Cable

• Insert the power cable into the POWER connector

on the back of the TV.

• Make sure the power cable is securely inserted in

the connector.

• Make sure that the power plug, in the wall socket, is

accessible at all times.

• When you unplug the power cable, always pull the

plug, never pull the cable.

2.5

Antenna Cable

Insert the antenna plug firmly into

the Antenna socket at the back of the TV.

You can connect your own antenna or an antenna

signal from an antenna distribution system. Use an

IEC Coax 75 Ohm RF antenna connector.

Use this antenna connection for DVB-T and DVB-C

input signals.

Switching On and

Off

3.1

On or Standby

Make sure the TV is connected to the mains AC

power. Connect the supplied power cord to the AC

in connector at the back of the TV. The indicator light

at the bottom of the TV lights up.

Switch on

Press  on the remote control to switch the TV

on. Alternatively, press // Home. You can

also press the small joystick key on the back or

bottom of the TV to switch the TV on in case you can't

find the remote control or its batteries are empty.

Switch to standby

To switch the TV to standby, press  on the remote

control. You can also press the small joystick key on

the back or bottom of the TV.

In standby mode, the TV is still connected to the

mains power but consumes very little energy.

To switch off the TV completely, disconnect the

power plug.

When disconnecting the power plug, always pull the

power plug, never the cord. Ensure that you have full

access to the power plug, power cord and outlet

socket at all times.

3.2

Keys on TV

If you lost the remote control or its batteries are

empty, you can still do some basic TV operations.

To open the basic menu…

1 - With the TV switched on, press the joystick key on

the back or bottom of the TV to bring up the basic

menu.

2 - Press left or right to select  Volume,

 Channel or  Sources.

3 - Press up or down to adjust the volume or tune to

the next or previous channel. Press up or down to go

through the list of sources, including the tuner

selection.

4 - The menu will disappear automatically.

To switch the TV on standby, select  and press the

joystick key on the back or bottom of the TV.

Remote Control

4.1

Key overview

Top

1 -  Standby / On

To switch the TV on or back to Standby.

2 - Youtube

To open Youtube.

3 -  SMART INFO (Only in Professional Mode

ON)

To show information provided by the Hotel.

4 - 

To open the Netflix App directly. With the TV switched

on or from standby.)

• If you have a Netflix menbership subscription, you

can enjoy Netflix on this TV. Your TV must be

connected to the Internet.

• To open Netflix, press  to open the Netflix

App. You can open Netflix immediately from a TV in

standby.

www.netflix.com

5 -  Weather (Only in Professional Mode ON )

To show the weather information of your location.

6 -  Google Cast (Only in Professional Mode ON

)

To mirror the content of your mobile device display

on to the TV.

Middle

1 -  SETTINGS

To open the settings menu.

2 -  TV GUIDE

To open a list of the current and scheduled TV

programmes of your channels.

3 -  BACK

•To switch back to the previous channel you

selected.

• To return to previous menu.

4 -  OPTIONS

To open or close the options menu.

5 - OK key

To confirm a selection or setting.

6 - Arrow / navigation keys

To navigate up , down , left  or right .

7 -  Channel

To switch to the next or previous channel in the

channel list.

8 -  EXIT

To switch back to watching TV.

9 -  HOME

To open the Home menu.

4.3

Batteries

If the TV does not react on a key press on the remote

control, the batteries might be empty.

To replace the batteries, open the battery

compartment on the keyboard side of the remote

control.

1 - Slide the battery door in the direction shown by

the arrow.

2 - Replace the old batteries with 2

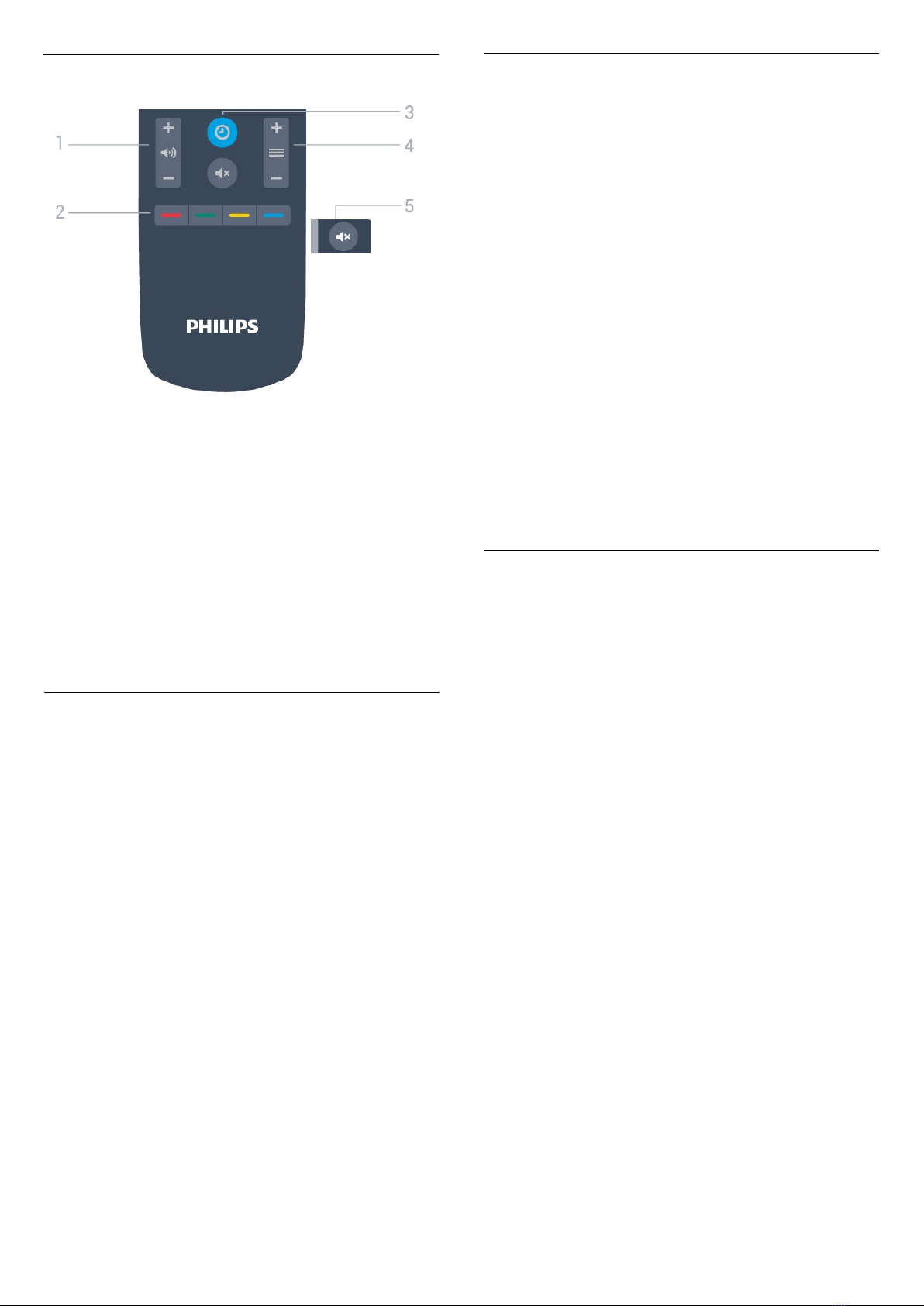

1 -  Volume

To adjust the volume level.

2 -     Colour keys

Direct selection of options.

3 -  CLOCK

To display the clock.

4 -  Channel

To switch to the next or previous channel in the

channel list.

5 -  Mute

To mute the sound or to restore it.

4.2

IR Sensor

The TV can receive commands from a remote control

that uses IR (infrared) to send commands. If you use

such a remote control, always make sure you point

the remote control at the infrared sensor on the front

of the TV.

 Warning

Do not put any objects in front of IR sensor of the TV,

it may block the IR signal.

type AAA-R03-1.5V batteries. Make sure the + and

the - ends of the batteries line up correctly.

3 - Reposition the battery door and slide it back until

it clicks.

•Remove the batteries if you are not using the remote

control for a long time.

• Safely dispose of your old batteries according to the

end of use directions.

4.4

Cleaning

Your remote control is treated with a scratch-resistant

coating.

To clean the remote control, use a soft damp cloth.

Never use substances such as alcohol, chemicals or

household cleaners on the remote control.

Bottom

Specifications

5.1

Environmental

Product Information sheet

EPREL registration number

43HFL5214U/12 : 935954

50HFL5214U/12 : 935974

55HFL5214U/12 : 936014

End of Use

Disposal of your old product and batteries

Your product is designed and manufactured with high

quality materials and components, which can be

recycled and reused.

When this crossed-out wheeled bin symbol is

attached to a product it means that the product is

covered by the European Directive 2012/19/EU.

Please inform yourself about the local separate

collection system for electrical and electronic

products.

Please act according to your local rules and do not

dispose of your old products with your normal

household waste. Correct disposal of your old

product helps to prevent potential negative

consequences for the environment and human

health.

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot be

disposed with normal household waste.

Please find out for yourself about the local rules on

separate collection of batteries because correct

disposal will help to prevent negative consequences

for the environment and human health.

5.2

Power

Product specifications are subject to change without

notice. For more specification details of this product,

see www.philips.com/support

Power

• Mains power : AC 220-240V +/-10%

• Ambient temperature : 5°C to 35°C

• Power saving features : Eco mode, Picture mute (for

radio), Auto switch-off timer, Eco settings menu.

5.3

Operating System

Android OS :

Android Pie 9

5.4

Reception

• Aerial input : 75 ohm coaxial (IEC75)

• Tuner bands : Hyperband, UHF, VHF

• DVB : DVB-T2, DVB-C (cable) QAM

• Analogue video playback : SECAM, PAL

• Digital video playback : MPEG2 SD/HD (ISO/IEC

13818-2), MPEG4 SD/HD (ISO/IEC 14496-10), HEVC*

• Digital audio playback (ISO/IEC 13818-3)

• Input frequency range : 950 to 2150MHz

• Input level range : 25 to 65 dBm

* Only for DVB-T2

5.5

Display Type

Diagonal screen size

• 108 cm / 43 inch

• 126 cm / 50 inch

• 139 cm / 55 inch

Display resolution

• 3840 x 2160

• 576p - 50 Hz

• 720p - 50 Hz, 60 Hz

• 1080i - 50 Hz, 60 Hz

• 1080p - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

Computer formats

Resolutions (amongst others)

• 640 x 480 - 60 Hz

• 800 x 600 - 60 Hz

• 1024 x 768 - 60 Hz

• 1280 x 800 - 60 Hz

• 1280 x 960 - 60 Hz

• 1280 x 1024 - 60 Hz

• 1400 x 900 - 60 Hz

• 1400 x 1050 - 60 Hz

• 1600 x 1200 - 60 Hz

• 1680 x 1050 - 60 Hz

• 3840 x 2160 - 24 Hz, 25 Hz, 30 Hz, 50 Hz, 60 Hz

5.7

Connectivity

TV Side

• Common Interface slot: CI+/CAM

• USB 1 - USB 3.0

• Headphones - Stereo mini-jack 3.5mm

• HDMI 1 in - ARC - Ultra HD

TV Bottom

• Network LAN - RJ45

• 12V 1.5A DC out

• HDMI 2/3 in - ARC - Ultra HD

• Antenna (75 ohm)

• USB 2 - USB 2.0

• 8  Audio out

• DATA(RJ-48)

5.8

Sound

• Output power (RMS) : 20W

• Dolby Audio

5.6

Display Input Resolution

Video formats

Resolution — Refresh rate

• 480i - 60 H

• 480p - 60 H

• 576i - 50 H

Otros manuales para 5214U Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Philips

Philips

Philips E Line 275E2F/11 Manual de usuario

Philips

Philips 190V6FB Manual de usuario

Philips

Philips BDT6531EM Manual de usuario

Philips

Philips Signage Solutions BDL4235DL Manual de usuario

Philips

Philips 190V7FB Manual de usuario

Philips

Philips 170S7FS Manual de usuario

Philips

Philips Brilliance 499P9 Manual de usuario

Philips

Philips 55PFL5059/V7 Manual de usuario

Philips

Philips 6214U Series Manual de usuario

Philips

Philips Brilliance 200P6IG Manual de usuario

Philips

Philips Brilliance 150P2E Manual de usuario

Philips

Philips 220EW8FS Manual de usuario

Philips

Philips 220B4LPCS/00 Manual de usuario

Philips

Philips 27E1N5500E Manual de usuario

Philips

Philips 200CW8FB/05 Manual de usuario

Philips

Philips Brilliance 235PQ2 Manual de usuario

Philips

Philips 229C4QHSB Manual de usuario

Philips

Philips Brillance BDM4065UC Manual de usuario

Philips

Philips EVNIA 32M2N5500P Manual de usuario

Philips

Philips Brilliance 288P6 Manual de usuario

Philips

Philips 42FD9935 Manual de usuario

Philips

Philips Color Monitor 105S5 Manual de usuario

Philips

Philips 190S8 Instrucciones de instalación y funcionamiento

Philips

Philips 1.92E+04 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación

LG M1950D-PZ Manual de usuario

Sceptre

Sceptre D40 Manual de usuario
