Philips BDL5545E Manual de usuario

SERVICE MANUAL

BDL5545E

Philips BDL5545E 1

TABLE OF CONTENTS

CHAPTER A REVISION LIST……………………………………………………………………….2

CHAPTER B WARNNING…………………………………………………………………………...3

CHAPTER C SEFETY RRECAUTIONS………….……………………......................................4

CHAPTER 1 GENERAL SPECIFICATION………………….....................................................5

CHAPTER 2 OPEARTING INSTRUCTION……………………………....................................14

CHAPTER 3 THEORY OF OPERATION…………………………….......................................35

CHAPTER 4 BLOCK DIAGRAM…………………………………….…....................................38

CHAPTER 5 SCHEMATIC DIAGRAM…………………..........................................................39

CHAPTER 6 LAYOUT SIDE VIEW……………………...........................................................40

CHAPTER 7 EXPLODED VIEW…………………………………………...................................41

CHAPTER 8 TROUBLE SHOOTING…………………….………….........................................42

Philips BDL5545E 2

CHAPTER A

REVISION LIST

Model Name Version Issues Date Remark

BDL5545E 3A 2011-11-08 First Release

Philips BDL5545E 3

CHAPTER B

WARNNING

This service information is designed for experienced repair technicians only and is not

designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of

potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced

professional technicians.

Any attempt to service or repair the product or products dealt within this service

information by anyone else could result in serious injury or death.

CHAPTER C

SAFETY PRECAUTIONS

1. Caution

No modification of any circuit should be attempted. Service work should only be performed after you

are through familiar with all of the following safety checks and servicing guide lines.

2. Safety check

Care should be taken while servicing this LCD display. Because of the high voltage used in the

inverter circuit. These voltage are exposed in such areas as the associated transformer circuits.

3. Power supply requirements

The internal power converter with the attached AC power cord is necessary for the LCD monitor. Any

attempt to replace another power converter could result in serious of problems on the display.

4. Leakage current hot check

4-1 Plug the AC cord directly into the AC outlet. Do not use an isolation transformer during this check.

4-2 Connect a 1500 ohm, 10 watt resistor, paralleled by a 0.15uF capacitor between each metallic

part and a good earth ground.

4-3 Use an AC voltmeter with 1000 ohm / volt or more sensitivity and measure the AC voltage across

the combination 1500 ohm resistor and 0.15uF capacitor.

4-4 Move the resistor connection to each exposed metallic part and measure the voltage.

4-5 Reverse the polarity of the AC plug in the AC outlet and repeat the above measurement.

4-6 Voltage measured must not exceed 1.5 volt RMS, from any exposed metallic part to the ground.

A leakage current tester may be used in the above hot check, in which case any circuit measured

must not exceed 1 milliamp. In the case of a measurement exceeding the 1 milliamp value, a rework is

required to eliminate the chance of a shock hazard.

To Metal Parts

AC VOLTMETER

1500 10W

0.15u

Earth Ground

Philips BDL5545E 4

Philips BDL5545E 5

CHAPTER 1

GENERAL SPECIFICATION

Index of this chapter:

1. Specification

2. Outline

3. I/O connectors

4. Factory preset timing

1. Specification

Item Specification

LCD Module

Size: 54.64” diagonal

Pixel Pitch: 0.630(H) mm x 0.630(V) mm

Resolution: 1920(H) x 1080(V)

Color: 10 bit colors

Brightness: 500 cd/m2 (typical)

Contrast Ratio: 5000:1 (typical), 15000:1 (smart contrast)

Viewing Angle (CR>10): Horizontal 178° / Vertical 178°

Response Time: 8 ms (GTG)

Frequency Horizontal :15 ~ 91 KHz

Vertical :50 ~ 85 Hz

Pixel Clock 13.5 ~ 165.0 MHz

Speaker External speaker jack: 7W+7W

Internal speaker: 10W+10W

Power Supply 100 / 240 VAC, 50 / 60 Hz

Power Consumption Display mode: <350 W (typical), <400 W (max)

Sleeping mode: Less than 1 W

Operational Environment Temperature: 0 ~ 40 °C, Humidity: 20 ~ 80%

Storage Environment Temperature: -20 ~ 60 °C, Humidity: 10 ~ 90%

Tilt / Swivel / Rotation No

Wall Mount Method VESA in back-cover

Dimension (w/o stand) Net: 1299(W) x 770(H) x 130(D) mm

Cross: 1474(W) x 938(H) x 346(D) mm

Weight (w/o stand) Net: 42.7 kg

Gross: 51.7 kg

2. Outline

¾Front view

¾Rear view

Philips BDL5545E 6

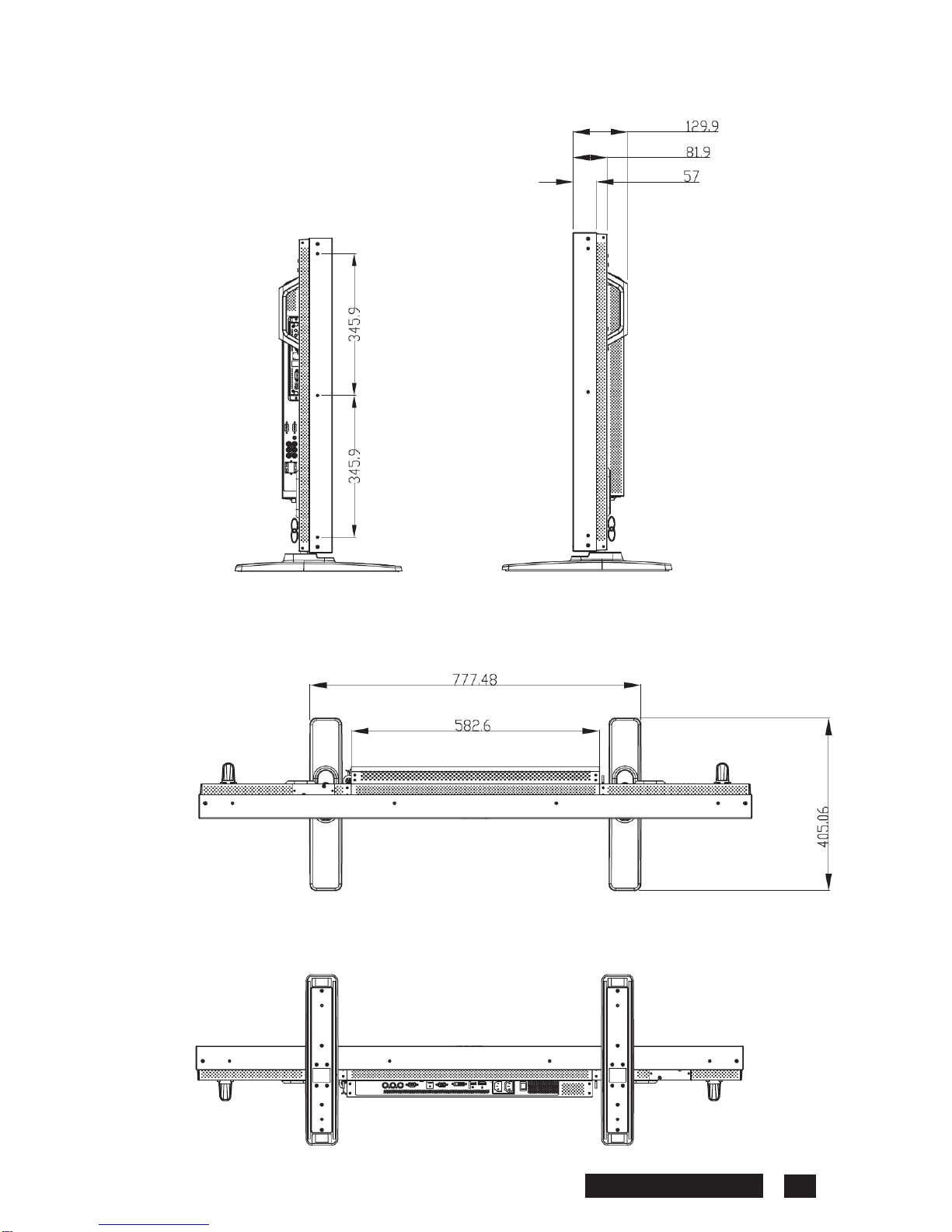

¾Side view

(Left) (Right)

¾Top view

¾Button view

Philips BDL5545E 7

3. I/O connectors

3.1 Overview

OPS SLOT

Slot for installing the optional OPS module.

RS232C (OUT/IN)

RS232C network connection input/output for the use of loop through function.

AUDIO IN (AUDIO1/AUDIO2/ AUDIO3)

Connects to the audio output of a computer or an AV device.

AUDIO OUT R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack.

SPEAKERS R/L

Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external

speakers.

Main power switch

Press to switch the mains power on/off.

AC OUT

Connect to the AC IN socket of an external media device.(Rating : 100~240Vac, 50-60Hz, 3A Max.)

AC IN

Connect the supplied power cord to the wall outlet.

DISPLAY PORT

Connects to the DisplayPort output of a PC or an AV device.

VIDEO IN (HDMI)

Connects to the HDMI output of an AV device or connect to the DVI-D output of a PC. (Using a

DVI-HDMI cable)

Philips BDL5545E 8

VIDEO IN (DVI-D)

Connects to the DVI-D output of a PC or connect to the HDMI output of an AV device (Using a

DVI-HDMI cable).

VGA IN

Connects to the VGA output of a computer.

VGA OUT

Outputs the VGA signal from the VGA IN jack.

VIDEO IN (COMPONENT)

Component video input (Component) for connecting to the component output of an AV device.

Philips BDL5545E 9
