Philips 140S Manual de usuario

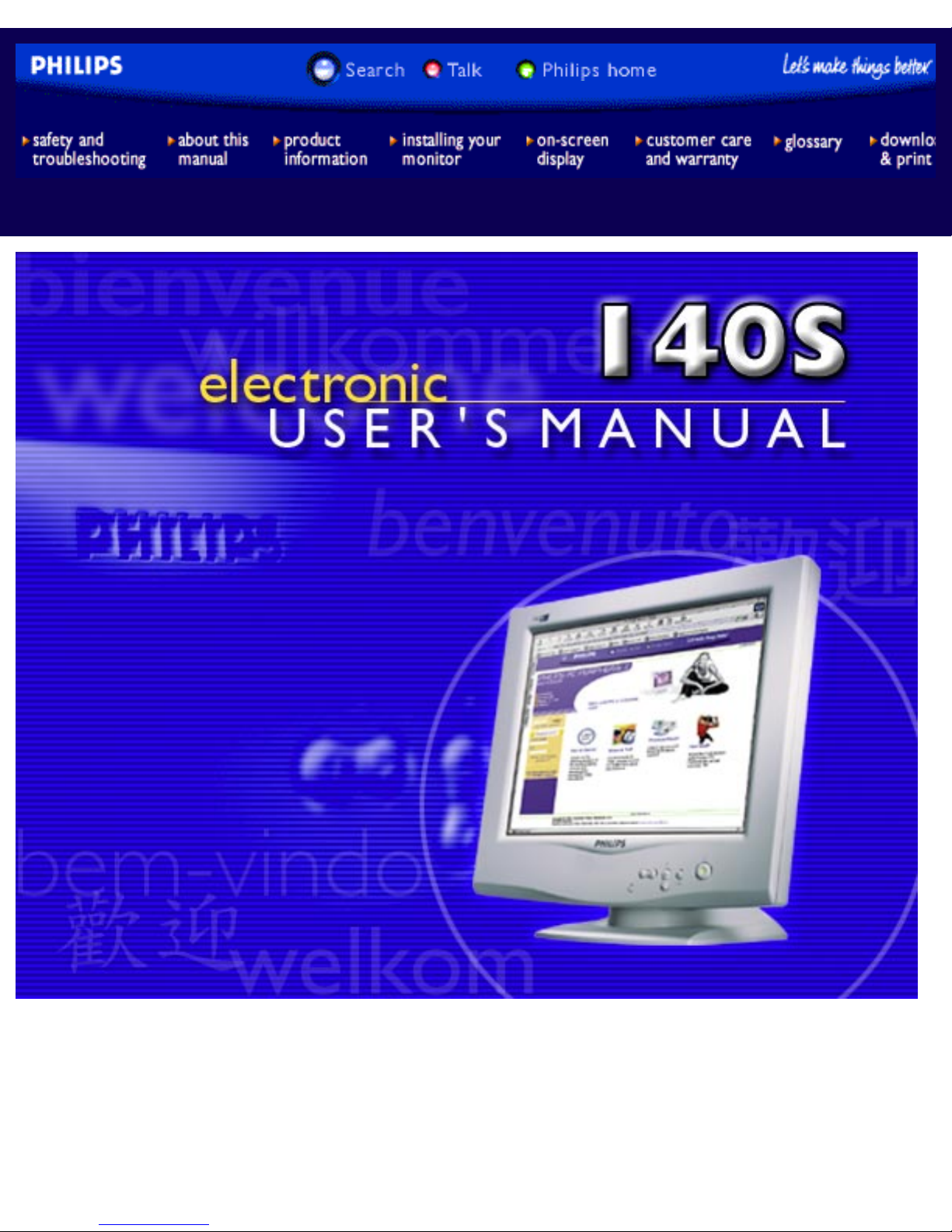

Philips 140S Electronic User's Manual

file:///E|/Potomac/english/140S/index.htm [4/19/2000 4:24:02 PM]

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Installation Locations • Correct Handling of the LCD

Monitor • FAQs • Troubleshooting • Regulatory Information • Other Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Unplug the monitor, if you are not going to use it for an extensive period of time.● Unplug the monitor, if you need to clean it with a slightly damp cloth. Wiping the screen with a dry

cloth is possible when the power is off. However, never use alcohol, solvents, or ammonia-based

liquids.

●

Consult a service technician if the monitor does not operate normally when following the instructions

in this manual.

●

The casing cover should be opened only by qualified service personnel.● Keep the monitor out of direct sunlight and away from stoves or any other heat source.● Remove any object that could fall into the vents or prevent proper cooling of the monitor’s electronics.● Do not block the ventilation holes on the cabinet.● Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.● When positioning the monitor, make sure the power plug and outlet are easily accessible.● If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds, then attach

the power cable or DC power cord for normal operation.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

●

When positioning the monitor, make sure the power plug and outlet are easily accessible.●

Consult a service technician if the monitor does not operate normally when operating instructions of this

manual are followed.

RETURN TO TOP OF THE PAGE

Installation Locations

Avoid Heat and Extreme Cold● Do not store or use the LCD monitor in locations exposed to heat, direct sunlight, or extreme cold.● Avoid moving the LCD monitor between locations with large temperature differences. Choose a site●

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (1 of 3) [4/19/2000 4:28:13 PM]

falling within the following temperature and humidity ranges.

Temperature: 5-35°C 41-95°F❍ Humidity: 20-80% RH❍

Do not subject the LCD monitor to severe vibration or high impact conditions. Do not place the LCD

monitor inside a car trunk.

●

Take care not to mishandle this product by either knocking or dropping during operation or

transportation.

●

Do not store or use the LCD monitor in locations exposed to high humidity or a dusty environment.

Also do not allow water or other liquids to spill on or into the LCD monitor.

●

RETURN TO TOP OF THE PAGE

Correct handling of the monitor

When handling the monitor, grip the bottom firmly with both hands and ensure that the front panel

faces outward before lifting. Please refer to the diagram on the right.

Handling the monitor with care prevents scratching and damage. If the monitor becomes damaged,

immediately disconnect the power from the unit and have it checked by a qualified service person

before using it again.

To prevent fire or electrical shock, do not drop the monitor.3.

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (2 of 3) [4/19/2000 4:28:13 PM]

When moving the monitor, be sure to unplug all power cords in order to avoid injury or damage to the

equipment.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///E|/Potomac/english/140S/safety/safety.htm (3 of 3) [4/19/2000 4:28:13 PM]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips 140S LCD Monitor. It describes the

LCD monitor's features, setup, operation and other pertinent information. Its contents are identical to the

information in our printed version.

Sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems as well as

other related information you may need.

●

About This Electronic User's Manual gives an overview of information included, along with notation

icon descriptions and other documentation for your reference.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

On Screen Display provides information on adjusting the settings on your monitor.●

Customer Care and Warranty contains a list of worldwide Philips Consumer Information Centers along

with help desk phone numbers and information on the warranty applicable to your product.

●

Glossary defines technical terms.●

Download and Print Option transfers this entire manual to your hard drive for easy reference.●

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

Philips LCD Monitor Quick Start Guide which summarizes the steps for setting up the monitor getting

start and optimizing performance. This is included with this product.

●

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

About This Electronic User's Manual

file:///E|/Potomac/english/140S/about/about.htm (1 of 2) [4/19/2000 4:28:14 PM]

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold or italic type. These

blocks contain notes, cautions, or warnings. They are used as follows:

NOTE: This icon indicates important information and tips that help you make better

use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential

damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to

avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On Screen

Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the

specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

part is prohibited without written consent of Philips Electronics N.V.

About This Electronic User's Manual

file:///E|/Potomac/english/140S/about/about.htm (2 of 2) [4/19/2000 4:28:14 PM]

Product Information

Product Features • Technical Specifications • Resolution & Preset Modes • Philips Pixel

Defect Policy • Automatic Power Saving • Physical Specification • Pin Assignment • Product

Views

Product Features

140S

14.1" color LCD monitor with excellent display performance and viewing size comparable to a 15"

CRT monitor.

●

165mm depth with cable management, less than 60% foot print of comparable CRT monitors.● Full advance AUTO function allowing user to adjust Vertical and Horizontal Position, Phase and

Clock.

●

Smallest footprint design.●

RETURN TO TOP OF THE PAGE

Technical Specifications*

LCD PANEL

• Type TFT LCD

• Screen size 14.1’ visual

• Pixel Pitch 0.279 x 0.279mm

• LCD Panel type 1024 x 768 pixels

R.G.B. vertical stripe

Anti-glare prolarizer hardness

• Effective viewing area 285.7 x 214.3mm

• Display Colors 6 bits interface (256K color)

VIDEO

• Video dot rate 80 MHz

• Input impedance

- Video 75 ohm

- Sync 2 kOhm

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (1 of 5) [4/19/2000 4:28:14 PM]

• Input signal levels 700m Vpp

• Sync input signal Separate sync

Composite sync

• Sync polarities Positive and negative

• Input Frequency XGA Hsync 48- 60 KHz, Vsync 60 - 75 Hz (N.I.)

SVGA Hsync 35- 50 KHz, Vsync 56 - 75 Hz (N.I.)

VGA Hsync 31- 38 KHz, Vsync 60 - 75 Hz (N.I.)

• Video interface Analog (D-Sub)

OPTICAL CHARACTERISTICS

• Contrast ratio 200 (typ.)

• Brightness 200 nits (typ.)

• Peak contrast angle 6 o'clock

• White Chromacity x: 0.281 y: 0.311 (at 9300° K) x: 0.312 y: 0.338 (at 6500° K)

• Viewing Angle (C/R >5)

Upper >30 ° (typ.)

Lower >55° (typ.)

Left >63 ° (typ.)

Right >63 ° (typ.)

• Response time <=50ms (typ.)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Resolution & Preset Modes

• Maximum 1024 x 768 at 75Hz

• Recommended 1024x768 at 60Hz

14 USER DEFINABLE MODES

14 factory preset modes:

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (2 of 5) [4/19/2000 4:28:14 PM]

dot rate

(MHz) H. freq (KHz) Mode Resolution V. freq (KHz)

25.175 31.469 IBM VGA 10h 640*350 70.086

28.322 31.469 IBM VGA 3h 720*400 70.087

25.175 31.469 IBM VGA 12h 640*480 59.940

30.200 35.000 MACINTOSH 640*480 67.000

31.500 37.861 VESA 640*480 72.809

31.500 37.500 VESA 640*480 75.000

36.000 35.156 VESA 800*600 56.250

40.000 37.879 VESA 800*600 60.317

50.000 48.077 VESA 800*600 72.188

49.500 46.875 VESA 800*600 75.000

57.300 49.700 MACINTOSH 832*624 75.000

65.000 48.363 VESA 1024*768 60.004

75.000 56.476 VESA 1024*768 70.069

78.750 60.023 VESA 1024*768 75.029

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can

automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or

other input device is detected, the monitor will automatically "wake up". The following table shows the

power consumption and signaling of this automatic power saving features:

Power Management Definition

VESA Mode Video H-sync V-sync Power Used LED color

ON Active Yes Yes < 23W Green

Stand-by Blanked No Yes < 3W Amber

Suspend Blanked Yes No < 3W Amber

OFF Blanked No No < 3W Amber

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (3 of 5) [4/19/2000 4:28:14 PM]

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

Physical Specifications

• Dimension (WxHxD) 361 x 343 x 165 mm (incl. Pedestal)

• Weight 4.6 Kg

• Power supply 100 — 240 VAC, 50/60 Hz

• Power consumption 23 W

• Temperature (operating) 0° C to 35° C

• Relative humidity 20% to 80%

• System MTBF 50K hrs (excluding LCD panel, CCFL)

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable:

No. Assignment Pin

No. Assignment

1 Red video input 9 No pin

2 Green video input 10 Logic ground

140S Product Information

file:///E|/Potomac/english/140S/product/product.htm (4 of 5) [4/19/2000 4:28:14 PM]
