Philips Burton SUPER EXAM 50 LED Hoja de especificaciones

ill

(

( t

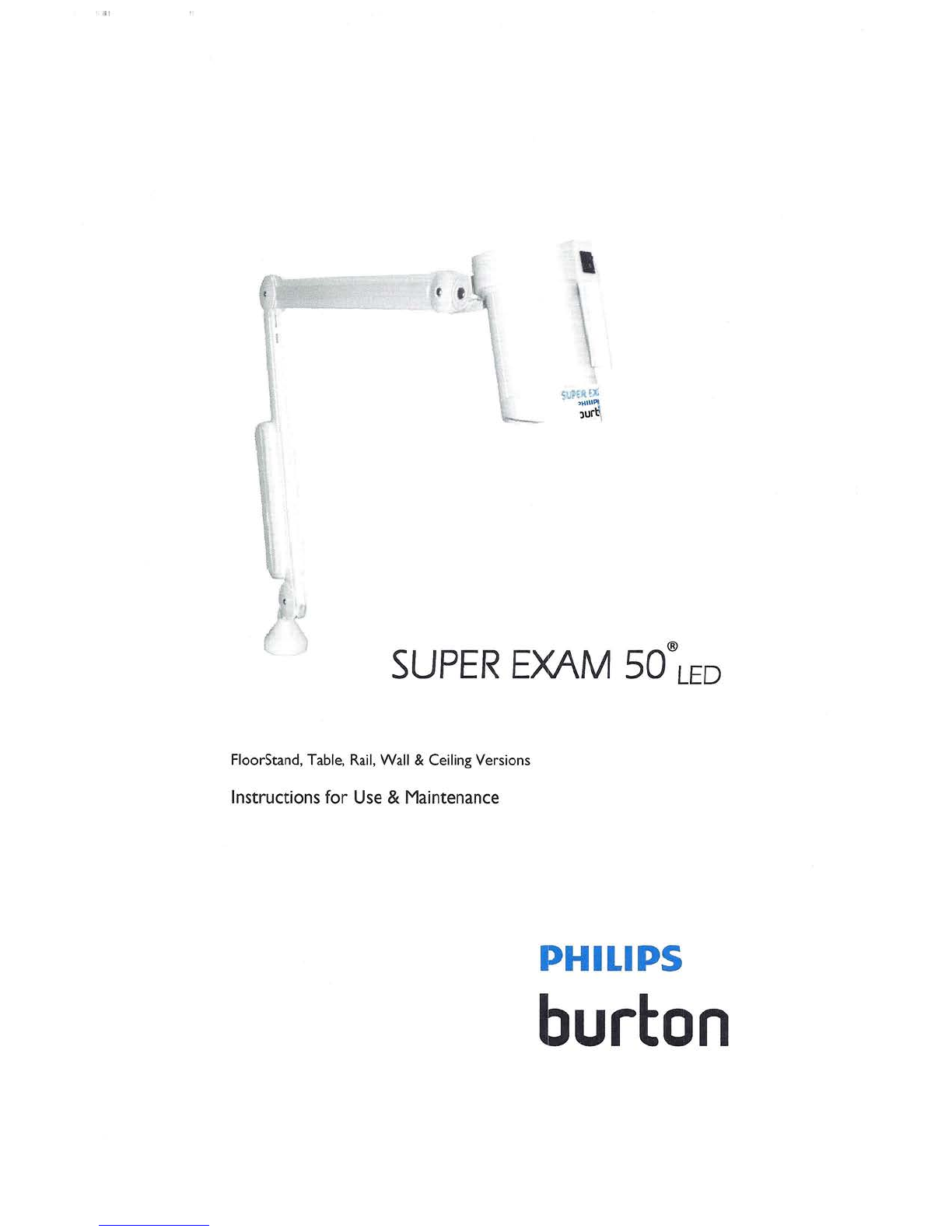

SUPER EXAM 5

LED

FloorStand, Table, Rail, Wall

Ceiling Versions

Instructions for Use

Maintenance

PHILIPS

burton

I III

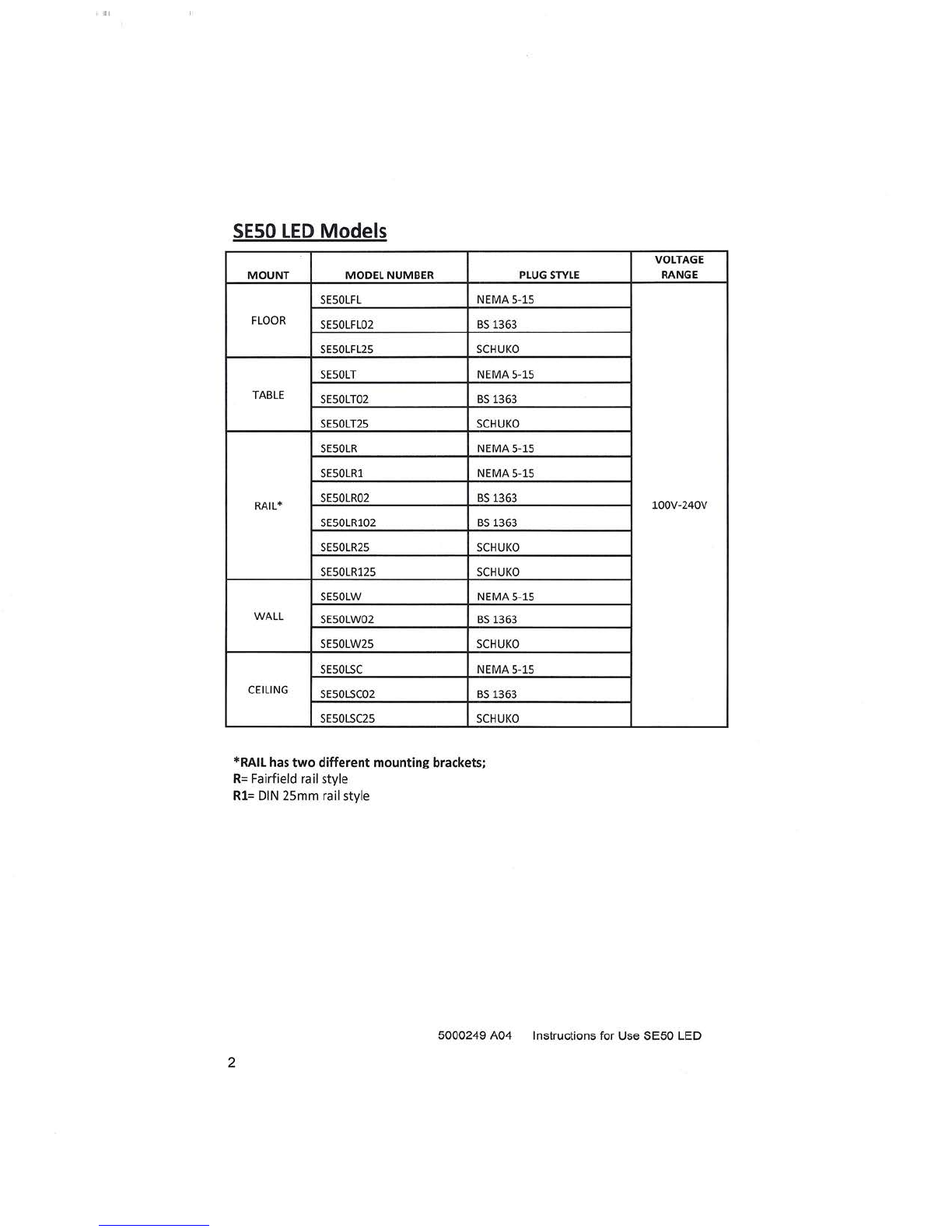

SESOLED Models

VOLTAGE

MOUNT MODEL NUMBER PLUG STYLE RANGE

SE50LFL NEMA 5-15

FLOOR SE50LFL02 BS1363

SE50LFL25 SCHUKO

SE50LT NEMA 5-15

TABLE SE50LT02 BS1363

SE50LT25 SCHUKO

SE50LR NEMA 5-15

SE50LRl NEMA 5-15

RAIL' SE50LR02 BS1363 100V-240V

SE50LR102 BS1363

SE50LR25 SCHUKO

SE50LR125 SCHUKO

SE50LW NEMA 5-15

WALL SE50LW02 BS1363

SE50LW25 SCHUKO

SE50LSC NEMA 5-15

CEILING SE50LSC02 BS1363

SE50LSC25 SCHUKO

*RAIL has two different mounting brackets;

R= Fairfield rail style

Rl=

DIN 25mm rail style

5 249

A04 Instructions for Use SE50 LED

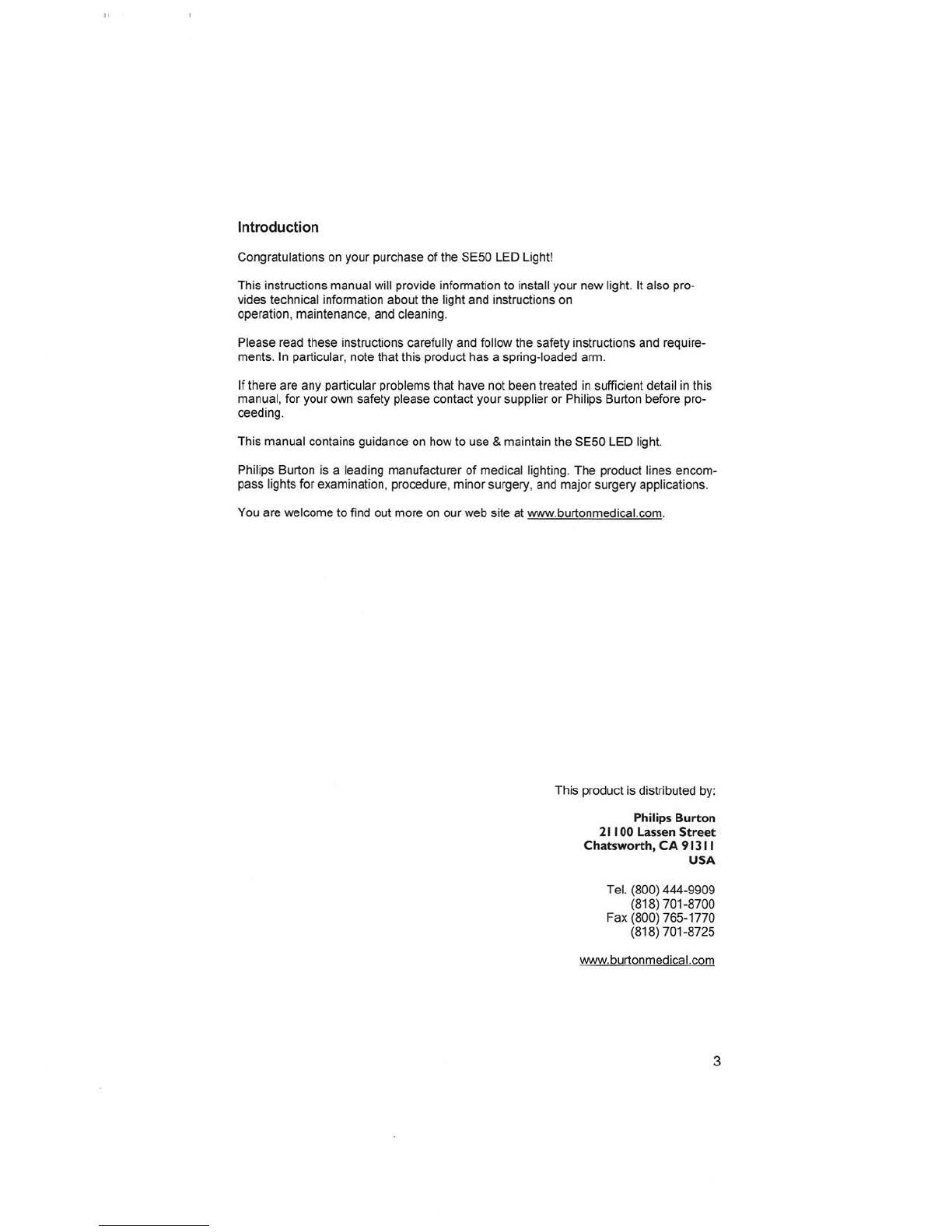

Introduction

Congratulations on your purchase of the SE50 LED Light

This instructions manual will provide information to install your new light. It also pro-

vides technical information about the light and instructions on

operation, maintenance, and cleaning.

Please read these instructions carefully and follow the safety instructions and require-

ments. In particular, note that this product has a spring-loaded arm.

If there are any particular problems that have not been treated in sufficient detail in this

manual, for your own safety please contact your supplier or Philips Burton before pro-

ceeding.

This manual contains guidance on how to use

maintain the SE50 LED light.

Philips Burton is a leading manufacturer of medical lighting. The product lines encom-

pass lights for examination, procedure, minor surgery, and major surgery applications.

You are welcome to find out more on our web site at www.burtonmedical.com.

This product is distributed by:

Philips Burton

21I00 Lassen Street

Chatsworth, CA 91311

USA

Tel. (800) 444-9909

(818) 701-8700

Fax (800) 765-1770

(818) 701-8725

www.burtonmedical.com

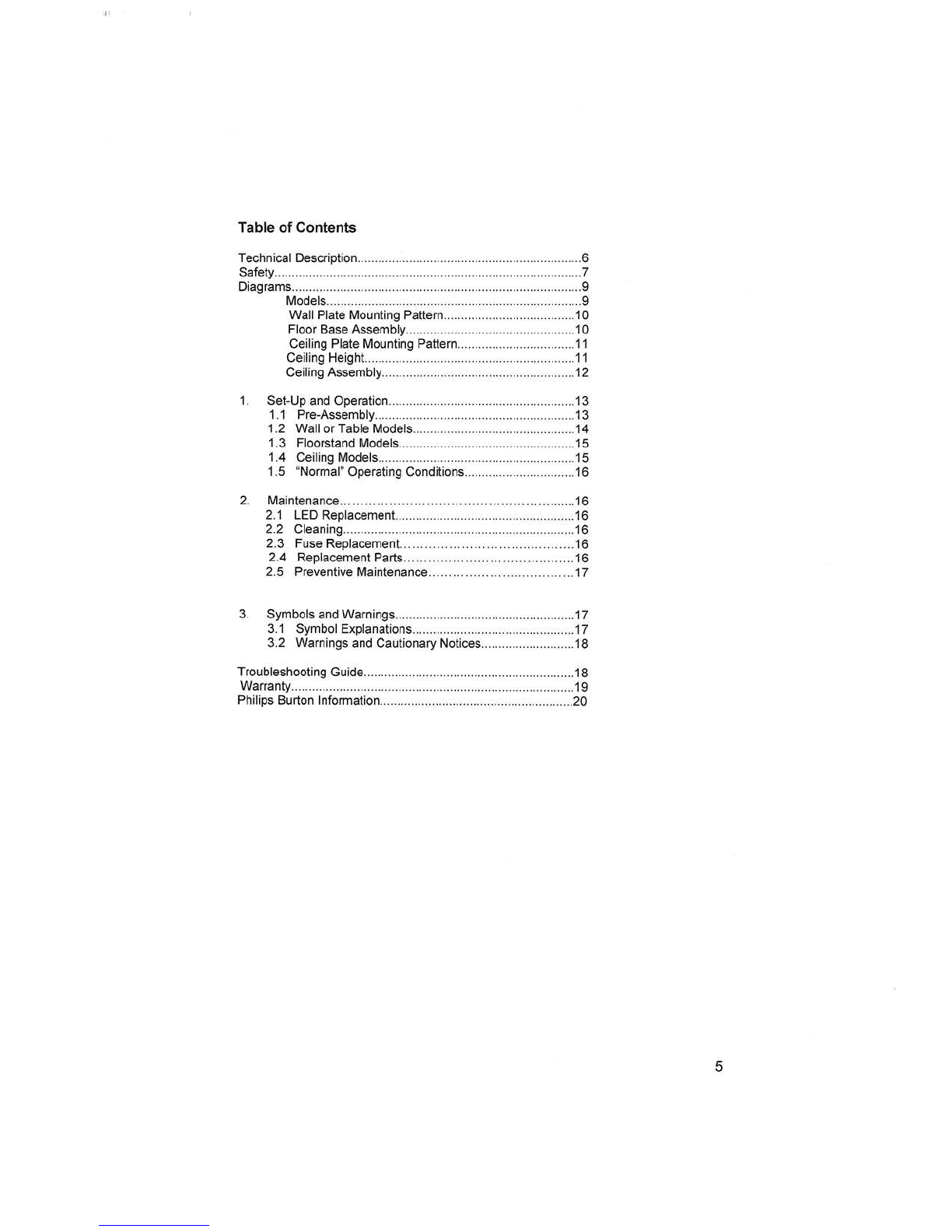

Table of Contents

Technical Description 6

Safety 7

Diagrams 9

Models 9

Wall Plate Mounting Pattern 10

Floor Base Assembly 10

Ceiling Plate Mounting Pattern 11

Ceiling Height. 11

Ceiling Assembly 12

1. Set-Up and Operation 13

1.1 Pre-Assembly 13

1.2 Wall or Table Models 14

1.3 Floorstand Models 15

1.4 Ceiling Models 15

1.5 "Normal" Operating Conditions 16

2. Maintenance 16

2.1 LED Replacement... 16

2.2 Cleaning 16

2.3 Fuse Replacement. 16

2.4 Replacement Parts 16

2.5 Preventive Maintenance 17

3. Symbols and Warnings 17

3.1 Symbol Explanations 17

3.2 Warnings and Cautionary Notices 18

Troubleshooting Guide 18

Warranty 19

Philips Burton Information 20

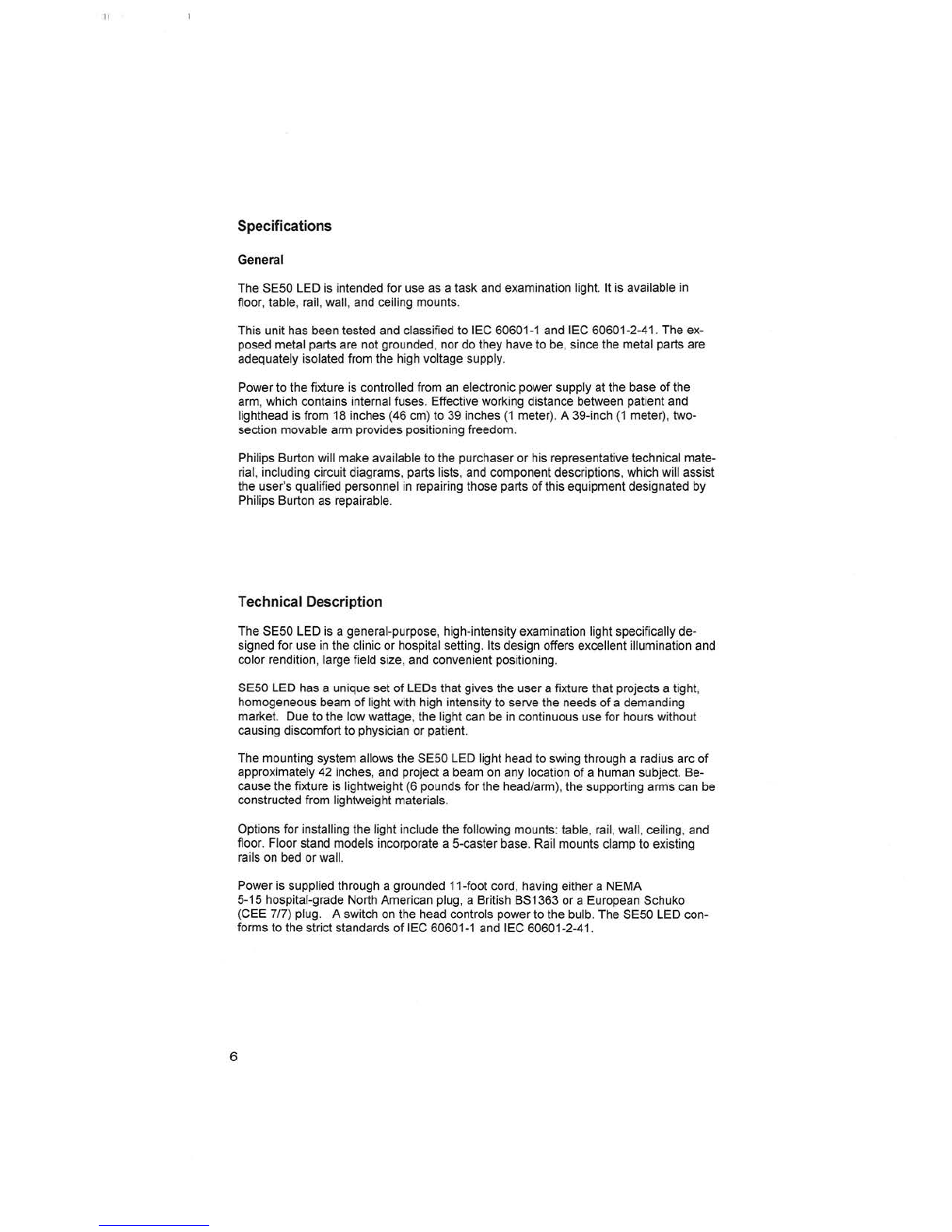

Specifications

General

The SESO LED is intended for use as a task and examination light. It is available in

floor, table, rail, wall, and ceiling mounts.

This unit has been tested and classified to IEC 60601-1 and IEC 60601-2-41. The ex-

posed metal parts are not grounded, nor do they have to be, since the metal parts are

adequately isolated from the high voltage supply.

Power to the fixture is controlled from an electronic power supply at the base of the

arm, which contains internal fuses. Effective working distance between patient and

lighthead is from 18 inches (46 cm) to 39 inches (1 meter). A 39-inch (1 meter), two-

section movable arm provides positioning freedom.

Philips Burton will make available to the purchaser or his representative technical mate-

rial, including circuit diagrams, parts lists, and component descriptions, which will assist

the user's qualified personnel in repairing those parts of this equipment designated by

Philips Burton as repairable.

Technical Description

The SESO LED is a general-purpose, high-intensity examination light specifically de-

signed for use in the clinic or hospital setting. Its design offers excellent illumination and

color rendition, large field size, and convenient positioning.

SESO LED has a unique set of LEDs that gives the user a fixture that projects a tight,

homogeneous beam of light with high intensity to serve the needs of a demanding

market. Due to the low wattage, the light can be in continuous use for hours without

causing discomfort to physician or patient.

The mounting system allows the SESO LED light head to swing through a radius arc of

approximately 42 inches, and project a beam on any location of a human subject. Be-

cause the fixture is lightweight (6 pounds for the head/arm), the supporting arms can be

constructed from lightweight materials.

Options for installing the light include the following mounts: table, rail, wall, ceiling, and

floor. Floor stand models incorporate a S-caster base. Rail mounts clamp to existing

rails on bed or wall.

Power is supplied through a grounded 11-foot cord, having either a NEMA

5-15 hospital-grade North American plug, a British BS1363 or a European Schuko

(CEE 7/7) plug. A switch on the head controls power to the bulb. The SESO LED con-

forms to the strict standards of IEC 60601-1 and IEC 60601-2-41.

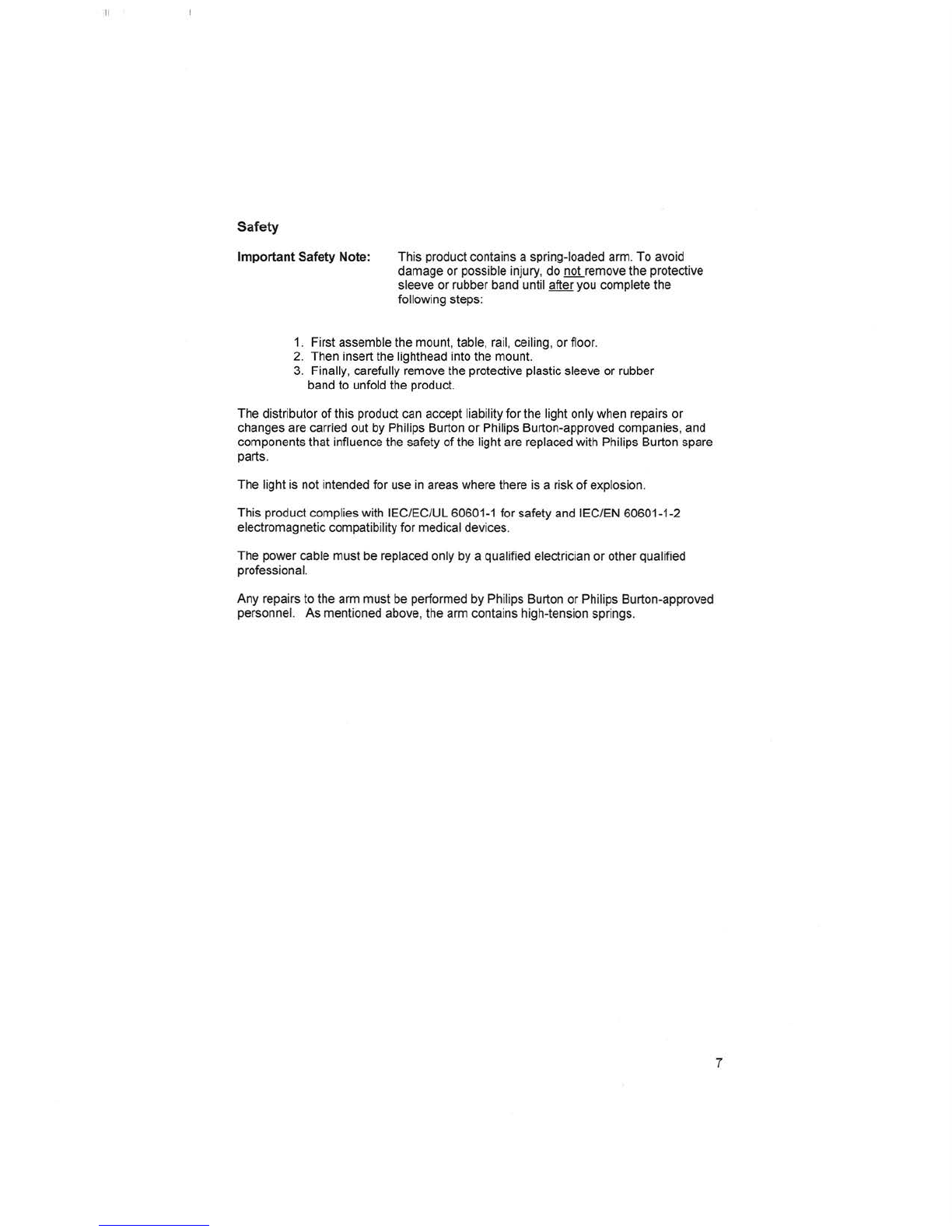

Safety

Important Safety Note: This product contains a spring-loaded arm. To avoid

damage or possible injury, do not remove the protective

sleeve or rubber band until after you complete the

following steps:

1. First assemble the mount, table, rail, ceiling, or floor.

2. Then insert the lighthead into the mount.

3. Finally, carefully remove the protective plastic sleeve or rubber

band to unfold the product.

The distributor of this product can accept liability for the light only when repairs or

changes are carried out by Philips Burton or Philips Burton-approved companies, and

components that influence the safety of the light are replaced with Philips Burton spare

parts.

The light is not intended for use in areas where there is a risk of explosion.

This product complies with IEC/EC/UL 60601-1 for safety and IEC/EN 60601-1-2

electromagnetic compatibility for medical devices.

The power cable must be replaced only by a qualified electrician or other qualified

professional.

Any repairs to the arm must be performed by Philips Burton or Philips Burton-approved

personnel. As mentioned above, the arm contains high-tension springs.

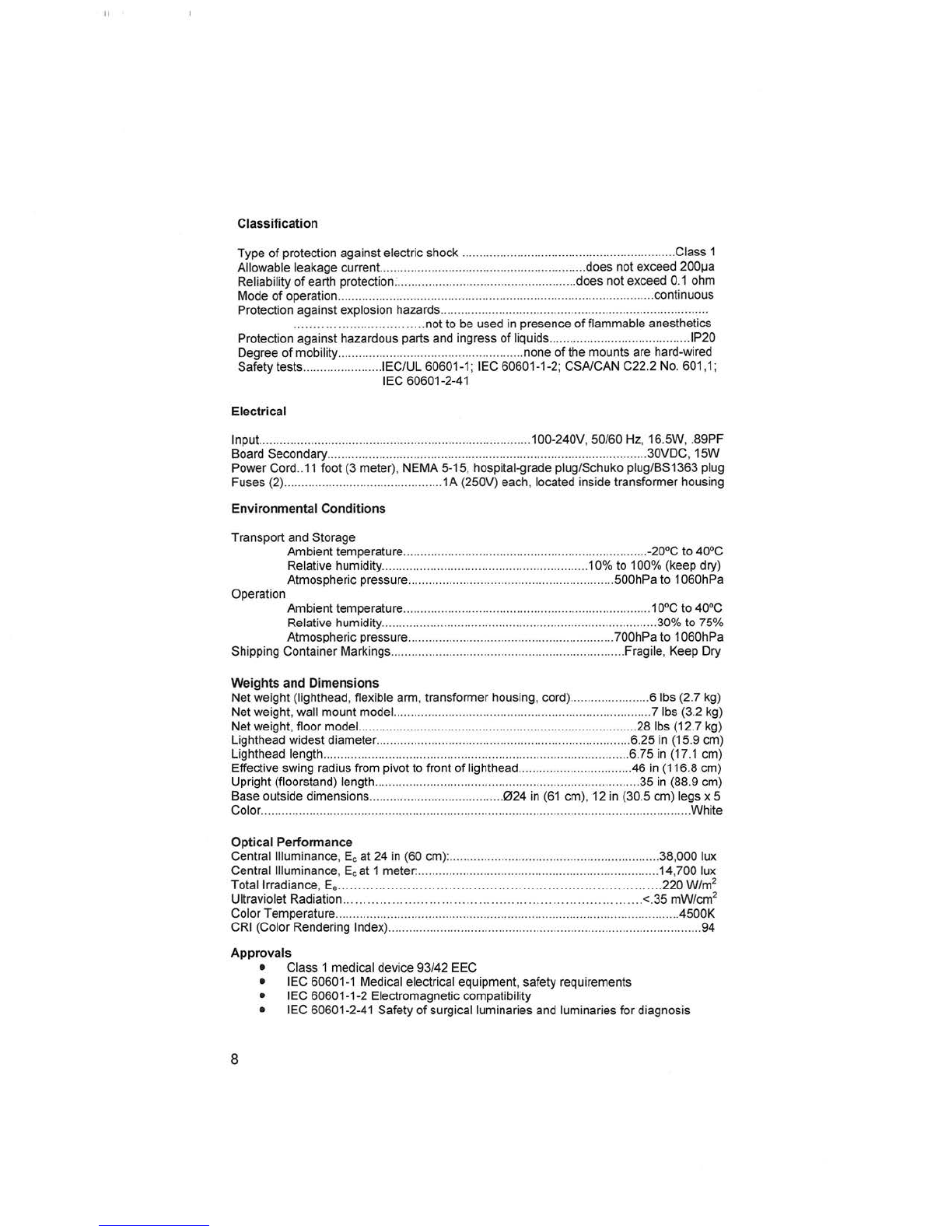

Classification

Type of protection against electric shock . Class 1

Allowable leakage current... does not exceed 200l-la

Reliability of earth protection: does not exceed 0.1 ohm

Mode of operation............... . continuous

Protection against explosion hazards .

..... ... ... ... ..not to be used in presence of flammable anesthetics

Protection against hazardous parts and ingress of liquids IP20

Degree of mobility.... . none of the mounts are hard-wired

Safety tests IEC/UL 60601-1; IEC 60601-1-2; CSAlCAN C22.2 No. 601,1;

IEC 60601-2-41

Electrical

Input... 100-240V, 50/60 Hz, 16.5W, .89PF

Board Secondary...................... . 30VDC, 15W

Power Cord ..11 foot (3 meter), NEMA 5-15, hospital-grade plug/Schuko plug/BS1363 plug

Fuses (2)............................... ....1A (250V) each, located inside transformer housing

Environmental Conditions

Transport and Storage

Ambient temperature -20°C to 40°C

Relative humidity 10% to 100% (keep dry)

Atmospheric pressure 500hPa to 1060hPa

Operation Ambient temperature 1O°C to 40°C

Relative humidity 30% to 75%

Atmospheric pressure 700hPa to 1060hPa

Shipping Container Markings Fragile, Keep Dry

Weights and Dimensions

Net weight (Iighthead, flexible arm, transformer housing, cord) 6Ibs (2.7 kg)

Net weight, wall mount model 7 Ibs (3.2 kg)

Net weight, floor model. 28 Ibs (12.7 kg)

Lighthead widest diameter. 6.25 in (15.9 cm)

Lighthead length........................................................... ..6.75 in (17.1 cm)

Effective swing radius from pivot to front of lighthead.... . .46 in (116.8 cm)

Upright (floorstand) length 35 in (88.9 cm)

Base outside dimensions.. . 024 in (61 cm), 12 in (30.5 cm) legs x 5

Color......... . .white

Optical Performance

Central Illuminance, Ec at 24 in (60 ern): 38,000 lux

Central Illuminance, Ecat 1 meter: 14,700 lux

Total Irradiance, E•............................................................................ 220 W/m

Ultraviolet Radiation <.35 mW/crn

Color Temperature.............. . .4500K

CRI (Color Rendering Index). . 94

Approvals

• Class 1 medical device 93/42 EEC

• IEC 60601-1 Medical electrical equipment, safety requirements

• IEC 60601-1-2 Electromagnetic compatibility

• IEC 60601-2-41 Safety of surgical luminaries and luminaries for diagnosis

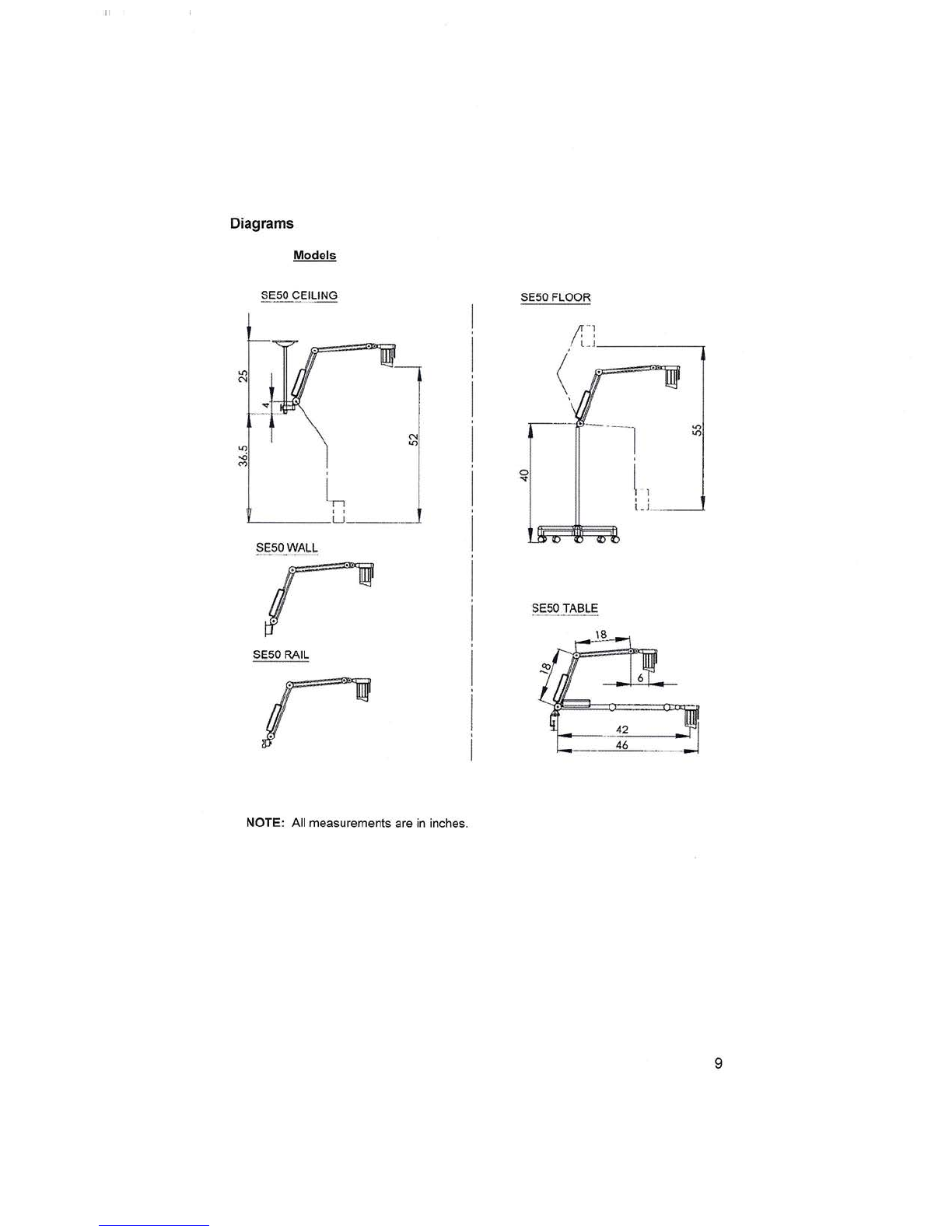

Diagrams

..0

<')

§.~~Q_""'~J±

SE50

RAIL

NOTE: All measurements are in inches.

SE50 FLOOR

If -]

[.J -.

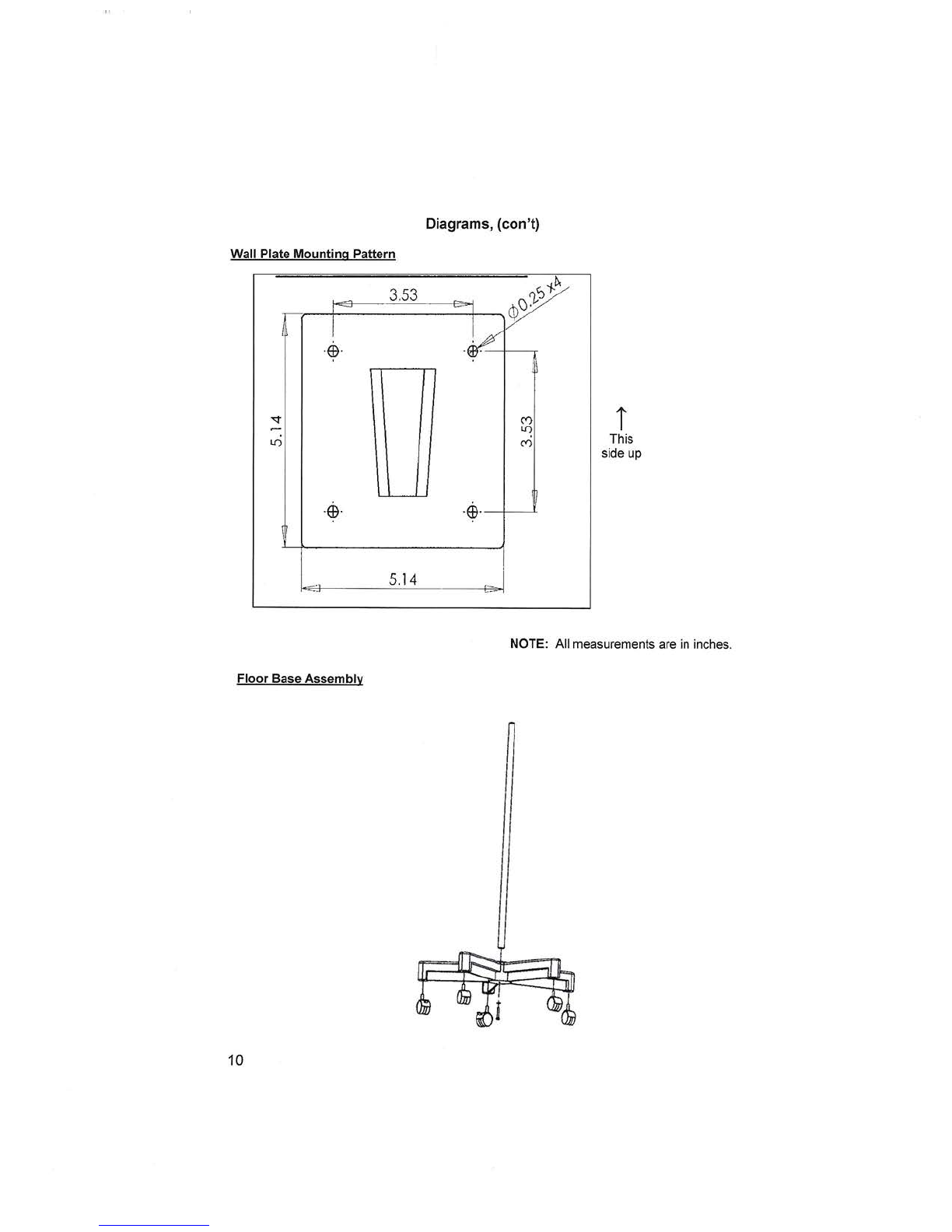

Diagrams, (con t)

Wall Plate Mounting Pattern

353

~~--8--j

CV\ ·

&II

.E9.

C )

Lf)

C )

.e,.

.$.

5.14

This

side up

NOTE: All measurements are in inches.

Floor Base Assembly
