Philips Lytecaster 2008 Manual de usuario

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster Recessed Downlighting 2008

Page 1 of 2 3 3/4" Aperture Cone Reflector Trim

5 3/8”

2008/2000LVR

Remodeler Low Voltage

7 1/4”

2008/2002P1 Series

Standard Incandescent

5 1/2”

5 3/8”

2008/2000LV

Standard Low Voltage

2008/2003R

0 NON-IC

Remodeler Ring

5 3/8”

5 1/2”

2008/2000IC

Insulated Ceiling

2008/2000AIC

Insulated Ceiling

AirSeal®

Features

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.); white or Natural

Metal trim flange.

2. Cone: Aluminum cone painted anodized finish.

3. Frame-In Kit: (2002P1 standard frame shown) Other frame shown on the

right. See Frame-In Kit specification sheet for more detail.

Options & Accessories

Lytegems: See 1300 Series Specification Sheets.

Retaining Clips: 1955 - For Installing in Existing Ceiling

Labels

UL (Suitable for Damp Locations), I.B.E.W

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

2008*

2010*

2012*

2013*

2013CD*

2013BK*

2013WH

Brushed Gold

Brushed Clear

Specular Gold

Specular Clear

Clear Diffuse

Specular Blk

Matte White

Line Voltage Low Voltage

Frame-In Kit Install Type Lamping Height Frame-In Kit Installation Type Lamping Height

2002P1 Standard Non-IC 40W A19** 5 1/2" 2000LV

2000LVR

2000LVE1

2000LVE2

2000LVRE1

Standard Non-IC

Remodeler Non-IC

Electronic Low Voltage Non-IC 120V

Electronic Low Voltage Non-IC 277V

Electronic Low Voltage Remodeler 120V

Lytening AirSeal® IC

5 3/8"

2003R Std. Non-IC Rem. 75W R20, PAR16 5 3/8" 5 3/8"

50W PAR20 5 3/8"

2000P1 Standard Non-IC 40W A19** 5 1/4" 20W-50W MR16 5 3/8"

75W R20, PAR16 5 3/8"

50W PAR20 5 3/8"

2000IC IC 50W R20, PAR20 5 9/32" 2004ICV/N 7 1/4"

2000AIC AirSeal® IC 45W PAR16 5 9/32" 2000LVNT Low Voltage Remote Transformer 20W-42W MR16 5 3/8"

2000AICV Lytening AirSeal® IC 20W-35W MR16 5 9/32"

*Add “NM” to SKU for Natural Metal Flange ** 60W A19 with 2003R

2008/2004ICV/N

0AirSeal® Insulated Ceiling

5 3/8”

2008/2000LVNT

Remote Transformer

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

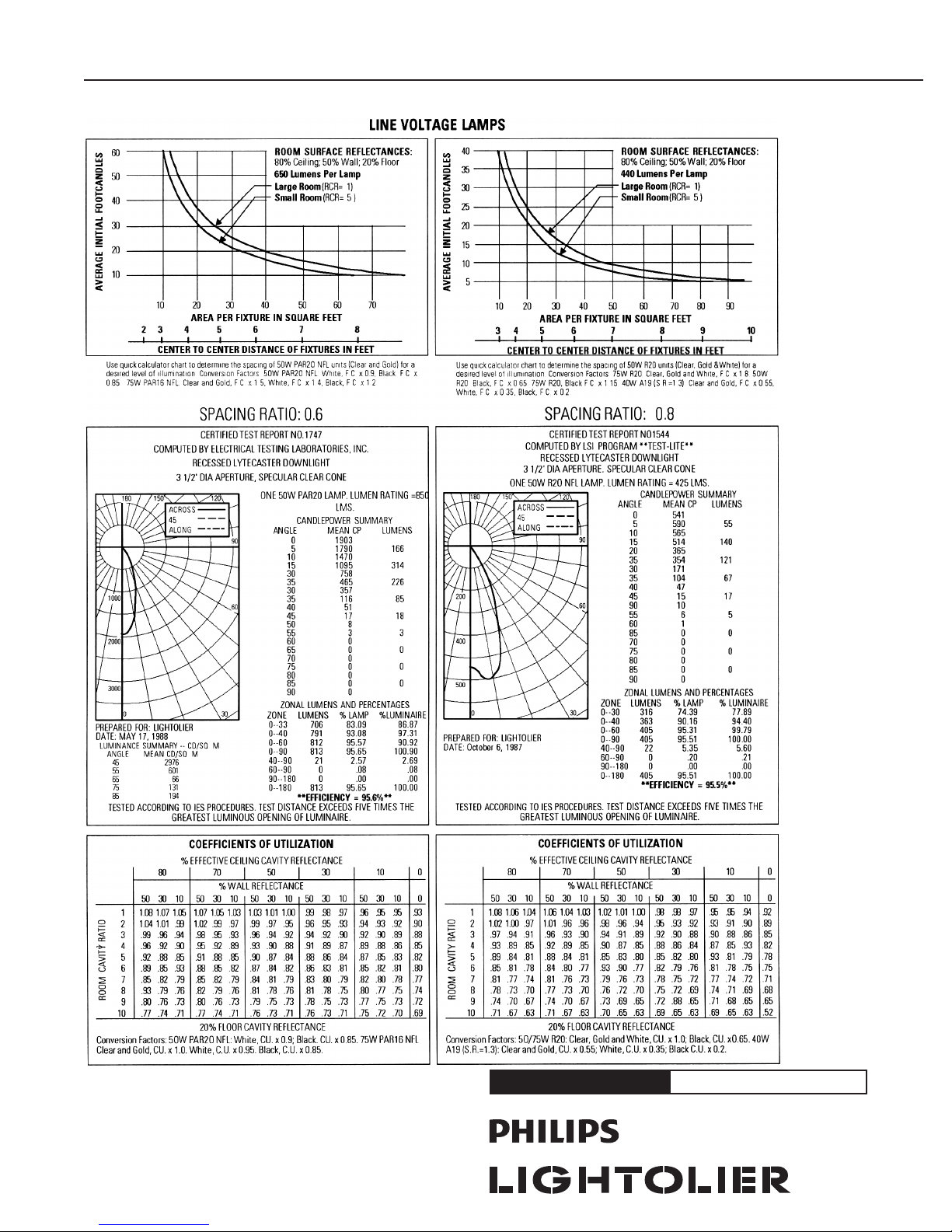

Lytecaster Recessed Downlighting 2008

Page 2 of 2 3 3/4" Aperture Cone Reflector Trim
