C3 Series

Recessed Emergency Power for Egress Lighting

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: The C3 Series

is a suggested emergency

power source for the LP Series

interior/exterior low-level

LED luminaire, the LLEF Series

exterior wall/soffit remote, and

the LLRE Series recessed MR16

exterior remote (see back

page). Any 12 VDC remote

emergency luminaire can also

be powered by the C3 Series

power module.

Housing: The C3 Series

power module rough-in

enclosure is fabricated from

20 gauge die formed galvanized

steel. The trim plate is

fabricated from 12 gauge steel

and is painted with a matte

white powder coat finish. The

trim plate is also offered with

an optional matte black finish.

Knockouts for conduit as

well as screw hole knockouts

for mounting to joist are

conveniently located on the

back box.

Operating Temperature

Range: Standard Location

65°F (19°C) to 85°F (30°C)

Damp Location

50°F (10°C) to 104°F (40°C)

Electronics: 120/277 VAC,

60 Hz, dual input. The power

module utilizes an automatic

voltage regulated charging

system. The 2-state charger

eliminates the need for

periodic battery exercising. It is

recommended that a monthly

load test of a minimum of (1)

minute be performed and

recorded to satisfy NFPA 101

life safety requirements. A

momentary test switch and

normal power indicator lamp

are located on the trim plate

to assist testing and visual

inspection of the product. A

pre-wired plug in receptacle is

provided within the enclosure

for routing 12 VDC emergency

power to remote emergency

luminaires.

Electrical Specifications:

C3250

(120) 0.22 A, (277) 0.11 A

C3275

(120) 0.21 A, (277) 0.11 A

C3275DL

(120) 0.22 A, (277) 0.11 A

Code Compliance

UL 924 and optional UL damp

location listed. NFPA 101,

NEC, BOCA, OSHA and IBC

illumination standards.

Warranty

Three-year full electronics

warranty. One year full plus

four year prorated lead calcium

battery warranty.

C3250LW

5.75"

(14.6 cm)

5.63"

(14.3 cm)

4.5"

(11.4 cm)

9.5"

(24.1 cm)

C3 Series

Recessed Emergency Power for Egress Lighting

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

C3 Series May 18, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

C3 = C3 Series

Power Module

Series

2= 12 V

DC Voltage

50 = 50 W

75 = 75 W

Output Wattage

L= Lead Calcium

Battery

W= White

B= Black

Trim Cover Finish Accessories (order as a separate item)

BHK1 = Bar Hanger for Mechanical Ceilings

DL = Damp Location*

TD = Time Delay (15 min)

*Damp location available

on 50 W version only.

Factory Installed Options

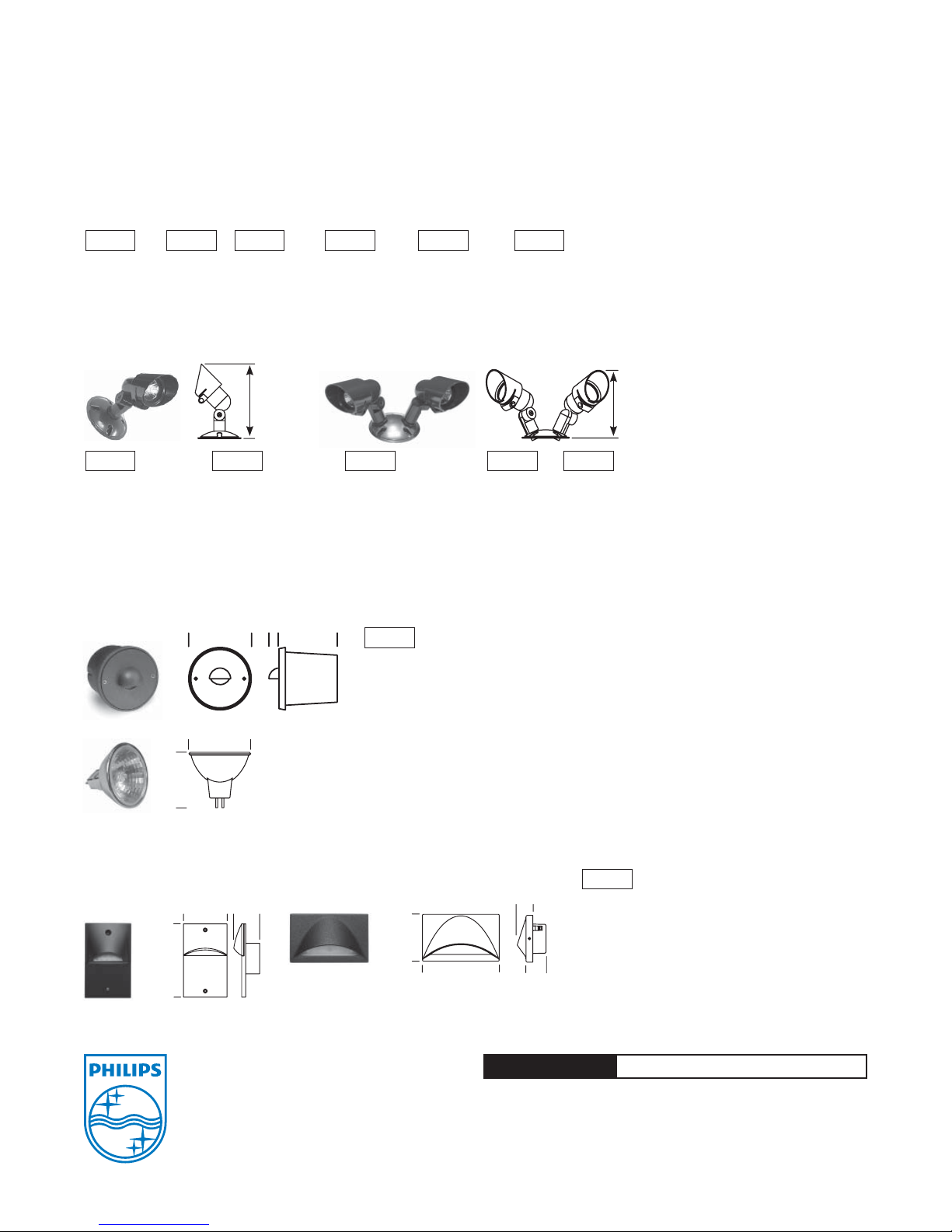

Recommended product selection to be used with the C3 Series

7.8 "

(19.81cm) 6.5"

(16.51 cm)

LLEF = Indoor/Outdoor

Remote Head

Series

1= Single Remote Head

2= Double Remote Head

# of Heads

LLEF

R= 4” Round

S= Single Gang Rectangular

Mounting Plate

BK = Black

BZ = Bronze

Finish

MR16 Halogen Lamps

Blank = No Lamps Installed

20WF = 12 Volt, 20 Watt Wide Flood 40°

35FL = 12 Volt, 35 Watt Flood 25°

35WF = 12 Volt, 35 Watt Wide Flood 40°

50FL = 12 Volt, 50 Watt Flood 25°

50WF = 12 Volt, 50 Watt Wide Flood 40°

MR16 LED Lamp1

7F2= 12 Volt, 7 Watt Flood 35°

Lamp Type

Accessories (order as a separate item)

LORBBK = Outdoor 4” Round Surface Mount Junction Box, Black

LORBBZ = Outdoor 4” Round Surface Mount Junction Box, Bronze

LOSBBK = Outdoor Single Gang, Surface/Recessed 2 3/4” x 4 1/2” Junction Box, Black

LOSBBZ = Outdoor Single Gang, Surface/Recessed 2 3/4” x 4 1/2” Junction Box, Bronze

LLEF Series

LLRE Series 4.69"

(11.9 cm)

LLREBK = Outdoor Remote Head Recessed, Black

LLREBZ = Outdoor Remote Head Recessed, Bronze

*Lamps sold separately.

Series

5.38"

(13.67 cm)

1.63"

(4.14 cm)

2.0"

(1.8 cm)

1.8"

(4.57 cm)

MR16 lamp options Description How to Order

12 Volt, 20 Watt, 40° beam spread L12MR20WFL

12 Volt, 35 Watt, 25° beam spread L12MR35FL

12 Volt, 35 Watt, 40° beam spread L12MR35WFL

12 Volt, 50 Watt, 25° beam spread L12MR50FL

12 Volt, 50 Watt, 40° beam spread L12MR50WFL

LP Series

Maximum of 8 luminaires on high setting can be operated by the 50 W C3 Series

Maximum of 13 luminaire son high setting can be operated by the 75 W C3 Series

Consult factory for custom colors.

2.75"

(6.99 cm)

4.5"

(11.4 cm)

1.5"

(3.81 cm)

4.5"

(11.4 cm)

.91"

(2.31 cm)

.78"

(1.98 cm)

2.75"

(6.99 cm)

LP1SBK = Outdoor LED Luminaire, Black

LP1SWH = Outdoor LED Luminaire, White

LP1SIV = Outdoor LED Luminaire, Ivory

LPH1SBK = Outdoor LED Luminaire, Black

LPH1SWH = Outdoor LED Luminaire, White

LPH1SIV = Outdoor LED Luminaire, Ivory

Series

Maximum of 75 W of connected luminaires

can be operated by the C3 Series.

Note

1) Lamp

included per

UL acceptance.

2) UL testing

restricts using

any substitutes

for this lamp

option.
