Philips 4AWA Manual de usuario

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Architectural Decorative 4AWA

Page 1 of 2 Pendalux ADA Wall Cirrus

Cirrus - Complete fixture consists of chassis only, i.e. 4AWA142AU

Chassis Finish Lamp Options

4AWA142AU White 26W, 32W, 42W TTT MX1, MX2 or E3

Optional Decorative Flanges

Gemini Contemporary Traditional

4FWATRMPB – Polished Brass

4FWATRMSN – Satin Nickel

4FWATRMWH – Matte White

4KWATRMSB –Satin Brass

4KWATRMSN – Satin Nickel

4KWATRMWH – Matte White

4RWATRMPB – Polished Brass

4RWATRMSB – Satin Brass

16"

Width

7 3/4"

Height

3 7/8"

To Outlet

Box Center

Extension

Options & Accessories

MX1 = Dimming Electronic Ballast, 120V, only

Replace Body Cat No. Suffix “U” with Suffix “MX1”

MX2 = Dimming Electronic Ballast, 277V, only

Replace Body Cat No. Suffix “U” with Suffix “MX2”

E3 = 347V (Canada)

Replace Body Suffix “U” with Suffix “E3”.

Mounting

Fixture is provided with a mounting plate suitable for direct mounting to most

outlet boxes or directly to wall surface over an outlet box.

Labels

cULus listed suitable for damp locations.

Fixture conforms to Americans with Disabilities Act (ADA) Federal Regulations—

Protruding Objects.

Features

1. Diffuser: .188 Thick molded acrylic.

2. Back Plate: Steel 20 gauge, Painted Finish.

Mounting Plate: Steel, Painted Finish.

3. Lampholder: Multi-wattage, 4-pin, will accept either GX24q-3 or

GX24q-4 lamp base.

4. Top Cover: Perforated Steel.

5. Ballast

Lamping (by others)

Compact Fluorescent: Triple Tube, 26, 32, or 42 Watts (by others).

General Electric Osram/Sylvania Philips

26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P

32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P

42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F42QBK/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P

*Manufacturers’ color temperature designation.

Electrical

Ballast: Electronic, 2-Lamp HPF, Class P, Programmed Start.

Universal Voltage 120/277V, Multi-Wattage 26/32/42W.

1 Lamp 26 Watt 32Watt 42Watt

Voltage 120V 277V 120V 277V 120V 277V

Total Input Watts 26 26 36 36 47 47

Max. Line Current (amps) 0.22 0.09 0.30 0.09 0.39 0.17

Power Factor >0.98 >0.98 >0.98 >0.98 >0.99 >0.99

Ballast Factor 0.98 0.98 0.96 0.98 0.98 0.98

THD<10% Minimum Starting Temperature 0°F /-18°C.

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Architectural Decorative 4AWA

Page 2 of 2 Pendalux ADA Wall Cirrus

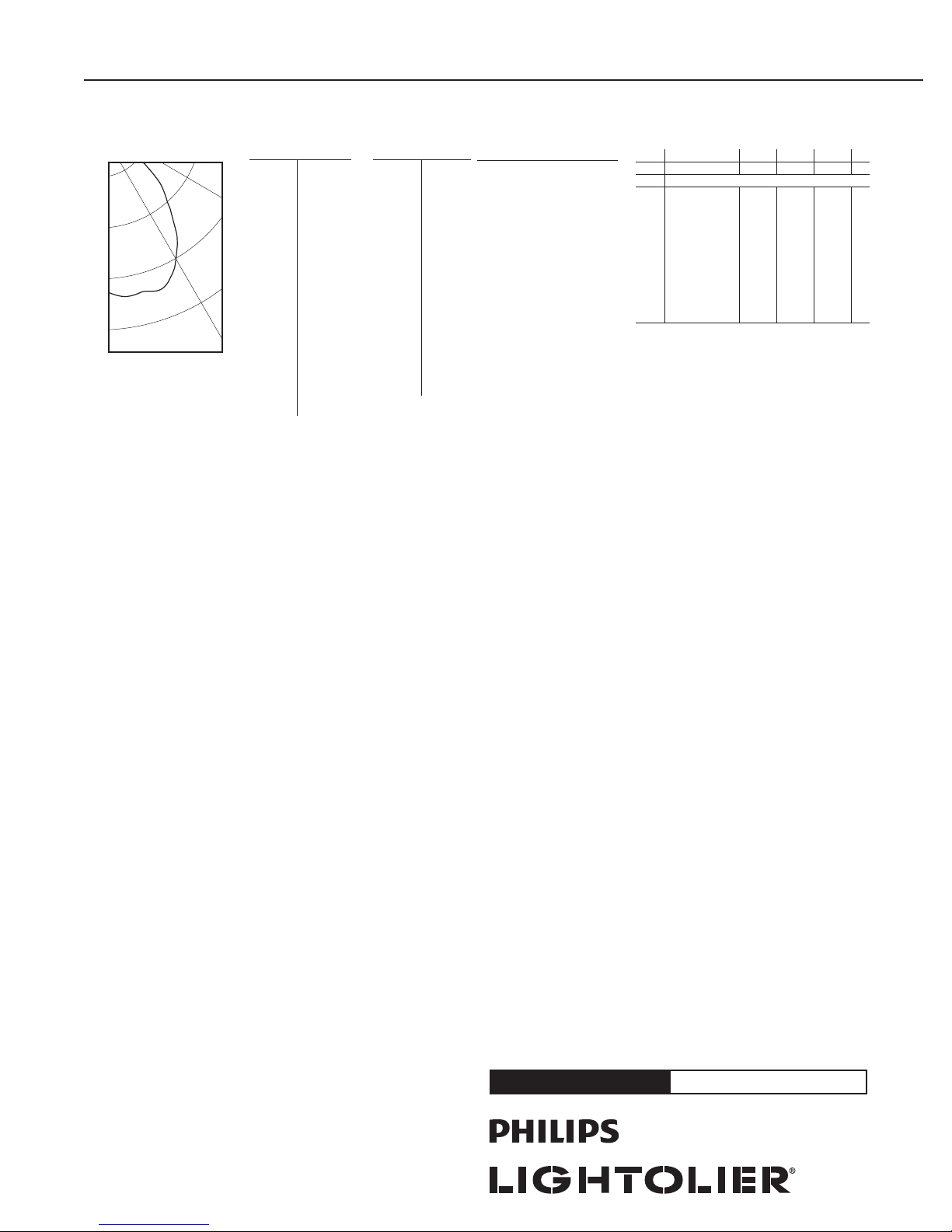

26W TRIPLE TUBE LAMP, LUMEN RATING = 1710 LMS, ELECTRONIC BALLAST, CL FINISH TRIM

181

363

544

725

150

300

450

600

60˚

30˚

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

064 64 64 64 63 63 60 60 57 57 54

1 60 59 57 59 58 55 55 53 53 52 49

257 54 51 49 53 48 51 47 49 46 44

353 49 46 43 48 43 47 42 45 41 40

4 49 45 38 44 38 43 37 42 37 36 41

5 46 41 37 34 40 34 39 34 38 33 32

643 37 33 31 37 31 36 30 35 30 29

740 34 30 28 34 28 33 27 33 27 26

838 32 28 25 31 25 31 25 30 25 24

36 36 29 26 23 29 23 28 23 28 23 22

10 33 27 24 21 27 21 27 21 26 21 20

Determined In Accordance With Current IES Published Procedures

Luminaire Input Watts = 27.0

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

0-30 415.94 24.3 45.2

0-40 659.16 38.5 71.7

0-60 918.96 53.7 99.9

0-90 919.93 53.8 100

90-120 0 0 0

90-130 0 0 0

90-150 0 0 0

90-180 0 0 0

0-180 919.93 53.8 100

** Efficiency = 53.8% **

ZONAL LUMEN SUMMARY

Zone Lumens

0-10 47.69

10-20 143.32

20-30 224.93

30-40 243.22

40-50 196.58

50-60 63.22

60-70 .97

70-80 0

80-90 0

90-100 0

100-110 0

110-120 0

120-130 0

130-140 0

140-150 0

150-160 0

160-170 0

170-180 0

CANDLEPOWER SUMMARY

Angle 0˚ CP

0 481

5 496

10 507

15 500

20 512

25 492

30 449

35 392

40 324

45 258

50 178

55 56

60 4

65 1

70 1

75 0

80 0

85 0

90 0

SC = 1.3

CERTIFIED TEST REPORT NO. 3067FR

COMPUTED BY LSI PROGRAM

**TEST-LITE**
