Lighting food.

Brightening faces.

Affinium™ LED modules LFM 200

for refrigerated display cases

Affinium LED LFM 200 modules offer the following

key benefits:

An excellent total cost of ownership with attractive•

payback times.

A dramatic improvement in visibility of both the•

merchandise on display as well as the entire display case.

Significant reduction in energy consumption and waste, as•

well as the elimination of hazardous substances such as

mercury and lead.

Affinium LED modules represent the latest in solid

state lighting for refrigerated displays. Designed

to replace traditional fluorescent lamps inside

vertical glass-door refrigerated cases, our LFM200

modules feature specialized optics that provide

bright, consistent illumination without the glare

or hotspots associated with older fluorescent

technology.With a slim, streamlined design, the

Affinium LED lighting system provides the perfect

solution for retrofit or new installations in the

refrigerated aisle

Color temperature

Cool White (CW) Affinium LED modules have a correlated color temperature (CCT) of 5600 ± 300K.

Neutral White (NW) Affinium LED modules have a correlated color temperature (CCT) of 4200 ± 300K.

The optical design of Affinium LED modules ensures that the adjacent LEDs in one module are optimally mixed in order to minimize

color differences.

Lighting levels and energy savings

Our products deliver best-in-class light uniformity and are available in two different lighting levels:

•Standardsystem:Deliversin-storelevelsofupto1000luxatthecenterofashelfwitha5inchshelfdistance.

•High-levelsystem:Deliversin-storelevelsofupto1300luxatthecenterofashelfwitha5inchshelfdistance.

The standard lighting level offers energy savings up to 75% with improved illumination compared to fluorescent lighting systems.The high

lighting level offers maximum aesthetics for the presentation of merchandise, while reducing the energy consumption by up to 55%. Both levels

offer superior uniformity, enabling a much better visual impression of the merchandise on display and the entire cooler and freezer sections.

Side1

Side 2

Side 1

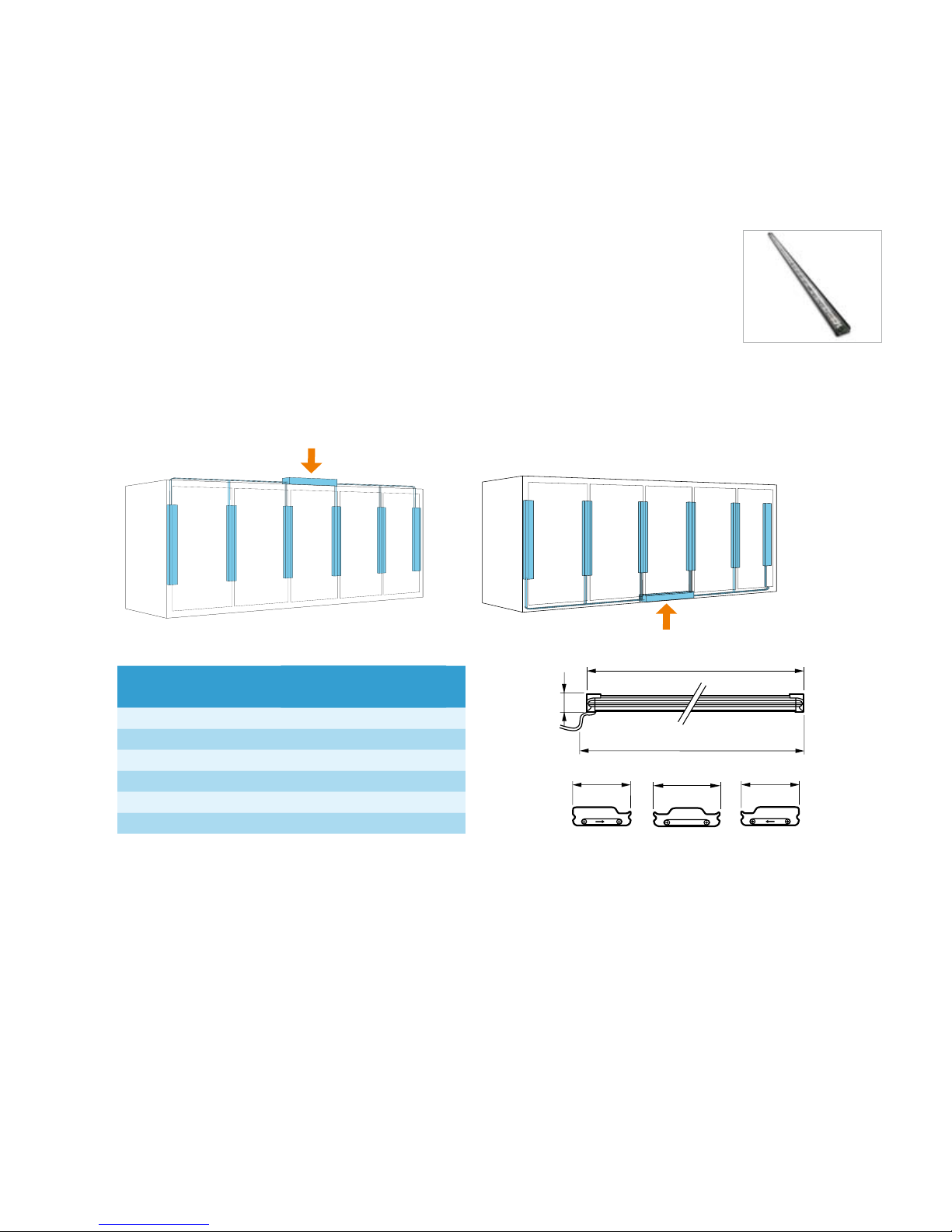

Connections at the top of the freezer

If the electrical wires are fed through the top of the case,

installtheside1moduleontheleftsideandtheside2

module on the right side of the case.

Connections at the bottom of the freezer

If the electrical wires are fed through the bottom of the

case, install the side 2 module on the left side and the side

1moduleontherightsideofthecase.

The Affinium LED lighting system for refrigerated display cases includes:

LFM 200 modules, 24VDC Xitanium™ LED power drivers, and mounting extrusions.

About Affinium LED modules LFM 200

The LFM 200 module is suitable for full-height glass door refrigerated display cases and is available in 59” and 67” lengths.

Both lengths are available in three versions:

Center module•

Side1module•

Side 2 module•

Theside1or2modulecanbeplacedoneithersideofthecase,dependingonthewiringschemefollowed.

Affinium LED lighting

A1 B1 B1

SideCenterSide

A1 B1 B1

Affinium LED modules

LFM 200 59” center module

LFM20059”side1module

LFM 200 59” side 2 module

LFM 200 67” center module

LFM20067”side1module

LFM 200 67” side 2 module

Dimensions (in)

A1 A3 B1

59.06 59.45 2.20

59.06 59.45 1.93

66.93 67.32 2.20

66.93 67.32 1.93

Type Power nominal

Color temperature

Color rendering index

CRI

Standard lighting level 1000 lux

LFM 200 59” center CW 25 5300-5900 ≥ 72

LFM20059”side1CW 15 5300-5900 ≥ 72

LFM 200 59” side 2 CW 15 5300-5900 ≥ 72

LFM 200 59” center NW 25 3900-4500 ≥72

LFM20059”side1NW 15 3900-4500 ≥72

LFM 200 59” side 2 NW 15 3900-4500 ≥72

High lighting level 1300 lux

LFM 200 59” center NW 35 3900-4500 ≥72

LFM20059”side1NW 22 3900-4500 ≥72

LFM 200 59” side 2 NW 22 3900-4500 ≥72

Affinium LED modules, 59” length

Lifetime

The lifetime of Affinium LED modules is rated at 50,000 hours (70% lumen maintenance).

Temperature

Operating temperature (performances): T

operating min-13°F / max +50°F

Safety temperature (operating, no defects) Tsafety min -22°F / max +86°F

Storage temperature Tstorage min -22°F/max+140°F

Enhanced safety

In the event of unit damage, when used with a Safety Extra LowVoltage (SELV), energy-limited, class-2 Xitanium™ driver,

the Affinium LED system provides a safer operating environment than that of a fluorescent system.

Compliances and approvals

Affinium LED modules comply with all applicable regulations including:

ENEC   •CE•

Productsafety,classIII •RoHScompliant•

WEEE   •EUdirective2002/95/EC•

UL   •NSF•

Type Power nominal

Color temperature

Color rendering index

CRI

Standard lighting level 1000 lux

LFM 200 67” center CW 31 5300-5900 ≥72

LFM20067”side1CW 20 5300-5900 ≥ 72

LFM 200 67”side 2 CW 20 5300-5900 ≥72

LFM 200 67” center NW 31 3900-4500 ≥ 72

LFM20067”side1NW 20 3900-4500 ≥ 72

LFM 200 67”side 2 NW 20 3900-4500 ≥ 72

High lighting level 1300 lux

LFM 200 67” center NW 44 3900-4500 ≥72

LFM20067”side1NW 28 3900-4500 ≥72

LFM 200 67” side 2 NW 28 3900-4500 ≥ 72

* Notes on lighting levels and energy savings:

Lighting levels are measured by a CCD camera at the center of the shelf at the center-most door of the case with a 5 inch distance between the

back of the module and the front of the merchandise.These measurements were taken at in-store lighting level conditions.Values for nominal

power and lighting levels can deviate by 20%, measured at -4°F (-20°C). Due to insufficient data points the values are best estimations.

Affinium LED modules, 67” length

Ordering details

Type Quantity

per pack

Ordering

code

Standard lighting level 1000 lux

LFM 200 1500mm (59”) center 25W CW 1 9290 001 37113

LFM 200 1500mm (59”) side 1 15W CW 1 9290 001 37213

LFM 200 1500mm (59”) side 2 15W CW 1 9290 001 37313

LFM 200 1500mm (59”) center 25W NW 1 9290 001 37413

LFM 200 1500mm (59”) side 1 15W NW 1 9290 001 37513

LFM 200 1500mm (59”) side 2 15W NW 1 9290 001 37613

High lighting level 1300 lux

LFM 200 1500mm (59”) center 35W NW 1 9290 004 55813

LFM 200 1500mm (59”) side 1 22W NW 1 9290 004 55913

LFM 200 1500mm (59”) side 2 22W NW 1 9290 004 56013

Affinium LED modules, 59” length

Type Part Number

LFM200 60” Center Mounting Extrusion LFM200EXT60INCRM

LFM200 72” Center Mounting Extrusion LFM200EXT72INCRM

LFM200 60” Side Mounting Extrusion (both sides) LFM200EXT60INSDM

LFM200 72” Side Mounting Extrusion (both sides) LFM200EXT72INSDM

Retrofit Mounting Extrusions

FormNo.PA-7020-R0110/08

Philips Lighting Electronics N.A.

10275W.HigginsRoad

RosemontIL60018

Tel:800-322-2086Fax:888-423-1882

CustomerSupport/TechnicalService:800-372-3331

OEMSupport:866-915-5886

www.philips.com/advance

Type Quantity

per pack

Ordering

code

Standard lighting level 1000 lux

LFM 200 1700mm (67”) center 31W CW 1 9290 001 38313

LFM 200 1700mm (67”) side 1 20W CW 1 9290 001 38413

LFM 200 1700mm (67”) side 2 20W CW 1 9290 001 38513

LFM 200 1700mm (67”) center 31W NW 1 9290 001 38613

LFM 200 1700mm (67”) side 1 20W NW 1 9290 001 38713

LFM 200 1700mm (67”) side 2 20W NW 1 9290 001 38813

High lighting level 1300 lux

LFM 200 1700mm (67”) center 44W NW 1 9290 004 56413

LFM 200 1700mm (67”) side 1 28W NW 1 9290 004 56513

LFM 200 1700mm (67”) side 2 28W NW 1 9290 004 56613

Affinium LED modules, 67” length
