Philips MASTER PL-T 2-Pin Manual de usuario

PL-T

MASTER PL-T 2 Pin

Compact Fluorescent Lamps Non Integrated

Product Description

•Energy saving compact

ﬂuorescent lamp

•Compact long-arc low-pressure

mercury discharge lamp

•Envelope consists of 6 parallel

narrow ﬂuorescent tubes

Product Features

•2-pin base with a housing

incorporating the lamp glow

switch starter

•Fast light run up

•Philips invented bridge technology

applied

•Dimming is not possible

Product Beneﬁts

•Optimal light performance for

short or long operation per switch

•Substantial more light (about 15%

more) per light point than common

•Long life and sustainable light

output

Environment

•Good environmental choice

because of high energy efﬁciency,

long life and low light output

depreciation, lowest mercury

content

•Compliant with all RoHS and

WEEE requirements: the lamps

have a very low content of

mercury, are lead free and make

no use of radioactive materials

and hazardous ﬂame retardants

Application

•Designed for general or

supplementary lighting in

professional and

semi-professional environments

•Ideal for use in recessed or

surface mounted downlighters,

wall units

System

•For use with conventional

electromagnetic ballast

•Radio interference suppression

capacitor installed

Dimensions (mm)

Dim. A B C D

no. max. max. max. max.

1 66.7 91.0 114.2 41

−−−−−−−−−−−−Commercial product name−−−−−−−−−−−−→

Type Wattage/Colour

designation

Packing

type

Packing

conﬁguration

Cap/Base Luminous

Flux Lamp

Colour

Rendering

Index

Energy

Efﬁciency

Label

Dim.

no.


letter

Ordering

number

(lm) (Ra) 8711500...

MASTER PL-T 13W/827/2P1CT 5X10BOX GX24d-1 900 82 A 1 B 559265 70

MASTER PL-T 13W/830/2P1CT 5X10BOX GX24d-1 900 82 A 1 B 272119 70

MASTER PL-T 13W/840/2P1CT 5X10BOX GX24d-1 900 82 A 1 B 559739 70

MASTER PL-T 18W/827/2P1CT 5X10BOX GX24d-2 1200 82 B 2 C 559791 70

MASTER PL-T 18W/830/2P1CT 5X10BOX GX24d-2 1200 82 B 2 C 610508 70

MASTER PL-T 18W/840/2P1CT 5X10BOX GX24d-2 1200 82 B 2 C 610614 70

MASTER PL-T 26W/827/2P1CT 5X10BOX GX24d-3 1800 82 B 3 A 559883 70

MASTER PL-T 26W/830/2P1CT 5X10BOX GX24d-3 1800 82 B 3 A 611024 70

MASTER PL-T 26W/840/2P1CT 5X10BOX GX24d-3 1800 82 B 3 A 611130 70

✇20060912

Dimensions (mm)

Dim. A B C D

no. max. max. max. max.

2 71.8 96.0 119.2 41

Dimensions (mm)

Dim. A B C D

no. max. max. max. max.

3 86.7 111.0 134.2 41

13th September 2006 1

PL-T

MASTER PL-T 2 Pin

Compact Fluorescent Lamps Non Integrated

Additional technical data

Product name Colour

Temperature

Lamp Wattage EM Lamp Voltage EM Lamp Current

Luminous

Efﬁcacy Lamp EM

Mercury (Hg)

Content

(K) (W) (V) (A) (lm/W) (mg)

MASTER PL-T 13W/827/2P 2700 13 91 0.175 69 1.4

MASTER PL-T 13W/830/2P 3000 13 91 0.175 69 1.4

MASTER PL-T 13W/840/2P 4000 13 91 0.175 69 1.4

MASTER PL-T 18W/827/2P 2700 18 100 0.220 67 1.4

MASTER PL-T 18W/830/2P 3000 18 100 0.220 67 1.4

MASTER PL-T 18W/840/2P 4000 18 100 0.220 67 1.4

MASTER PL-T 26W/827/2P 2700 26 105 0.325 69 1.4

MASTER PL-T 26W/830/2P 3000 26 105 0.325 69 1.4

MASTER PL-T 26W/840/2P 4000 26 105 0.325 69 1.4

Logistic data

Product name Packing

type

Packing type description

Packs

per

outer

box

Packing

conﬁgura-

tion

Quan-

tity per

pack

Packing

length

Packing

width

Packing

height

Gross

weight

per

piece

Net

weight

per

piece

(mm) (mm) (mm) (g) (g)

MASTER PL-T 13W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58

MASTER PL-T 13W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58

MASTER PL-T 13W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58

MASTER PL-T 18W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59

MASTER PL-T 18W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59

MASTER PL-T 18W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59

MASTER PL-T 26W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66

MASTER PL-T 26W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66

MASTER PL-T 26W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66

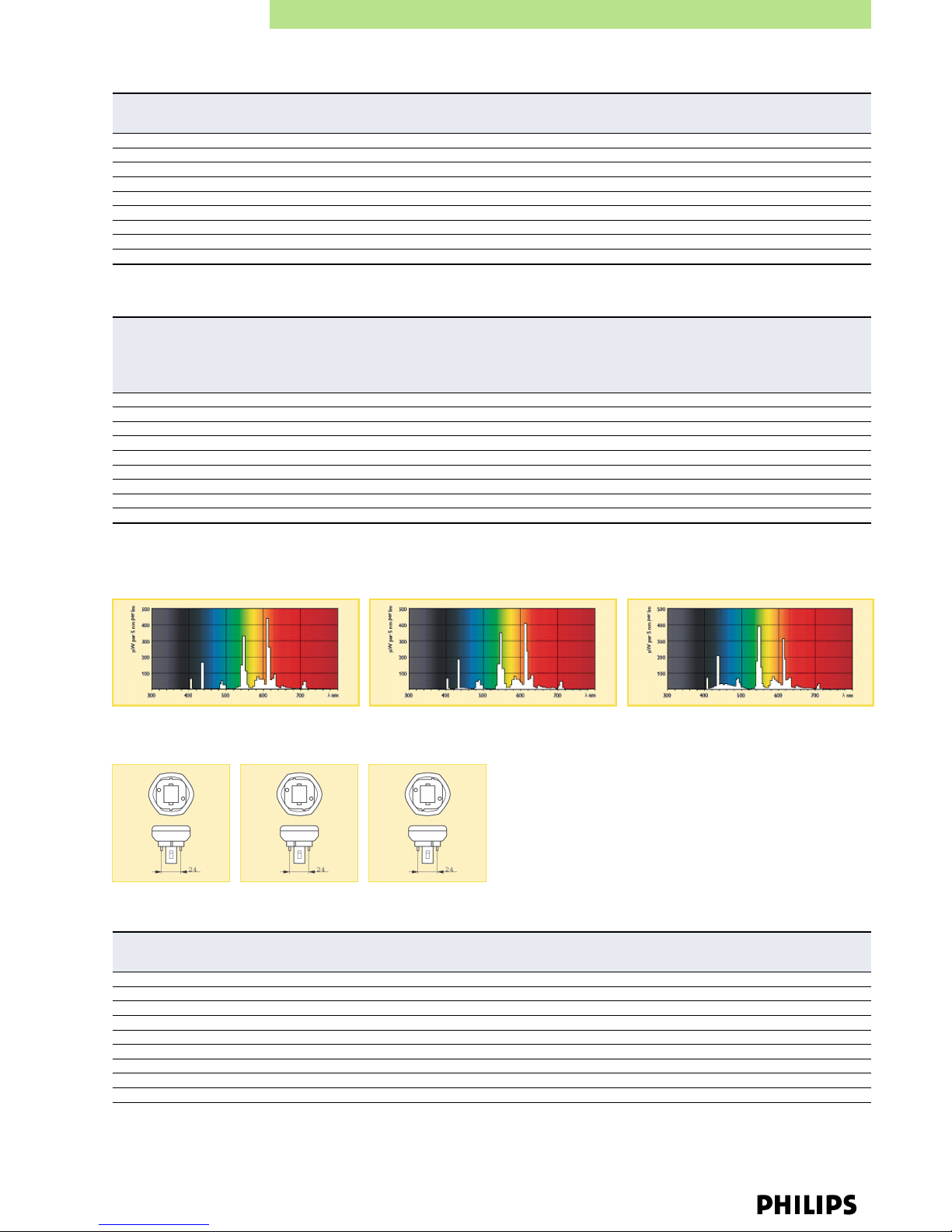

Spectral power distribution

Lightcolour 827 Lightcolour 830 Lightcolour 840

Cap/Base

GX24d-1 GX24d-2 GX24d-3

Additional extended technical data

Product name Chromaticity

Coordinate X

Chromaticity

Coordinate Y

Colour Designation Dimmable Cap/Base

Information

MASTER PL-T 13W/827/2P 455 417 Incandescent White No 2P

MASTER PL-T 13W/830/2P 434 397 Warm White No 2P

MASTER PL-T 13W/840/2P 380 379 Cool White No 2P

MASTER PL-T 18W/827/2P 455 417 Incandescent White No 2P

MASTER PL-T 18W/830/2P 434 397 Warm White No 2P

MASTER PL-T 18W/840/2P 380 379 Cool White No 2P

MASTER PL-T 26W/827/2P 455 417 Incandescent White No 2P

MASTER PL-T 26W/830/2P 436 401 Warm White No 2P

MASTER PL-T 26W/840/2P 380 379 Cool White No 2P

13th September 2006 2

PL-T

MASTER PL-T 2 Pin

Compact Fluorescent Lamps Non Integrated

Special data

Product name 10NC ILCOS Life to 10%

failures EM

Life to 50%

failures EM

(h) (h)

MASTER PL-T 13W/827/2P 9279 141 82700 FSM-13/27/1B-I-GX24d=1 6500 10000

MASTER PL-T 13W/830/2P 9279 141 83000 FSM-13/30/1B-I-GX24d=1 6500 10000

MASTER PL-T 13W/840/2P 9279 141 84000 FSM-13/40/1B-I-GX24d=1 6500 10000

MASTER PL-T 18W/827/2P 9279 143 82700 FSM-18/27/1B-I-GX24d=2 6500 10000

MASTER PL-T 18W/830/2P 9279 143 83000 FSM-18/30/1B-I-GX24d=2 6500 10000

MASTER PL-T 18W/840/2P 9279 143 84000 FSM-18/40/1B-I-GX24d=2 6500 10000

MASTER PL-T 26W/827/2P 9279 145 82700 FSM-26/27/1B-I-GX24d=3 6500 10000

MASTER PL-T 26W/830/2P 9279 145 83000 FSM-26/30/1B-I-GX24d=3 6500 10000

MASTER PL-T 26W/840/2P 9279 145 84000 FSM-26/40/1B-I-GX24d=3 6500 10000

Product name Lumen Maintenance

EM 2000h

Lumen Maintenance

EM 5000h

Lumen Maintenance

EM 10000h

Additional

Information

Execution

(%) (%) (%)

MASTER PL-T 13W/827/2P 92 85 79 Mercury /2P

MASTER PL-T 13W/830/2P 92 85 79 Mercury /2P

MASTER PL-T 13W/840/2P 92 85 79 Mercury /2P

MASTER PL-T 18W/827/2P 92 85 79 Mercury /2P

MASTER PL-T 18W/830/2P 92 85 79 Mercury /2P

MASTER PL-T 18W/840/2P 92 85 79 Mercury /2P

MASTER PL-T 26W/827/2P 92 85 79 Mercury /2P

MASTER PL-T 26W/830/2P 92 85 79 Mercury /2P

MASTER PL-T 26W/840/2P 92 85 79 Mercury /2P

13th September 2006 3
