Philips HR2200/80 Manual de usuario

SOUP MAKER

HR2200/80

HR2200/81

Published by Philips Consumer Lifestyle Printed in China Copy Right Reserved Subject to modification

Technical information

-Voltage : 220V-240V

-Frequency rated : 50/60Hz

-Motor Power rated : 120W

-Heating Power rated : 900-990W

-Product dimensions( LxDxH) mm

205x153x310

-Capacity : 1000~1200ml

(for2~4 people)

-Net Weight : 2.0kg

Material

-Jug : Stainless steel

-Blade : Stainless steel

-Motor housing : PP (food contact)

HR2200/80

HR2200/81

For UK

HR2200/81

For Italy/Chile

HR2200/81

For Peru

Difference in Power Cord:

SHW-01-001-12003R04

Product introduction

Control panel

A: Smooth soup program with light. Smooth soup program to make a smooth soup in 23 minutes.

B: Chunky soup program with light.Chunky soup program to make a chunky soup in 20 minutes.

C: Compote program with light. Compote program to make a compote in 13 minutes.

D: Smoothie program with light.Smoothie program to make a smoothie in 3 minutes.

E: Manual blending program with light

F: Program selection button

G: Start/stop button

F G

A B C D E

Main feathers

2 DC motor，light weight and small noise

3 Unique blade design, perfect blading performance.

Cageless design, easier clean

4 Streamlined raised surface, ensure perfect blading

performance

Technical information

- Function Flow Chart _ Cream Soup

Technical information

- Function Flow Chart _Chunky Soup

- Function Flow Chart _Compote

Technical information

- Function Flow Chart _Smoothie

- Function Flow Chart _Manual Blending

Technical information

- Electrical diagram:

Jug

Motor

thermostat

Thermal

fuse

Power

socket

Heating

element

Upper

coupler

Control

PCBA

Motor Unit

Main

PCBA

Low coupler

motor

Overflow

sensor

Thermostat

Exploded drawing

Spare parts

Position 12NC Part name PCM Remark

1996510054806 LID HANDLE COVER Q776K200Y80R

996510070869 LID HANDLE COVER Q776K201Y80R

for Peru

2996510057705 LID HANDLE Q776K360850R

3996510057699 SCREW COVER Q776G955H14R

996510070863 SCREW COVER J0010000033R

for Peru

4996510057702 CONTROL PANEL Q7760095H14R

996510070862 CONTROL PANEL Y7769700008

for Peru

5996510057703 LID COVER Q7763650850

6996510057692 LID B776298S203R

996510070867 LID Q7766141Y80R

for Peru

7 8 996510071898 PCB ASSY A7761000008R

996510071985 PCB ASSY A7761000007R

for Peru

9996510054782 MOTOR COVER Q7769420B55R

10 996510070864 MOTOR ASSY WITH

THERMOSTAT B776077S201R

11 996510049007 MOTOR BRACKET SEAL X6001350001R

996510070866 MOTOR BRACKET SEAL X7761310001R

for Peru

12 996510054807 LID SEAL X7762820001R

13 996510054804 ANTI-SPILL SENSOR ASSY B776328S201R

14 996510057695 MOTOR HOUSING Q776D490839R

15 996510048973 BLADE WASHER J0200000118R

16 996510054793 BLADE J2420000095R

17 996510048971 DIAMETER 5 SPRING

WASHER J0150000437R

996510070861 DIAMETER 5 SPRING

WASHER J0010000798R

for Peru

18 996510048969 M5 LOCK NUT J0020000186R

19 996510057698 LOWER COUPLER ASSY A7767060002R

20 996510054785

SEAL FOR LOWER COUPLER

X6920930001R

21 996510057693 INNER PAN ASSY (220V) A7766110002R

for WE, Peru

996510057706 INNER PAN ASSY (230V) A7766110003R

for UK

22 996510048981 COUPLER HOLDER Q616371AB01

23 996510054797 CUP HANDLE Q776F540Y80R

996510070859 CUP HANDLE Q776F541Y80R

for Peru

24 996510057697 CUP HANDLE COVER Q776A92A850

25 996510057701 SOCKET ASSY A7764970002R

26 996510054799 CUP BASE ASSY B776084S201R

996510070868 CUP BASE ASSY Q7768681Y80R

for Peru

27 996510057704 POWER CORD (2 PINS) D1AF104D001R

996510070858 POWER CORD (3 PINS) D1AG11R0001R

for Peru

996510057707 POWER CORD (3 PINS) D1AH204D001R

for UK

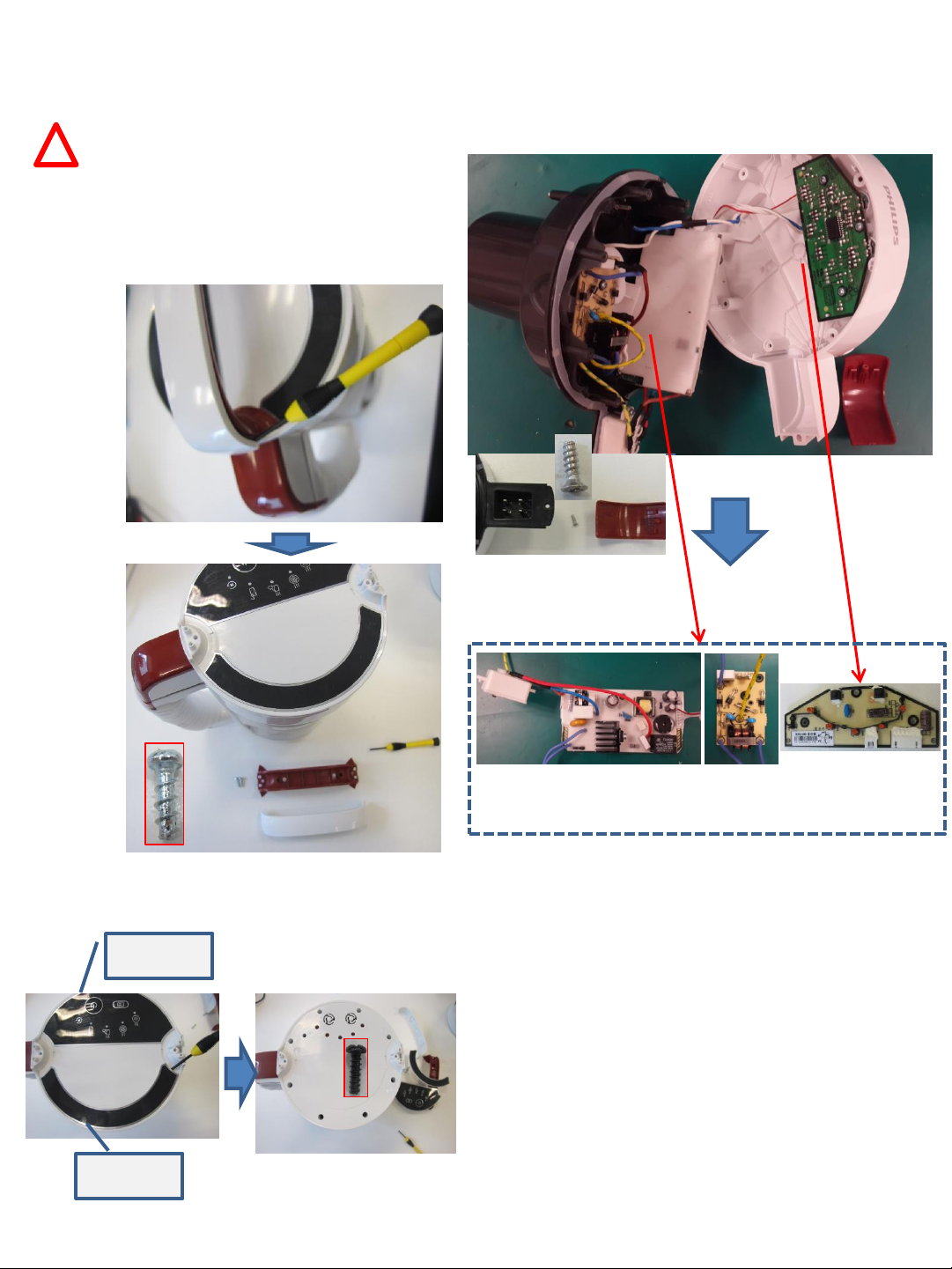

DISASSEMBLY ADVISE

! Before you start dismantling!

For your safety be sure the plug is

disconnected from the mains!

Step 1：Remove the upper handle.

Step 2：Remove control panel and screw

cover（adhesive label), you can touch eight

screws.

Step 3：Remove 9 fixing screws. You can

get main PCBA and control PCBA.

PCBA Assy

Main PCBA EMC PCB Control

PCBA

Control

panel

Screw

cover
