PhDsolutions MX-UHD4H2H Manual de usuario
CDPW-V4H2HP
4 by 2 HDMI 4K UHD Wall Plate Matrix with HDCP 2.2
Operation Manual
Operation Manual
MX-UHD4H2H
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fi re,
electrical shock and injury to persons.
• To prevent fi re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suffi cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 27/10/15 Preliminary release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 1
6. Operation Controls and Functions....... 2
6.1 Top Panel ..........................................2
6.2 Left Panel ..........................................3
6.3 Right Panel........................................3
6.4 Bottom Panel ....................................4
6.5 Remote Control................................4
6.6 IR Cable Pin Assignment..................5
6.7 RS-232 Protocol.................................5
6.8 RS-232 and Telnet Commands .......6
6.9 Telnet Control ...................................7
6.10 WebGUI Control .............................9
7. Connection Diagram .......................... 10
8. Specifi cations ...................................... 11
8.1 Technical Specifi cations ...............11
8.2 Supported Resolutions...................12
9. Acronyms ............................................. 13
1
1
1. INTRODUCTION
This 4 by 2 HDMI Wall Plate Matrix is an advanced HDMI solution
designed for Ultra High-Defi nition signal distribution needs. It allows
you switch between and distribute one of four 6G HDMI inputs to
two simultaneous 6G HDMI outputs. It has support for the latest HDMI
features such as support for 4K2K@60 resolution, 48-bit 'Deep Color',
high defi nition audio and more. The device can be easily operated
through RS-232, Telnet, WebGUI, IR remote and on-panel controls.
2. APPLICATIONS
• Entertainment Room / Home Theater
• Show Room / Demo Room
• Lecture Room/Hall Presentation
• Show Room/Demo Room
• Public Commercial Display
3. PACKAGE CONTENTS
• 1×4 by 2 HDMI 4K UHD Matrix with HDCP2.2
• 1×Remote Control with Battery
• 1×Left & Right Rack Ears
• 1×5 V/2.6 A DC Power Adaptor
• 1×IR Receiver Cable
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD/PS3 player or Set-Top-Box
and output HDMI TV/Display and or audio amplifi er with connection
cables.
5. FEATURES
• HDMI with 6G 4Kx2K supported and HDCP 2.2 compliant
• Supports 4 HDMI inputs of one 6G and 2 HDMI outputs of two 6G
• Supports HDTV resolutions up to 4Kx2K: 3840x2160@24/25/30H z
3840x2160@50/60 Hz (4:4:4) & 4096x2160 @24/25/30 Hz,
2
2
4096x2160@50/60 Hz (4:4:4)
• Supports data rate up to 6Gbps (600MHz) and Deep Color up to
1080p 48-bit
• Supports pass-through of HD audio formats of LPCM 2/5.1/7.1CH,
Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD,
Dolby Atmos and DTS-HD Master Audio
• Compliant with DVI sources with an HDMI-DVI adaptor
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Top Panel
B1 B2 B3 B4
A2A2 A3 A4
IR
2
1
3
1POWER: Press the Power key to turn on the device and the LED will
illuminated in green, press again to set it to standby mode and the
LED will turn red. This device obtain power last memory function
therefore, when power supply is re-plugged it will return to last
power status.
3
3
2IR Window: This IR Receiver receives IR signal from the remote
control included in the package only. Ensure that remote being
used is within the direct line-of-sight of the IR window.
3OUTPUT A1~A4 & B1~B4: Press these buttons to change the routing
of output with an input A/B.

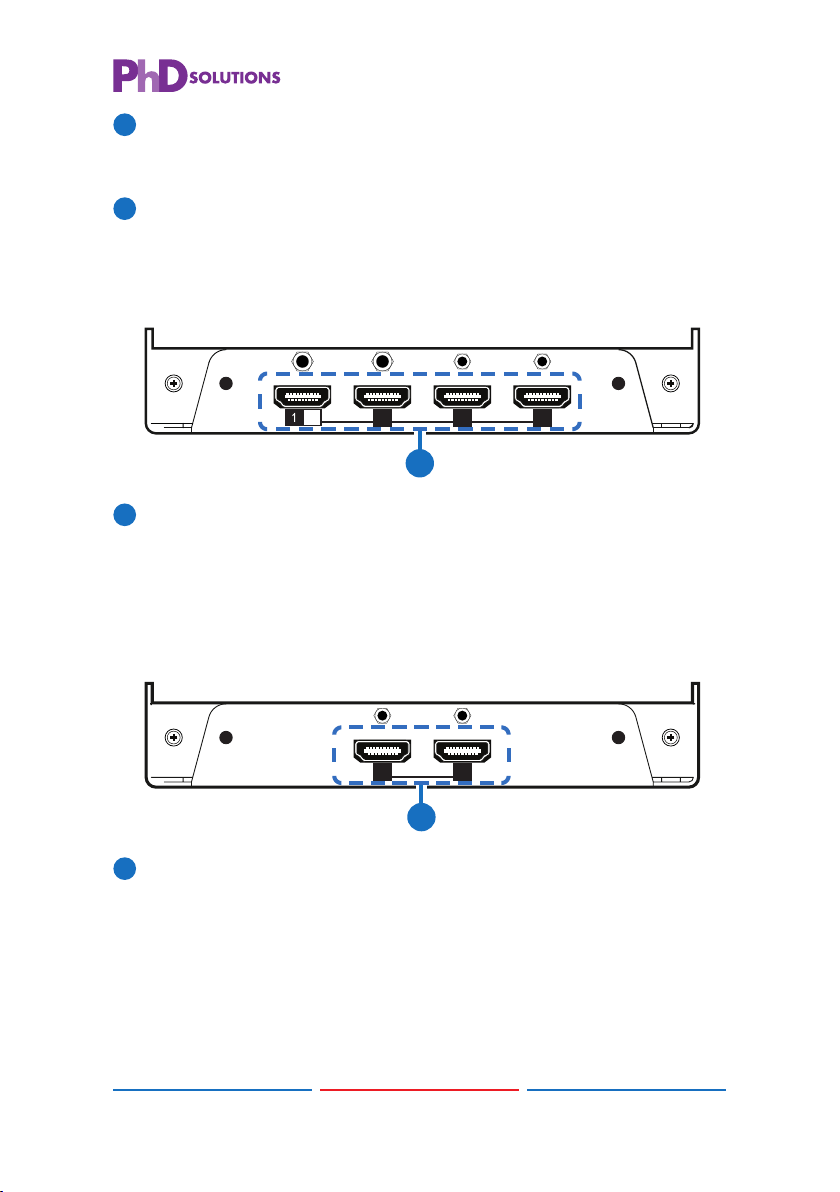

6.2 Left Panel
6G
234
IN
1
1HDMI IN 1~4: Connect from source equipment such as Blu-ray/DVD/
PS3 player, Set-Top Box or any HDMI equipped source devices.
Note: Only port 1 supports 6G signal and other ports support up to
3G signal.
6.3 Right Panel
AB OUT
1
1HDMI OUT A~B: Connect to HDMI TV/display or HD amplifi er for
output audio and video image display up to 6G each port. The
device will be base on output A's EDID for source's reference and if
output A is not connected, the device will send the last connected
output A's EDID. To remove EDID last memory, simply re-power on
the unit without output A connected to any TV/display.
4
4
6.4 Bottom Panel
LANRS232 IR IN
SERVICE
DC 5V
1 2 3 4 5
1LAN: Connect to PC/Laptop with active internet service for Telnet/
WebGUI control with RJ-45 terminated cable.
2RS232: Connect to PC/Laptop with D-Sub 9- pin female cable for
the transmission of RS-232 commands to control the device.
3IR IN: Connect the IR Receiver cable from the package for receive
IR signal from the remote control.
4SERVICE: This is reserved for fi rmware update use only.
5DC 5V: Connect with adapter included from the package and
connect to AC wall outlet for power supply.
6.5 Remote Control
1POWER: Press Power key to turn on the
device or set to standby mode.
2OUTPUT A1~A4 & B1~B4: Press these
buttons to change the routing of output
A/B
CR-155
POWER
1
2
3
4
1
2
3
4
BA
2
1
5
5
6.6 IR Cable Pin Assignment
3
1
2
3
2
1
IR Signal
Power
Grounding
IR Extender
6.7 RS-232 Protocol
MATRIX
►
◄
REMOTE CONTROLLER
Pin Assignment Pin Assignment
1 NC 1 NC
2TxD 2RxD
3RxD 3TxD
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
Baud Rate: 19200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
6
6
6.8 RS-232 and Telnet Commands
COMMAND DESCRIPTION PARAMETERS
? PRINT OUT ALL OF AVAILABLE COMMANDS
HELP PRINT OUT ALL OF AVAILABLE COMMANDS
P0 POWER OFF NONE
P1 POWER ON NONE
A N SET OUTPUT A SOURCE N= Input 1~ 4
B N SET OUTPUT B SOURCE N= Input 1~ 4
IPCONFIG DISPLAY THE CURRENT IP CONFIG NONE
SIPADDR
x.x.x.x SET ETHERNET IP ADDRESS x=0~255
SNETMASK
x.x.x.x SET ETHERNET NETMASK x=0~255
SGATEWAY
x.x.x.x SET ETHERNET GATEWAY x=0~255
HTTPPORTN SET HTTP PORT NUMBER N= 10~65500
IPMODE 0/1 SET IP MODE ( 0=STATIC,
1=DHCP )
RSTIP
IP CONFIGURATION
RESET
TO DEFAULT(STATIC)
IP MODE : STATIC
IP ADDR :
192.168.1.50
NETMASK :
255.255.255.0
GATEWAY :
192.168.1.1
HTTP PORT : 80
TELNET PORT: 23
ST DISPLAY CURRENT ROUTING STATUS AND
FIRMWARE VERSION
REBOOT REBOOT THIS MATRIX
UPDATE FIRMWARE UPDATE
7
7
COMMAND DESCRIPTION PARAMETERS
FADEFAULT SET ALL CONFIGURATIONS TO FACTORY
DEFAULT
Note: Any commands will not be executed unless followed by a
carriage return. Commands are case-insensitive.
6.9 Telnet Control
Before attempting to use the Telnet control, please ensure that both
the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are
connected to the same active networks.
To access the Telnet control in Windows 7, click on the 'Start' menu
and type "cmd" in the Search fi eld then press enter.
Under Windows XP go to the 'Start' menu and click on "Run", type
"cmd" with then press enter.
Under Mac OS X, go to Go→Applications→Utilities→Terminal
See below for reference.
Once in the command line interface (CLI) type "telnet", then the IP
address of the unit and "23", then hit enter.
