IOLAN SCG Quick Start Guide
P/N 5500439-10 (Rev ) 1
IOLAN SCG
Quick Start Guide
______________________________________________________________
The IOLAN SCG gives you a way to access serial devices remotely from
anywhere there is a network connection.
This guide covers basic installation and configuration and is intended for
first time setup or product evaluation. Complete details can be found in
the following guides at www.perle.com/downloads.
•IOLAN Secure User’s Guide
•IOLAN Secure Command Line Interface Reference Guide
•IOLAN SCG Hardware Installation Guide
IOLAN SCG Models
All IOLAN SCG models have the following basic hardware set.
•16/32/48 RS232 RJ45 ports (depending on the model ordered)
•An RJ45, auto-sensing Ethernet 10/100/1000 Mbps port
•1 Micro-USB and 1 RS232 RJ45 Console Admin Port
What’s In The Box?
The following components are included with your product:
IOLAN SCG Chassis: 1U-tall (1.75 inch), rack-mountable chassis
with 16/32/48 RS232 RJ45 ports
AC power cable
Quick Start Guide (this guide)
Rack mount kit
1 meter CAT5 straight-through patch cable
Adapter to convert from Cisco (RJ45) pin-out to B9F
What You Need to Supply
Before you can begin, you need to have the following:
•A serial cable(s) to connect serial devices to your IOLAN unit
•An Ethernet CAT5e 10/100/1000BASE-T cable to connect the
IOLAN unit to the network
IOLAN SCG Quick Start Guide
2
Hardware Features
SCG Front View
SCG Back View
Configuring The Unit
The IOLAN SCG features several different configuration methods (i.e.
HTTP, HTTPS, Telnet and SSH). To use these methods, you must first
configure an IP address in the IOLAN. (see “Initial Setup” for details).
More information can be obtained from IOLAN SCG documentation
on the Perle website at www.perle.com
Hardware Connections
Connecting the Power
When the power is connected to the IOLAN, the System Ready LE will
cycle through several sequences and will end in a solid green once the
unit is fully booted and ready to be configured. If the LE is not solid
IOLAN SCG Quick Start Guide
3
green at the end of the boot sequence, see the IOLAN SCG Hardware
Installation Guide for more information.
Connecting Ethernet
Connect the LAN cable from the Ethernet connector on the back of the
IOLAN SCG to your network. An Cat5e cable is recommended for 1000
Mbps connections.
Speed Indicator (on Ethernet Connector)
•Green—1000 Mbps (flashes with activity)
•Orange—100 Mbps (flashes with activity)
•Off—No LAN connection
Activity Indicator
•Off—No serial activity
•On—Tx/Rx flashes with transmit/receive serial activity
Connecting the Serial Device(s)
By default, the IOLAN allows you to connect “ TE” type devices (i.e.
workstations, servers, routers, etc…). If you are connecting a CE
type of device (i.e. modem), you should configure the serial port as
“rolled”. See the IOLAN Secure User’s Guide for more information.
IOLAN SCG Quick Start Guide
4
Initial Setup
1. Ensure that your IOLAN SCG is fully up and running.
2. Connect your PC to the “console” port of the IOLAN SCG. (you can
use either of the RJ45 or USB port). If using the RJ-45 port, set the
COM port on your PC to 9600,n,8,1.
3. Once connected, hit “Enter” on your PC and you will be presented
with the “Setup” menu.
4. Follow the prompts to set-up basic configuration for the IOLAN SCG.
5. Once the “Setup” has been completed, you can use the following
commands to assign an IP address to the Ethernet interfaces.
#conf t
#int Eth 1
#ip address xxx.xxx.xxx.xxx yyy.yyy.yyy.yyy
(xxx is the IP address, yyy is the subnet)
#exit
#ip default-gateway xxx.xxx.xxx.xxx
(only needed if you want to access the SCG from a remote
network)
#exit
#copy running-config startup-config
6. You can now use your favourite web browser to connect to your
router at the IP address configured above.
Registering The IOLAN
You should register your IOLAN online at:
www.perle.com/support_services/warranty_reg.asp
Contacting Technical Support
Contact information for the Perle Technical Assistance Center (PTAC)
can be found at the link below.
www.perle.com/support_services/support_request.shtm
Otros manuales para IOLAN SCG
4
Tabla de contenidos
Otros manuales de Servidor de Perle
Perle
Perle IOLAN DG1 TX Manual
Perle
Perle IOLAN SCG Manual de usuario
Perle
Perle IOLAN CSS Manual de instrucciones
Perle
Perle IOLAN DS Manual de usuario
Perle
Perle IOLAN DS1 G Manual de usuario
Perle
Perle JETSTREAM 4000 Manual de usuario
Perle
Perle IOLAN DS1 Manual de usuario
Perle
Perle IOLAN DS1 Manual de usuario
Perle
Perle IOLAN SDS Manual de usuario
Perle
Perle IOAN DS1 Manual de usuario
Perle

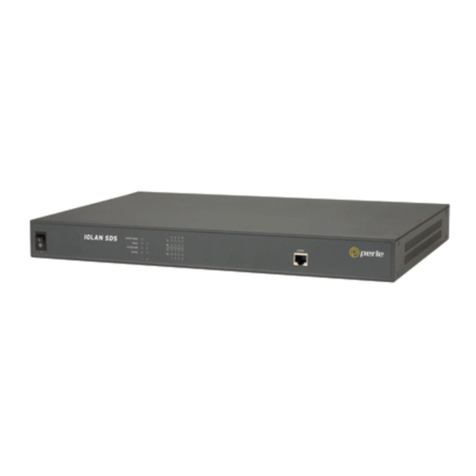

Perle IOLAN SDS Manual de instrucciones
