PerkinElmer Lambda 365 Fiber Coupling Module Manual de usuario
09931262E
PerkinElmer, 710 Bridgeport Avenue,
Shelton, CT 06484-4794, U.S.A
Produced in the USA.
Lambda 365 Fiber Coupling Module and Fiber Optic Probe
Installation Instructions
This instruction sheet describes the installation of this accessory which is used with the Lambda 365
Spectrophotometer.
NOTE:
Read these instructions before you install this accessory.
Contacting PerkinElmer
Supplies, replacement parts, and accessories can be ordered directly from PerkinElmer, using the part
numbers.
See our website:
http://perkinelmer.com
PerkinElmer's catalog service offers a full selection of high-quality supplies.
To place an order for supplies and many replacement parts, request a free catalog, or ask for information:
If you are located within the U.S., call toll free 1-800-762-4002, 8 a.m. to 8 p.m. EST. Your order will be
shipped promptly, usually within 24 hours.
If you are located outside of the U.S., call your local PerkinElmer sales or service office.
Features
•Durable stainless steel design
•Dip Probe for measuring liquid samples without using a cell
Figure 1 Lambda 365 Fiber Coupling Module [Part No: N4101013] with Fiber Optic
Probe [Part No: N4101048]
09931262E
2
Dimensions and Specifications
Figure 2 Fiber Optic Probe Figure 3 Fiber Coupling Module
Physical Characteristic Specification
Fiber Optic Probe
(Part No: N4101048)
A: Fiber Type Fused Silica
B: Fiber Size 600 µm
C: Connector SMA 905
D: Probe Diameter ∅0.19” OD
E: Path Length 10 mm
Spectral Range 200 nm ~ 1100 nm
Overall Length (OAL) 100 ~ 120 cm
Breakout Length (BOL)
18 ~ 23cm
Probe Length (PL) 15.2 cm
Fiber Coupling Module
(Part No: N4101013) Dimension (mm) 132(W) x 138(H) x 280(D)
Weight (Kg) 0.92
Configuration of Fiber Coupling Module
Figure 4 Fiber Coupling Module
- Used to fix a front plate for Fiber Coupling Module
- Spare screws (2ea) are enveloped with the accessory
Figure 5 Phillips round head screw with washer (M4 *12L)
Figure 6 1.5 mm wrench
09931262E
3
Installation
1. Prepare the Lambda 365 Spectrophotometer to install this accessory.
2. Prepare the fiber coupling module and fiber optic probe.
3. Remove the two M3x10L cross recessed flat head screws with washer using a Phillips screw driver.
Figure 7 Separate the optical fiber probe clamp
4. Insert connectors of the fiber optic probe trough the optical fiber probe clamp.
Figure 8 Inserting the fiber optic probe
5. Fix the two M3x10L cross recessed flat head screws.
Figure 9 Fixing two screws
09931262E
4

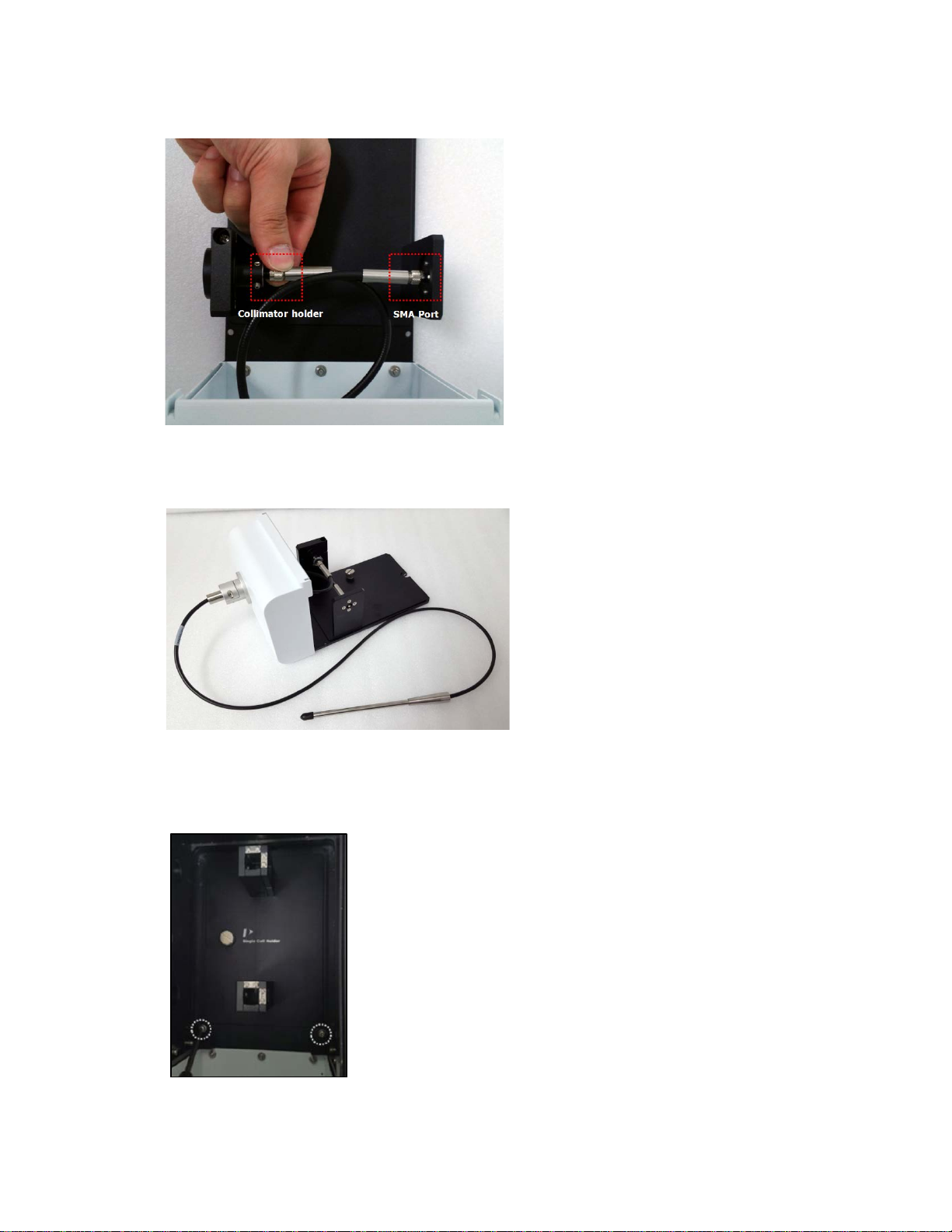

6. Connect the connectors of the fiber optic prober to the Collimator holder and the SMA port.
Figure 10 Connecting the fiber optic probe
7. Make sure that the fiber coupling module and fiber optic probe are connected correctly as below.
Figure 11 Fiber coupling module with fiber optic probe
8. Remove the two Phillips round head screws with washer (M4*12L) to disassemble the existing cell
holder and base plate.
Figure 12 Location of the Phillips round head screws with washer (M4*12L)
09931262E
5
9. Pull out the cell holder and base plate by hand.
Figure 13 Pulling out the cell holder and base plate
10. Insert the Fiber Coupling Module with fiber optic probe into the sample compartment.
Figure 14 Inserting the Fiber coupling module with fiber optic probe
11. Tighten the Fiber Coupling Module in the sample compartment with the screws.
Figure 15 Screw location
12. Dip the fiber optic probe into the liquid sample.
13. Align the optimum position by moving Fiber Optic Probe itself. The alignment procedure will be
described in the section of Alignment of Fiber Optic Probe.
09931262E
6
Measurement
System Self Test
NOTE:
The Fiber coupling module with fiber optic probe should be installed after System Self Test is finished.
NOTE:
Start the System Self Test after warming up the system for at least 20 minutes.
1. Install a single cell holder and base plate.
2. Double-click on the UV Express folder and select experiment mode for starting.
3. The following window will appear. Make sure that the sample compartment is closed firmly and
select OK.
4. Click OK after finishing the System Self Test.
09931262E
7
Scan Mode
1. Install the fiber coupling module with fiber optic probe, referring to the “Installation” procedures
on page 3.
2. Select New to open a new window. Select Experiment Type and select OK.
3. Click Method and set up parameters.
4. Setup the experiment parameters as follows:
a. Accessory: Select the Fiber Optic Probe.
09931262E
8

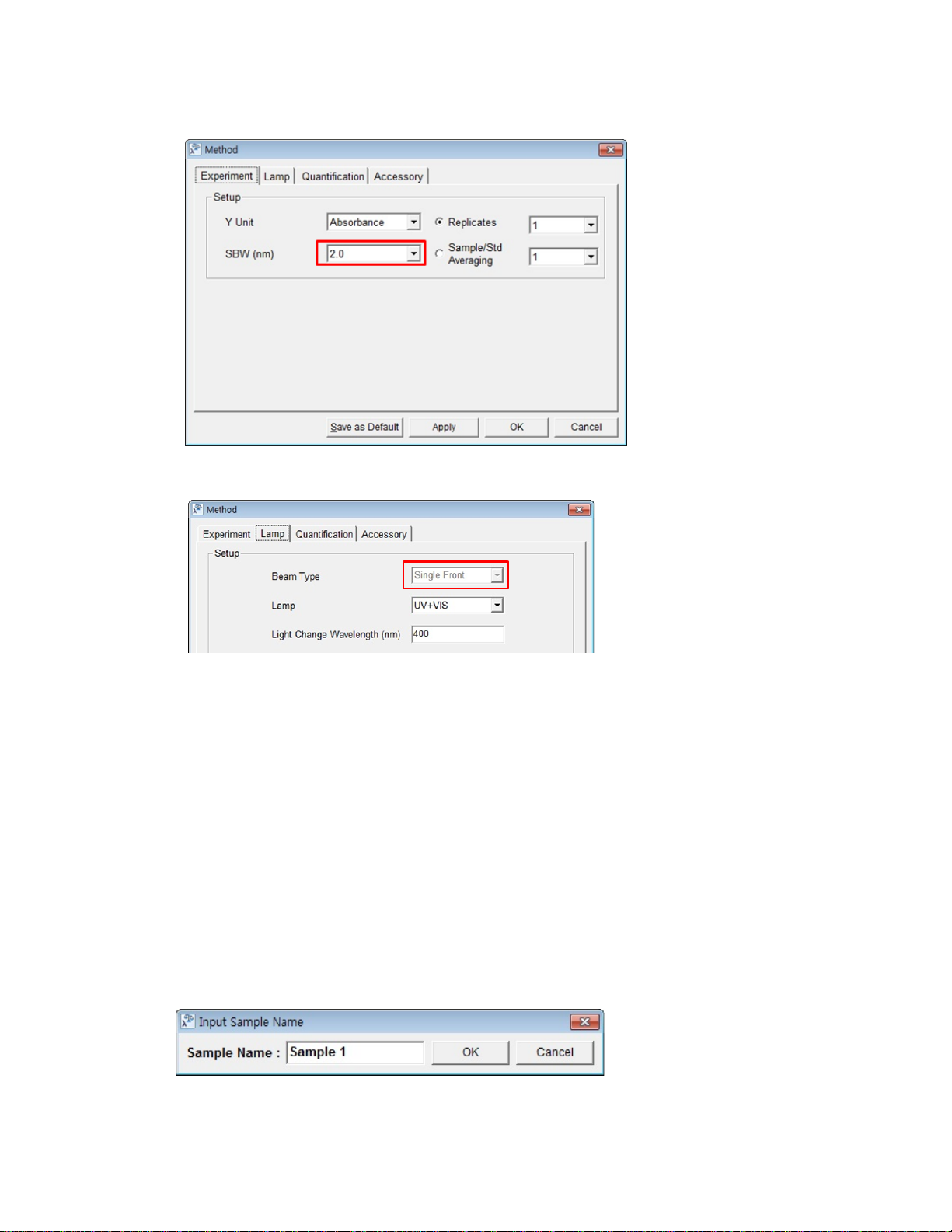

b. Experiment: SBW is set 2.0 nm automatically. Setup other experiment parameters.
c. Lamp: Single Front is automatically selected. If not, select Single Front and setup other
experiment parameters.
d. Setup the Internal Reference, Scan Setup. For more information, see the
Lambda 365 UV
Express Software Users Guide
, the section on
Scan Setup
.
5. Select Apply and OK after setting up the parameters.
6. Dip the probe in the blank solution and select the Blank icon.
NOTE:
Before measurement, make sure that that bubble does not exist at the mirror side of the probe.
NOTE:
When the sample is measured, any light from outside of the bottled should be blocked as it affects the
measurement result.
7. Clean the probe and dip it in the sample solution. Select the Sample icon.
8. Input the sample name and select OK.
9. The spectrum and result will be displayed. Save or print the results as desired.
09931262E
9
Quantification Mode
1. Install the fiber coupling module with fiber optic probe, referring to the “Installation” procedures
on page 3.
2. Select New to open a new window. Select Experiment Type and select OK.
3. Select Method and set up the parameters.
4. Setup the experiment parameters as follows:
a. Accessory: Select the Fiber Optic Probe.
09931262E
10
b. Experiment: SBW is set 2.0 nm automatically. Setup other experiment parameters.
c. Lamp: Single Front is automatically selected. If not, select Single Front and setup other
experiment parameters.
d. Setup the Quantification parameters. For more information, see the
Lambda 365 UV Express
Software Users Guide
, the section on
Quantification
.
5. Select Apply and OK after set-up of parameters.
6. Dip the probe in the blank solution and select the Blank icon. Absorbance of selected wavelength
is changed about 0 Abs.
NOTE:
Before measurement, make sure that that bubble does not exist at the mirror side of the probe.
NOTE:
When sample is measured, any light from outside of the bottled should be blocked as it affects the
measurement result.
7. Clean the probe and Dip the probe in the Standard solution. Select the Standard icon. Measure
standard solutions in order and the calibration curve will be created.
8. Clean the probe and dip the probe in the sample solution. Select the Sample icon.
9. Input sample name and select OK.
10. The spectrum and result will be displayed. Save or print results as desired.
