OWNER’S MANUAL

PSH23FT3DSBC

Warning Notice: Before using

this product, please read this

manual carefully and keep it for

future reference. For additional

support, please call customer

service at 1-866-646-4332.

The design and specifications are

subject to change without prior

notice for product improvement.

Consult with your dealer or

the manufacturer for details.

Voltage: 120V~

Power: 1500W

Frequency: 60Hz

PSH23FT3DSBC

PLEASE READ AND SAVE THESE

IMPORTANT SAFETY INSTRUCTIONS

2 in 1 Turbo

Heater + Fan

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock,

injury to persons, and hyperthermia, including the following:

Read all instructions before using this heater.

IMPORTANT SATETY INSTRUCTIONS

CAUTION

●

Please read and save these important safety instructions.

This heater is not intended for use inbathroom, laundry

areas and similar moist indoor locations. Never locate

heater where it may fall into a bathtub or other water

container.

CAUTION: This appliance has apolarized plug (one

blade is wider than the other). To reduce the risk of

electric shock, this plug is intended tofit only one way in

a polarized outlet. If the plug does not fit fully inthe

outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. DO NOT attempt to defeat this safety

feature. To doso could result in an electric shock hazard.

This heater draws 12.5 amps during operation.

To prevent overloading acircuit,do not plug the heater

into a circuit that already has other appliances working.

CAUTION: It is normal for the plug to feel warm tothe

touch; however, a loose fit between the AC outlet

(receptacle) and plug may cause overheating and

distortion of the plug. Contact aqualified electrician to

replace loose or worn outlet.

To disconnect the heater, first turn controls to off,then

remove plug from outlet. Never pull by the cord.

CAUTION: Always plug heaters directly into a wall

outlet/receptacle. Never use with an extension cord or

reloadablepower tap (outlet/power strip).

●

This heater is hot when in use. To avoid burns, do not

let bare skin touch hot surface. If provided, always use

handles when moving this heater. Keep combustible

materials such as furniture, pillows, bedding, papers,

clothes and curtains at least 3 feet (0.9m) from the

front of the heater and keep them away from the sides

and rear.

Extreme caution is necessary when any heater is used

by or near children or invalids and whenever the heater

is left operating and unattended.

Always unplug the heater when not in use.

Do not operate any heater with a damaged cord or

plug or after the heater malfunctions, has been

dropped or damaged in any manner. Discard heater or

return heater to authorized service facility for

examination, electrical or mechanical adjustment, or

repair.

Do not use the heater outdoors.

Do not run cord under carpeting. Do not cover cord

with throw rugs, runners, or similar coverings. Do not

route cord under furniture or appliances. Arrange cord

away from traffic area and where it will not be tripped

over.

Do not insert or allow foreign objects to enter any

ventilation or exhaust opening as this may cause an

electric shock or fire, or damage the heater.

WARNING

●

To prevent a possible fire, do not block air intakes or

exhaust in any manner. Do not use on soft surface, like

a bed, where openings may become blocked.

A heater has hot and arcing or sparking parts inside.

Do not use it in the areas where gasoline, paint,

or flammable liquids are used or stored.

Use this heater only as described in this manual. Any

other use not recommended by the manufacturer may

cause fire, electric shock, or injury to persons.

The output of this heater may vary and its temperature

may become intense enough to burn exposed skin. Use

of this heater is not recommended for persons with

reduced sensitivity to heat or an inability to react to

avoid burns.

Always plug heaters directly into a wall outlet/

receptacle. Never use with an extension cord or

relocatable power tap (outlet/power strip).

Hyperthermia can result in death. Symptoms of

hyperthermia include high body temperature,

headache, nausea, vomiting, tiredness, dizziness,

fainting, and rapid pulse. If you begin to experience

symptoms related to hyperthermia, turn off the heater

and seek medical attention.

To avoid excessive room temperatures which can cause

hyperthermia: DO NOT leave product running

unattended in a confined space around infants, or

individuals with reduced physical, sensory, or mental

capabilities.

SAVE THESE INSTRUCTIONS

Fan Low (F1)

Fan high (F2)

Heater low

20W

30W

600W

Heater high 1500W

Power Regulation Range

SPECIFICATIONS

PSH23FT3DSBCProduct Model

Voltage

Frequency

Rated Power

120V~

60Hz

1500W

PRODUCT OVERVIEW

Part Name

NOTE

• All the pictures in this manual are for explanation purpose only. Any discrepancy

between the real object and the illustration in the drawing shall defer to the real

product.

• The machine is equipped with a pilot indicator that glows whenever the heater is

plugged in and turned on.

Control Panel

Power Indicator

Light

Safety Grille

Base

OPERATION INSTRUCTIONS

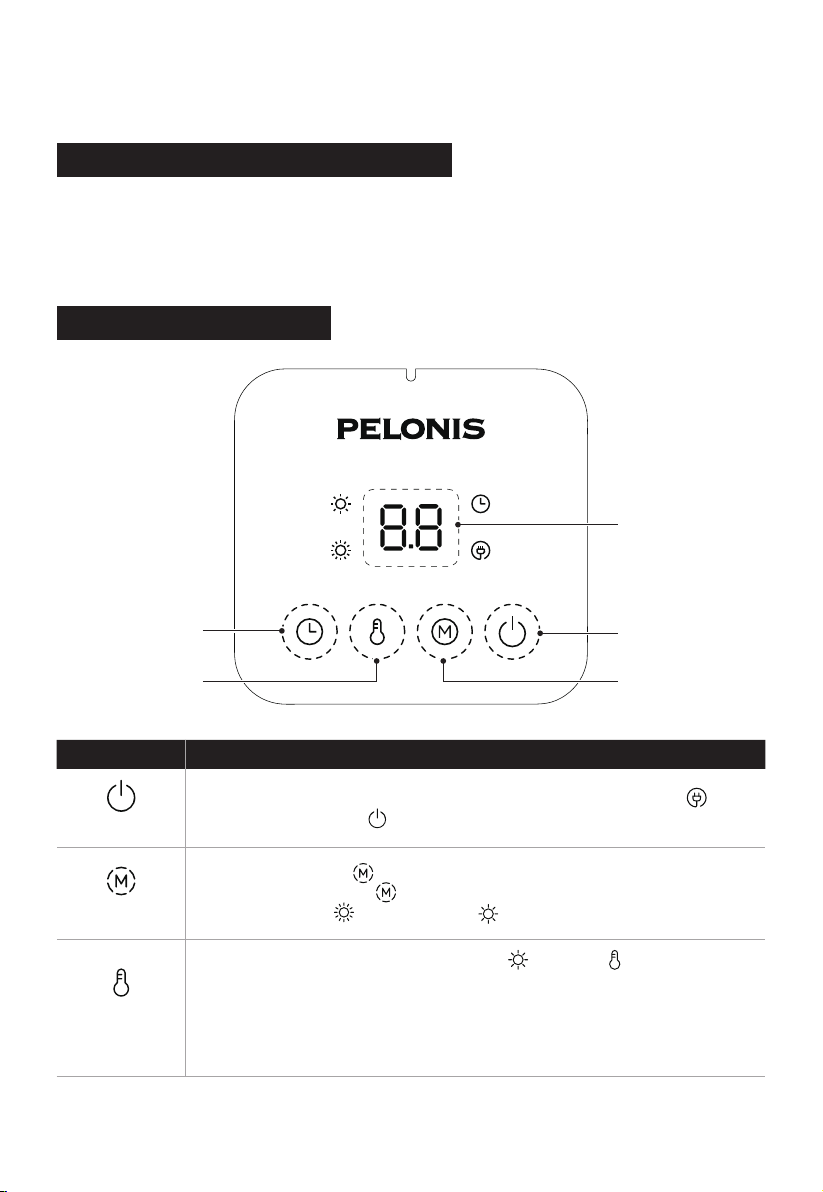

Panel Operation & Display

Timer

Temperature

setting

Dispaly area

ON/OFF

Mode

Check Before Turning On The Machine

• Check if the power wire is under good condition.

• The product adopts 120V AC power supply, before use, please confirm if the rated

current of the power socket meets the local requirements with safe grounding device,

otherwise, please replace it with the qualified socket.

• If the machine is set as heater mode “ ”, press “ ”can set the

temperature value, set the range of 5-35°C. When the room

temperature exceeds the set temperature, the machine stops

working, and stay in the standby state.When the temperature is

lower than the set temperature -2°C, the machine starts to heat up

again.

Function description

• Plug the unit into a grounded 120V~ outlet, the power light “ ” on ,

press the ON/OFF “ ” to turn on or turn off.

ON/OFF

MODE

TEMPERATURE

SETTING

• Press the button “ ” to set the desired mode(Heater or Fan) of

the unit. Repeat the“ ” button, the unit cycles through the modes

of Heater high “ ”, Heater low “ ”, Fan high “F2”, Fan low “F1”.

• Timing stop

To set the Timer, press the “ ” button to select desired hour

setting(0-8 hours). The unit will run for that chosen period in the

selected mode and automatically shut off after the desired time has

passed.

• Timing start

Whe the unit is under standby mode, press the “ ” button to

select desired hour setting(0-8 hours). The unit will run automatically

after the desired time has passed.

Air Flow Direction Adjustment

The unit is equipped with a pivoting head and you can select 5 different desired angles.

NOTE

• When the unit is set to the low heat speed and the desired tilt angle is 38°, 53° or 75°, it

will automatically switch to the high heat speed.

• When making the adjustment, do not place your hand on the safety grille, to prevent

injury.

Function description

TIMER

Manually adjust

0° 18° 38° 53° 75°

No matter in what mode, the temperature sensor appears short circuit or open circuit,

digital screen displays “E2” or “E1” and constantly flicker, while any key operation is

invalid and the buzzer rings 10 times.

Protection When Temperature Sensor has short circuit or open circuit

• In the start state, when the room temperature TH is above 55°C, it will turn off all EN

outputs system. The digital screen displays "FF" and flashes 1 time per second, power

device down to force exit.

• When the unit is in working mode, if the internal temperature of the unit exceeds the

thermal cut-off threshold, it will automatically stop working. In this situation, both the

digital screen and lamp will turn off. Pressing any key will have no effect. To resolve

this, manually unplug the machine and wait for it to cool down. Once cooled, plug it

back into the outlet again to restart the unit.

Safety Protection

CLEANING AND MAINTENANCE

• Turn the heater “OFF”, unplug it and wait for the heater to cool down.

• Use a dry cloth to clean only external surfaces of the heater.

• Do not use any cleaning agents or detergents.

• Never immerse the heater in water.

• Pack the heater in the original carton and store it in a cool and dry place.

It is recommended that the heater be cleaned at least one time during the operating

season in order to provide the optimum level of performance. ALWAYS TURN THE

POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save

the box for offseason storage.

TROUBLESHOOTING

The appliances may encounters some errors and malfunctions, the following tables

contain possible causes and notes for resolving an error or malfunction.

Solution

Possible Cause SolutionProblem

After the power

is engaged,the

machine does not

work.

● The plug may not be fully

inserted.

Check whether the plug is

properly inserted into the

outlet.

The unit suddenly

stops.

● The temperature exceeds the

threshold of the thermal cut

o.

First unplug the unit and when

the unit is cooled, insert it into

the outlet again.
