OWNER’S MANUAL

PHT30D7BBC

Warning Notice: Before using

this product, please read this

manual carefully and keep it for

future reference. For additional

support, please call customer

service at 1-866-646-4332.

The design and specifications are

subject to change without prior

notice for product improvement.

Consult with your dealer or

the manufacturer for details.

Voltage: 120V~

Power: 1500W

Frequency: 60Hz

Digital Ceramic

Tower Heater

PHT30D7BBC

PLEASE READ AND SAVE THESE

IMPORTANT SAFETY INSTRUCTIONS

●

Read all instructions before using heater.

Extreme caution is necessary when any heater is used

by or near children or invalids and whenever the heater

is left operating and unattended.

CAUTION: This appliance has a polarized plug (one

blade is wider than the other). To reduce the risk of

shock, this plug is intended to fit only one way in a

polarized outlet. If the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. DO NOT attempt to defeat this

safety feature. To do so could result in an electric shock

hazard.

CAUTION: It is normal for the plug to feel warm to the

touch; however, a loose fit between the AC outlet

(receptacle) and plug may cause overheating and

distortion of the plug. Contact a qualified electrician to

replace loose or worn outlet.

CAUTION: Always plug heaters directly into a wall

outlet/receptacle. Never use with an extension cord or

reloadable power tap (outlet/power strip).

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH

WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY

INSERT.

When using electrical appliances,basic precautions

should always be followed to reduce the risk of fire,

electric shock, and injury to persons, and

hyperthermia,including the following:

IMPORTANT SATETY INSTRUCTIONS

CAUTION

●

This heater is hot when in use. To avoid burns, do not

let bare skin touch hot surface. If provided, always use

handles when moving this heater. Keep combustible

materials such as furniture, pillows, bedding, papers,

clothes and curtains at least 3 feet (0.9m) from the

front of the heater and keep them away from the sides

and rear.

Always unplug the heater when not in use.

Do not operate any heater with a damaged cord or

plug or after the heater malfunctions, has been dropped

or damaged in any manner. Discard heater or return

heater to authorized service facility for examination,

electrical or mechanical adjustment, or repair.

Do not use the heater outdoors.

This heater is not intended for use in bathroom, laundry

areas and similar moist indoor locations. Never locate

heater where it may fall into a bathtub or other water

container.

Do not run cord under carpeting. Do not cover cord

with throw rugs, runners, or similar coverings. Do not

route cord under furniture or appliances. Arrange cord

away from traffic area and where it will not be tripped

over.

This heater draws 12.5 amps during operation. To

prevent overloading a circuit, do not plug the heater

into a circuit that already has other appliances working.

To disconnect the heater, first turn controls to off, then

remove plug from outlet. Never pull by the cord.

Do not insert or allow foreign objects to enter any

ventilation or exhaust opening as this may cause an

electric shock or fire, or damage the heater.

To prevent a possible fire, do not block air intakes or

exhaust in any manner. Do not use on soft surface, like

a bed, where openings may become blocked.

WARNING

●

A heater has hot and arcing or sparking parts inside. Do

not use it in the areas where gasoline, paint, or

flammable liquids are used or stored.

Use this heater only as described in this manual. Any

other use not recommended by the manufacturer may

cause fire, electric shock, or injury to persons.

The output of this heater may vary and its temperature

may become intense enough to burn exposed skin. Use

of this heater is not recommended for persons with

reduced sensitivity to heat or an inability to react to

avoid burns.

Hyperthermia can result in death. Symptoms of

hyperthermia include high body temperature,

headache, nausea, vomiting, tiredness, dizziness,

fainting, and rapid pulse. If you begin to experience

symptoms related to hyperthermia, turn off the heater

and seek medical attention.

To avoid excessive room temperatures which can cause

hyperthermia: DO NOT leave product running

unattended in a confined space around infants, or

individuals with reduced physical, sensory, or mental

capabilities.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

PHT30D7BBCProduct Model

Voltage

Frequency

120V~

60Hz

Power Regulation Range

LOW

HIGH

900W

LOW OSC 900W

HIGH OSC 1500W

1500W

PRODUCT OVERVIEW

Display screen

Grille

Front cover

Control panel

Rear cover

Base

Part Name

NOTE

All the pictures in this manual are for explanation purposes only. Any discrepancy

between the real object and the illustration in the drawing shall be subject to the real

model.

OPERATION INSTRUCTIONS

• Check if the power cord is under good condition.

• The product adopts 120V AC power supply, before use, please confirm if the rated

current of the power socket meets the local requirements with safe grounding device,

otherwise, please replace it with the qualified socket.

Display

area

Function descriptionButtonNo

• Repeatedly press the “Function” key so that the heater

switches in the order of “high gear - low gear- ECO

mode – fan only mode- high gear”.

Function

ON/OFF

• Plug the unit into a grounded 120V outlet, the power

light “ ” on , press the ON/OFF key (or press the

ON/OFF key of the remote controller) for start, the

machine supplies air at high power after start, the

digital screen displays “HI”.

• The electric heater in operation mode, press the

"Oscillation" key to open the oscillation function,

pressing this button to turn off the oscillation function;

when the electric heater stops heating function, the

wind oscillating function also stop.

Oscillation

Check Before Turning On The Machine

Panel Operation & Display

Additional Functions

Forced shutdown function

If the machine keeps running for 15 hours without any operation, it will automatically

shut down.

Temperature sensor short circuit, open circuit protection function

No matter in what mode, the temperature sensor appears short circuit or open circuit,

digital screen displays “E1” or “E2” and constantly flicker, while any key operation is

invalid and the buzzer rings 10 times.

Safety protection

When power on, if the room temperature TH is above 50°C , machine will close all

outputs system, The digital screen will show “FF” and flash 1 time per second in 75 times,

press any key will not work, only plug off to stop the protection.

• Press “+” or “-” can set the temperature value or timer.

• In the ECO mode of the machine, press “+” or “-” can set

the temperature value, set the range of 5-35°C. When the

room temperature exceeds the set temperature at 2°C,

the machine stops working, and stay in the standby state.

• When the temperature is lower than the set

temperature, the machine starts to heat up again.

Adjustment

Tip-over switch

As a safety measure, the display area will show “P4” and unit will shut off automatically if

it is knocked over. Should this occur, simply turn the heater off and stand it back up to a

regular upright posit ion, then switch it back on.

ECO energy saving function

Select the ECO energy saving gear and set the temperature. The heater will adjust its

heating gear by comparison between the ambient temperature and set temperature.

Function descriptionButtonNo

• When the heater is turned on, press the TIMER key to

enter the timing stop state (within 0-12 hours), then

press the "+" key to increase the timing stop time,and

press the "-" key to decrease the timing stop time.

Timer

NOTE

• Please use a manganese or alkaline battery of type “AAA” and do not use a non-recy-

clable battery.

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc.)

batteries.

• Use of the remote controller: the key functions are basically the same as the body

operation panel.

• Control range of remote controller The remote controller control can be normally used

within 5 meters in front of the product and in the left and right angles of 30 degrees.

AAA Battery. 1.5V

Battery

ON/OFF

Timer

Oscillation

Temperature Decrease

Function

Temperature Increase

Remote Control

Remote Controller

CLEANING AND MAINTENANCE

WARNING

This heater cannot achieve accurate temperature control of the enviroment, and thus

cannot be used as insulation device for storage environment, items, animals and plants.

• Turn the heater “OFF” , unplug it and wait for the heater to cool down.

• Use a dry cloth to clean only external surfaces of the heater.

• Do not use any cleaning agents or detergents.

• Never immerse the heater in water.

• Pack the heater in the original carton and store it in a cool and dry place.

• Any other maintenance shall be performed by an authorized.

It is recommended that the heater be cleaned at least one time during the operating

season in order to provide the optimum level of performance. ALWAYS TURN THE

POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING. Be sure to save

the box for off-season storage.

TROUBLESHOOTING

If the product does not operate or does not operate properly, first check according to

the following list. If the reason the product does not operate or does not operate

properly is not included in the following list, the product mayhave failed. At this time, it

is recommended to send the product to the dealer for treatment.

Solution

Cause SolutionProblem

After the power is

engaged,the

machine does not

work.

The machine

suddenly stops

during heating.

• The plug may not be plugged

well.

• The temperature exceeds the

threshold of the thermal

cut-off.

Check whether the plug is

properly inserted into the

receptacle.

Pull off the plug manually, and

then insert it into the

receptacle again when the

machine is cooled.

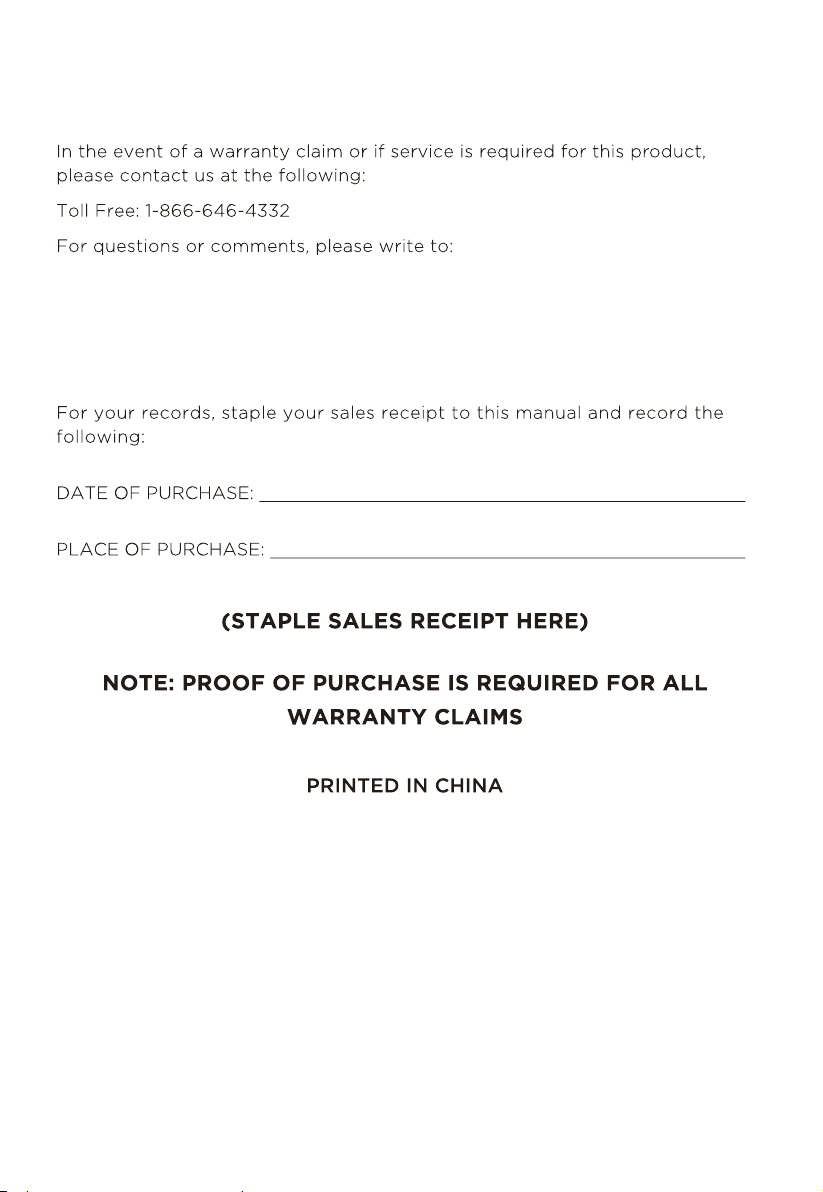

SERVICE AND SUPPORT

Midea America (Canada) Corporation

215 Shields Ct Unit #2,

Markham, ON L3R 8V2

Tabla de contenidos

Idiomas:

Otros manuales de Calentador de Pelonis

Pelonis

Pelonis PSH700G Manual de usuario

Pelonis

Pelonis HC-1010 Manual de usuario

Pelonis

Pelonis PTH15A2BGB Manual de usuario

Pelonis

Pelonis CH1001 Manual de usuario

Pelonis

Pelonis HO-0221 Manual de usuario

Pelonis

Pelonis HC-461 Manual de usuario

Pelonis

Pelonis HC-451 Manual de usuario

Pelonis

Pelonis HC-0119A Manual de usuario

Pelonis

Pelonis PSH20Q3ABB Manual de usuario

Pelonis

Pelonis HF-0021 Manual de usuario

Pelonis

Pelonis PSHF2022EOC Manual de usuario

Pelonis

Pelonis HF-0060 Manual de usuario

Pelonis

Pelonis HV-1004 Manual de usuario

Pelonis

Pelonis NTK15A Manual de usuario

Pelonis

Pelonis HC-0113 Manual de usuario

Pelonis

Pelonis NY1507-14A Manual de usuario

Pelonis

Pelonis HC-0119A Manual de usuario

Pelonis

Pelonis HO-201 Manual de usuario

Pelonis

Pelonis PSH08F1ABBC Manual de usuario

Pelonis

Pelonis HF-0019 Manual de usuario

Pelonis

Pelonis Safe-T FURNACE HC-445 Manual de usuario

Pelonis

Pelonis PSH700 Manual de usuario

Pelonis

Pelonis NTH15-17MR Manual de usuario

Pelonis

Pelonis PHTPU1501WC Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
