PEERLESS Mounts Solid-Point PLA 2 Guía
1 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
Read instruction sheet before you start assembly and installation.
Maximum Load Capacity: 90 lb (40.9 kg)

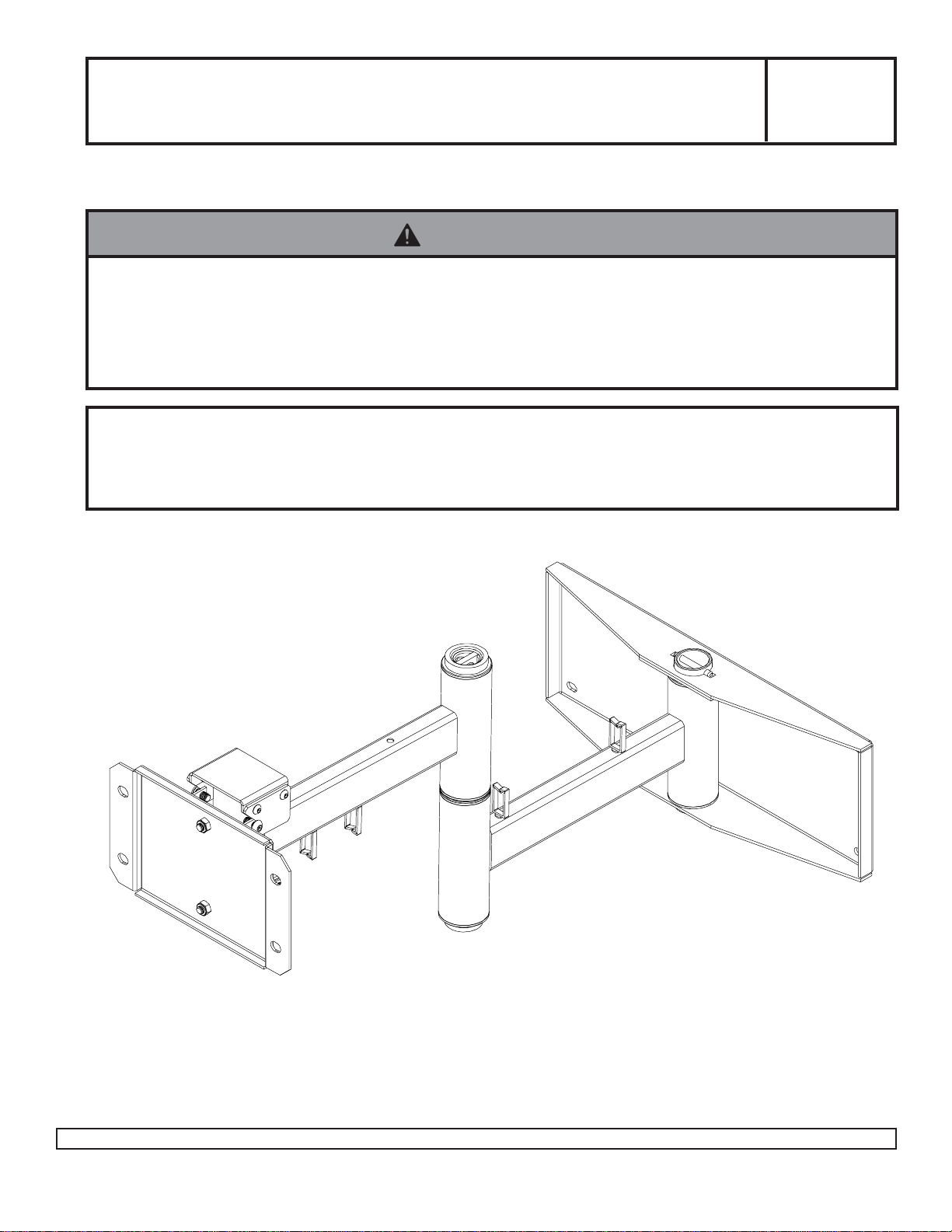

Installation & Assembly - Solid•Point™Articulating Swivel Arm for Large
Flat Panel Screens Models:
PLA 2,
PLA 2S
Installations:
ToWoodStudWalls .......................................................................................................... page 2
ToSolid Concrete, ConcreteBlock, orBrick Walls ............................................................. page 3
Twoinstructionsheetsareincludedwithyourproduct.Beginwiththissheet.
• It is the responsibility of the installer to verify that the supporting surface will safely support the combined load of
allattachedhardwareandcomponents.
• Use an assistant or mechanical lifting equipment to safely lift and position the plasma screen.
• Do not attach directly to a metal stud wall. Use of a triple stud WSP wall plate is required for attachment to metal
studs (contact customer care).
WARNING
2 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
Use wall bracket as a template to mark and drill four
5/32" (4 mm) dia. holes to a minimum depth of 2.5"
(64 mm). Make sure wall plate (A) is level and attach
using #14 x 2 1/2" (6 mm x 38 mm) wood screws (J)
and screw head covers (K). Tighten screws with
phillips screwdriver (not provided) and push screw
head cover over wood screw heads.
A
Installation To Wood Stud Walls
Q
L
Before you start make sure all parts
listed are included with your product.
PART # PART # QTY. DESCRIPTION
PLA 2 PLA 2S
A200-1413 200-4413 1 wall bracket
B200-1418 200-4418 1 swivel weldment
C200-1052 200-1052 1 wall support arm axle
D200-1483 200-4483 1 swivel bracket
E200-0437 200-0441 1 swing arm assembly
F200-0439 200-0440 1 roll pitch assembly
G590-1089 590-1089 4 cable clip
H5M9-025-X02 5M9-025-X02 1 holding pin
I560-9641 560-9641 1 snap ring
J5S1-015-C03 5S1-015-C04 4 #14 x 2.5" hex head phillips screw
K560-1029 560-2029 4 3/8" screw head cover
L520-1068 520-2068 4 M8 x 15 mm socket pin screw
M520-1066 520-2066 4 M6 x 10 mm socket pin screw
N590-0097 590-0097 4 alligator anchor
O520-9263 520-2176 4 M10 x 1.5" x 15 mm penta-pin screw
P520-9260 520-9260 1 M10 x 2" penta-pin driver
Q560-9646 560-9646 1 4 mm security allen wrench
Parts List
Some parts may appear slightly different than illustrated.
A
M
K
B
C
G
E
I
D
F
HJOP
K
J
N
• Tighten wood screws so that wall bracket is firmly
attached,butdonotovertighten. Overtightening can
damagescrews,greatlyreducingtheirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
• Make sure that mounting screws are anchored into the
center of the studs. The use of an "edge to edge" stud
finderishighlyrecommended.
WARNING
3 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
CUTAWAYVIEW
INCORRECT
concrete
surface
1
3
2
N
Drill hole(s) and insert anchor(s)
N
mounting
plate
CORRECT
IMPORTANT!Concretemustbe2000psidensityminimum.
For Concrete Surfaces use wall bracket (A), making sure
that it is level, as a template to mark holes. Drill 1/4" (6 mm)
dia. holes to a minimum depth of 2.5" (64 mm). Insert
anchors (N) in holes flush with wall as shown (right). Place
wall bracket (A) over anchors (N) and secure with #14 x 2.5"
(6 mm x 65 mm) wood screws (J) and screw head covers
(K). Tighten screws with phillips screwdriver (not provided)
and push screw head covers over wood screw heads.
K
J
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1 5/8" of actual concrete
surface in the 1/4" diameter hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount
in a solid part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90
specifications. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a
hammerdrill to avoid breaking outthe back ofthe holewhen entering avoid or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardwareand components.
• Neverexceed the Maximum Load Capacityof 90lb (40.9kg).
WARNING
A
Place plate over anchor(s) and secure with screw(s)
Tighten all fasteners
• Always attach concrete expansion anchors directly to
load-bearingconcrete.
• Neverattachconcreteexpansion anchors to concrete
coveredwithplaster,drywall, or other finishing mate-
rial.Ifmounting to concrete surfaces coveredwith a
finishingsurface is unavoidable, the finishing surface
mustbecounterbored as shown below.If plaster/
drywall is thicker than 5/8", custom fasteners must be
suppliedbyinstaller.
WARNING
mounting
plate
plaster/
drywall
concrete mounting
plate concrete
plaster/
drywall
• Tighten wood screws so that wall plate is firmly
attached,but do not overtighten.Overtightening can
damagescrews,greatlyreducingtheirholdingpower.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
4 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
E
CH
I
Insert holding pin (H) into wall support arm axle (C). Insert axle (C)through wall bracket(A)and lower swing arm (E). Lock
axle (C) in place with holding pin (H). IMPORTANT: Be sure swing arm is in correct position shown below with plastic
cap at top.
Next thread snap ring (I) into groove at bottom of axle (C) protruding from wall bracket (A) as shown.
SNAP RING INSTALLATION: Pull snap ring apart. Wind it around the tube while feeding it into the groove. Finish by
snapping the end of the snap ring into groove.
NOTE: Fit of axle (C) into wall bracket (A) and lower swing arm (E) will be tight.
Gently tap into place with a hammer if necessary.
I
H
E
groove
1
3
2
groove
I
C
A
Insert swivel weldment (B) through swing arm (E).
Align holes in swivel bracket (D) with holes in swivel weldment (B) and secure with four M6 x 10 mm socket pin screws (M)
as shown.
D
J
NOTE: Fit of rotation box
(B) into tube will be tight.
Gently tap into place with
a hammer if necessary
B
D
EMB
D
CORRECT POSITION
5 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
F
O
Attach roll pitch assembly (F) to adapter plate/plasma
screen assembly (not included) using four M10 x 15 mm
penta-pin screws (O).
BACK OF PLASMA
ADAPTER PLATE
ADAPTERPLATE AND SCREEN
MAYAPPEARDIFFERENTTHAN
ILLUSTRATED
Insert two M8 screws (L) into roll pitch assembly (F). Leave
approx. 1/4" of exposed thread as shown in detail.
Hook roll pitch assembly/monitor
onto swivel bracket (D).
L
L
D
Adjust tilt as needed and secure with two M8 x 15 mm
screws (L). Use allen wrench (Q) to tighten screws.
1/4" CUTAWAY
VIEW
• Use an assistant of mechanical lifting equipment to
safely lift and position the screen.
WARNING
6 of 6 ISSUED: 07-23-03 SHEET #: 201-9073-4 07-14-05
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
©2005Peerless Industries,Inc. All rightsreserved.
Peerlessis aregistered trademarkof Peerless Industries,Inc.
Solid•Pointisa trademarkoftrademark ofPeerless Industries, Inc.
Allother brand andproduct names aretrademarks or registeredtrademarks of their respective owners.
Snap four cable clips (G) in to
swing arm assembly (E) as shown.
G
E
